1. Introduction and Safety Information
This manual provides instructions for the safe installation, operation, and maintenance of your Hampton Bay Glendale 52-inch Brushed Nickel Ceiling Fan. Please read and understand all instructions before beginning installation or use. Retain this manual for future reference.
Important Safety Instructions:
- Always disconnect power at the circuit breaker before installation or servicing.
- Ensure all electrical connections comply with local codes and ordinances.
- The fan must be mounted to a ceiling joist or a suitable outlet box marked "Acceptable for Fan Support of 35 lbs (15.9 kg) or less."
- Do not bend blade holders during installation or cleaning.
- Ensure all screws are tightened securely.
- Do not operate the fan with damaged parts.
- Consult a qualified electrician if you are unsure about wiring procedures.
2. Package Contents
Carefully unpack all components and ensure you have received all items listed below. If any parts are missing or damaged, contact Hampton Bay customer service.

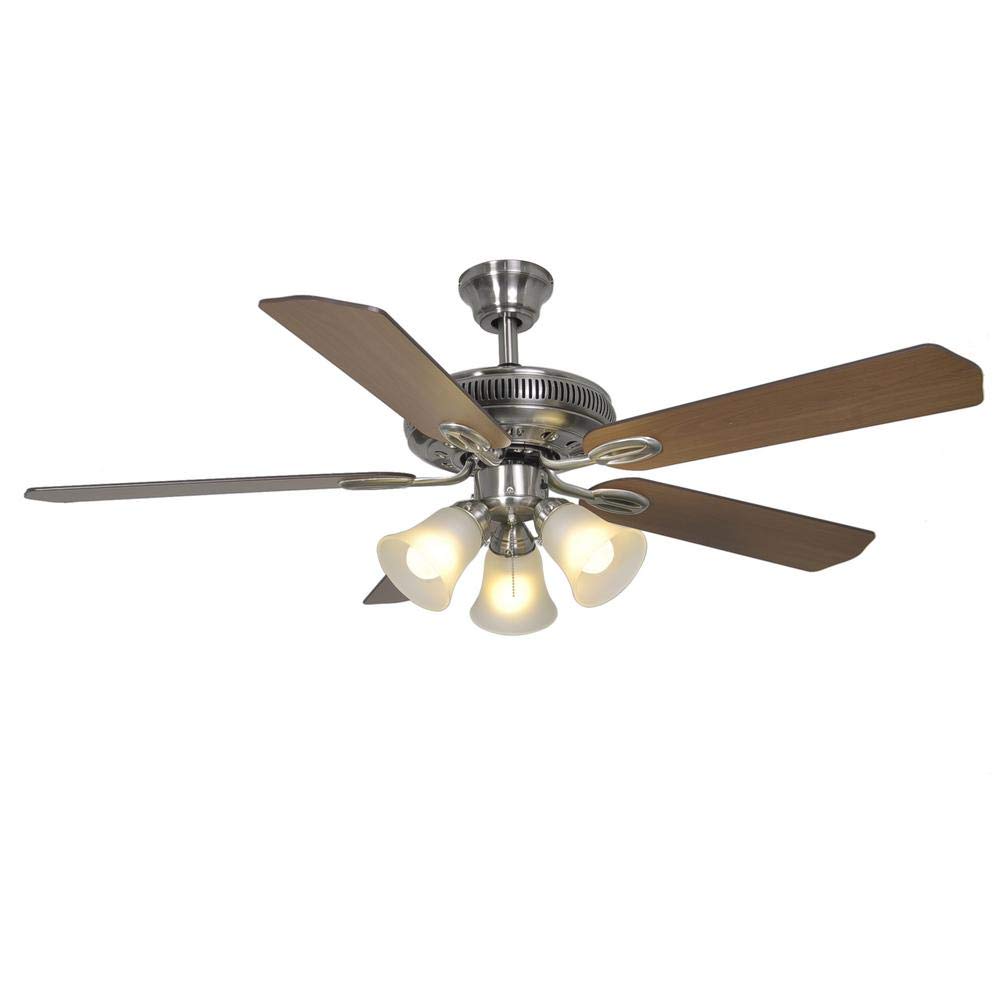

- Ceiling Fan Motor Assembly (Brushed Nickel finish)
- Five (5) Reversible Fan Blades (Mahogany/Maple finish)
- Five (5) Blade Brackets
- Light Kit Assembly with Frosted Glass Shades
- Three (3) 13-Watt CFL Bulbs
- Mounting Bracket and Hardware Kit
- Downrod Assembly
- Pull Chains for Fan Speed and Light Operation
3. Setup and Installation
Installation requires basic electrical knowledge. If you are uncomfortable with electrical work, consult a licensed electrician.
3.1 Mounting the Fan
- Turn off power at the circuit breaker.
- Secure the mounting bracket to the ceiling outlet box. Ensure the outlet box is rated for ceiling fan support.
- Assemble the downrod to the fan motor assembly.
- Carefully lift the fan assembly and hang it from the mounting bracket.
3.2 Electrical Wiring
- Connect the fan's electrical wires to the household wiring according to the provided wiring diagram (refer to the separate wiring diagram sheet included in your package).
- Ensure all wire nuts are securely fastened.
- Tuck all wires neatly into the outlet box.
3.3 Attaching Fan Blades
- Attach each fan blade to a blade bracket using the provided screws. The blades are reversible, offering mahogany or maple finishes. Choose your desired finish before attachment.
- Secure each blade assembly to the fan motor housing.
3.4 Installing the Light Kit
- Connect the light kit wires to the corresponding wires from the fan motor.
- Carefully align the light kit assembly with the fan's bottom housing. Due to the compact design, wires may need to be carefully arranged to allow for proper alignment of screw holes.
- Secure the light kit with the provided screws.
- Install the three 13-Watt CFL bulbs into the sockets.
- Attach the frosted glass shades.
4. Operating Instructions
Your Hampton Bay Glendale ceiling fan features a 3-speed reversible motor and a light kit.
4.1 Fan Speed Control
- The fan speed is controlled by a pull chain. Pull the chain repeatedly to cycle through High, Medium, Low, and Off settings.
- A remote control may also be used if purchased separately or included with your specific model. Refer to the remote control's manual for pairing and operation.
4.2 Light Operation
- The light kit is operated by a separate pull chain. Pull the chain to turn the lights On or Off.
4.3 Reversing Blade Direction (Seasonal Use)
The fan features a reversible motor for year-round comfort. A switch on the fan motor housing controls the direction of blade rotation.
- Summer Operation: Set the switch to allow blades to rotate counter-clockwise, creating a downward airflow that produces a cooling effect.
- Winter Operation: Set the switch to allow blades to rotate clockwise, creating an upward airflow that circulates warm air near the ceiling.
- Caution: Ensure the fan is completely stopped before changing the direction switch.
5. Maintenance
Regular maintenance helps ensure the longevity and optimal performance of your ceiling fan.
- Cleaning: Periodically clean the fan blades and motor housing with a soft, damp cloth. Do not use abrasive cleaners or solvents. Clean glass shades with a mild glass cleaner.
- Tightening Screws: Check all screws and connections annually to ensure they remain secure. Loose connections can cause noise or wobbling.
- Bulb Replacement: Replace 13-Watt CFL bulbs with bulbs of the same type and wattage. Ensure power is off before replacing bulbs.
6. Troubleshooting
Before performing any troubleshooting, ensure power is disconnected at the circuit breaker.
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start |
|
|
| Lights do not work |
|
|
| Fan wobbles |
|
|
7. Specifications
- Brand: Hampton Bay
- Model Name: Glendale
- Model Number: AG524-BN
- Size: 52 inches (Blade Length)
- Number of Blades: 5
- Blade Finish: Reversible Mahogany/Maple
- Fan Finish: Brushed Nickel
- Light Kit: 3-light kit with Frosted Glass shades
- Bulbs Included: Three (3) 13-Watt CFL bulbs
- Motor: 3-speed reversible motor
- Control Method: Pull Chain (Remote Control compatible, sold separately or included with specific models)
- Voltage: 120 volts
- Wattage: 28 watts (fan motor)
- Indoor/Outdoor Usage: Indoor
- Material: Glass (shades)
- Item Weight: 19.5 pounds
8. Warranty and Support
For warranty information or technical support regarding your Hampton Bay Glendale Ceiling Fan, please contact Hampton Bay customer service directly. Keep your purchase receipt as proof of purchase.
Contact information for Hampton Bay can typically be found on their official website or on the product packaging.
