1. Introduction and Product Overview
This manual provides essential information for the installation, operation, and maintenance of the AAF VariCel SH STD Air Filter. The VariCel SH STD is a high-efficiency air filter designed for use in various HVAC systems, providing superior air quality by capturing a wide range of airborne particulates.
The AAF VariCel SH STD Air Filter, with dimensions of 24x24x12 inches and a MERV13 rating, is engineered for robust performance and extended service life in demanding environments. Its design ensures efficient filtration while maintaining optimal airflow.
Figure 1: Front view of the AAF VariCel SH STD Air Filter.
2. Product Specifications
| Attribute | Value |
|---|---|
| Brand | AAF (American Air Filter) |
| Model | VariCel SH STD |
| Dimensions (Nominal) | 24 x 24 x 12 inches |
| MERV Rating | MERV13 |
| Filter Type | High-efficiency pleated filter |
| Application | HVAC systems, commercial and industrial |
Figure 2: Side view of the AAF VariCel SH STD Air Filter, showing its depth.
3. Installation and Setup
Proper installation is crucial for the optimal performance and longevity of your AAF VariCel SH STD Air Filter. Always ensure the HVAC system is turned off before beginning installation.
3.1 Safety Precautions
- Always wear appropriate personal protective equipment (PPE), including gloves and eye protection.
- Ensure the HVAC system's power is completely disconnected and locked out before accessing filter compartments.
- Handle filters carefully to avoid damage to the media.
3.2 Installation Steps
- Locate the filter access panel in your HVAC system.
- Open the access panel and carefully remove the old filter. Note the airflow direction indicated on the old filter or the system.
- Inspect the filter housing for any debris or damage and clean if necessary.
- Unpack the new AAF VariCel SH STD Air Filter. Verify the dimensions match your system's requirements.
- Identify the airflow arrow printed on the side of the new filter. This arrow must point in the direction of the airflow within your HVAC system (typically towards the furnace/air handler).
- Slide the new filter into the housing, ensuring a snug fit to prevent air bypass.
- Close and secure the filter access panel.
- Restore power to the HVAC system.

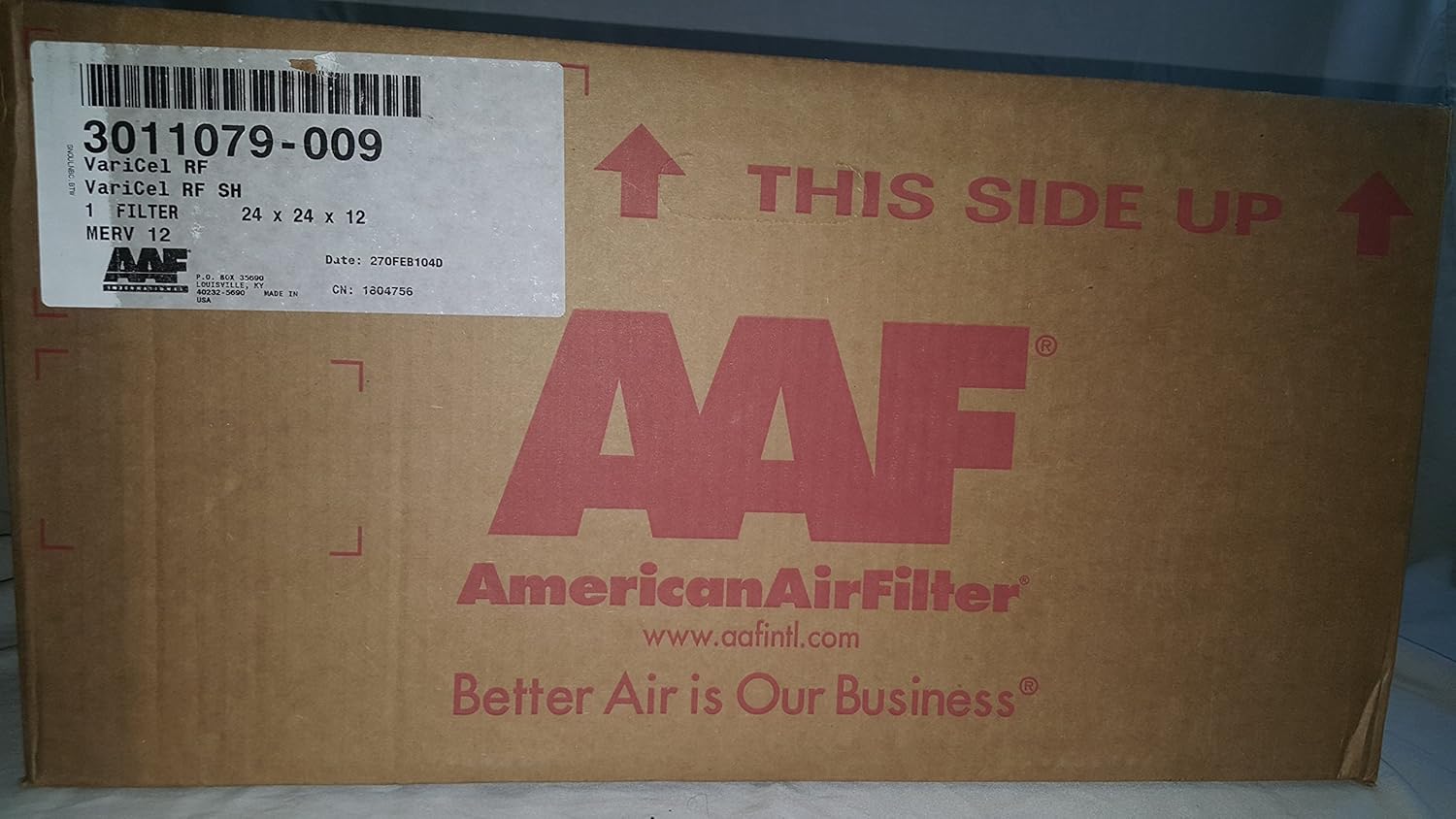

Figure 3: Packaging of the AAF VariCel SH STD Air Filter, indicating proper handling and dimensions (24x24x12 inches).
For more information on this specific packaging, refer to Product Code 3011079-009.
4. Operation
Once installed, the AAF VariCel SH STD Air Filter operates passively as part of your HVAC system. No direct user interaction is required for its operation.
4.1 Airflow Direction
Always ensure the filter is installed with the airflow arrow pointing in the correct direction. Incorrect installation can reduce filtration efficiency and potentially damage the filter or HVAC system.
4.2 System Performance
The MERV13 rating of this filter indicates its high efficiency in capturing fine particles, including pollen, dust mites, mold spores, and pet dander. Regular operation of your HVAC system with this filter will contribute to improved indoor air quality.
5. Maintenance
Regular maintenance, primarily filter replacement, is essential to maintain optimal air quality and HVAC system efficiency.
5.1 Filter Replacement Schedule
The lifespan of the AAF VariCel SH STD Air Filter depends on several factors, including:
- HVAC system usage (continuous vs. intermittent)
- Presence of pets
- Number of occupants
- Local air quality (e.g., construction, pollution)
- Presence of smokers
As a general guideline, inspect the filter monthly and replace it every 3 to 6 months. In environments with high particulate loads, more frequent replacement may be necessary.
5.2 How to Check and Replace the Filter
Follow the same steps as outlined in Section 3.2 for installation. A dirty filter will appear discolored and may have a visible buildup of dust and debris on the intake side.
Figure 4: Close-up view of the pleated filter media, which captures airborne particles.
6. Troubleshooting
Most issues related to air filters are resolved by proper installation and timely replacement.
| Problem | Possible Cause | Solution |
|---|---|---|
| Reduced Airflow | Clogged filter; Incorrect filter size; Filter installed backward. | Replace filter; Ensure correct filter size; Reinstall filter with arrow pointing in airflow direction. |
| Poor Air Quality | Overdue filter replacement; Air bypass around filter. | Replace filter more frequently; Ensure filter fits snugly in housing. |
| Increased Energy Consumption | Clogged filter causing HVAC system to work harder. | Replace filter. |
7. Warranty and Support
For specific warranty information regarding the AAF VariCel SH STD Air Filter, please refer to the documentation provided by American Air Filter (AAF) at the time of purchase or visit their official website. AAF products are manufactured to high standards, and support is available for product-related inquiries.
For technical support or further assistance, please contact AAF customer service through their official channels. Keep your purchase receipt and product model information readily available when contacting support.
Official AAF Website: www.aafintl.com
