Introduction
This user manual provides essential information for the safe and effective use of your BONAI AAA 1100mAh 1.2V Ni-MH rechargeable batteries. Please read these instructions carefully before first use and retain them for future reference.
These batteries are designed for a wide range of household and electronic devices, offering a reliable and reusable power source.
Product Features
- High Capacity: Each AAA battery provides 1100mAh of power, suitable for various devices.
- Rechargeable: Designed for up to 1200 charge cycles under optimal usage conditions, offering a long lifespan.
- Low Self-Discharge: Maintains approximately 75% of its charge after 3 years of storage, allowing for immediate use even after extended periods.
- Leak-Proof Design: Features a sealed structure and high-quality materials, including a nickel-plated steel shell, to minimize the risk of corrosion and leakage.
- Wide Temperature Range: Operates effectively in temperatures ranging from -20°C to 60°C, suitable for diverse environments.
- Eco-Friendly: Free from harmful substances such as mercury (Hg), cadmium (Cd), and lead (Pb).
Setup and First Use
- Initial Charge: Although batteries come pre-charged, it is recommended to fully charge them before the first use for optimal performance.
- Insert into Charger: Place the batteries into a compatible Ni-MH battery charger. Ensure correct polarity (+ and - terminals).
- Charging Process: Follow the instructions provided with your battery charger. Charging times may vary depending on the charger model and battery discharge level.
- Installation: Once fully charged, insert the batteries into your device, observing the correct polarity markings.
Image: BONAI AAA batteries shown with a selection of compatible Ni-MH battery chargers. These batteries are designed to work with any standard Ni-MH charger.
Image: A BONAI AAA battery centrally placed, illustrating its compatibility with a range of devices such as headphones, game controllers, computer mice, cameras, calculators, remote controls, and alarm clocks.
Operating Instructions
These BONAI AAA Ni-MH rechargeable batteries are suitable for a wide array of electronic devices that require AAA size batteries. Always ensure that the device is compatible with Ni-MH batteries and the correct voltage (1.2V).
- Device Compatibility: Use these batteries in devices such as remote controls, wireless mice, keyboards, toys, flashlights, digital cameras, and other small electronics.
- Polarity: Always insert batteries with the correct positive (+) and negative (-) orientation as indicated in your device's battery compartment.
- Mixing Batteries: Do not mix new and old batteries, or different types/brands of batteries, as this can lead to leakage or reduced performance.
- Discharge: For best results and to prolong battery life, it is advisable to fully discharge batteries before recharging, especially during the first few cycles.
Maintenance and Storage
- Charging Cycles: These batteries are designed to withstand up to 1200 charge and discharge cycles. Regular charging and proper usage contribute to their longevity.
- Storage: Store batteries in a cool, dry place away from direct sunlight and extreme temperatures. The low self-discharge technology ensures they retain charge for extended periods.
- Temperature Resilience: The batteries maintain stable performance across a wide temperature range, from -20°C to 60°C.
- Cleaning: If battery terminals become dirty, clean them with a dry cloth to ensure good electrical contact.
Image: Visual representation indicating that BONAI Ni-MH batteries can be recharged up to 1200 times, highlighting their reusability and economic benefits compared to alkaline batteries.

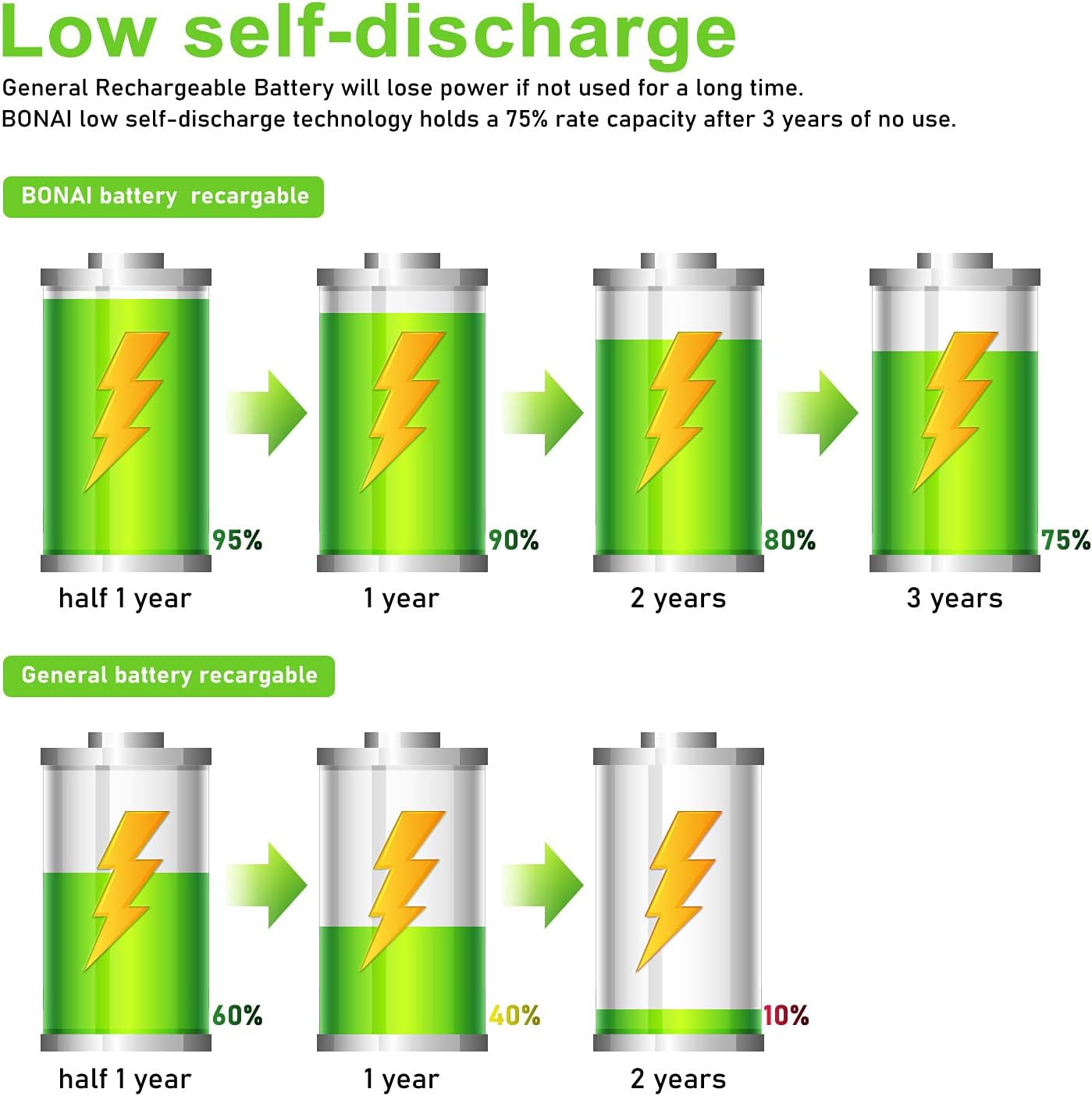

Image: A comparison chart showing the low self-discharge rate of BONAI rechargeable batteries. It illustrates that BONAI batteries retain up to 75% of their charge after 3 years of storage, significantly better than general rechargeable batteries.
Image: A BONAI AAA battery depicted between snowflake and sun icons, indicating its capability to operate under a wide temperature range from -20°C to 60°C.
Safety Information
- Leakage Prevention: The batteries feature a superior internal structure with a separator between the anode and cathode to reduce the possibility of leakage.
- Environmental Safety: These batteries are designed to be eco-friendly, containing no mercury, cadmium, or lead.
- Short Circuit Protection: An insulating ring surface effectively prevents short circuits.
- Disposal: Dispose of used batteries responsibly according to local regulations. Do not dispose of batteries in fire, as they may explode.
- Children: Keep batteries out of reach of small children. If swallowed, seek immediate medical attention.
- Damage: Do not use batteries that are damaged, leaking, or deformed.
Image: An exploded view diagram of the BONAI AAA battery, highlighting its leak-proof design features including a sealing ring, vent hole, explosion-proof ball, and high-energy Ni-MH core.
Image: A BONAI AAA battery in a natural setting, with symbols for Lead (Pb), Cadmium (Cd), and Mercury (Hg) crossed out, emphasizing its eco-friendly composition free from these pollutants.
Image: A cutaway illustration of a battery, detailing the positive terminals and the insulating ring surface designed to prevent leakage and short circuits, ensuring safety and durability.
Troubleshooting
- Batteries not charging:
- Ensure batteries are inserted correctly into the charger with proper polarity.
- Verify that the charger is plugged in and functioning.
- Check if the batteries or charger are damaged.
- Try cleaning the battery terminals and charger contacts.
- Short operating time after full charge:
- The device might be consuming more power than expected.
- Batteries may be nearing the end of their lifespan (after many cycles).
- Ensure the charger is fully charging the batteries.
- Extreme temperatures can affect battery performance.
- Device not powering on:
- Check battery insertion and polarity.
- Ensure batteries are fully charged.
- Test with different, known-good batteries to rule out device issues.
Specifications
| Feature | Detail |
|---|---|
| Battery Type | Ni-MH (Nickel-Metal Hydride) |
| Size | AAA |
| Capacity | 1100mAh |
| Voltage | 1.2 Volts |
| Amperage | 1.2 A |
| Reusability | Rechargeable (up to 1200 cycles) |
| Model Number | AAA SERIES |
| Operating Temperature | -20°C to 60°C |
| Dimensions (L x W x H) | 43 x 13 x 13 millimeters |
| Environmental Features | Mercury-free, Cadmium-free, Lead-free |
Warranty and Support
BONAI products are manufactured to high-quality standards. For specific warranty details, please refer to the documentation included with your purchase or contact BONAI customer support.
If you encounter any issues or have questions regarding your BONAI AAA rechargeable batteries, please contact the retailer or BONAI customer service for assistance. Keep your purchase receipt as proof of purchase.
While some reviews mention a 2-year warranty extension, official warranty terms should be verified through the product packaging or manufacturer's website.
