1. Safety Information
Please read all instructions carefully before installation and use. Keep this manual for future reference. Failure to follow these instructions may result in property damage or personal injury.
- Always turn off the main water supply before beginning any installation or maintenance work.
- Wear appropriate personal protective equipment (PPE) such as safety glasses and gloves during installation.
- Ensure the installation area is well-lit and free from obstructions.
- If you are unsure about any part of the installation process, consult a qualified plumber or professional installer.
- Do not use abrasive cleaners or harsh chemicals on the sink surface, as this may damage the material.
- Avoid dropping heavy or sharp objects into the sink, which could cause chipping or cracking.
2. Product Overview
The Schock Euro R100 is a high-quality composite sink designed for modern kitchens. It features a durable Cristalite Plus Granite construction, offering excellent resistance to scratches, heat, and impacts.

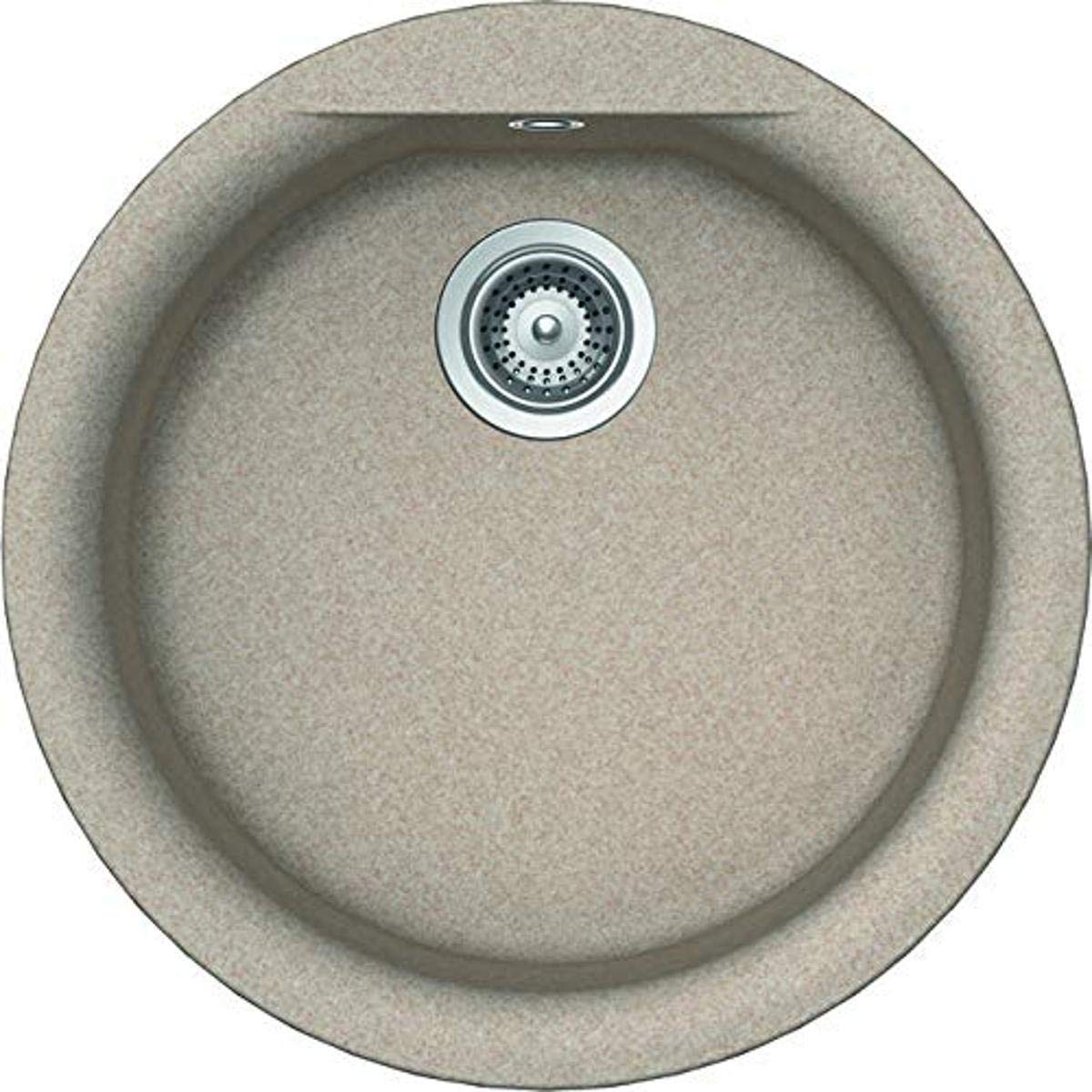

Figure 2.1: Schock Euro R100 composite sink. This image displays the round single bowl design and the Oat 58 finish of the sink.
Key Features:
- Material: Cristalite Plus Granite for superior durability.
- Bowl Type: Single round bowl with 357 mm inner diameter.
- Cabinet Compatibility: Requires a minimum cabinet width of 45 cm.
- Dimensions: Overall dimensions of 43.5 x 43.5 x 22 cm.
- Finish: Brushed finish in Oat 58 color.
3. Installation Guide
Proper installation is crucial for the optimal performance and longevity of your Schock sink. It is recommended that installation be performed by a qualified professional.
3.1 Before You Begin
- Unpack the sink and inspect it for any damage. Report any damage to your supplier immediately.
- Ensure all necessary components (faucet, drain, clips, sealant) are available.
- Verify that your cabinet opening matches the sink's dimensions and cutout template. The minimum cabinet width required is 45 cm.
- Turn off the water supply at the main valve.
3.2 Tools Required
- Jigsaw or appropriate cutting tool for countertop
- Drill
- Screwdriver set
- Adjustable wrench
- Sealant (silicone)
- Measuring tape and pencil
- Safety glasses and gloves
3.3 Installation Steps
- Prepare the Countertop: Use the provided template (if applicable) to mark the cutout area on your countertop. Carefully cut the opening using a jigsaw. Ensure edges are smooth.
- Install Faucet and Drain: Attach the faucet and drain assembly to the sink according to their respective manufacturer's instructions. Apply sealant as required to ensure watertight connections.
- Apply Sealant: Apply a continuous bead of silicone sealant around the perimeter of the sink cutout on the underside of the sink flange.
- Position the Sink: Carefully lower the sink into the countertop opening. Ensure it is properly aligned.
- Secure the Sink: Attach the mounting clips (if included) to the underside of the sink and tighten them against the countertop to secure the sink in place. Do not overtighten.
- Connect Plumbing: Connect the faucet supply lines to the water supply valves and the drain assembly to the P-trap. Hand-tighten connections, then use a wrench for a final snug fit.
- Test for Leaks: Turn on the main water supply and check all connections for leaks. Run water into the sink and observe the drain connections. Tighten any leaking connections.
- Cure Sealant: Allow the sealant to cure completely as per the manufacturer's instructions before heavy use.
Note: Specific installation details may vary based on your countertop material and plumbing setup. Always refer to any additional instructions provided with your faucet and drain components.
4. Operation
The Schock Euro R100 sink is designed for everyday kitchen tasks. Its durable surface is resistant to common household acids and stains.
4.1 Daily Use
- Use the sink for washing dishes, preparing food, and other typical kitchen activities.
- Avoid placing extremely hot pots or pans directly onto the sink surface without protection, although Cristalite Plus Granite is highly heat resistant.
- Do not use the sink as a cutting surface; always use a cutting board.
4.2 Water Flow
Ensure the faucet is properly connected and functioning. Adjust water temperature and flow as needed for your tasks. Always turn off the faucet completely after use to prevent drips and conserve water.
5. Care and Maintenance
Regular cleaning and proper care will help maintain the appearance and extend the life of your Schock Cristalite Plus Granite sink.
5.1 Routine Cleaning
- For daily cleaning, use a soft cloth or sponge with mild dish soap and warm water.
- Rinse the sink thoroughly after cleaning to remove all soap residue.
- Dry the sink with a soft cloth to prevent water spots, especially in hard water areas.
- For stubborn stains, a non-abrasive cream cleaner specifically designed for granite or composite sinks can be used. Follow the product's instructions.
5.2 Avoiding Damage
- Chemicals: Avoid contact with strong acids, alkalis, paint removers, oven cleaners, or other harsh chemicals. If accidental contact occurs, rinse immediately and thoroughly with water.
- Abrasives: Do not use abrasive pads, steel wool, or scouring powders, as these can scratch the surface.
- Heat: While highly heat resistant, extreme thermal shock can potentially cause damage. Avoid pouring boiling water directly onto a cold sink surface without running cold water simultaneously.
- Impact: Protect the sink from heavy impacts, which could cause chipping or cracking.
6. Troubleshooting
This section addresses common issues you might encounter with your Schock sink. For problems not listed here, please contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Water spots/Limescale | Hard water residue. | Wipe the sink dry after each use. For existing spots, use a diluted vinegar solution (1 part vinegar to 3 parts water) or a specialized limescale remover for granite sinks. Rinse thoroughly. |
| Stains (e.g., coffee, tea) | Pigmented liquids left on the surface. | Clean immediately with mild soap and water. For stubborn stains, use a non-abrasive cream cleaner or a diluted bleach solution (1 part bleach to 10 parts water) for a short period, then rinse thoroughly. |
| Slow drainage | Clogged drain or P-trap. | Remove and clean the drain stopper. Check the P-trap for blockages. Use a drain cleaner safe for plumbing, or consult a plumber if the blockage persists. |
| Leaking around sink edge | Improperly sealed or loose mounting clips. | Check and tighten mounting clips. Reapply silicone sealant around the sink perimeter if necessary. |
7. Technical Specifications
| Feature | Detail |
|---|---|
| Brand | Schock |
| Model Number | EURR100058 |
| Material | Cristalite Plus Granite (Stone) |
| Color | Oat 58 |
| Overall Dimensions (L x W x D) | 43.5 x 43.5 x 22 cm |
| Bowl Inner Diameter | 357 mm |
| Minimum Cabinet Width | 45 cm |
| Shape | Round |
| Style | Modern |
| Product Weight | 5.7 Kilograms |
| GTIN (EAN) | 04014949034640 |
| ASIN | B0711RV6YF |
8. Warranty and Support
Schock products are manufactured to high-quality standards and come with a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Schock website.
For technical assistance, spare parts, or any other inquiries, please contact Schock customer support through their official website or the contact information provided in your product packaging.
Official Schock Website: www.schock.de
