1. Introduction

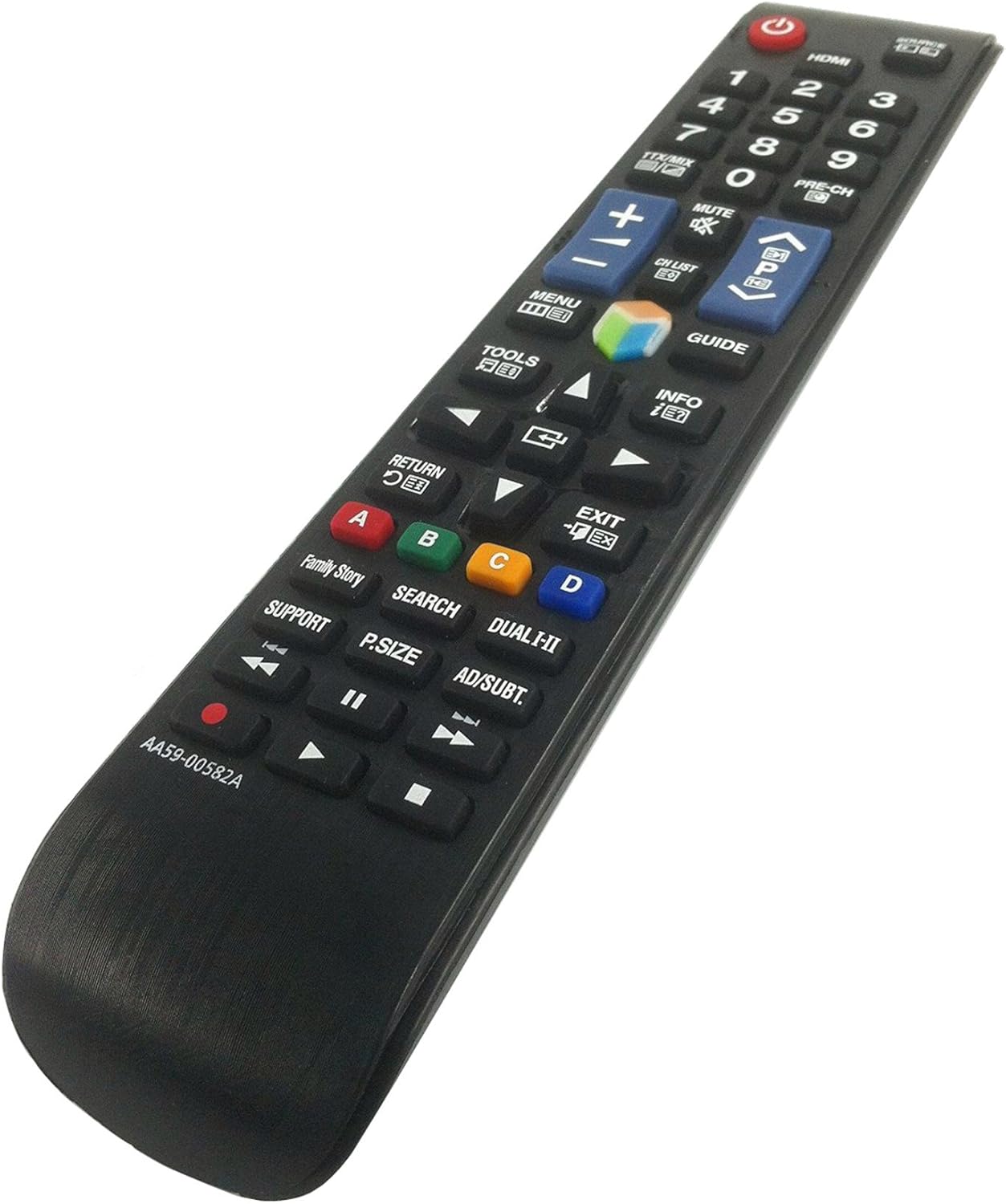

This manual provides instructions for the VINABTY AA59-00582A replacement remote control. This remote is designed to function as a direct replacement for various Samsung Smart TV models, offering full functionality without the need for complex programming.
Compatible Samsung TV Models include:
- UN32EH4500, UN46ES6100F, UN32EH5300, UN40EH5300F, UN40ES6100F, UN46EH5300F
- UN32EH5300FXZA, UN40ES6100FXZATS01, UN46ES6100FXZATS01, UN55ES6100FXZATS01
- UN60ES6100FXZA, UN60ES6100FXZAHH01, AA5900580A, UN32EH5300F, UN40EH5300F
- UN40EH5300FXZA, UN40ES6100F, UN40ES6150F, UN46EH5300F, UN46ES6100F
- UN46ES6150F, UN46ES7500F, UN46ES8000F, UN50EH5300F, UN50ES6100F
- UN50ES6150F, UN55ES6100F, UN55ES6100FXZA, UN55ES6150F, UN55ES7500F
- UN55ES7500FXZA, UN55ES7550F, UN55ES8000F, UN60ES6100F, UN60ES7500F
- UN60ES8000F, UN46EH5300FXZATH02, UN46EH5300FXZACH01
2. Setup
The VINABTY AA59-00582A remote control is designed for immediate use with compatible Samsung TVs. No programming or pairing is required.
2.1 Battery Installation
- Locate the battery compartment on the back of the remote control.
- Slide the battery cover downwards or press the latch and lift to open.
- Insert two AAA batteries (not included), ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
- Replace the battery cover by sliding it back into position until it clicks securely.
Once batteries are installed, the remote is ready for operation.
3. Operating Instructions
Point the remote control directly at your Samsung TV's infrared receiver. Ensure there are no obstructions between the remote and the TV.

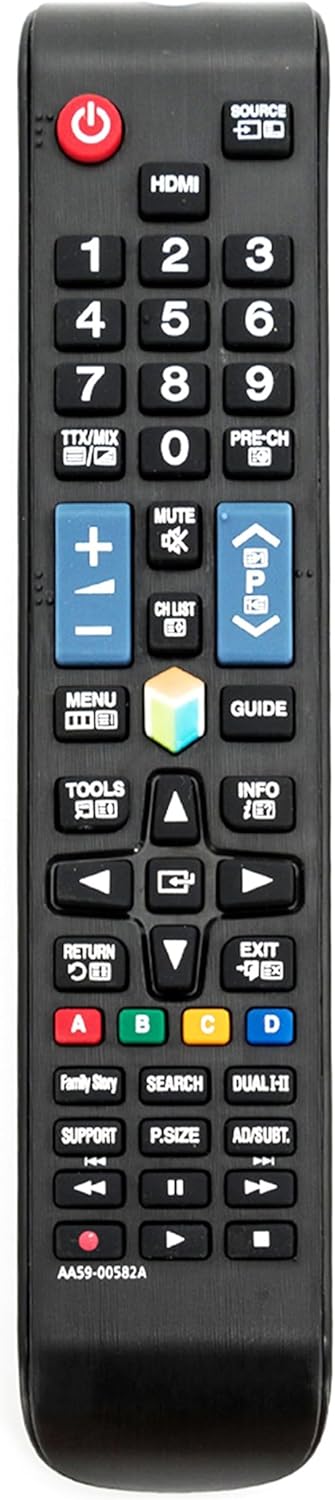

3.1 Button Functions
| Button | Function |
|---|---|
| Power (Red) | Turns the TV on or off. |
| SOURCE | Selects the input source (HDMI, AV, Component, etc.). |
| HDMI | Direct access to HDMI input. |
| Number Buttons (0-9) | Direct channel selection. |
| VOL (+/-) | Adjusts the volume level. |
| MUTE | Mutes or unmutes the TV sound. |
| CH (Up/Down) | Changes TV channels. |
| CH LIST | Displays the channel list. |
| MENU | Opens the TV's main menu. |
| GUIDE | Displays the electronic program guide. |
| TOOLS | Accesses quick settings or tools menu. |
| INFO | Displays information about the current program. |
| Navigation Pad (Up/Down/Left/Right/Enter) | Navigates through menus and confirms selections. |
| RETURN | Returns to the previous screen or menu. |
| EXIT | Exits the current menu or application. |
| Colored Buttons (A, B, C, D) | Functionality varies by TV model and application. |
| Playback Controls (Play, Pause, Stop, Rewind, Fast Forward) | Controls media playback. |
4. Maintenance
4.1 Cleaning
To clean the remote control, use a soft, dry cloth. Do not use liquid cleaners, sprays, or abrasive materials, as these can damage the remote's surface or internal components.
4.2 Battery Replacement
Replace batteries when the remote's response becomes inconsistent or stops working. Always replace both batteries at the same time with new AAA batteries. Do not mix old and new batteries, or different types of batteries.
4.3 Storage
Store the remote control in a cool, dry place away from direct sunlight and extreme temperatures. If the remote will not be used for an extended period, remove the batteries to prevent leakage.
5. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Remote not responding. | Dead or incorrectly inserted batteries. | Replace batteries with new ones, ensuring correct polarity (+/-). |
| Remote has limited range or intermittent response. | Weak batteries; Obstruction between remote and TV; Remote sensor on TV is blocked. | Replace batteries. Ensure a clear line of sight to the TV. Check if anything is blocking the TV's remote sensor. |
| Specific buttons not working. | Button malfunction; TV model incompatibility for specific advanced functions. | Ensure the remote is compatible with your specific TV model for all functions. If basic functions also fail, the remote may be faulty. |
6. Specifications
| Feature | Detail |
|---|---|
| Model Number | AA59-00582A |
| Brand | VINABTY |
| Compatible Devices | Samsung Televisions (various models listed in Introduction) |
| Power Source | 2 x AAA Batteries (not included) |
| Product Dimensions | 5 x 1.9 x 0.5 inches (approximately 12.7 x 4.8 x 1.3 cm) |
| Item Weight | 2.8 ounces (approximately 79 grams) |
| Color | Black |
| Special Feature | Ergonomic design |
7. Support
For further assistance or inquiries regarding your VINABTY AA59-00582A remote control, please contact the manufacturer or your retailer. When seeking support, it is helpful to provide your specific Samsung TV model number for accurate assistance.
This product is a replacement remote and typically does not come with an extended manufacturer's warranty beyond standard consumer rights.
