1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of the Genius 6100043 Rear Support Bracket. This product is a kit containing 6 rear supports, each with a height of 130 mm. Please note that this bracket is not compatible with 324 ENV systems. Read this manual thoroughly before proceeding with installation or use to ensure proper function and safety.
2. Safety Information
Always adhere to general safety practices when handling and installing mechanical components. Failure to do so may result in injury or damage to equipment.
- Ensure all power sources are disconnected if the installation involves electrical components.
- Wear appropriate personal protective equipment (PPE), such as gloves and eye protection.
- Verify that the bracket is suitable for the intended application and load capacity.
- Do not modify the bracket. Any alterations may compromise its structural integrity and void the warranty.
- Keep children and unauthorized personnel away from the installation area.
3. Package Contents
Upon opening the package, verify that all components are present and undamaged.
- 1 x Genius 6100043 Rear Support Bracket (Kit of 6 supports)

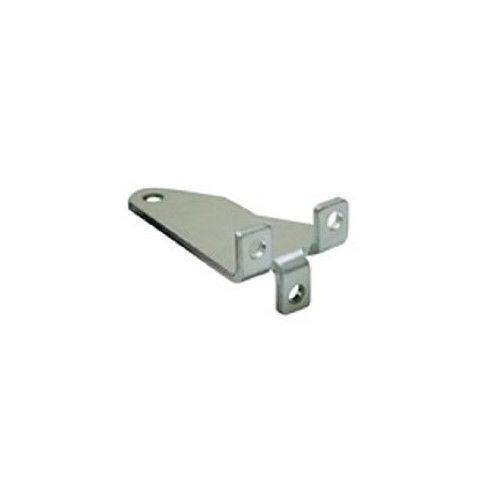

Figure 3.1: A silver-colored metal bracket, featuring a flat base with a rounded end containing a hole, and two perpendicular extensions with holes for mounting. This component is designed for rear support applications.
4. Setup and Installation
Follow these steps for proper installation of the Genius 6100043 Rear Support Bracket.
- Preparation: Identify the mounting location for the rear support bracket. Ensure the surface is clean, stable, and capable of supporting the bracket and any attached components.
- Positioning: Place the bracket in the desired position. Mark the locations for drilling holes using the bracket's pre-drilled holes as a template.
- Drilling: Drill pilot holes at the marked locations. Use a drill bit appropriate for the mounting surface and the fasteners to be used.
- Mounting: Secure the bracket to the surface using suitable screws, bolts, or other fasteners (not included). Ensure all fasteners are tightened securely to prevent movement.
- Component Attachment: Attach the intended components to the perpendicular extensions of the bracket using appropriate hardware. Verify that all connections are firm and stable.
- Final Check: Inspect the installed bracket and attached components for stability and proper alignment.
5. Operating Instructions
The Genius 6100043 Rear Support Bracket is a passive component designed to provide structural support. Once correctly installed, it requires no active operation. Ensure that any components attached to the bracket are used according to their respective operating instructions.
6. Maintenance
Regular maintenance ensures the longevity and reliability of the bracket.
- Inspection: Periodically inspect the bracket for any signs of wear, corrosion, or damage. Check for loose fasteners and tighten them as necessary.
- Cleaning: Clean the bracket with a soft, dry cloth. Avoid using abrasive cleaners or solvents that could damage the finish.
- Environment: Ensure the bracket is not exposed to extreme environmental conditions beyond its intended use, which could accelerate wear or corrosion.
7. Troubleshooting
As a static support component, the Genius 6100043 Rear Support Bracket typically does not experience operational issues. However, if problems arise, consider the following:
- Instability: If the bracket feels unstable after installation, re-check all mounting fasteners to ensure they are securely tightened. Verify that the mounting surface is robust.
- Corrosion: If corrosion appears, clean the affected area and consider applying a protective coating suitable for the material. Ensure the environment is not excessively humid or corrosive.
- Damage: If the bracket is bent or damaged, it should be replaced immediately to prevent potential failure. Do not attempt to repair damaged brackets.
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | 6100043 |
| Brand | Genius |
| Description | Kit of 6 rear supports, 130 mm height |
| Compatibility | Not for 324 ENV systems |
| Manufacturer | GENIUS |
| Number of Units | 1.0 unit (referring to the kit) |
| No longer produced by manufacturer | No |
| Spare parts availability | Information unavailable |
9. Warranty and Support
For information regarding warranty coverage, technical support, or spare parts, please refer to the official Genius product documentation or contact your authorized Genius dealer. Keep your purchase receipt as proof of purchase.
