Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of your ODI ATV X-Treme Lock-On Grips. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product.
Product Overview
The ODI X-Treme Lock-On Grips are engineered for optimal traction and control on ATVs. Featuring a unique design, these grips ensure a secure hold in various conditions.
Key Features:
- Designed for optimal traction regardless of condition.
- Tacky diamond plate pads provide exceptional grip.
- Small 3/4 flange helps keep hands securely on the bars.
- 100% slip-free performance guaranteed with ODI's Patented Lock-On system.
- Available in 130mm length.

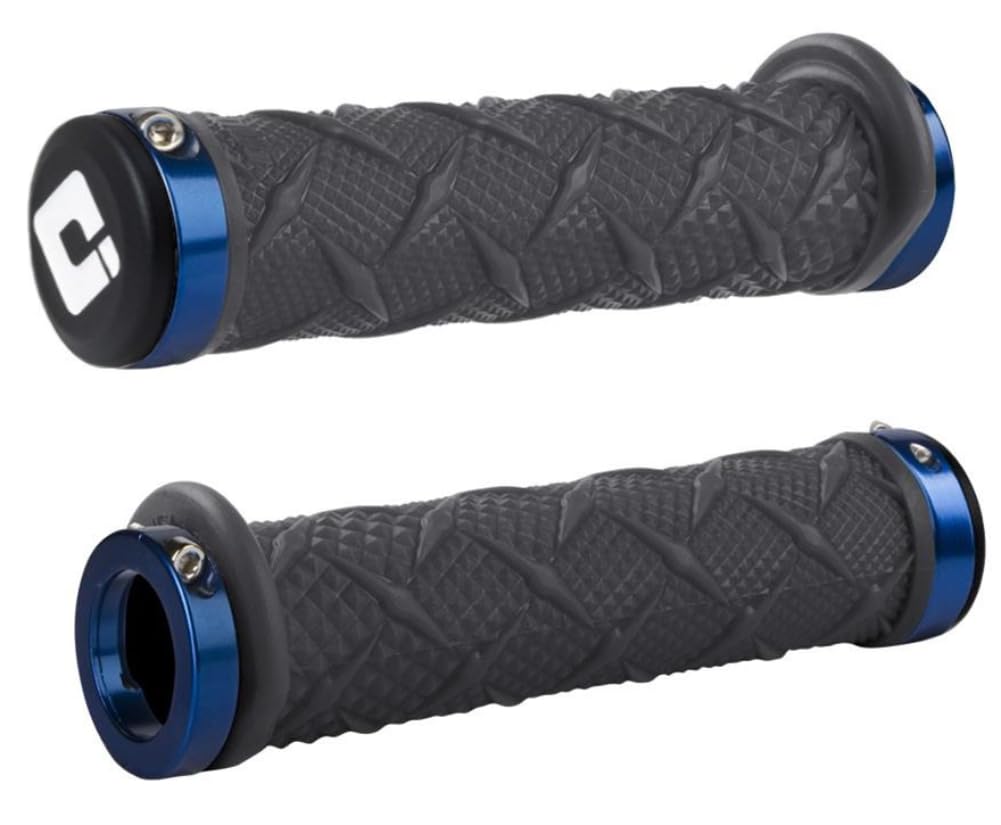

Image of the ODI ATV X-Treme Lock-On Grip, showcasing its design and texture. The grip features a diamond plate pattern for enhanced traction and a small 3/4 flange.
Setup and Installation
Proper installation is crucial for the performance and safety of your ODI Lock-On Grips. Follow these steps carefully:
- Prepare Handlebars: Ensure your ATV handlebars are clean and free from any old grip residue, dirt, or grease. Use a suitable cleaner if necessary and allow to dry completely.
- Remove Old Grips (if applicable): If replacing existing grips, carefully cut or slide off the old grips. Remove any old glue or adhesive.
- Install Throttle Side Grip: Slide the grip onto the throttle tube. Ensure the grip is fully seated against the throttle housing. The lock-on clamp should be positioned correctly.
- Install Clutch Side Grip: Slide the grip onto the clutch side of the handlebar. Ensure it is fully seated.
- Tighten Lock-On Clamps: Using an appropriate hex key, tighten the lock-on clamps on both grips. Do not overtighten; tighten until the grips are secure and do not rotate. Refer to your ATV's manual for specific torque specifications if available, or tighten firmly by hand.
- Test Grips: Before riding, ensure both grips are firmly in place and do not slip or rotate. Check throttle operation for smooth movement.
Note: Always ensure the throttle operates freely and returns to the idle position without obstruction after grip installation.
Operating Instructions
The ODI X-Treme Lock-On Grips are designed for immediate use after proper installation. Their primary function is to provide a secure and comfortable interface between the rider and the ATV handlebars.
- Secure Hold: The patented Lock-On system ensures the grips remain firmly in place, preventing unwanted rotation or slipping during aggressive riding.
- Enhanced Traction: The tacky diamond plate pattern provides superior grip, allowing for better control and reduced hand fatigue, especially in wet or muddy conditions.
- Comfort: The material and design are optimized for rider comfort, absorbing vibrations and providing a consistent feel.
No special operating procedures are required beyond standard ATV riding practices. Focus on maintaining a firm but relaxed grip for optimal control.
Maintenance
Regular maintenance will extend the life and performance of your ODI X-Treme Lock-On Grips.
- Cleaning: Clean grips regularly with mild soap and water. Avoid harsh chemicals or solvents that could degrade the grip material. Rinse thoroughly and allow to air dry.
- Inspection: Periodically inspect the grips for signs of wear, tears, or damage. Check the lock-on clamps to ensure they remain tight. If any damage is observed, consider replacing the grips for safety.
- Storage: When not in use for extended periods, store your ATV in a clean, dry environment away from direct sunlight and extreme temperatures to prevent material degradation.
Troubleshooting
If you encounter issues with your ODI X-Treme Lock-On Grips, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Grips rotate or slip on handlebars. | Lock-on clamps are not sufficiently tightened. | Ensure clamps are tightened firmly with an appropriate hex key. Do not overtighten. |
| Grips feel loose after installation. | Incorrect grip size for handlebars, or clamps not fully engaged. | Verify grip size matches handlebar diameter. Re-install, ensuring grips are fully seated and clamps are properly engaged and tightened. |
| Reduced traction or worn surface. | Normal wear and tear, or accumulation of dirt/oil. | Clean grips thoroughly. If wear is significant, consider replacing the grips for optimal performance and safety. |
Specifications
| Model Name | ATV Xtreme Lock-On Grips |
| Part Number | J30XTH-U |
| Brand | ODI (Old Dutch International) |
| Vehicle Service Type | ATV |
| Color | Graphite |
| Size | 130mm |
| Item Weight | 0.35 Pounds |
| Number of Items | 2 |
| UPC | 711484187766 |
| Item Dimensions (LxWxH) | 7.9 x 4.7 x 2.3 inches |
| Package Dimensions (LxWxH) | 8 x 8 x 3 inches |
Warranty and Support
For warranty information or technical support regarding your ODI ATV X-Treme Lock-On Grips, please contact the manufacturer directly. Details can typically be found on the official ODI website or through your authorized dealer.
Please retain your proof of purchase for any warranty claims.
