1. Introduction
The Einhell TC-EN 20 E electric stapler and nailer is a versatile tool designed for various fastening tasks in home, workshop, or garage environments. This manual provides essential information for safe and efficient operation, setup, maintenance, and troubleshooting of your device.
It is suitable for tasks such as stapling paper, attaching textiles, mounting new covers on seats, and fixing insulating materials. The device is supplied with 1000 staples and 500 nails to get you started.
2. Safety Instructions
Always observe basic safety precautions when using electric tools to reduce the risk of fire, electric shock, and personal injury.
- Read the entire manual: Familiarize yourself with the controls and proper use of the tool before operation.
- Wear eye protection: Always wear safety goggles to protect against flying debris.
- Keep work area clear: Ensure your workspace is well-lit and free from clutter.
- Secure workpiece: Always secure the material you are working on to prevent movement.
- Disconnect power: Unplug the tool from the power source before making any adjustments, changing fasteners, or performing maintenance.
- Avoid accidental discharge: The safety nose mechanism prevents accidental firing; ensure it is pressed against the workpiece before operating.
- Use correct fasteners: Only use staples (6-14 mm length, 11.4 mm width) and nails (14 mm length) specified for this model.
- Store safely: When not in use, store the tool in a dry, secure place out of reach of children.
3. Product Components

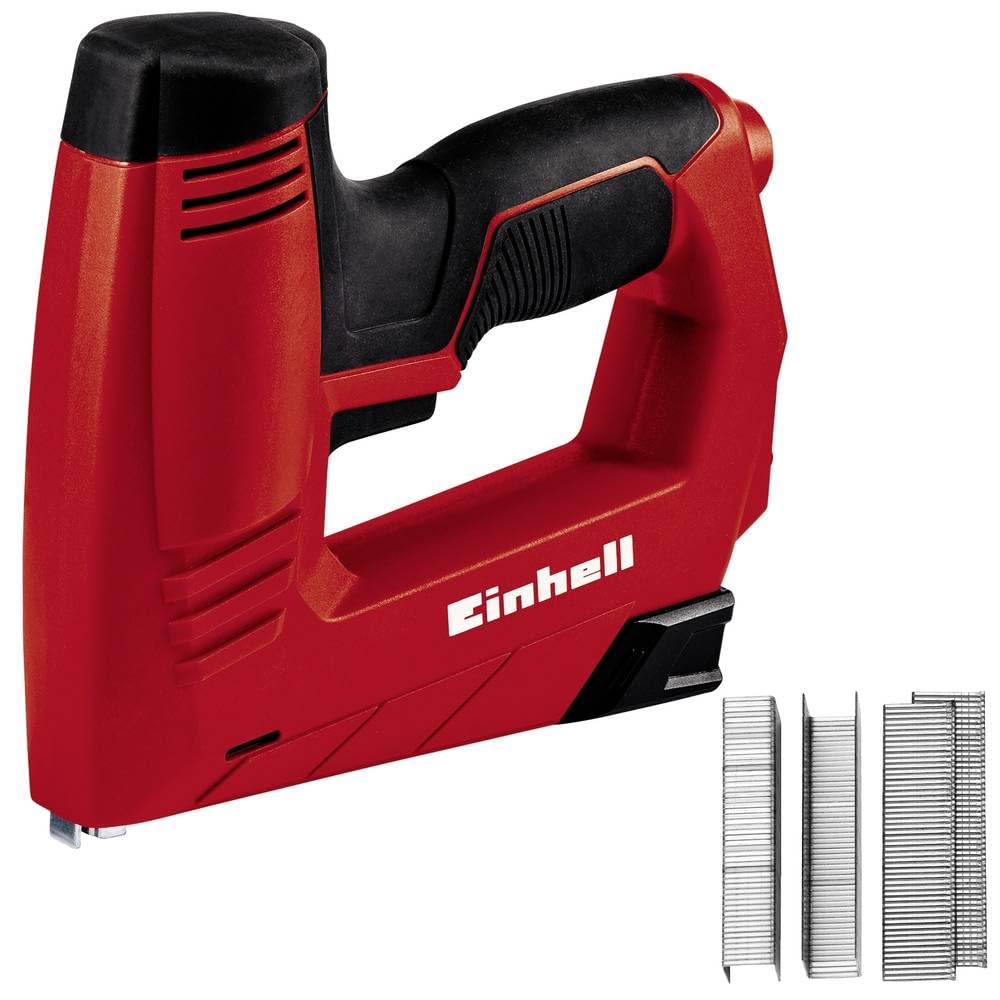

The Einhell TC-EN 20 E electric stapler is designed for ease of use and durability. Below are the key components:
- Trigger: Activates the stapling/nailing mechanism.
- Safety Nose: Must be pressed against the workpiece for the tool to fire, preventing accidental discharge.
- Magazine Release: Button or lever to open the fastener magazine.
- Fastener Magazine: Holds staples or nails.
- Electronic Pre-selection: Allows adjustment of impact force for different materials.
- Softgrip Handle: Provides a secure and comfortable grip during extended use.
- Power Cord: Connects the tool to an electrical outlet.
4. Setup
4.1 Loading Fasteners (Staples/Nails)
- Disconnect Power: Ensure the stapler is unplugged from the power outlet.
- Open Magazine: Locate the magazine release mechanism, typically at the bottom or rear of the tool, and open the magazine.
- Insert Fasteners: Place a strip of staples or nails into the magazine with the points facing forward. Ensure they are correctly oriented according to the tool's markings.
- Close Magazine: Slide the magazine closed until it locks securely into place.
- Check Fastener Type: Verify that the loaded fasteners match the requirements for your task (staple length 6-14 mm, width 11.4 mm; nail length 14 mm).
4.2 Adjusting Impact Force
The electronic pre-selection feature allows you to adjust the impact force to suit different materials and fastener lengths. Turn the adjustment dial (if present) to increase or decrease the force. Test on a scrap piece of material to find the optimal setting.
5. Operating Instructions
- Connect Power: Plug the stapler into a suitable power outlet.
- Position Tool: Place the safety nose firmly against the workpiece where you want to fasten. Ensure the tool is held securely and perpendicular to the surface.
- Activate: Press the trigger to drive the staple or nail. The safety nose must be fully depressed for the tool to fire.
- Continuous Use: For prolonged tasks, the ergonomic design and Softgrip handle help reduce fatigue and maintain a comfortable grip.
- Check Fastener Depth: After the first few fasteners, check if they are driven to the desired depth. Adjust the impact force if necessary.
- Unplug After Use: Always unplug the tool from the power source when you have finished working or before leaving it unattended.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your electric stapler.
- Cleaning: Keep the tool clean and free from dust and debris. Use a dry cloth to wipe down the exterior. Do not use harsh chemicals or solvents.
- Inspect Fastener Path: Periodically check the fastener magazine and firing mechanism for any obstructions or bent fasteners.
- Cord Inspection: Regularly inspect the power cord for any signs of damage. If damaged, have it replaced by a qualified technician.
- Storage: Store the tool in a dry, cool place, away from direct sunlight and moisture.
7. Troubleshooting
If you encounter issues with your Einhell TC-EN 20 E, refer to the table below for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Tool does not fire | Not plugged in; Safety nose not fully depressed; No fasteners in magazine; Fastener jam. | Check power connection; Ensure safety nose is pressed firmly; Load fasteners; Clear jam (unplug first). |
| Fasteners not driven fully | Impact force too low; Incorrect fastener length for material; Tool not held firmly. | Increase impact force using electronic pre-selection; Use appropriate fasteners; Press tool more firmly against workpiece. |
| Fasteners jam frequently | Incorrect fastener type/size; Damaged fasteners; Debris in magazine. | Use recommended fasteners; Replace damaged fasteners; Clean magazine and firing path (unplug first). |
| Tool overheats | Continuous heavy use; Blocked ventilation. | Allow tool to cool down; Ensure ventilation slots are clear. |
8. Specifications
Key technical specifications for the Einhell TC-EN 20 E electric stapler and nailer:
| Feature | Value |
|---|---|
| Brand | Einhell |
| Model | TC-EN 20 E |
| Manufacturer Model Number | 4257890 |
| Product Dimensions (L x W) | 20.3 cm x 5.6 cm |
| Item Weight | 1.09 Kilograms (2.4 pounds) |
| Color | Red |
| Material | Aluminum |
| Staple Dimensions | Length: 6-14 mm, Width: 11.4 mm |
| Nail Dimensions | Length: 14 mm |
| Operating Mode | Semi-Automatic |
| Country of Origin | China |
9. Warranty and Support
Einhell provides a 1-year availability for spare parts for the TC-EN 20 E electric stapler and nailer. For further assistance, technical support, or to inquire about spare parts, please refer to the official Einhell website or contact their customer service department.
