1. Introduction
Thank you for choosing the Puluomis Artistic Vessel Sink. This manual provides detailed instructions for the safe and efficient installation, operation, and maintenance of your new tempered glass vessel sink with an Oil Rubber Bronze faucet and pop-up drain combo. Please read this manual thoroughly before installation and keep it for future reference.
Figure 1.1: The Puluomis Artistic Vessel Sink in Flame Red, featuring a round tempered glass bowl, an Oil Rubber Bronze faucet, and a matching pop-up drain.
2. Safety Information
Please observe the following safety precautions to prevent injury or damage to the product:
- Always turn off the main water supply before beginning any installation or maintenance work.
- Wear appropriate personal protective equipment (PPE), such as safety glasses and gloves, during installation.
- Handle glass components with extreme care to avoid breakage and injury.
- Ensure all connections are secure and watertight to prevent leaks.
- Do not overtighten fittings, as this may damage components.
- If you are unsure about any part of the installation, consult a qualified plumber.
3. Package Contents
Verify that all components are present and undamaged before proceeding with installation. The package should include:
- Tempered Glass Vessel Sink (Flame Red)
- Oil Rubber Bronze Faucet
- Pop-Up Drain
- Cold Water Line
- Hot Water Line
- Screw Packet / Mounting Hardware
Figure 3.1: All components included with your Puluomis Vessel Sink purchase, including the sink, faucet, pop-up drain, and water lines.
4. Setup & Installation
This vessel sink is designed for above-counter installation. Follow these steps carefully for proper setup:
4.1. Prepare the Countertop
Determine the desired location for the sink and faucet on your countertop. Ensure there is sufficient clearance for the sink bowl and faucet. Mark the center point for the drain hole and the faucet hole(s).

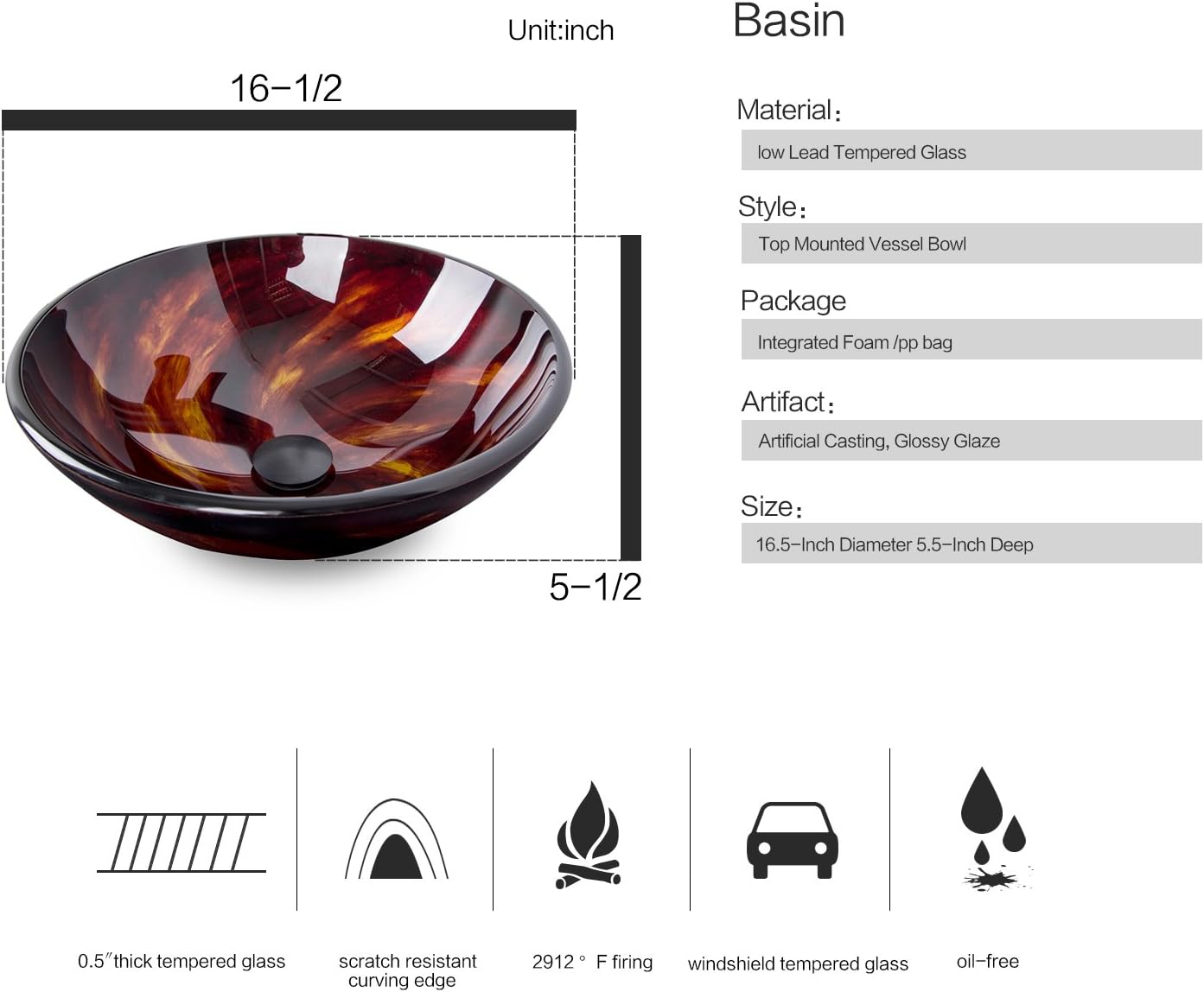

Figure 4.1: Sink dimensions: 16.5 inches in diameter and 5.5 inches deep. These measurements are crucial for countertop cutout planning.

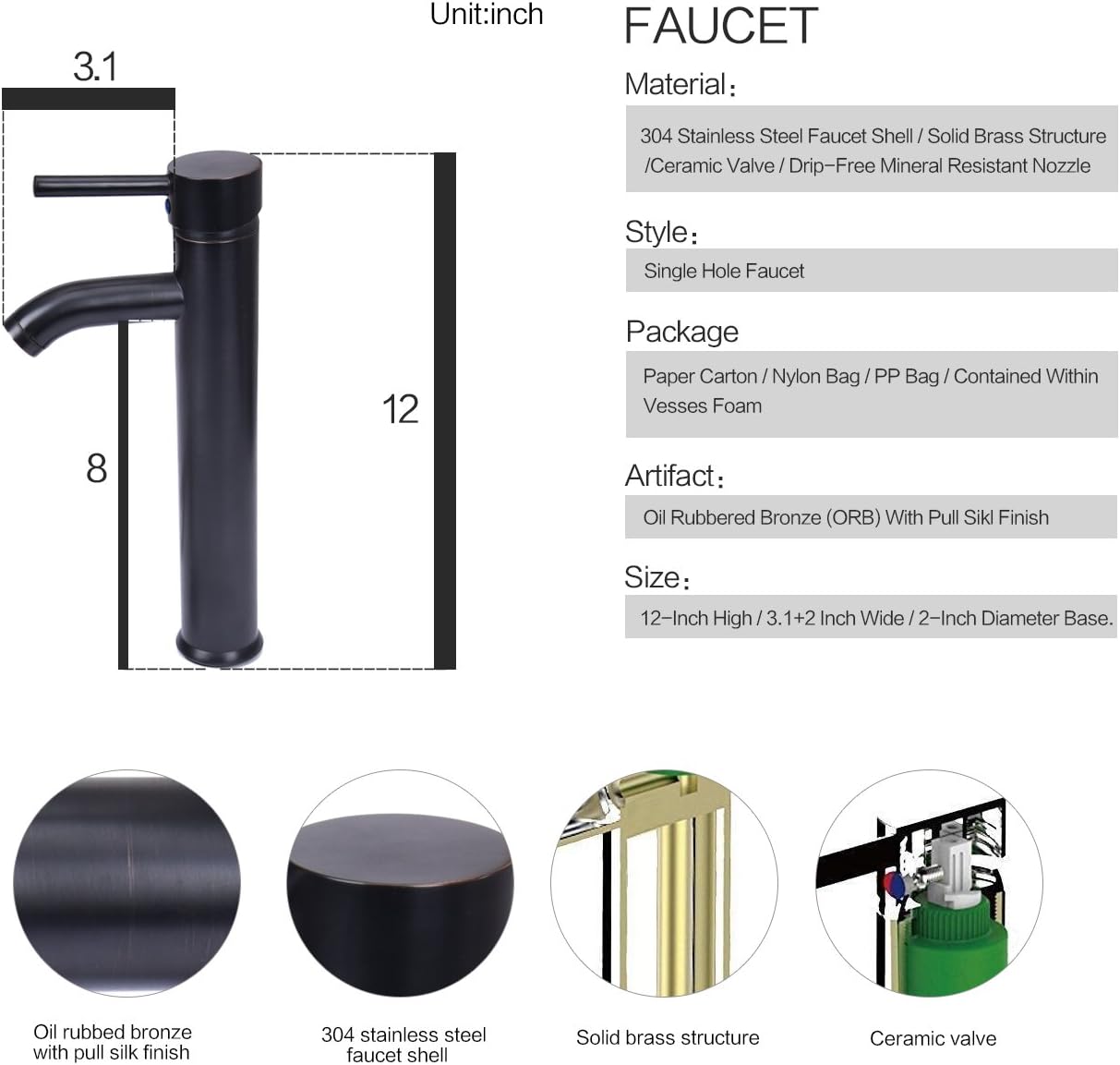

Figure 4.2: Faucet dimensions: 12 inches high with a 3.1-inch width and a 2-inch diameter base. Plan your faucet hole accordingly.
Drill the necessary holes in the countertop. The sink requires a standard drain opening, and the faucet requires a single hole. Refer to the specific dimensions provided in Figures 4.1 and 4.2.
4.2. Install the Faucet
- Insert the faucet into the drilled hole on the countertop.
- Secure the faucet from underneath the countertop using the provided mounting hardware (washer and nut). Ensure the faucet is oriented correctly.
- Connect the hot and cold water supply lines to the corresponding inlets on the faucet. Hand-tighten first, then use a wrench for a snug fit, being careful not to overtighten.
4.3. Install the Pop-Up Drain
- Apply a bead of plumber's putty or silicone sealant around the top edge of the drain opening on the sink.
- Insert the top part of the pop-up drain into the sink's drain hole.
- From underneath the sink, attach the rubber washer and locking nut to the drain body. Tighten securely, but do not overtighten, to create a watertight seal.
- Connect the tailpiece of the pop-up drain to your P-trap assembly.
Figure 4.3: Close-up view of the pop-up drain installed in the vessel sink. Ensure a proper seal to prevent leaks.
4.4. Position the Sink
Carefully place the tempered glass vessel sink onto the countertop, aligning its drain with the prepared hole. Apply a thin bead of silicone sealant around the base of the sink where it meets the countertop to secure it and prevent water from seeping underneath.
4.5. Connect Water Supply
Connect the hot and cold water lines from the faucet to your home's hot and cold water supply valves. Use thread sealant tape on the threads for a secure, leak-free connection. Turn on the main water supply slowly and check for any leaks at all connections. Tighten as necessary.
5. Operating Instructions
Operating your Puluomis vessel sink and faucet is straightforward:
- Water Flow: Lift the faucet handle to turn on the water. The higher you lift, the greater the water flow.
- Temperature Control: Move the faucet handle left for hot water and right for cold water. Adjust the handle position to achieve the desired water temperature.
- Drain Operation: Press the top of the pop-up drain to close it and retain water in the sink. Press it again to open the drain and allow water to flow out.
6. Maintenance
Proper care will ensure the longevity and beauty of your Puluomis vessel sink:
- Cleaning the Sink: Clean the tempered glass sink regularly with a soft cloth and mild, non-abrasive soap or glass cleaner. Avoid harsh chemicals, abrasive cleaners, or scouring pads, as these can scratch or damage the glass surface. The manufacturer recommends hand washing for product care.
- Cleaning the Faucet: Wipe the Oil Rubber Bronze faucet with a soft, damp cloth. Do not use abrasive cleaners, waxes, or polishes, as they can damage the finish.
- Drain Maintenance: Periodically remove the pop-up drain stopper and clean any accumulated debris to ensure proper drainage.
- Leak Checks: Regularly inspect all water connections for any signs of leaks. Tighten connections if necessary.
7. Troubleshooting
Here are some common issues and their potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Water Leakage at Connections | Loose connections, worn washers, improper sealant application. | Tighten connections. Replace washers if damaged. Reapply plumber's putty or silicone sealant. |
| Low Water Flow | Clogged aerator, partially closed supply valves. | Remove and clean the faucet aerator. Fully open supply valves. |
| Drain Not Sealing Properly | Debris in drain, improper drain installation. | Clean debris from around the drain stopper. Reinstall drain, ensuring proper sealant and tightening. |
| Faucet Drips | Worn cartridge. | Contact Puluomis customer support for a replacement cartridge. |
8. Specifications
Key specifications for the Puluomis Artistic Vessel Sink (Model: USBA20070):
- Brand: Puluomis
- Model Number: USBA20070
- Color: Flame Red
- Material: Tempered Glass
- Sink Dimensions (Overall): 16.5" Diameter x 5.5" Height
- Bowl Thickness: 0.5 inches
- Faucet Finish: Oil Rubbed Bronze (ORB)
- Installation Type: Above Counter
- Drain Type: Pop-Up
- Item Weight: Approximately 17.1 pounds
- UPC: 812799026266
9. Warranty & Support
9.1. Warranty Information
Puluomis products are manufactured with high-quality materials and craftsmanship. The product includes a Limited Lifetime Warranty, ensuring experience with Puluomis quality. For specific details regarding warranty coverage and claims, please refer to the warranty card included with your purchase or contact Puluomis customer support.
Figure 9.1: The product comes with a Limited Lifetime Warranty and is handcrafted by artisans, reflecting Puluomis's commitment to quality.
9.2. Customer Support
If you have any questions, require assistance with installation, or need to make a warranty claim, please contact Puluomis customer support. For the most up-to-date contact information, please visit the official Puluomis website or refer to the contact details provided in your product packaging.
You can also visit the Puluomis Store on Amazon for more product information and support resources.
