Hyper Tough 38 Piece Stubby Tool Set

1. Introduction

Thank you for choosing the Hyper Tough 38 Piece Stubby Tool Set. This versatile and compact tool kit is designed for a wide range of tasks, from household repairs to automotive adjustments. Its stubby design makes it ideal for working in confined spaces, while the comprehensive selection of tools ensures you have the right instrument for the job.

This manual provides important information regarding the proper use, maintenance, and safety of your tool set. Please read it thoroughly before using the tools and keep it for future reference.

2. Product Overview

The Hyper Tough 38 Piece Stubby Tool Set includes a variety of essential tools, all conveniently organized in a durable storage case. Key components are:

• 1 - 6 inch Stubby Adjustable Wrench
• 1 - Stubby Ratcheting Screwdriver
• 19 - 1 inch Screwdriver Bits
• 1 - 1/4 inch Adapter
• 1 - 3/8 inch Dr. Reversible Stubby Ratchet Handle
• 10 - 1/4 inch Dr. SAE (6 pt) Sockets: 5/32, 3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 7/16, 1/2 inch
• 1 - 3/8 inch Dr. x 3 inch Extension Bar
• 1 - Adapter 3/8 inch (f) x 1/4 inch (m)
• 3 - 3/8 inch Dr. SAE (6 pt) Sockets: 9/16, 5/8, 11/16 inch
• 1 - Storage Case

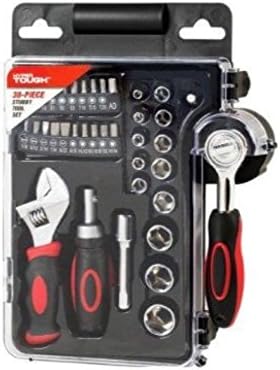

This image displays the complete Hyper Tough 38 Piece Stubby Tool Set neatly organized within its transparent storage case. Visible components include the stubby adjustable wrench, the stubby ratcheting screwdriver, various screwdriver bits, and a selection of sockets.

3. Setup

Your Hyper Tough 38 Piece Stubby Tool Set comes pre-organized in its durable storage case. No assembly is required for the tools themselves. Simply open the case to access the desired tool.

• Unpacking: Carefully remove the tool set from its packaging.
• Inspection: Before first use, inspect all tools for any signs of damage or manufacturing defects. Do not use damaged tools.
• Familiarization: Take a moment to familiarize yourself with each tool and its designated slot in the storage case. This will help with efficient use and proper storage.

4. Operating Instructions

4.1. Using the 6-inch Stubby Adjustable Wrench

1. Select the adjustable wrench from the case.
2. Rotate the knurled worm gear to adjust the jaw opening.
3. Position the wrench jaws firmly around the fastener (nut or bolt head), ensuring a snug fit to prevent slipping and damage to the fastener.
4. Apply steady pressure to turn the fastener. Always pull the wrench towards you when possible for better control and safety.

4.2. Using the Stubby Ratcheting Screwdriver and Bits

1. Select the appropriate screwdriver bit for your screw type (e.g., Phillips, flathead, Torx).
2. Insert the chosen bit firmly into the magnetic tip of the stubby ratcheting screwdriver.
3. Locate the directional switch on the screwdriver handle. Set it to the desired direction: clockwise for tightening (right), counter-clockwise for loosening (left), or center for locked position (non-ratcheting).
4. Place the bit into the screw head and apply downward pressure while turning the handle. The ratcheting mechanism allows you to turn the screw without repositioning your hand.

4.3. Using the 3/8-inch Dr. Reversible Stubby Ratchet Handle and Sockets

1. Choose the correct size socket (SAE) for your nut or bolt.
2. Attach the selected socket firmly onto the square drive of the stubby ratchet handle. Ensure it clicks into place.
3. If needed, use the 3-inch extension bar between the ratchet and the socket to reach recessed fasteners.
4. Locate the directional switch on the ratchet head. Set it to the desired direction: clockwise for tightening, counter-clockwise for loosening.
5. Place the socket over the fastener, ensuring it is fully seated.
6. Apply steady pressure and turn the ratchet handle. The ratcheting action allows for continuous turning without removing the socket from the fastener.
7. Use the 1/4 inch adapter to use 1/4 inch drive sockets with the 3/8 inch ratchet handle, or vice-versa with the 3/8 inch (f) x 1/4 inch (m) adapter.

5. Maintenance

Proper maintenance will extend the life of your Hyper Tough tool set and ensure its continued performance.

• Cleaning: After each use, wipe down tools with a clean, dry cloth to remove dirt, grease, and debris. For stubborn grime, a mild degreaser can be used, followed by thorough drying.
• Lubrication: Periodically apply a light coat of machine oil to the moving parts of the adjustable wrench and the ratcheting mechanisms of the screwdriver and ratchet handle to ensure smooth operation and prevent rust.
• Storage: Always return tools to their designated slots in the provided storage case after use. This protects them from damage, keeps them organized, and prevents loss. Store the case in a dry environment to prevent corrosion.
• Inspection: Regularly inspect tools for wear, damage, or corrosion. Replace or repair damaged tools immediately. Do not use tools with cracked handles, bent shafts, or worn jaws/tips.

6. Troubleshooting

Most issues with hand tools can be resolved with proper technique and maintenance. Here are some common scenarios:

• Tool Slipping on Fastener:
  • Ensure the wrench jaws or socket/bit are properly sized and fully seated on the fastener.
  • Check for worn tool jaws/tips or rounded fastener heads. Replace if necessary.
  • Apply firm, steady pressure.
• Ratcheting Mechanism Sticking or Not Engaging:
  • The mechanism may be dirty or dry. Clean and apply a light lubricant as per the Maintenance section.
  • Ensure the directional switch is fully engaged in the desired position.
• Bits or Sockets Not Holding Firmly:
  • Check if the bit/socket is fully inserted into the driver/ratchet.
  • For magnetic tips, ensure no metal debris is interfering with the magnet.
  • Inspect the square drive or hex receiver for wear.

If you encounter persistent issues not covered here, please refer to the Warranty and Support section.

7. Specifications

8. Warranty and Support

For information regarding warranty coverage and customer support for your Hyper Tough 38 Piece Stubby Tool Set, please refer to the product packaging or contact Hyper Tough directly through their official website or customer service channels. Keep your proof of purchase for any warranty claims.

Always ensure you are using genuine Hyper Tough replacement parts or accessories if needed.
