Homra Qubix 70L Automatic Sensor Recycling Bin Instruction Manual

Introduction

Thank you for choosing the Homra Qubix 70L Automatic Sensor Recycling Bin. This manual provides essential information for the safe and efficient use of your new recycling bin. Please read these instructions carefully before assembly and operation, and retain them for future reference.

Image: The Homra Qubix 70L Automatic Sensor Recycling Bin, showcasing its sleek stainless steel exterior and black sensor lid.

Safety Instructions

Do not immerse the lid or electronic components in water. Clean with a damp cloth only.
Ensure batteries are inserted with correct polarity.
Keep the sensor area clear of obstructions to ensure proper operation.
This product is designed for indoor use only.
Keep out of reach of children to prevent accidental injury or damage.

Product Components

The Homra Qubix recycling bin consists of the following main components:

Stainless Steel Body (70L capacity, divided into two 35L compartments)
Sensor-Activated Lid
Inner Retaining Ring (for securing trash bags)
Battery Compartment (located on the underside of the lid)

Setup

Unpacking: Carefully remove all components from the packaging. Retain packaging for future transport or storage.
Battery Installation: Locate the battery compartment on the underside of the lid. Insert four (4) D-size batteries (not included), ensuring correct polarity (+/-). Close the battery compartment securely.
Lid Placement: Place the sensor-activated lid onto the stainless steel body, ensuring it is seated correctly and securely.
Initial Activation: Press the red ON/OFF button, usually located near the battery compartment or on the back of the lid, to activate the sensor. The bin is now ready for use.
Trash Bag Installation: Lift the inner retaining ring. Place a 35L trash bag into each compartment, folding the edges of the bag over the top rim of the compartment. Lower the retaining ring to secure the bag in place and conceal the bag edges.

Image: Diagram showing the dimensions of the Homra Qubix 70L bin, including its 2x35 liter capacity and overall height and width.

Operating Instructions

Hands-Free Sensor Operation

The Homra Qubix bin features a hands-free motion sensor for hygienic operation.

To open the lid, simply wave your hand approximately 10-15 cm above the sensor located on the front of the lid.
The lid will open automatically and remain open for a few seconds.
After a short delay, the lid will close automatically and silently using its soft-close mechanism.
For extended opening, some models may feature an "OPEN" button. Pressing this button will keep the lid open until the "CLOSE" button is pressed.

Image: Close-up of the Homra Qubix bin lid, highlighting the hands-free sensor for automatic opening.

Waste Separation

This bin is designed with two separate 35-liter compartments to facilitate efficient waste separation.

Designate each compartment for a specific waste type (e.g., plastics, paper, general waste).
Ensure appropriate trash bags are used for each compartment.

Image: The interior of the Homra Qubix bin, showing its two distinct compartments for easy waste separation.

Silent Soft-Close Lid

The lid is equipped with a silent soft-close mechanism, ensuring quiet operation and preventing sudden slams.

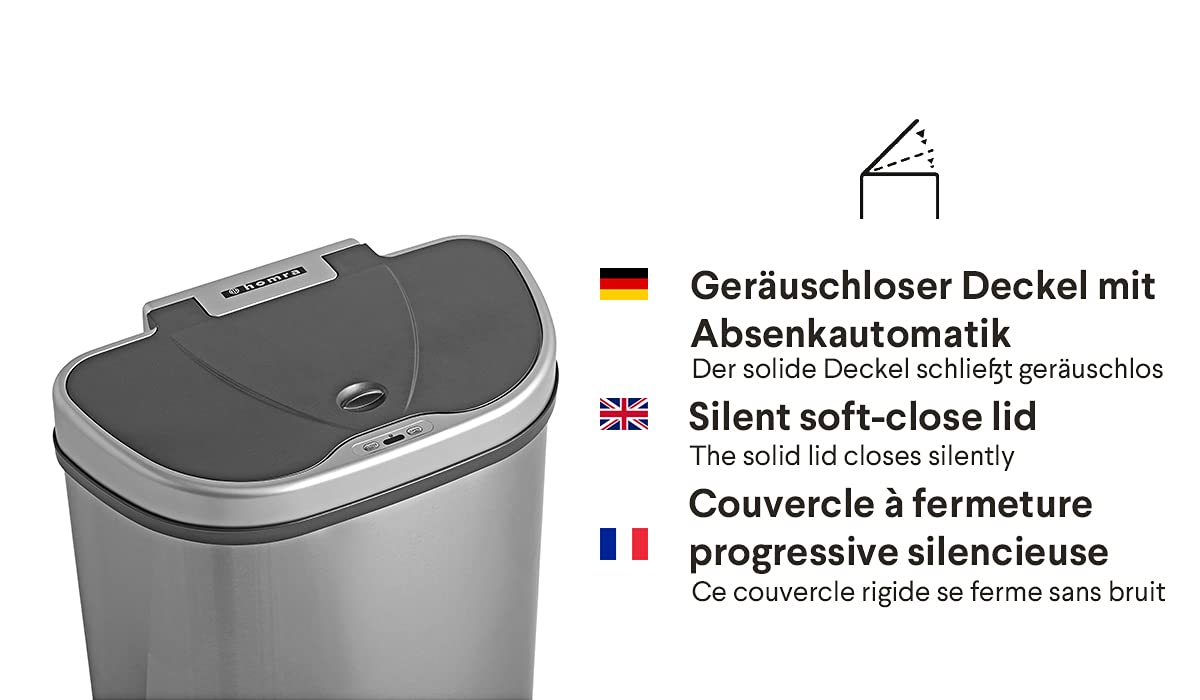

Image: Close-up of the Homra Qubix bin's lid, illustrating its silent soft-close feature.

Maintenance

Cleaning the Exterior: The bin is made of fingerprint-free stainless steel. Wipe the exterior with a soft, damp cloth and mild detergent. Avoid abrasive cleaners or scouring pads, which can damage the finish.

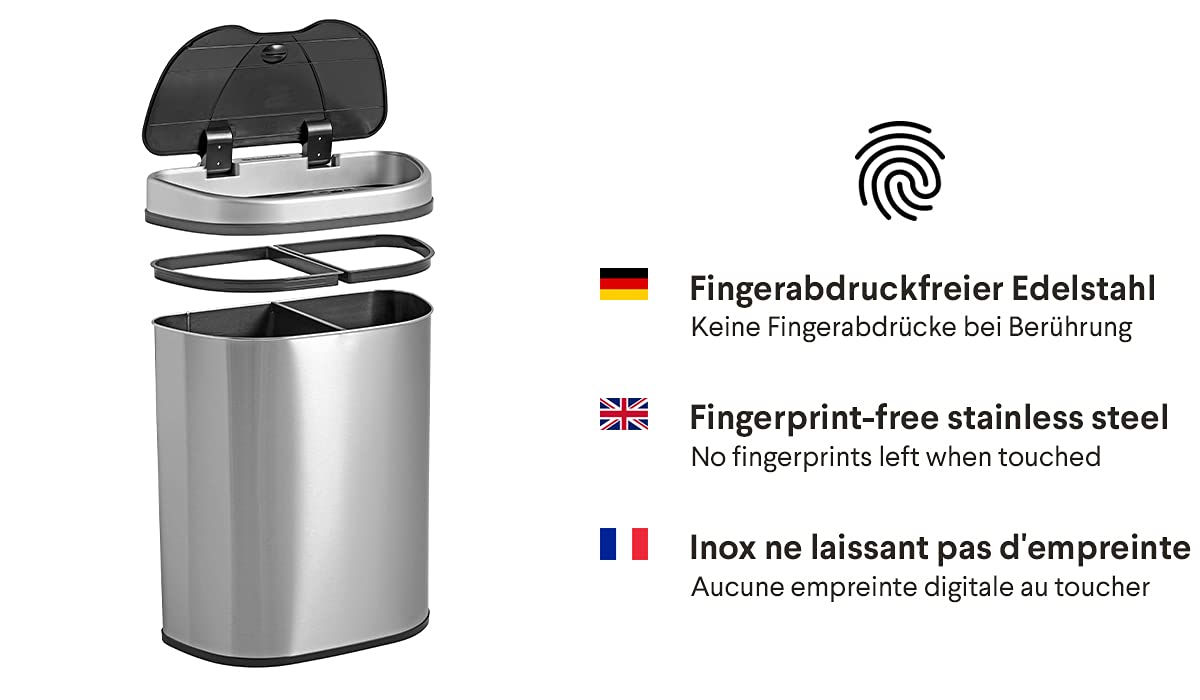

Image: The Homra Qubix bin with its lid and inner ring removed, showcasing the fingerprint-free stainless steel body.
Cleaning the Interior: Periodically clean the interior compartments with a damp cloth and disinfectant. Ensure the interior is completely dry before re-inserting trash bags.
Battery Replacement: When the sensor operation becomes sluggish or stops working, it is time to replace the D-size batteries. Always replace all four batteries simultaneously with new ones.

Troubleshooting

Problem	Possible Cause	Solution
Lid does not open or close automatically.	Batteries are low or depleted. Batteries are inserted incorrectly. Sensor is obstructed or dirty. ON/OFF switch is in the OFF position.	Replace all four D-size batteries. Check battery polarity and re-insert correctly. Clean the sensor area with a soft, dry cloth. Ensure the ON/OFF switch is in the ON position.
Lid opens unexpectedly.	Sensor is too sensitive or detecting nearby movement.	Ensure the bin is not placed in a high-traffic area or near objects that might trigger the sensor.
Lid closes too quickly or slowly.	Low battery power.	Replace all four D-size batteries.

Specifications

Brand	Homra
Model Number	HOM20258
Capacity	70 Litres (2 x 35L compartments)
Dimensions (Closed)	53 cm (Width) x 32.5 cm (Depth) x 67 cm (Height)
Dimensions (Lid Open)	53 cm (Width) x 33 cm (Depth) x 94 cm (Height)
Material	Stainless Steel
Opening Mechanism	Motion Sensor
Power Source	4 x D-size batteries (not included)
Special Features	2 Compartments, Silent Soft-Close Lid, Fingerprint-Free Finish
Recommended Use	Indoor, Kitchen

Warranty and Support

For any questions, technical support, or warranty inquiries regarding your Homra Qubix 70L Automatic Sensor Recycling Bin, please contact Homra customer service through their official website or the retailer where the product was purchased.

Please note that information regarding the availability of spare parts is not provided at this time.

Homra HOM20258
