3M Aluminum Foil Tape 425 Instruction Manual

1. Product Overview

The 3M Aluminum Foil Tape 425 is an industrial-grade adhesive tape designed for a variety of demanding applications. It features a dead soft aluminum foil backing combined with a high-performance pressure-sensitive acrylic adhesive. This construction provides excellent thermal conductivity, chemical resistance, and durability.

Image 1: A roll of 3M Aluminum Foil Tape 425, silver in color with a yellow core, shown on a grey background.

2. Key Features

• Thermal Conductivity: Aids in heat dissipation and improves heating/cooling efficiency, protecting temperature-sensitive materials.
• Chemical Resistance: Protects surfaces during de-paint processes and other chemical masking operations.
• Durable Acrylic Adhesive: Provides long-term adhesion and durability, yet allows for clean removal after masking applications.
• Environmental Resistance: Withstands exposure to flame, weathering, moisture, and UV radiation.
• Reflective Properties: Heat and light reflective tape protects surfaces and enhances lighting efficiency.

3. Intended Use and Applications

This product is intended for industrial and occupational use only. It is not designed or packaged for consumer sale or use. Typical applications include:

• Heat shielding and reflecting
• Chemical masking
• Light enhancement
• Chemical milling
• Seaming and sealing in HVAC systems
• De-paint operations

4. Usage Instructions

4.1. Preparation

1. Surface Cleaning: Ensure the application surface is clean, dry, and free from dust, oil, grease, or other contaminants. Use an appropriate solvent cleaner if necessary, and allow the surface to dry completely.
2. Temperature: For optimal adhesion, apply the tape at temperatures between 60°F (15°C) and 80°F (27°C). Adhesion may be reduced at lower temperatures.
3. Handling: Avoid touching the adhesive side of the tape to prevent contamination and ensure maximum bond strength.

4.2. Application

1. Measure and Cut: Measure the required length of tape and cut it using a sharp utility knife or scissors.
2. Positioning: Carefully position the tape over the desired area, ensuring proper alignment.
3. Adhesion: Apply firm, even pressure across the entire length of the tape using a squeegee, roller, or hand. This ensures full contact between the adhesive and the surface, maximizing bond strength.
4. Overlap (if necessary): For sealing applications requiring multiple strips, overlap edges by at least 1 inch (2.5 cm) to ensure a continuous barrier.

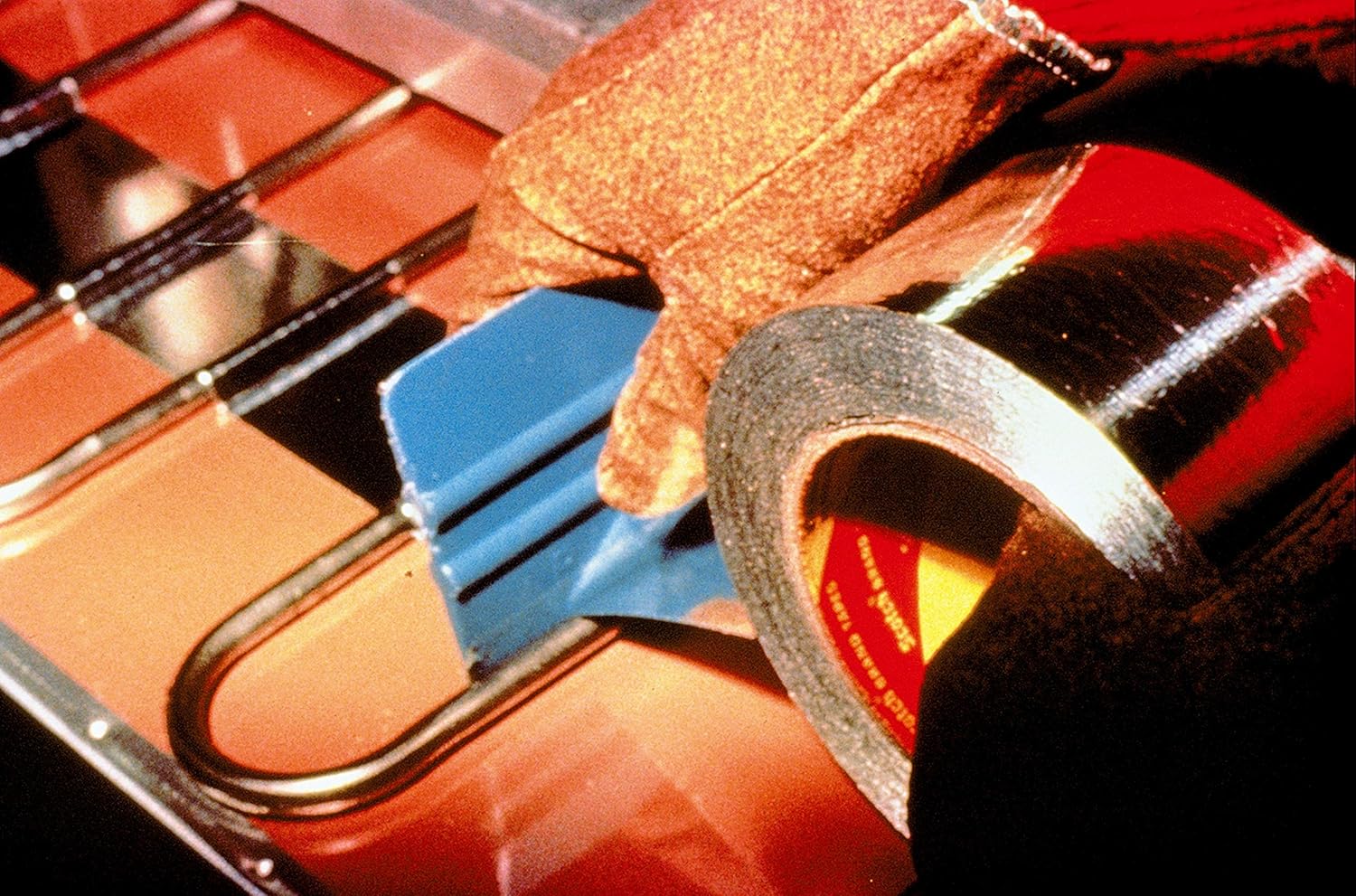

Image 2: A gloved hand using a blue squeegee to apply 3M Aluminum Foil Tape to a surface, demonstrating proper application technique.

5. Maintenance and Storage

• Storage: Store the tape in its original packaging in a cool, dry place away from direct sunlight and extreme temperatures. Recommended storage conditions are 60-80°F (15-27°C) and 40-60% relative humidity.
• Shelf Life: For best performance, use the tape within 12 months from the date of manufacture.

6. Troubleshooting

6.1. Poor Adhesion

• Cause: Surface contamination (dust, oil, moisture).
• Solution: Ensure the surface is thoroughly cleaned and dried before application.
• Cause: Insufficient pressure during application.
• Solution: Apply firm, even pressure across the entire tape surface to ensure maximum contact.
• Cause: Application at incorrect temperature.
• Solution: Apply tape within the recommended temperature range (60-80°F / 15-27°C).

7. Specifications

8. Safety Information and Legal Disclaimer

3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use. These products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature).

Users must select and use these products in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations. The user must take any action required under any recall, field action, or other product use notice. Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage.

For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert. For additional product information, visit www.3M.com.

9. Support and Contact

For technical assistance, product inquiries, or further support regarding 3M Aluminum Foil Tape 425, please contact 3M directly through their official website or customer service channels.

Visit the official 3M website: www.3M.com
