1. Introduction
This user manual provides essential information for the safe and efficient installation, operation, and maintenance of the Reznor 96307 1/2-inch Spark Gas Valve. Please read this manual thoroughly before attempting any procedures to ensure proper function and to prevent potential hazards. Retain this manual for future reference.
2. Safety Information
Your safety and the safety of others are paramount. This gas valve must be installed and serviced by a qualified technician in accordance with all local codes and regulations. Failure to follow these instructions could result in property damage, personal injury, or death.
⚠ WARNING: EXPLOSION HAZARD. Severe Injury or Death Can Result.
- Do not take valve apart.
- Do not use tools to operate valve.
- Do not use valve if it has been flooded.
- Call a qualified serviceman if the valve does not work properly.
Part Number: 394606 Rev. U
3. Product Description

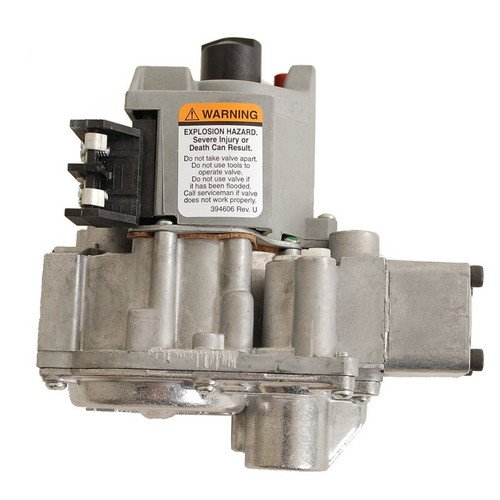

The Reznor 96307 is a 1/2-inch spark gas valve designed for controlling gas flow in compatible heating systems. This component is crucial for the safe and regulated delivery of gas to the burner, ensuring reliable ignition and operation. It is manufactured by Reznor, a reputable brand known for HVAC components.
4. Specifications
| Feature | Detail |
|---|---|
| Manufacturer | Reznor |
| Part Number | 96307 |
| Item Weight | 2.08 ounces |
| Item Package Quantity | 1 |
| Batteries Required? | No |
| ASIN | B06XXC2SHN |
| First Available Date | December 10, 2017 |
5. Installation (Setup)
Important: Installation must be performed by a qualified and licensed professional. Incorrect installation can lead to gas leaks, fire, explosion, or carbon monoxide poisoning.
- Safety First: Ensure the main gas supply to the appliance is turned off and verified before beginning any work. Disconnect electrical power to the appliance.
- Prepare Area: Clear the work area and ensure adequate ventilation.
- Remove Old Valve (if applicable): Carefully disconnect and remove the existing gas valve, noting all connections (gas lines, electrical wiring).
- Inspect New Valve: Visually inspect the Reznor 96307 valve for any signs of damage.
- Connect Gas Lines: Apply appropriate pipe sealant (suitable for gas) to threaded connections. Connect the gas inlet and outlet lines to the valve, ensuring a tight, leak-free seal. Do not overtighten.
- Connect Electrical Wiring: Connect the electrical wiring to the valve terminals as per the appliance manufacturer's wiring diagram. Ensure all connections are secure.
- Leak Test: After all connections are made, slowly turn on the main gas supply. Perform a leak test using a soap solution on all gas connections. Bubbles indicate a leak. If a leak is detected, turn off the gas supply immediately and tighten connections until no leaks are present.
- Restore Power: Once leak testing is complete and no leaks are found, restore electrical power to the appliance.
- Test Operation: Follow the appliance manufacturer's instructions to test the operation of the gas valve and the appliance.
6. Operation
The Reznor 96307 gas valve operates in conjunction with your heating appliance's control system. It is designed to open and close automatically to regulate gas flow to the burner based on demand.
- Normal Operation: When the appliance calls for heat, the control system sends a signal to the gas valve. The valve opens, allowing gas to flow to the burner, where it is ignited by the spark igniter.
- Safety Shut-off: In the event of an ignition failure or other safety condition detected by the appliance's control system, the gas valve will automatically close to prevent uncombusted gas from accumulating.
- Manual Override: This valve does not feature a user-serviceable manual override. Any operation or adjustment must be done through the appliance's control system or by a qualified technician. Refer to the appliance's user manual for specific operational instructions.
7. Maintenance
The Reznor 96307 gas valve is a sealed unit and generally requires no routine user maintenance. However, periodic inspection by a qualified technician is recommended as part of overall appliance maintenance.
- Annual Inspection: Have a qualified technician inspect the gas valve and all gas connections annually for signs of wear, corrosion, or leaks.
- Cleanliness: Ensure the area around the gas valve is kept clean and free from dust, debris, or obstructions that could impede its function or ventilation.
- Do Not Lubricate: Do not attempt to lubricate or disassemble the gas valve. This can damage the unit and create a safety hazard.
8. Troubleshooting
If you experience issues with your heating appliance that you suspect are related to the gas valve, consult the troubleshooting section of your appliance's user manual first. If the problem persists, contact a qualified service technician. Do not attempt to repair the gas valve yourself.
| Problem | Possible Cause | Action |
|---|---|---|
| No gas flow to burner | Gas supply off, valve malfunction, control system issue | Check main gas supply. Verify appliance control settings. If problem persists, contact a qualified technician. |
| Gas odor detected | Gas leak | Immediately turn off gas supply. Open windows. Do not operate electrical switches. Evacuate premises and call emergency services and a qualified gas technician. |
| Valve not opening/closing properly | Electrical issue, internal valve fault | Contact a qualified service technician for diagnosis and repair. |
9. Warranty Information
Specific warranty details for the Reznor 96307 1/2-inch Spark Gas Valve are typically provided by the manufacturer or the seller at the time of purchase. Please refer to your purchase documentation or contact Reznor directly for comprehensive warranty terms and conditions. This manual does not constitute a warranty statement.
10. Support and Contact
For technical assistance, service, or to inquire about replacement parts for your Reznor 96307 1/2-inch Spark Gas Valve, please contact Reznor customer support or your authorized Reznor dealer. Always provide the model number (96307) and any relevant appliance information when seeking support.
