CUCKOO CRP-JHVR1009F Induction Heating Pressure Rice Cooker User Manual

Product Overview

The CUCKOO CRP-JHVR1009F is a 10-Cup (Uncooked) Induction Heating Pressure Rice Cooker designed for consistently delicious rice and versatile meal preparation. It features advanced induction heating technology, a durable stainless steel inner pot with X-Wall nonstick coating, and a variety of customizable menu options.

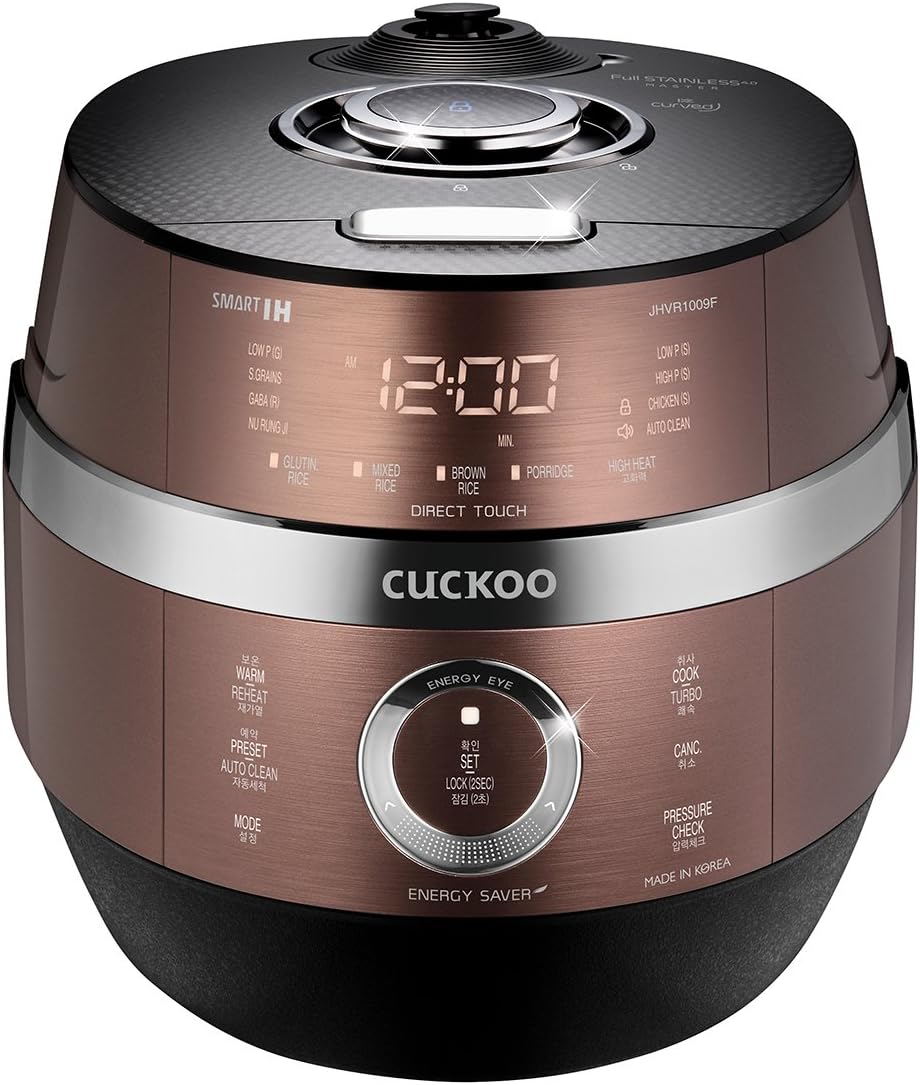

Front view of the CUCKOO CRP-JHVR1009F Induction Heating Pressure Rice Cooker in Copper finish.

Key Features:

• SMART TECH: Induction heating completely surrounds the inner pot for quick cooking (white rice in as little as 20 minutes!) while our energy-saving smart algorithm automatically detects grain type and internal temperature for perfectly cooked rice.
• STAINLESS STEEL INNER POT: Includes a 304 food-grade stainless steel inner pot with premium X-Wall nonstick diamond coating that is designed for optimal heat distribution, is scratch-resistant, built to last and easy to clean.
• PREMIUM FUNCTIONALITY: Complete with LED touch-controls, 3-language voice guide (Korean, Chinese, English), a preset timer, a reheat option for leftovers, and a keep-warm function to ensure none of your foods are ever overcooked while serving.
• VERSATILE & MULTI-FUNCTIONAL: Enjoy an XL 10-Cup capacity and 19 menu options including GABA rice, brown rice, glutinous/white rice, pressure cook, nu rung ji, and high/low pressure options along with auto-clean to effortlessly deep clean your cooker.
• ACCESSORIES INCLUDED: Rice spatula, rice measuring cup, steam plate, and product manual.

Setup and First Use

Unpacking and Inspection:

1. Carefully remove all components from the packaging.
2. Verify that all included accessories (rice spatula, measuring cup, steam plate, inner pot) are present.
3. Inspect the rice cooker for any signs of damage. Do not use if damaged.

Initial Cleaning:

1. Before first use, wash the inner pot, rice spatula, and measuring cup with warm, soapy water. Rinse thoroughly and dry completely.
2. Wipe the exterior of the main unit with a damp cloth. Do not immerse the main unit in water.

Placement:

Place the rice cooker on a stable, flat, heat-resistant surface, away from direct sunlight and heat sources. Ensure adequate ventilation around the unit.

The CUCKOO rice cooker with its lid open, showing the inner pot and steam plate.

Operating Instructions

Basic Rice Cooking (White Rice):

1. Measure the desired amount of rice using the provided measuring cup. Rinse the rice thoroughly until the water runs clear.
2. Place the rinsed rice into the stainless steel inner pot.
3. Add water according to the water level markings inside the inner pot for white rice. For example, for 2 cups of rice, fill water to the "2" mark for white rice. Adjust water quantity based on desired texture.
4. Place the inner pot into the main body of the rice cooker. Close the lid securely until it clicks.
5. Plug the power cord into a grounded electrical outlet.
6. Select the "Glutinous Rice" or "White Rice" menu option using the LED touch-controls.
7. Press the "Cook" button to start the cooking process. The cooker will automatically adjust pressure and temperature.
8. Once cooking is complete, the cooker will switch to "Keep Warm" mode. Allow the rice to rest for 5-10 minutes before serving for optimal texture.

The CUCKOO rice cooker is capable of preparing a variety of rice and grain types, as well as other dishes.

Using the Voice Guide:

The CUCKOO CRP-JHVR1009F features a 3-language voice guide (Korean, Chinese, English). To change the voice guide language:

1. Ensure the rice cooker is powered on. If in power-save mode, tap any button to wake it up.
2. Press the "Mode" button repeatedly until you enter the voice setting mode. The display will show a number corresponding to the current language (e.g., 1 for Korean, 2 for English, 3 for Chinese).
3. Use the up/down arrows or the scroll wheel (if applicable) to select your desired language (e.g., "2" for English).
4. Press the "Set" or "Confirm" button to save your selection. The voice guide will confirm the change.

Advanced Cooking Options:

Explore the 19 menu options for various rice types (GABA, brown, mixed) and cooking functions (pressure cook, porridge, nu rung ji). Refer to the full product manual for detailed instructions on each specific menu option and recommended water ratios.

Illustration of the CUCKOO's smart algorithm, which uses fuzzy logic to detect grain types and fine-tune water, heat, and duration for optimal cooking.

Maintenance and Cleaning

Daily Cleaning:

• After each use, unplug the rice cooker and allow it to cool completely.
• Remove the inner pot and wash it with warm, soapy water. The X-Wall nonstick coating makes cleaning easy.
• Wipe the inner lid and steam vent area with a damp cloth to remove any food residue.
• Wipe the exterior of the main unit with a soft, damp cloth. Do not use abrasive cleaners or immerse the unit in water.

Auto-Clean Function:

The auto-clean function uses high-temperature steam to sanitize the interior of the rice cooker. To use:

1. Fill the inner pot with water up to the "Auto-Clean" marking.
2. Place the inner pot into the cooker and close the lid.
3. Select the "Auto-Clean" menu option and press "Cook".
4. Once the cycle is complete, carefully open the lid (steam will be hot) and discard the water. Wipe the interior dry.

The durable stainless steel inner pot with X-Wall nonstick coating, designed for easy cleaning and optimal heat distribution.

Troubleshooting

For more complex issues, please refer to the comprehensive user manual or contact CUCKOO customer support.

Product Specifications

• Brand: CUCKOO
• Model Name: Induction Heating Pressure Rice Cooker
• Item Model Number: CRP-JHVR1009F
• Capacity: 10-Cup (Uncooked)
• Color: Copper
• Material: Stainless Steel
• Product Dimensions: 19"D x 14"W x 13"H
• Item Weight: 24.9 Pounds
• Power Source: Corded Electric
• Voltage: 120 Volts (AC)
• Wattage: 1455 watts
• Special Feature: Timer
• Product Care Instructions: Hand Wash (for inner pot)

Support and Warranty

For detailed information, including a complete list of menu options, safety guidelines, and advanced usage tips, please refer to the official user manual:

Download Official User Manual (PDF)

For warranty information and customer service inquiries, please visit the official CUCKOO website or contact their customer support directly. The product typically comes with a manufacturer's warranty; details can be found in the official manual or on the manufacturer's website.
