MARCY MKM-81010 Home Gym Instruction Manual

1. Product Overview

The MARCY MKM-81010 Home Gym is designed for comprehensive full-body strength training in a home environment. This multi-station system provides a total resistance capacity exceeding 142 kg, enabling a wide range of exercises targeting various muscle groups.

Key features include:

• Integrated Weight Stack: Offers consistent and adjustable resistance for diverse workouts.
• Multi-functional Arm Press: Allows for chest press, vertical butterfly, and inverted row exercises.
• Dual-Function Leg Developer: Facilitates leg extensions and leg curls for lower body training.
• Adjustable Bicep Curl Pad: Provides support and isolation for bicep exercises.
• High and Low Pulley Systems: Expands exercise variety for upper and lower body.
• Durable Construction: Features a 5 x 5 cm (14-gauge) tubular steel frame with a powder-coated finish and vinyl-covered weights.
• Enhanced Safety: Includes a solid steel protective cover for the weight stack and a locking system.

Figure 1: Full view of the MARCY MKM-81010 Home Gym.

2. Safety Information

Before using the MARCY MKM-81010 Home Gym, read and understand all instructions in this manual. Failure to follow these instructions may result in serious injury or equipment damage.

• Consult a Physician: Before starting any exercise program, consult with a healthcare professional to ensure it is appropriate for your physical condition.
• Proper Assembly: Ensure all components are correctly assembled and tightened according to the assembly instructions. Regularly check all nuts and bolts for tightness.
• Stable Surface: Place the home gym on a flat, stable surface to prevent tipping or instability during use.
• Clearance Area: Maintain adequate clear space around the equipment (at least 0.6 meters or 2 feet) to allow for safe movement and operation.
• Children and Pets: Keep children and pets away from the equipment during operation. This equipment is not a toy.
• Proper Attire: Wear appropriate athletic clothing and footwear. Avoid loose clothing that could get caught in moving parts.
• Inspect Before Use: Before each workout, inspect the equipment for worn or damaged parts, especially cables, pulleys, and upholstery. Do not use if any damage is found.
• Controlled Movements: Perform exercises with controlled movements. Avoid sudden jerks or dropping weights.
• Weight Limits: Do not exceed the maximum recommended user weight or resistance capacity of the machine.
• Listen to Your Body: Stop exercising immediately if you experience pain, dizziness, or nausea.

3. Setup and Assembly

The MARCY MKM-81010 Home Gym requires assembly. Follow the detailed assembly instructions provided in the separate assembly manual. Ensure all parts are accounted for before beginning assembly.

• Unpacking: Carefully unpack all components and lay them out in an organized manner.
• Tools Required: Have the necessary tools ready as specified in the assembly manual (e.g., wrenches, Allen keys).
• Location: Choose a suitable location with sufficient space and a level floor. The dimensions of the assembled unit are approximately 185 cm (depth) x 217 cm (width) x 95 cm (height).
• Two-Person Assembly: Assembly may require two people for safety and ease of handling larger components.
• Tighten All Fasteners: Ensure all nuts, bolts, and screws are securely tightened after assembly is complete. Do not overtighten.
• Weight Stack Installation: Install the weight plates and protective cover as directed. The weight stack features a locking pin for security.

Figure 2: Dimensions of the MARCY MKM-81010 Home Gym for placement planning.

4. Operating Instructions

This section describes how to use the various functions of your MARCY MKM-81010 Home Gym. Always ensure proper form and controlled movements during exercises.

4.1 Weight Selection

Adjust the resistance by inserting the selector pin into the desired weight plate in the stack. Ensure the pin is fully inserted before beginning an exercise. The resistance generated may vary based on the exercise and pulley system used.

Figure 3: The weight stack with protective cover and lower pulley system.

Figure 4: Guide for approximate resistance generated in kilograms for different exercises based on weight plate selection.

4.2 Adjustable Seat and Backrest

The seat and backrest can be adjusted to accommodate different user heights and exercise requirements. Loosen the adjustment knob, slide the seat/backrest to the desired position, and securely tighten the knob.

Figure 5: Adjustable seat and backrest for optimal positioning.

4.3 Multi-functional Arm Press

The arm press allows for various upper body exercises. To switch between chest press, vertical butterfly, or inverted row, adjust the arm press mechanism as shown in the diagram. Ensure the adjustment pin is fully engaged before use.

• Chest Press: Sit with your back against the pad, grasp the handles, and push forward.
• Vertical Butterfly: Sit facing the machine, grasp the handles, and bring them together in front of your chest.
• Inverted Row: Adjust the arms for a pulling motion, grasp the handles, and pull towards your torso.

Figure 6: Adjustment for the multi-functional arm press, allowing various chest and back exercises.

4.4 Leg Developer

The dual-function leg developer is used for leg extensions and leg curls. Position your legs under or over the pads as required for the exercise.

• Leg Extension: Sit on the seat, place your shins behind the lower pads, and extend your legs forward.
• Leg Curl: Lie face down on the bench (if applicable) or sit facing away from the leg developer, hook your heels under the pads, and curl your legs upwards.

Figure 7: User demonstrating a leg extension exercise using the leg developer.

4.5 Bicep Curl Pad

The removable and adjustable bicep curl pad provides support for isolating bicep muscles. Adjust its height to ensure your arms are properly positioned for effective curls.

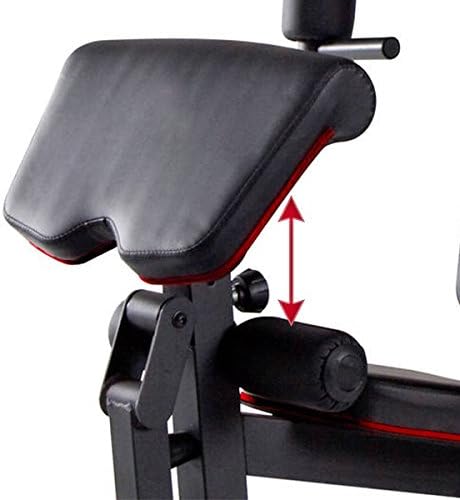

Figure 8: The adjustable bicep curl pad for targeted arm workouts.

4.6 High and Low Pulleys

The high and low pulley systems allow for a variety of exercises, including lat pulldowns, tricep pushdowns, cable rows, and bicep curls. Attach the appropriate handle or accessory to the cable.

4.7 Exercise Chart

Refer to the included exercise chart for a visual guide on various exercises that can be performed with the MARCY MKM-81010 Home Gym, targeting different muscle groups.

Figure 9: The MARCY Club Exercise Chart illustrating different exercises and their primary muscle engagement.

5. Maintenance

Regular maintenance ensures the longevity and safe operation of your home gym.

• Cleaning: Wipe down the frame and upholstery with a damp cloth after each use to remove sweat and dirt. Avoid abrasive cleaners.
• Inspection: Periodically inspect all cables, pulleys, and moving parts for signs of wear, fraying, or damage. Check all nuts, bolts, and fasteners for tightness. Tighten as necessary.
• Lubrication: Apply a light lubricant to pivot points and guide rods as needed to ensure smooth operation and prevent squeaking. Do not lubricate cables.
• Cable Replacement: If cables show signs of wear or fraying, replace them immediately. Contact customer support for genuine replacement parts.
• Storage: Store the equipment in a dry, climate-controlled environment to prevent rust and material degradation.

6. Troubleshooting

This section addresses common issues you might encounter with your home gym.

7. Specifications

8. Warranty and Support

The MARCY MKM-81010 Home Gym comes with a 3-year product warranty. This warranty covers manufacturing defects and ensures the availability of spare parts within the EU for a period of 3 years.

For warranty claims, technical assistance, or to order replacement parts, please contact MARCY customer support through your retailer or the official MARCY website. Please have your model number (MKM-81010) and proof of purchase available when contacting support.
