1. Introduction
This instruction manual provides essential information for the proper installation and maintenance of the SINOCMP Center Joint Oil Seal Kit, designed for Komatsu PC220-7 and PC220LC-7 excavators. This kit is crucial for maintaining the integrity and performance of the excavator's center joint by preventing oil leaks and contamination.
Figure 1.1: Overview of the SINOCMP PC220-7 Center Joint Oil Seal Kit components.
2. Product Components
The SINOCMP Center Joint Oil Seal Kit includes various seals engineered for specific functions within the excavator's center joint. Key components typically include:
- Piston Seals: Often made from PTFE with bronze content for enhanced durability and sealing performance.
- Buffer Seals: Designed to absorb pressure spikes and protect the rod seal.
- Wiper Seals: Prevent external contaminants from entering the system.
- Rod Seals: Maintain a tight seal around the piston rod to prevent fluid leakage.
- O-Rings: Various sizes and materials for static and dynamic sealing applications.
These seals are manufactured from durable rubber materials, designed to withstand operating temperatures ranging from -40°C to 250°C.
Figure 2.1: Detailed view of different seal types included in the kit.

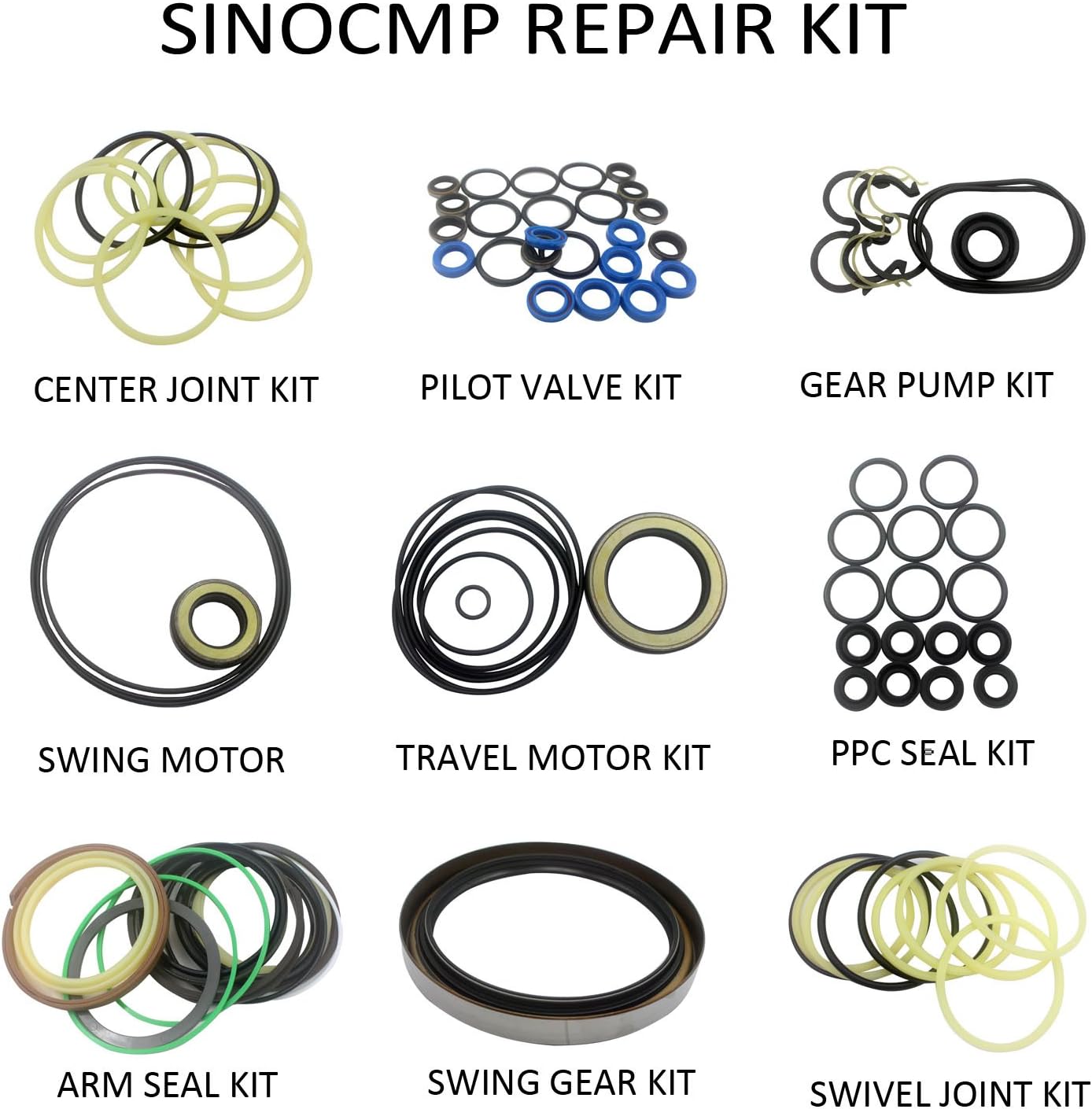

Figure 2.2: General overview of various SINOCMP excavator seal kits, illustrating the range of available components.
3. Installation Guidelines
Correct installation is critical for the longevity and performance of the seal kit. Always ensure the replacement part matches the old part number and the specific machine model (Komatsu PC220-7 or PC220LC-7).
- Preparation: Before beginning, ensure the excavator is safely shut down, hydraulic pressure is relieved, and the work area is clean and free of debris.
- Component Identification: Carefully identify each seal in the kit and its corresponding position within the center joint assembly. Refer to the excavator's service manual for detailed diagrams.
- Removal of Old Seals: Gently remove the worn or damaged seals, taking care not to scratch or damage the metal surfaces of the center joint.
- Cleaning: Thoroughly clean all grooves and surfaces where new seals will be installed. Any remaining dirt or old fluid can compromise the new seals.
- Lubrication: Lightly lubricate new seals with clean hydraulic fluid compatible with the excavator's system before installation. This aids in smooth seating and prevents damage during assembly.
- Installation of New Seals: Install each seal carefully, ensuring it is seated correctly and not twisted or pinched. Use appropriate tools to avoid damage.
- Reassembly: Reassemble the center joint components according to the excavator's service manual.
- Testing: After installation, perform a thorough system test to check for leaks and proper function before returning the excavator to full operation.
Important Note:
- Compatibility: Always verify the product's compatibility with your specific excavator model using the part number and machine model.
- Professional Assistance: If you are unsure about any installation step, it is recommended to seek assistance from a qualified technician or refer to the official Komatsu service manual.
- Component Handling: Exercise caution when handling all components. Improper installation or damage to seals can lead to system failure.
Figure 3.1: Diagram illustrating the locations of various seal kits within an excavator, including the center joint.
4. Operating Principles
The center joint oil seal kit plays a vital role in the hydraulic system of an excavator. Its primary function is to prevent the leakage of hydraulic fluid from the rotating center joint while simultaneously protecting the internal components from external contaminants like dirt and moisture. By maintaining a tight seal, these components ensure:
- Efficient Hydraulic Pressure: Prevents pressure loss, ensuring the hydraulic system operates at optimal efficiency.
- Component Longevity: Protects internal moving parts from wear caused by contamination and lack of lubrication.
- System Reliability: Contributes to the overall reliable operation of the excavator's hydraulic functions.
The durable and reliable engineering of SINOCMP seals ensures consistent performance under demanding operational conditions.
5. Maintenance
Regular inspection and timely replacement of seals are crucial for preventing hydraulic system failures and extending the lifespan of your excavator. While this kit is for replacement, general maintenance practices include:
- Routine Checks: Periodically inspect the center joint area for any signs of oil leakage. Early detection can prevent more significant issues.
- Cleanliness: Keep the excavator's exterior, especially around hydraulic components, clean to minimize the ingress of contaminants.
- Fluid Quality: Ensure that the hydraulic fluid used is clean and of the correct specification for your Komatsu excavator. Contaminated fluid can degrade seals prematurely.
Adhering to the excavator manufacturer's recommended service intervals for hydraulic system checks is highly advised.
6. Troubleshooting
If issues arise after the installation of the seal kit, consider the following:
- Leakage Immediately After Installation:
- Verify that all seals are correctly seated and not pinched or twisted.
- Ensure the metal surfaces were clean and free of burrs or damage before installation.
- Confirm that the correct seal sizes and types were used for each position.
- Reduced Hydraulic Performance:
- While less common for seal kits alone, significant leaks can lead to pressure loss. Check for external leaks.
- Ensure the hydraulic fluid level is correct after any maintenance.
For persistent problems, consult the excavator's service manual or contact a professional hydraulic technician.
7. Specifications
| Attribute | Detail |
|---|---|
| Part Name | Center Joint Oil Seal Kit |
| Brand | SINOCMP |
| Model Applicated | Komatsu PC220-7, PC220LC-7 Excavator |
| Part Number | CP-K25069 |
| Material | Rubber (Piston seal PTFE with 40% bronze) |
| Operating Temperature | -40°C to 250°C |
| Item Weight | 10.6 ounces (approx. 300 grams) |
| Product Dimensions | 5.91 x 3.94 x 5.91 inches (approx. 15 x 10 x 15 cm) |
| Item Package Quantity | 1 kit |
8. Warranty and Support
Warranty: The SINOCMP Center Joint Oil Seal Kit comes with a manufacturer's warranty of 3 months from the date of purchase. Replacement parts are provided free of charge within the first 3 months for product-related defects.
Customer Support: For any product-related problems, inquiries, or technical assistance, please contact SINOCMP customer support as soon as possible. Ensure you have your purchase details and the product part number (CP-K25069) ready.
Note: Buyers may be responsible for possible additional costs such as import taxes and customs duties, depending on their location and local regulations.
