Medical Breakthrough Podiatrist v3 Calf & Foot Massager Instruction Manual

1. Product Overview

The Medical Breakthrough Podiatrist v3 is a versatile massager designed to provide relief and relaxation for both calves and feet. It incorporates various massage techniques and features to enhance user comfort and therapeutic benefits.

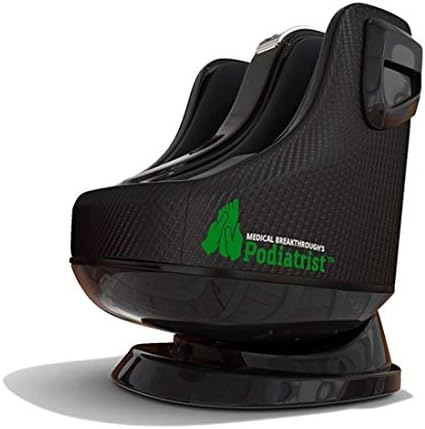

Figure 1: Front view of the Medical Breakthrough Podiatrist v3 massager.

2. Key Features

• Doctor-Based Design: Developed with podiatrists for targeted relief.
• Shiatsu Massage: Utilizes kneading and pushing motions.
• 3D Reflexology Rollers: Stimulates pressure points from toes to soles.
• Air Cell Compression Therapy: Specialized air cells expand and contract around feet and calves to promote circulation.
• Heat Therapy: Provides ultra-soft heat to soothe pain.
• Adjustable Angles: Allows tilting for comfortable use in various seating positions.
• Custom Padding: Includes removable padding to adjust massage intensity.

3. Safety Guidelines

Please read all safety instructions before use to prevent injury or damage.

• Always unplug the massager before cleaning or when not in use.
• Do not use if you have a blood clot, heart condition, or are pregnant.
• Keep the massager dry and do not use it in wet environments.
• Do not use if you have a pacemaker or other electronic medical device.
• Avoid using on injured or inflamed areas of the body.
• Ensure the power cord is not damaged or pinched.
• Keep out of reach of children.

4. Setup

4.1 Unpacking and Placement

Carefully remove the massager from its packaging. Place the unit on a flat, stable surface near a power outlet. Ensure there is enough space around the unit for comfortable use and adjustment.

4.2 Power Connection

Connect the power adapter to the massager and then plug it into a standard electrical outlet. Ensure the connection is secure.

4.3 Custom Padding Installation

The massager comes with free custom padding. Insert the padding into the foot/calf compartments as desired to customize the strength and comfort of your massage.

5. Operating Instructions

The Podiatrist v3 massager offers multiple settings and modes for a personalized experience. The control panel is located on the top of the unit.

Figure 2: Control panel for the Podiatrist v3 massager.

5.1 Powering On/Off

Press the Power button on the control panel to turn the unit on or off.

5.2 Selecting Massage Mode (Foot or Calf)

The massager features an adjustable arm to switch between foot and calf massage. To change modes, locate the release mechanism on the back of the unit. Adjust the arm to the desired angle for either foot or calf massage.

Figure 3: Massager configured for foot massage.

Figure 4: Massager configured for calf massage.

5.3 Massage Techniques

The massager combines Shiatsu, Kneading & Pushing, Kneading & Rolling, Twist, and Air Pressure techniques. Use the mode selection buttons on the control panel to cycle through available massage programs.

5.4 Heat Therapy

Activate the heat function by pressing the Heat button. The massager provides ultra-soft heat to enhance relaxation and soothe muscles.

5.5 Intensity Adjustment

Adjust the intensity of the massage and air compression using the Intensity buttons (usually marked with '+' and '-'). There are three levels of intensity to choose from.

5.6 Official Product Videos

6. Care and Maintenance

6.1 Cleaning

Always unplug the massager before cleaning. Use a soft, damp cloth to wipe down the exterior of the unit. The internal fabric liners are removable and washable for hygiene. Refer to the product label for specific washing instructions for the liners.

6.2 Storage

When not in use, store the massager in a cool, dry place away from direct sunlight and moisture. Ensure the power cord is neatly coiled and not kinked or stretched.

7. Troubleshooting

• Unit does not power on: Ensure the power adapter is securely plugged into both the unit and a working electrical outlet. Check for any damage to the power cord.
• Massage intensity is too weak/strong: Adjust the intensity levels using the '+' and '-' buttons on the control panel. Consider adding or removing the custom padding for desired comfort.
• Heat function is not working: Verify that the heat function is activated on the control panel. Allow a few minutes for the heat to build up. If the issue persists, contact customer support.
• Unusual noises during operation: Discontinue use immediately and unplug the unit. Contact customer support for assistance.

8. Technical Specifications

9. Customer Support

For any questions, technical support, or warranty inquiries, please contact Medical Breakthrough customer service. Refer to your product packaging or the official Medical Breakthrough website for contact details.
