V-Guard Digital UPS DU875 Pure Sine Wave Inverter User Manual

Model: DU875

1. Introduction

Thank you for choosing the V-Guard Digital UPS DU875 Pure Sine Wave Inverter. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new UPS system. Please read this manual thoroughly before installation and use, and retain it for future reference.

The V-Guard DU875 is designed to provide reliable power backup for your home or office, featuring a fully DSP-based design and MOSFET-based PWM technology for dynamic stability and pure sine wave output, ensuring the safety and longevity of your connected appliances.

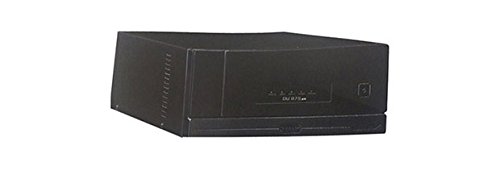

V-Guard Digital UPS DU875 Pure Sine Wave Inverter, front view

Figure 1: Front view of the V-Guard Digital UPS DU875. This image shows the compact black unit with indicator lights on the front panel.

2. Important Safety Instructions

Always follow these basic safety precautions to reduce the risk of fire, electric shock, and injury to persons:

  • Read all instructions before using the UPS.
  • This UPS is designed for indoor use only. Do not expose it to rain, snow, or any liquids.
  • Do not operate the UPS if it has received a sharp blow, been dropped, or otherwise damaged.
  • To reduce the risk of electric shock, do not disassemble the UPS. Contact qualified service personnel when service or repair is required. Incorrect reassembly may result in a risk of electric shock.
  • To reduce the risk of electric shock, disconnect the UPS from the AC outlet before attempting any maintenance or cleaning.
  • Ensure proper ventilation. Do not block any ventilation openings.
  • Do not connect non-recommended accessories.
  • This UPS requires external batteries. Ensure proper battery connection and polarity.

3. Setup and Installation

3.1 Unpacking

Carefully unpack the UPS and inspect it for any damage that may have occurred during transit. If any damage is found, contact your dealer immediately.

3.2 Placement

Choose a suitable location for the UPS:

  • Place the UPS on a flat, stable surface.
  • Ensure adequate ventilation. Maintain at least 10 cm (4 inches) of clearance around all sides of the UPS for proper airflow.
  • Avoid direct sunlight, heat sources, and areas with excessive dust or humidity.
  • Keep the UPS away from flammable materials.

3.3 Battery Connection

The V-Guard DU875 requires external batteries (not included). Follow these steps to connect the battery:

  1. Ensure the UPS is turned OFF and disconnected from the mains power supply.
  2. Connect the positive (+) terminal of the battery to the positive (+) terminal of the UPS using the red battery cable.
  3. Connect the negative (-) terminal of the battery to the negative (-) terminal of the UPS using the black battery cable.
  4. Double-check all connections for correct polarity and secure fastening. Incorrect polarity can damage the UPS and battery.

3.4 Connecting to Mains Power

Plug the UPS power cord into a grounded AC wall outlet. The UPS will begin charging the connected battery.

3.5 Connecting Appliances

Connect your appliances (e.g., lights, fans, computers) to the output sockets provided on the rear panel of the UPS. Ensure that the total load does not exceed the UPS's rated capacity.

4. Operation

4.1 Powering On/Off

  • To Power On: Press and hold the Power button on the front panel for a few seconds until the UPS powers on and the indicators light up.
  • To Power Off: Press and hold the Power button again until the UPS shuts down.

4.2 Intelligent Audio/LED Indications

The V-Guard DU875 features intelligent audio and LED indications to provide real-time status updates. Refer to the table below for common indications:

IndicatorStatusDescription
Mains ON LEDGreen, SolidUPS is operating on mains power and charging the battery.
Inverter ON LEDGreen, SolidUPS is operating on battery power (inverter mode).
Battery Low LEDRed, FlashingBattery charge is low. UPS will soon shut down.
Overload LEDRed, SolidConnected load exceeds UPS capacity. Reduce load immediately.
Fault LEDRed, SolidInternal fault detected. Contact service.
Audio AlarmBeepingIndicates power failure, battery low, or overload condition.

4.3 Operating Modes

  • UPS Mode: When mains power is available, the UPS charges the battery and provides power to connected appliances. Upon power failure, it automatically switches to battery power.
  • Battery Mode (Inverter Mode): When mains power is absent, the UPS draws power from the battery and converts it to AC power for your appliances.

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your V-Guard DU875 UPS.

5.1 Cleaning

  • Ensure the UPS is turned OFF and disconnected from mains power before cleaning.
  • Use a soft, dry cloth to wipe the exterior of the UPS.
  • Do not use liquid or aerosol cleaners.
  • Keep ventilation openings clear of dust and debris.

5.2 Battery Care

  • Ensure the battery terminals are clean and free from corrosion.
  • Periodically check the electrolyte level in flooded lead-acid batteries (if applicable to your battery type) and top up with distilled water as needed.
  • Avoid deep discharge of the battery. Allow the UPS to recharge fully after a power outage.
  • If the UPS is to be stored for an extended period, ensure the battery is fully charged and recharge it every 3-6 months to prevent permanent damage.

6. Troubleshooting

This section provides solutions to common issues you might encounter with your V-Guard DU875 UPS. If the problem persists after following these steps, contact V-Guard customer support.

ProblemPossible CauseSolution
UPS does not turn on.No mains power / Discharged battery / Loose battery connection.Check mains power supply. Ensure battery is charged. Verify battery connections are secure.
UPS beeps continuously / Overload LED is ON.Overload condition.Disconnect non-essential appliances to reduce the load. Restart the UPS.
UPS switches to battery mode frequently.Unstable mains power / Weak battery.Check mains power quality. Have the battery tested or replaced if it's old.
Battery not charging.Mains power not connected / Faulty battery / Internal fault.Ensure UPS is plugged into a live AC outlet. Check battery connections. If problem persists, contact service.
Short backup time.Battery degradation / Overload.Battery may need replacement. Reduce connected load.

7. Specifications

FeatureDescription
BrandV-Guard
ModelDU875
TypeDigital UPS, Pure Sine Wave Inverter
TechnologyFully DSP Based Design, MOSFET based PWM technology with dynamic stability
IndicationsIntelligent audio/LED indications
Batteries RequiredYes (External, not included)
MaterialMetal
Form FactorRack
Connector TypeIEC 320, USB
ColorBlack

8. Warranty and Support

For warranty information, service, or technical support, please refer to the warranty card included with your product or visit the official V-Guard website. Keep your purchase receipt as proof of purchase for warranty claims.
