MYLEK MYPS700 PRO-Spray 700W Electric Sprayer Gun Kit Instruction Manual

1. Introduction

Thank you for purchasing the MYLEK MYPS700 PRO-Spray 700W Electric Sprayer Gun Kit. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your new paint sprayer. Please read these instructions thoroughly before initial use and retain them for future reference.

2. Safety Instructions

Always observe basic safety precautions to reduce the risk of fire, electric shock, and personal injury. This includes, but is not limited to:

• Read all instructions: Familiarize yourself with the controls and proper use of the equipment.
• Wear appropriate personal protective equipment (PPE): Always wear safety glasses, a respirator mask, gloves, and protective clothing when operating the sprayer.
• Ensure proper ventilation: Use the sprayer in a well-ventilated area to avoid inhaling paint fumes.
• Keep work area clean and well-lit: Cluttered or dark areas invite accidents.
• Avoid hazardous environments: Do not use the sprayer in the presence of flammable liquids or gases.
• Electrical safety: Ensure the power cord is undamaged. Do not operate the sprayer with a damaged cord or plug. Keep the cord away from heat, oil, sharp edges, or moving parts.
• Never point the spray gun at people or animals: The high-pressure spray can cause serious injury.
• Disconnect power: Always unplug the sprayer before cleaning, performing maintenance, or when not in use.
• Use only recommended materials: Ensure the paint or material being sprayed is compatible with the sprayer and properly thinned according to manufacturer guidelines.

3. Package Contents

Verify that all items are present in your package:

• MYLEK MYPS700 PRO-Spray Unit (Motor and Gun Assembly)
• 1.8m Hose
• 1200ml Paint Cup
• 900ml Paint Cup
• Viscosity Measuring Cup
• Cleaning Kit (including cleaning pin)
• Shoulder Strap
• Spare Air Filter
• Instruction Guide (this manual)

4. Product Overview

The MYLEK MYPS700 PRO-Spray is a 700W electric paint sprayer designed for efficient and uniform paint coverage. It features a lightweight design, powerful motor, and adjustable spray patterns for various applications.

Figure 4.1: Complete MYLEK MYPS700 PRO-Spray Electric Sprayer Gun Kit, showing the main unit, spray gun, two paint cups, hose, and accessories.

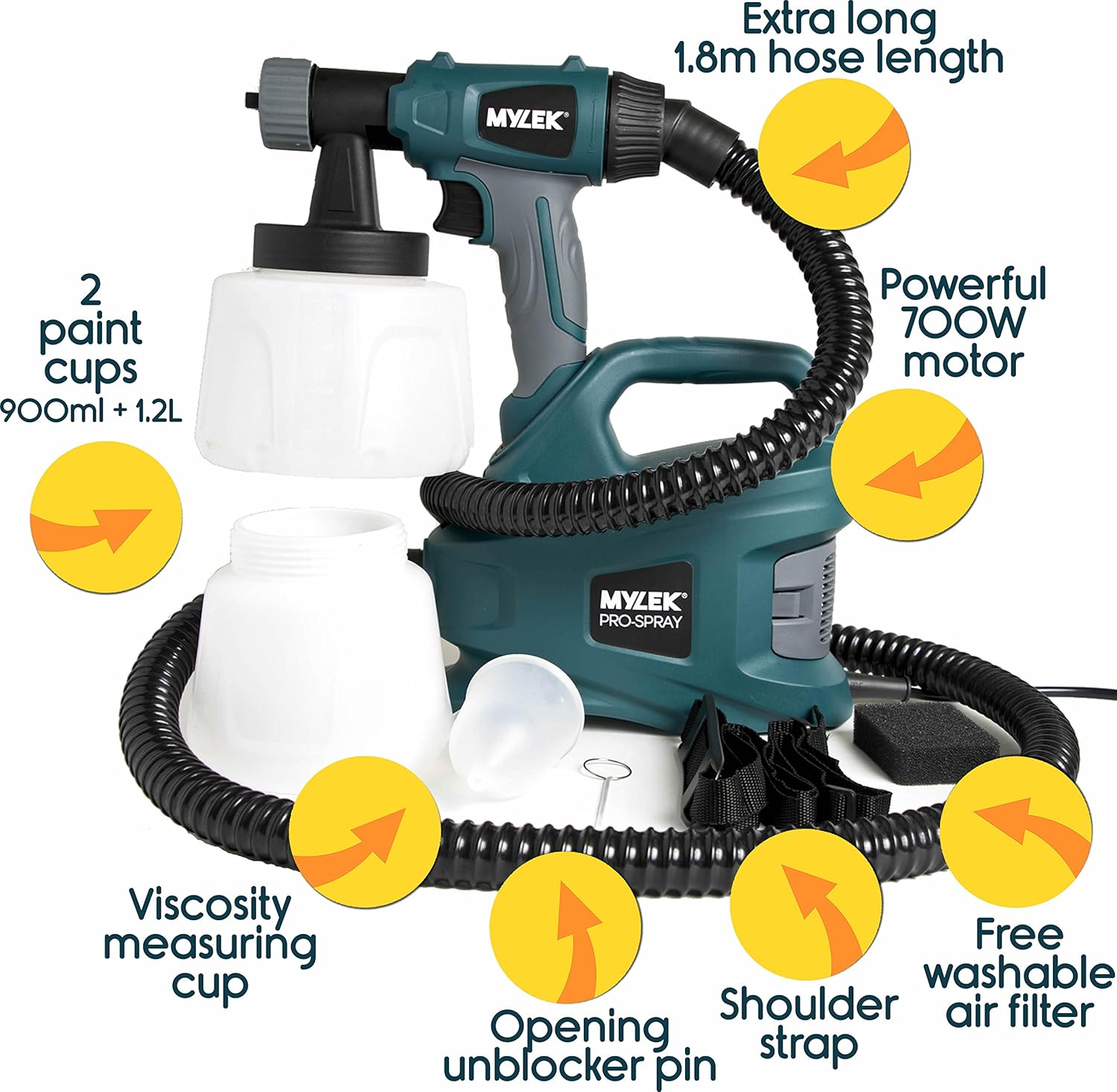

Figure 4.2: Detailed view of the MYLEK MYPS700 PRO-Spray components, highlighting the 1.8m hose, 700W motor, two paint cups (900ml + 1.2L), viscosity measuring cup, unblocker pin, shoulder strap, and washable air filter.

Figure 4.3: The ergonomic design of the spray gun handle, emphasizing its lightweight and comfortable grip for extended use.

Figure 4.4: The main power unit of the MYLEK MYPS700 PRO-Spray, housing the powerful 700W motor for consistent performance.

Figure 4.5: The air filter compartment, showing the easily accessible and washable air filters that contribute to the sprayer's longevity.

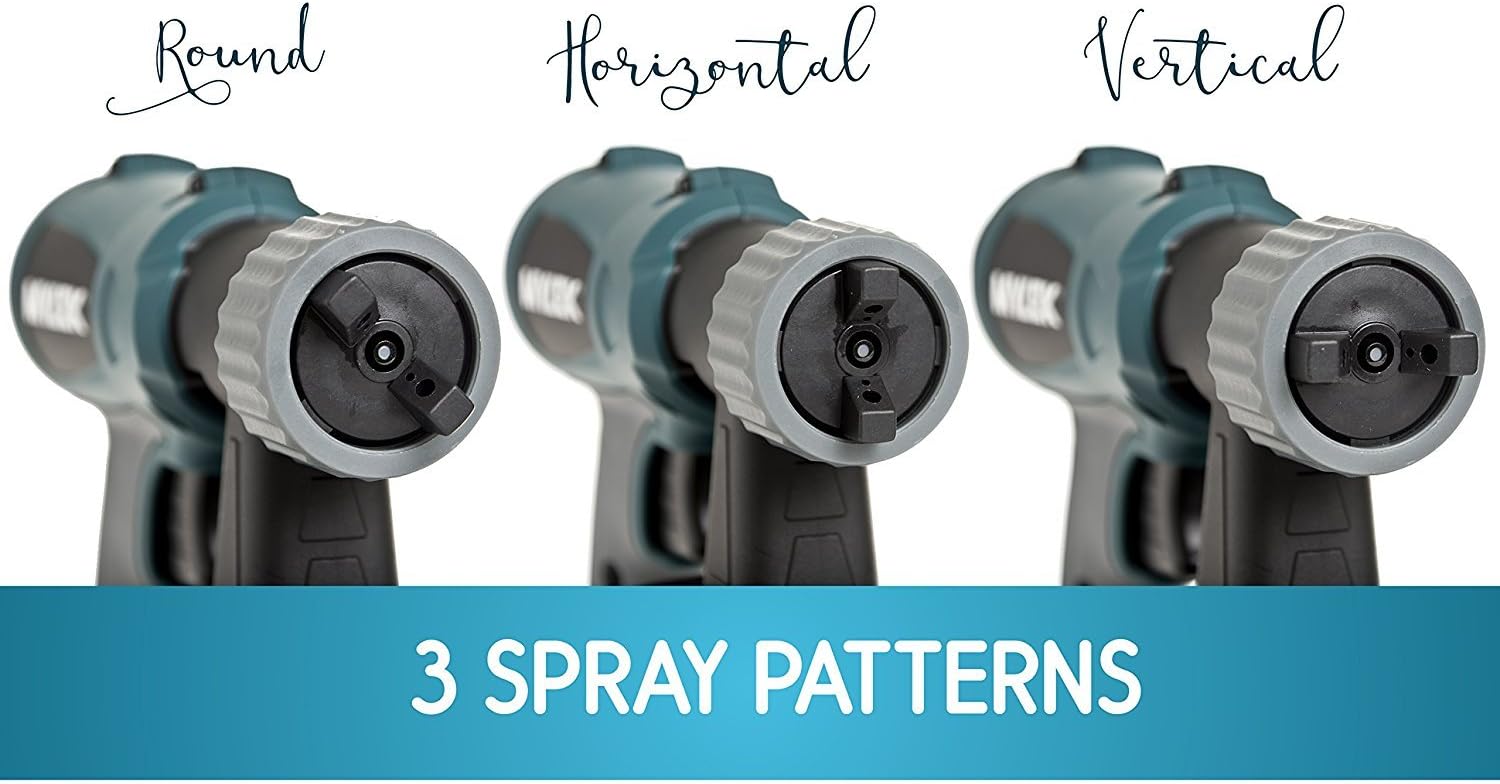

Figure 4.6: Illustration of the three distinct spray patterns: Round for small areas, Horizontal for horizontal surfaces, and Vertical for vertical surfaces.

Figure 4.7: The MYLEK MYPS700 PRO-Spray being used to apply paint to a wooden fence, demonstrating its application capability.

Figure 4.8: Overview of the MYLEK MYPS700 PRO-Spray's versatility, suitable for various surfaces including wood, brick, plaster, metal, fences, sheds, decking, doors, garden pots, and outdoor furniture.

5. Setup

5.1 Assembly

1. Connect the 1.8m hose to the main power unit and the spray gun. Ensure connections are secure.
2. Attach the desired paint cup (900ml or 1200ml) to the bottom of the spray gun by screwing it firmly into place.
3. If using the shoulder strap, attach it to the designated points on the main power unit for comfortable carrying.

5.2 Paint Preparation

Proper paint consistency is crucial for optimal spray performance and to prevent clogging. Always refer to the paint manufacturer's instructions for thinning recommendations.

1. Stir the paint thoroughly.
2. Use the provided viscosity measuring cup to check the paint's consistency. Fill the cup with paint and time how long it takes for the paint to completely drain. Consult the paint manufacturer's guidelines or the sprayer's specific recommendations for the appropriate drain time.
3. If the paint is too thick, gradually add the recommended thinner (water for water-based paints, appropriate solvent for oil-based paints) and mix well. Re-test the viscosity until the desired consistency is achieved.
4. Pour the prepared paint into the paint cup, ensuring it does not exceed the maximum fill line.

6. Operating Instructions

6.1 Selecting Spray Pattern

The MYPS700 offers three spray patterns. To change the pattern, rotate the air cap on the front of the spray gun to align the air cap ears with the desired setting:

• Round Pattern: For small areas, edges, or corners.
• Horizontal Pattern: For spraying vertical surfaces (e.g., fences, walls).
• Vertical Pattern: For spraying horizontal surfaces (e.g., decking, tabletops).

6.2 Spraying Technique

1. Test Spray: Before spraying your project, always perform a test spray on a piece of scrap material to check the spray pattern and paint flow. Adjust as necessary.
2. Distance: Hold the spray gun approximately 15-30 cm (6-12 inches) from the surface, depending on the desired coverage and material.
3. Movement: Move the spray gun at a consistent speed, keeping it perpendicular to the surface. Avoid arcing motions, which can lead to uneven coverage.
4. Overlap: Overlap each pass by about 50% to ensure uniform coverage.
5. Trigger Control: Press the trigger fully to start spraying and release it at the end of each pass.
6. Multiple Coats: For best results, apply multiple thin coats rather than one thick coat. Allow adequate drying time between coats as recommended by the paint manufacturer.

7. Maintenance and Cleaning

Thorough cleaning after each use is essential to maintain the sprayer's performance and extend its lifespan.

1. Empty Paint Cup: Disconnect the power. Empty any remaining paint from the cup back into its original container.
2. Initial Rinse: Fill the paint cup with the appropriate cleaning solution (water for water-based paints, solvent for oil-based paints). Reattach the cup and spray the cleaning solution into a waste container until the spray runs clear.
3. Disassemble and Clean: Disassemble the spray gun components (nozzle, air cap, fluid tip, paint cup). Clean all parts thoroughly with the appropriate cleaning solution and the provided cleaning brush/pin. Pay special attention to the nozzle and fluid tip to remove any dried paint.
4. Clean Air Filter: Remove the air filter from the main power unit. Wash it with warm soapy water, rinse thoroughly, and allow it to air dry completely before reinserting. Replace the filter if it is damaged or excessively clogged.
5. Wipe Down: Wipe the exterior of the sprayer unit and hose with a damp cloth.
6. Reassemble: Once all parts are clean and dry, reassemble the sprayer. Store in a clean, dry place.

8. Troubleshooting

Refer to the table below for common issues and their solutions:

9. Technical Specifications

10. Warranty and Support

The MYLEK MYPS700 PRO-Spray is manufactured to high-quality standards and is CE certified and RoHS compliant. For warranty information, technical support, or to inquire about replacement parts, please contact MYLEK customer service through their official website or the retailer where the product was purchased. Please have your model number (MYPS700) and purchase date available when contacting support.
