Neoperl PCA Perlator HC Male Aerator User Manual

Introduction

This manual provides essential information for the installation, operation, and maintenance of your Neoperl PCA Perlator HC Male Aerator. Please read this manual thoroughly before use to ensure proper function and longevity of the product.

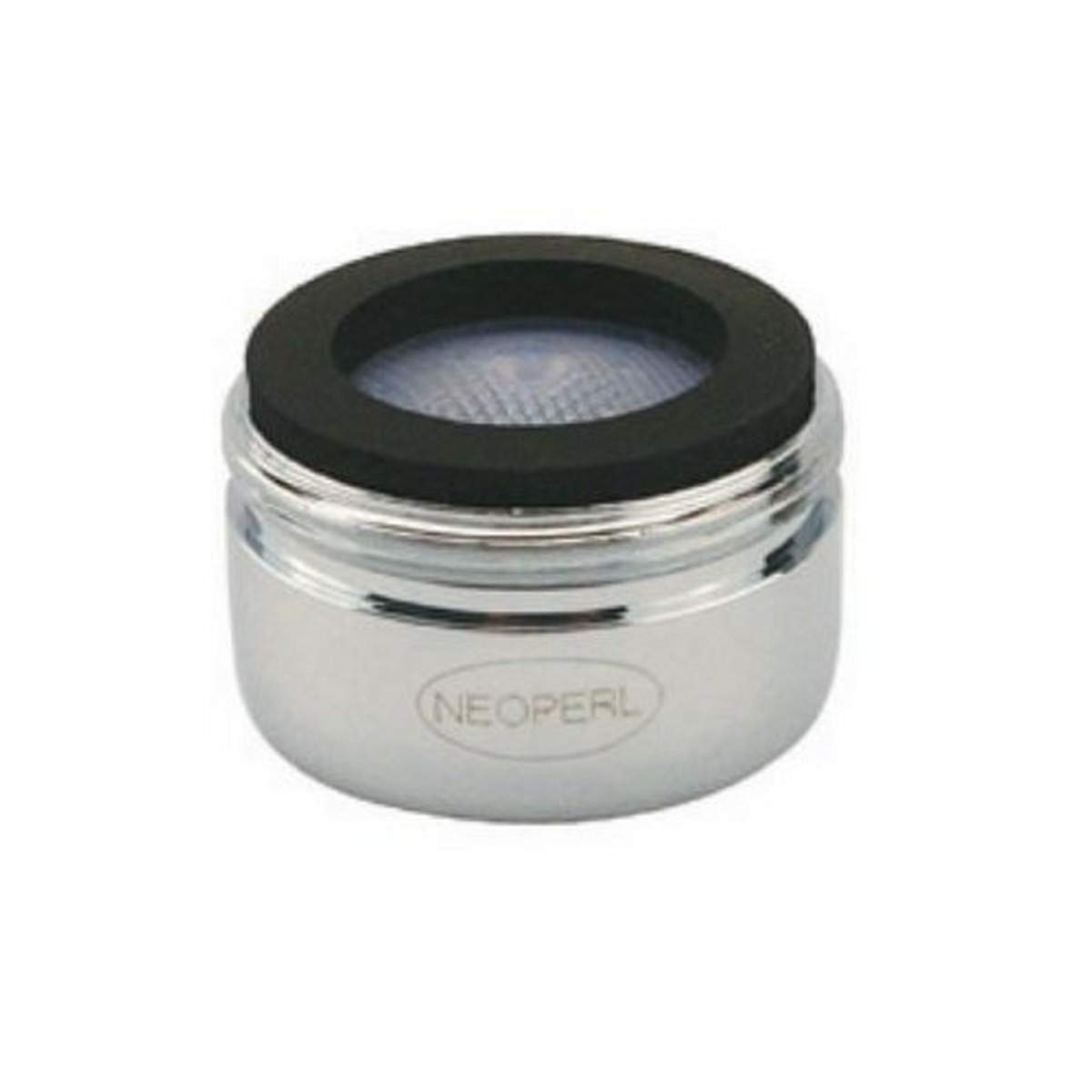

Image: Neoperl PCA Perlator HC Male Aerator, a chrome-finished cylindrical device with a black rubber ring and a mesh screen visible at the top. The "NEOPERL" logo is embossed on the side.

Product Features

The Neoperl PCA Perlator HC Male Aerator is designed for efficient water flow and durability. Key features include:

• Patented Construction: Provides a splash-free stream that is well aerated and soft to the touch.
• Pressure Compensating: Maintains a constant flow rate of 1.8 Gallons Per Minute (GPM) across a pressure range of 20 to 80 psi.
• Integrated Anti-Liming Honeycomb: Replaces conventional wire mesh screens, reducing lime buildup.
• Anti-Clogging Dome Screen: Filters sediment and particles to prevent blockages.
• Metric M24 x 1 Threads: Ensures compatibility with standard metric male threaded faucets.
• CAL Green Compliant: Meets California's green building standards for water efficiency.

Setup and Installation

Before installation, ensure the water supply to the faucet is turned off. You may need a wrench or pliers for removal of the old aerator and installation of the new one.

1. Remove Old Aerator: Unscrew the existing aerator from your faucet. If it is tight, use a wrench with a cloth to avoid scratching the faucet finish.
2. Clean Faucet Spout: Clean any debris or mineral buildup from the inside of the faucet spout threads.
3. Insert Gasket (if separate): Ensure the rubber gasket is properly seated within the new Neoperl aerator. The Neoperl PCA Perlator HC features a single-piece construction, often with an integrated gasket.
4. Screw in New Aerator: Carefully screw the Neoperl PCA Perlator HC Male Aerator into the faucet spout threads. Hand-tighten first to ensure it's not cross-threaded.
5. Tighten: Once hand-tight, use a wrench or pliers with a cloth to gently tighten the aerator until snug. Do not overtighten, as this can damage the aerator or faucet.
6. Check for Leaks: Turn on the water supply and check for any leaks around the aerator connection. If leaks occur, tighten slightly more or re-check the gasket seating.

Operating Instructions

The Neoperl PCA Perlator HC Male Aerator operates automatically once installed. It is designed to provide a consistent, aerated stream of water.

• Water Flow: The aerator will regulate the water flow to 1.8 GPM, regardless of minor fluctuations in water pressure (within 20-80 psi).
• Stream Quality: Expect a soft, non-splashing, aerated stream, which helps conserve water and reduce splashing in the sink.

Maintenance

Regular maintenance ensures optimal performance and extends the life of your aerator. The anti-clogging and anti-liming features reduce the frequency of cleaning, but periodic inspection is recommended.

1. Periodic Cleaning: If water flow diminishes or becomes irregular, the aerator may need cleaning.
2. Removal: Turn off the water supply. Unscrew the aerator from the faucet.
3. Inspection: Inspect the honeycomb screen and dome screen for any trapped sediment or mineral deposits.
4. Cleaning Procedure: Rinse the aerator under running water. For stubborn deposits, soak the aerator in a solution of equal parts white vinegar and water for 30 minutes to an hour. Use a soft brush (like an old toothbrush) to gently scrub away any remaining debris.
5. Reinstallation: Rinse thoroughly with clean water and reinstall the aerator as described in the "Setup and Installation" section.

Troubleshooting

Specifications

• Model Number: 11 5080 5
• Flow Rate: 1.8 Gallons Per Minute (GPM)
• Thread Type: Metric M24 x 1
• Finish: Chrome
• Color: Light Blue (internal component)
• Pressure Compensation Range: 20 to 80 psi
• Construction: Patented Honeycomb single piece
• Compliance: CAL Green compliant
• Manufacturer: Neoperl
• Item Weight: Approximately 0.01 Ounces (0.28 g)
• Package Dimensions: Approximately 15.6 x 7.9 x 1.1 cm

Warranty Information

For specific warranty details, please refer to the documentation provided with your purchase or visit the official Neoperl website. Warranty terms typically cover manufacturing defects under normal use conditions.

Customer Support

If you have any questions or require assistance with your Neoperl PCA Perlator HC Male Aerator, please contact Neoperl customer support through their official website or the retailer from whom you purchased the product. Provide your model number (11 5080 5) when contacting support for faster service.

You can find more information and contact details on the Neoperl Official Website.
