1. Introduction
This instruction manual provides detailed guidance for the assembly, use, and maintenance of your Vicco Karree Cube Storage Unit. Please read all instructions carefully before beginning assembly and retain this manual for future reference. Proper assembly and care will ensure the longevity and stability of your furniture.
2. Safety Information
- Always assemble the unit on a soft, clean surface to prevent scratches.
- Ensure all screws and fasteners are tightened securely before use. Periodically check and re-tighten as needed.
- Do not overload the shelves. Each shelf has a maximum weight capacity of 10 kg.
- For tall furniture, it is recommended to secure the unit to a wall using appropriate anti-tip hardware (not included) to prevent accidental tipping, especially in households with children or pets.
- Keep small parts and packaging materials away from children to avoid choking hazards.
3. Package Contents
Before assembly, verify that all components listed below are present. If any parts are missing or damaged, please contact customer support.
- Standing shelf panels (particle board, 16 mm)
- Assembly instructions
- Mounting hardware (screws, dowels, etc.)
Image 3.1: Fully assembled Vicco Karree Cube Storage Unit.
4. Setup and Assembly Instructions
Assembly requires basic tools such as a screwdriver (a power drill with appropriate bits can expedite the process). It is recommended to have two people for assembly due to the size and weight of the unit.
- Unpack and Identify Parts: Carefully unpack all components and lay them out on a clean, soft surface. Refer to the assembly diagram in the included instructions to identify each panel and piece of hardware. Note: Panels may not be numbered; use the diagrams for identification.
- Assemble the Outer Frame: Begin by connecting the main vertical and horizontal outer panels using the provided dowels and screws. Ensure connections are snug but do not overtighten initially.
- Insert Internal Dividers: Systematically insert the internal vertical and horizontal divider panels to form the 16 cube compartments. Use the provided hardware to secure each connection.
- Final Tightening: Once all panels are in place and the structure is complete, carefully tighten all screws. Avoid overtightening to prevent damage to the particle board.
- Positioning: Carefully lift and move the assembled unit to its desired location. Ensure it is placed on a level surface.
Image 4.1: Dimensions of the Karree Cube Storage Unit.

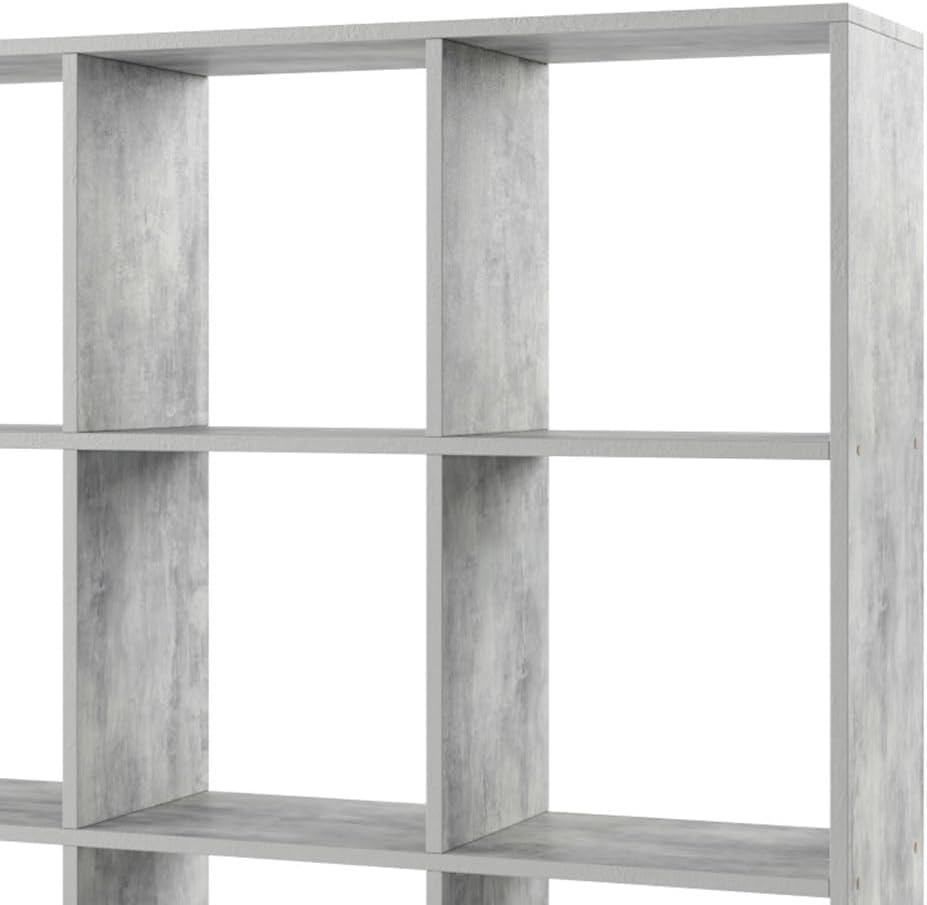

Image 4.2: Detail of the cube construction.
5. Operating Instructions
The Vicco Karree Cube Storage Unit is designed for versatile use:
- Storage: Utilize the 16 open compartments to store books, decorative items, media, or other personal belongings.
- Room Divider: Its freestanding design allows it to function as an effective room divider, creating distinct areas within a larger space.
- Compatible Bins: Each cube is sized to accommodate standard 30x30 cm storage boxes or fabric bins (not included), offering additional organizational flexibility.
Image 5.1: Unit functioning as a room divider.
6. Maintenance
To maintain the appearance and longevity of your storage unit:
- Cleaning: Wipe the surfaces with a damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the melamine coating.
- Spills: Clean up spills immediately to prevent staining or damage to the material.
- Sunlight: Avoid prolonged exposure to direct sunlight to prevent fading of the finish.
- Heat and Moisture: Keep the unit away from excessive heat and moisture sources.
7. Troubleshooting
- Difficulty during assembly: If panels are not numbered, refer closely to the assembly diagrams provided in the instruction manual for correct identification and orientation.
- Missing drill holes: In rare cases, a panel might lack pre-drilled holes. If this occurs, contact customer support for assistance or replacement parts. Do not attempt to drill holes yourself unless you are experienced and have the correct tools, as this may void your warranty.
- Unit feels wobbly: Ensure all screws are fully tightened. If the unit is on an uneven floor, use furniture levelers (not included) or shims to stabilize it. Consider securing the unit to a wall with anti-tip hardware.
8. Specifications
| Feature | Detail |
|---|---|
| Model Name | Karree |
| Model Number | 23954 |
| Dimensions (D x W x H) | 29 cm x 138.5 cm x 142.5 cm |
| Weight | 51.9 Kilograms |
| Material | 16 mm Particle Board with Melamine Coating |
| Color | Grey |
| Number of Shelves | 16 |
| Maximum Shelf Capacity | 10 Kilograms per shelf |
| Assembly Required | Yes |
| Type of Mounting | Freestanding |
9. Warranty Information
For specific warranty terms and conditions, please refer to your purchase documentation or contact the retailer where the product was purchased. Vicco products typically come with a manufacturer's warranty covering defects in materials and workmanship.
10. Support
If you require further assistance, have questions about assembly, or need to report missing/damaged parts, please contact Vicco customer service. You can also visit the official Vicco store for more information and products:
