Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your BOSCH Spark Plug, designed for various VW models including Golf Mk4, Mk5, Mk6, Jetta III, New Beetle, and Passat. Adhering to these instructions will help ensure optimal performance and longevity of the spark plug and your vehicle's ignition system.

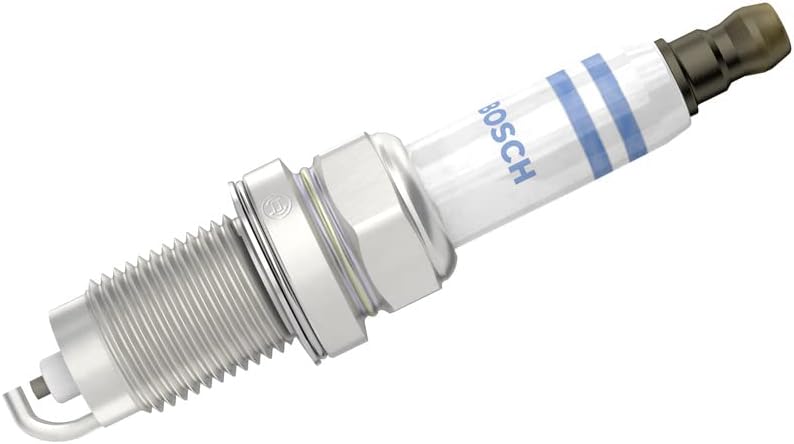

Image 1: Main view of the BOSCH Spark Plug, showcasing its design and construction.
Safety Information
- Always disconnect the vehicle's battery before performing any work on the ignition system to prevent electrical shock.
- Allow the engine to cool completely before attempting to remove or install spark plugs. Hot engine components can cause severe burns.
- Wear appropriate personal protective equipment, including safety glasses and gloves.
- Ensure the correct spark plug is used for your specific vehicle model to avoid engine damage. Refer to your vehicle's service manual.
- Dispose of old spark plugs and related materials responsibly according to local regulations.
Setup and Installation
Proper installation is critical for the performance and longevity of your spark plugs. Consult your vehicle's specific service manual for detailed instructions and torque specifications for your model.
Required Tools:
- Spark plug socket (16mm spanner size)
- Ratchet and extension
- Torque wrench
- Spark plug gap tool (if pre-gapped plugs are not used, though BOSCH plugs are typically pre-gapped)
- Dielectric grease (optional, for spark plug boots)
- Anti-seize compound (optional, for spark plug threads)
Installation Steps:
- Preparation: Ensure the engine is cool. Disconnect the negative terminal of the vehicle's battery. Clear any debris from around the spark plug wells.
- Remove Ignition Coils/Wires: Carefully disconnect and remove the ignition coils or spark plug wires from each spark plug. Label them if necessary to ensure correct reinstallation.
- Remove Old Spark Plugs: Using the appropriate spark plug socket and ratchet, loosen and remove the old spark plugs. Turn counter-clockwise. Inspect the old plugs for signs of wear or engine issues.
- Inspect New Spark Plugs: Visually inspect the new BOSCH spark plugs for any damage. While BOSCH spark plugs are typically pre-gapped, it is good practice to verify the gap using a spark plug gap tool. The specified electrode gap for this model is 1 mm. Adjust only if necessary and with extreme care to avoid damaging the electrode.
- Install New Spark Plugs: Hand-thread the new spark plugs into the cylinder head to avoid cross-threading. Once finger-tight, use a torque wrench with the spark plug socket to tighten them to the specified torque. The tightening torque for this spark plug is 28 Nm (Newton-meters) with an additional tightening angle of 90 degrees. Do not overtighten, as this can damage the cylinder head.
- Reinstall Ignition Coils/Wires: Apply a small amount of dielectric grease to the inside of the spark plug boots (if applicable) and firmly reattach the ignition coils or spark plug wires. Ensure a secure connection.
- Final Steps: Reconnect the vehicle's battery. Start the engine and check for any misfires or unusual engine operation.

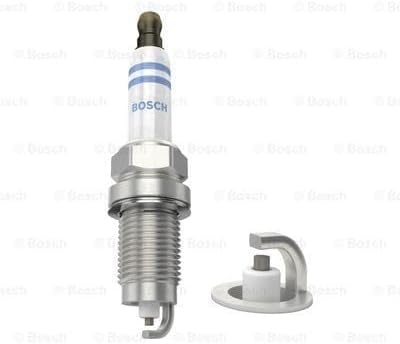

Image 2: BOSCH Spark Plug alongside a typical spark plug gap tool, illustrating the importance of checking the electrode gap.
Operation
Once correctly installed, the BOSCH Spark Plug functions as a critical component of your vehicle's ignition system. It ignites the air-fuel mixture in the engine's combustion chambers, initiating the power stroke. The spark plug's design, including its electrode gap and material composition (Iridium or Platinum core), is engineered for efficient combustion, contributing to engine performance and fuel economy.
Image 3: Close-up view of the BOSCH Spark Plug's electrode, highlighting the precise engineering for optimal spark delivery.
Maintenance
Spark plugs are wear items and require periodic inspection and replacement to maintain engine efficiency and prevent potential damage. Refer to your vehicle manufacturer's recommended service intervals for spark plug replacement, typically found in your owner's manual or service schedule.
Inspection Guidelines:
- Visual Check: During routine maintenance, visually inspect the spark plugs for signs of wear, fouling (carbon, oil, or ash deposits), or damage to the electrodes.
- Electrode Wear: Excessive wear on the center or ground electrode indicates the plug is nearing the end of its service life.
- Fouling: Different types of fouling can indicate underlying engine issues (e.g., rich fuel mixture, oil consumption). Consult a qualified mechanic if persistent fouling is observed.
- Gap Check: While not typically required between replacement intervals for modern plugs, an excessively wide gap can lead to misfires.
Regular replacement with genuine BOSCH spark plugs ensures your engine continues to perform as designed.
Troubleshooting
Issues related to spark plugs often manifest as engine performance problems. Below are common symptoms and potential causes:
| Symptom | Potential Cause | Action |
|---|---|---|
| Engine Misfire / Rough Idling | Worn or fouled spark plug, incorrect gap, faulty ignition coil/wire. | Inspect spark plugs for wear/fouling. Check gap. Verify ignition coil/wire integrity. Replace if necessary. |
| Reduced Fuel Economy | Inefficient combustion due to worn spark plugs. | Replace spark plugs at recommended intervals. |
| Difficulty Starting Engine | Weak spark from worn or fouled spark plugs. | Inspect and replace spark plugs. Check battery and starter system. |
| Engine Hesitation / Lack of Power | Poor ignition due to compromised spark plugs. | Inspect and replace spark plugs. |
If troubleshooting steps do not resolve the issue, it is recommended to consult a qualified automotive technician.
Specifications
| Brand | BOSCH |
| OEM Part Numbers | 101905601F, 101905617C |
| Core Material | Iridium or Platinum |
| Top Material Type | Nickel |
| Electrode Gap | 1 mm |
| Spark Position | 7 mm |
| Thread Pitch | 1.25 mm |
| Outer Thread | 14 mm |
| Thread Length | 19 mm |
| Spanner Size | 16 mm |
| Tightening Torque | 28 Nm |
| Tightening Angle | 90 degrees |
| Number of Poles | 1 terminal |
| Item Weight | 0.002 ounces |
| Product Dimensions | 1.06 x 0.94 x 3.5 inches |
| Vehicle Service Type | Car, Scoo, Snowmobile, UTV |
Warranty Information
Specific warranty details for this BOSCH Spark Plug are typically provided at the point of purchase or by the manufacturer. Please retain your proof of purchase. For detailed warranty terms and conditions, please refer to the official BOSCH website or contact your authorized BOSCH dealer or the seller from whom the product was purchased.
Support
For technical assistance, installation queries, or further product information, please contact BOSCH customer support or visit the official BOSCH Automotive website. You may also reach out to the seller for product-specific inquiries.
BOSCH Official Website: www.bosch.com
