Introduction
This manual provides essential instructions for the safe and effective use, setup, and maintenance of your Bluefin Cruise 10'8 Inflatable Stand Up Paddle Board. Please read this manual thoroughly before your first use and retain it for future reference.
Image: The Bluefin Cruise 10'8 Inflatable Paddle Board in Gecko Blue, showcasing its stable design.
What's in the Box
Your Bluefin Cruise 10'8 package includes the following components:
- Cruise Board
- Dual Action Pump
- Premium Backpack
- 3 Smartlock Fins (1 large, 2 small)
- Fibreglass Paddle (3-piece, adjustable)
- Waterproof Phone Case
- Ankle Leash
- Repair Kit
Image: All components included in the Bluefin Cruise 10'8 SUP package, laid out for inspection.
Setup
1. Unpacking and Unrolling
Remove the board and accessories from the premium backpack. Unroll the paddle board on a flat, clean surface, ensuring it is free from sharp objects.
2. Inflation
Locate the inflation valve on the tail of the board. Ensure the valve pin is in the 'up' position (closed) to prevent air from escaping. Connect the dual-action pump hose to the valve. Begin pumping. The dual-action pump inflates on both the up and down strokes for faster inflation. Once the board starts to firm up (around 3 PSI), you can remove the red valve at the side of the pump to switch to single-action mode, making it easier to reach the recommended pressure.
Inflate the board to the recommended pressure of 15-18 PSI (1.0-1.2 bar). Do not overinflate. The pressure gauge on the pump will indicate the current PSI.
Image: Close-up of the Swift Pro dual-action pump, showing the pressure gauge and hose connection.
3. Attaching the Fins
Your board comes with a 2+1 Smart Lock Fin system. Slide the fins into their respective fin boxes on the underside of the board. Secure them by pressing down the clip until it locks into place. No tools are required for fin attachment.
Image: A person's hands demonstrating the attachment of a Smart Lock fin to the fin box on the paddle board.
4. Assembling the Paddle
The fibreglass paddle is a 3-piece adjustable design. Connect the sections firmly. Adjust the paddle height to your preference; a common guideline is that the paddle handle should reach your wrist when your arm is raised above your head. Secure the quick-release clamp.
Image: The Bluefin Drive paddle shown in its assembled and disassembled three-piece configuration.
5. Attaching the Ankle Leash
Attach one end of the coiled ankle leash to the D-ring at the tail of the board. Secure the comfortable neoprene-wrapped webbing strap around your ankle. The leash is a critical safety device, keeping you connected to your board if you fall.

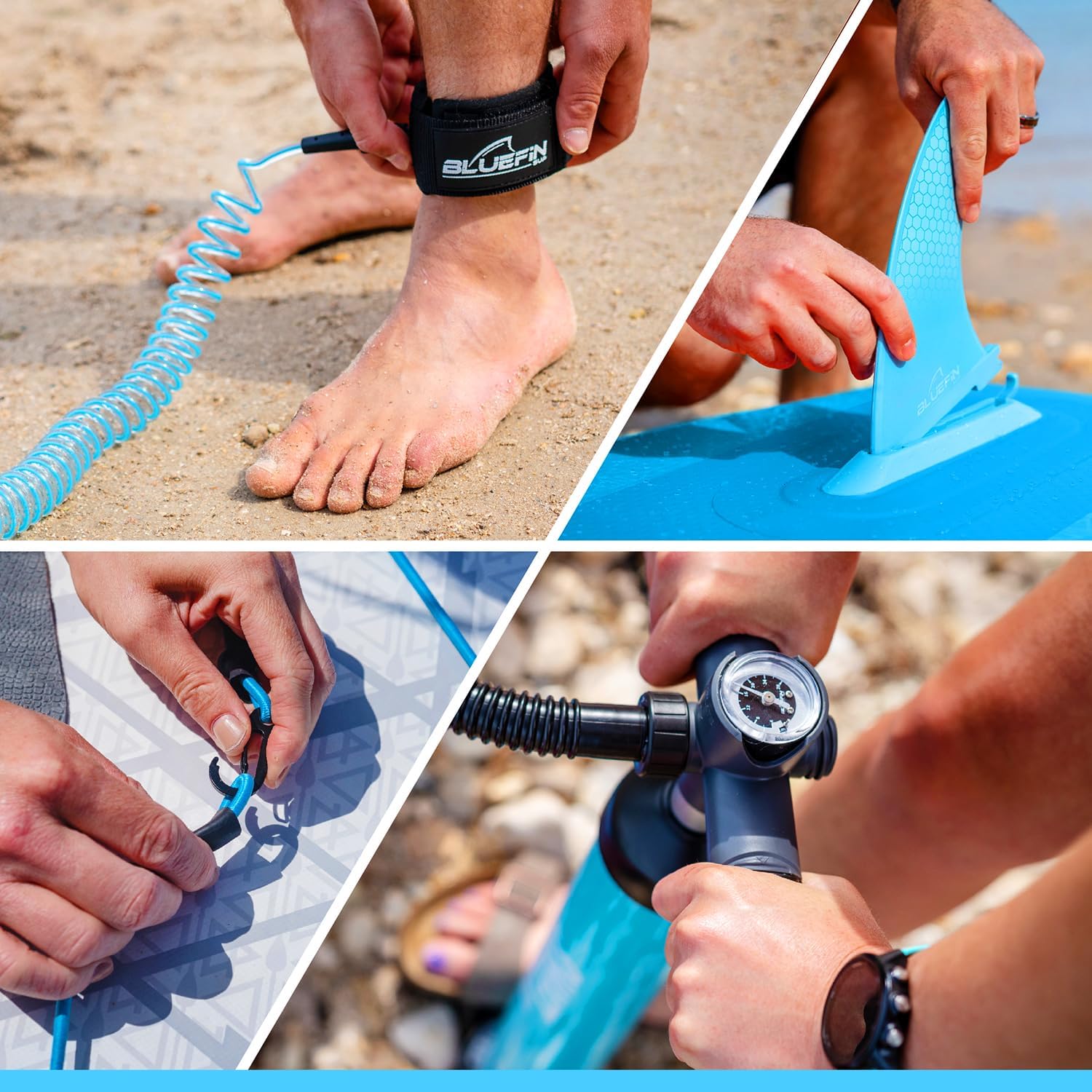

Image: A person attaching the ankle leash to the D-ring on the paddle board, part of a multi-panel image also showing fin and pump details.
Operating Instructions
Safety First
- Always wear a personal flotation device (PFD).
- Attach the ankle leash to yourself and the board.
- Check weather conditions and water currents before paddling.
- Inform someone of your paddling plans and expected return time.
- Avoid paddling in strong winds, currents, or stormy weather.
- Do not exceed the maximum weight recommendation of 90 kg.
Paddling Techniques
Standing Up: Start by kneeling on the center of the board, just behind the carry handle. Once stable, place your paddle across the board in front of you. Place your hands on the board, one at a time, and bring your feet under you. Slowly stand up, keeping your knees slightly bent and your gaze forward. Maintain a balanced stance with feet shoulder-width apart.
Paddling Forward: Hold the paddle with one hand on the top of the handle and the other hand on the shaft. Insert the paddle blade fully into the water near the nose of the board. Pull the paddle back towards your feet, keeping your arms relatively straight and using your core muscles. Exit the water and repeat on the other side to maintain a straight course.
Turning: To turn, paddle on one side of the board more frequently or perform a sweep stroke. For a quick turn, place the paddle in the water near the tail and sweep it in a wide arc away from the board.
Video: An overview of the Bluefin Cruise 10'8 V4 SUP, demonstrating its features and use in various conditions.
Maintenance
Cleaning
After each use, rinse your paddle board with fresh water to remove salt, sand, and dirt. Use a mild soap and soft brush if necessary. Ensure the board is completely dry before deflating and storing to prevent mildew.
Storage
Deflate the board by pressing the valve pin down to the 'open' position. Roll the board starting from the nose towards the valve to expel all air. Store the board and accessories in the provided premium backpack in a cool, dry place away from direct sunlight and extreme temperatures. Avoid storing the board in a tightly folded or creased state for extended periods.
Image: The Bluefin SUP premium backpack, designed for easy transport and storage of the paddle board and accessories.
Repair Kit
The included repair kit contains patches and glue for minor punctures. For detailed repair instructions, refer to the specific guidelines provided with the repair kit or contact customer support.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Board not inflating / losing air quickly | Valve pin in 'down' (open) position; Loose valve; Puncture | Ensure valve pin is in 'up' position. Tighten valve with wrench from repair kit. Inspect board for punctures and use repair kit. |
| Difficulty reaching high PSI | Pump in dual-action mode for high pressure; User fatigue | Switch pump to single-action mode (remove red plug) for easier high-pressure inflation. Take breaks if needed. |
| Fins not staying in place | Fins not fully clipped in; Debris in fin box | Ensure fins are pushed all the way into the fin box and the clip is securely locked. Clean fin box if debris is present. |
Specifications
- Model: Cruise 10'8
- Dimensions (L x W): 128" x 32" (325 cm x 82 cm)
- Thickness: 6" (16 cm)
- Material: Premium ESL Fused PVC
- Maximum Pressure: 18 PSI
- Item Weight: Approximately 40.2 pounds (18.2 kg)
- Maximum User Weight Recommendation: 90 kg
- Operator Skill Level: All
- Included Components: Cruise Board, Dual Action Pump, Premium Backpack, 3 Smartlock Fins, Fibreglass Paddle, Waterproof Phone Case, Ankle Leash, Repair Kit
Warranty
The Bluefin Cruise 10'8 Inflatable Paddle Board comes with a 5 Year Manufacturer's Warranty. Please retain your proof of purchase for warranty claims. For full terms and conditions, refer to the warranty information provided with your product or visit the official Bluefin SUP website.
Support
For further assistance, technical support, or to inquire about replacement parts, please contact Bluefin SUP customer service. You can often find contact information on the product packaging, the official brand website, or through your retailer.
