Black Max 25cc 2-Cycle Full Crank Engine String Trimmer/Edger Combo User Manual

1. Important Safety Information

Before operating the Black Max 25cc 2-Cycle Full Crank Engine String Trimmer/Edger Combo, read and understand all safety warnings and instructions. Failure to follow these instructions may result in serious injury.

• Always wear appropriate safety gear, including eye protection, hearing protection, and heavy-duty gloves, when operating this string trimmer.
• Be aware of potential flying debris and keep bystanders, children, and pets at a safe distance (at least 50 feet/15 meters) from the operating area.
• Inspect the work area for objects that could be thrown or entangled in the cutting line or blade. Remove all debris before starting.
• Ensure all guards and safety features are in place and functioning correctly before each use.
• Never operate the trimmer/edger while under the influence of alcohol, drugs, or medication that could impair judgment.
• Always follow the instructions provided with any attachments for safe usage.
• Handle fuel with care. Mix and store fuel in a well-ventilated area, away from sparks or open flames.

2. Product Overview

The Black Max 25cc 2-Cycle Full Crank Engine String Trimmer/Edger Combo is designed for efficient trimming and edging tasks in your yard. It features a powerful 2-cycle engine and is attachment-capable for versatility.

Image 2.1: The Black Max 25cc 2-Cycle Full Crank Engine String Trimmer, ready for use.

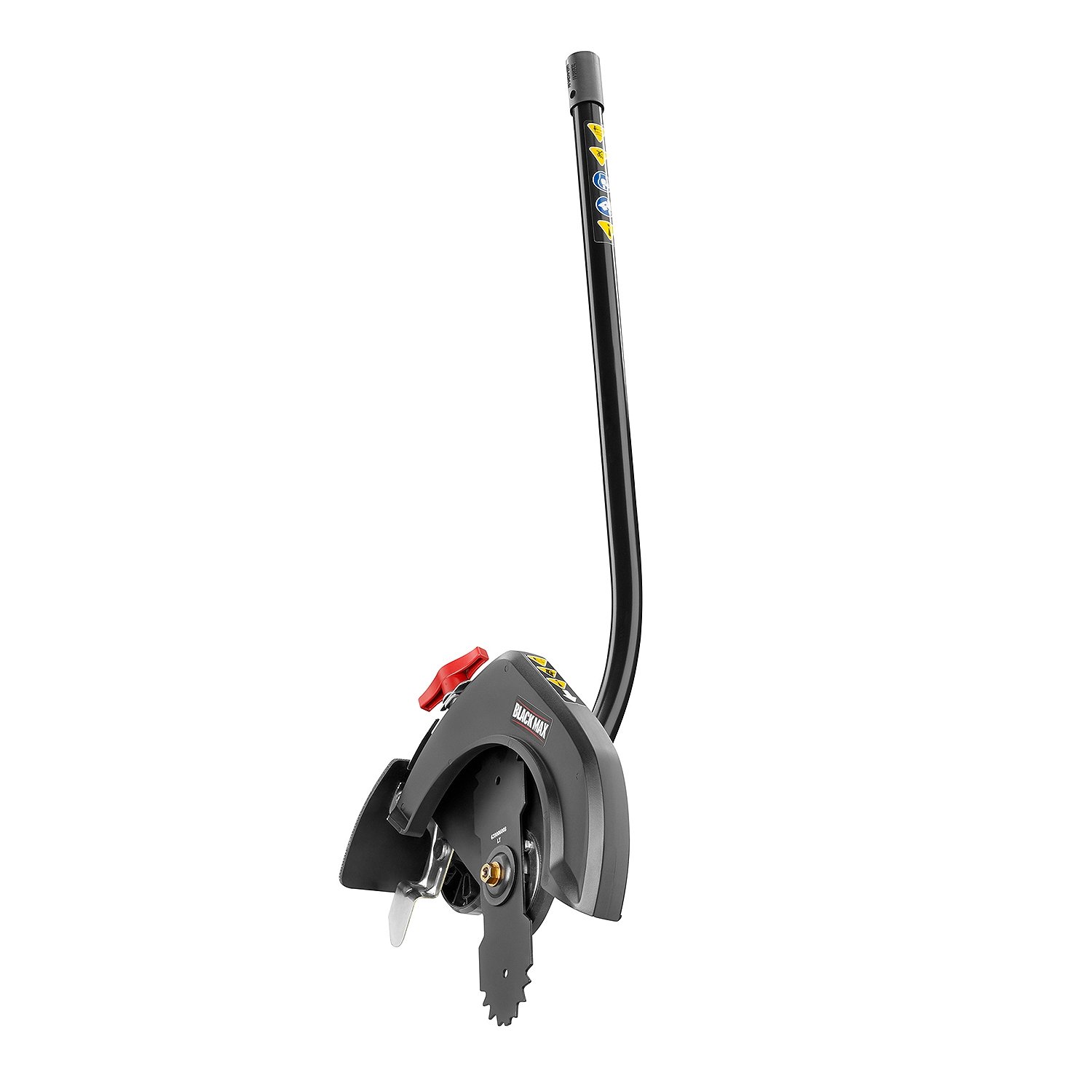

Image 2.2: The edger attachment for precise lawn edging.

3. Setup and Assembly

3.1 Fuel Mixing

This unit requires a mixture of unleaded gasoline and 2-cycle engine oil. Refer to the engine manufacturer's instructions for the correct mixing ratio, typically 50:1 (gasoline to oil). Use fresh, clean, unleaded gasoline with an octane rating of 87 or higher. Use a high-quality 2-cycle engine oil specifically designed for air-cooled engines.

1. Obtain a clean, approved fuel container.
2. Pour half of the required gasoline into the container.
3. Add the entire amount of 2-cycle oil to the gasoline.
4. Shake the container vigorously to ensure thorough mixing.
5. Add the remaining gasoline and shake again.
6. Always mix fuel in a well-ventilated area, away from ignition sources.

3.2 Attaching the Trimmer Head/Edger Attachment

The unit is attachment capable. To attach the string trimmer head or edger attachment:

1. Ensure the engine is off and cool.
2. Align the shaft of the attachment with the coupler on the main powerhead.
3. Push the attachment shaft into the coupler until it clicks into place.
4. Tighten the coupling knob securely to prevent rotation during operation.
5. To remove, loosen the coupling knob, press the release button, and pull the attachment away.

4. Operating Instructions

4.1 Starting the Engine

1. Fill the fuel tank with the correctly mixed fuel (see Section 3.1).
2. Prime the carburetor by pressing the primer bulb several times until fuel is visible.
3. Move the choke lever to the 'FULL CHOKE' position.
4. Place the unit on a flat, stable surface. Hold the unit firmly with one hand.
5. Pull the starter rope with a brisk, steady motion until the engine attempts to start (usually 1-3 pulls). Do not pull the rope to its full extension.
6. Once the engine 'pops' or attempts to start, move the choke lever to the 'HALF CHOKE' position.
7. Pull the starter rope again until the engine starts.
8. Once the engine runs, move the choke lever to the 'RUN' position and allow the engine to warm up for 30-60 seconds before operating.
9. To stop the engine, press the engine stop switch.

4.2 Using as a String Trimmer

The string trimmer is ideal for cutting grass and light weeds around obstacles, fences, and garden beds.

• Hold the trimmer firmly with both hands, ensuring a balanced grip.
• Maintain a comfortable stance, keeping the cutting head parallel to the ground.
• Use a sweeping motion, moving the trimmer from side to side.
• Avoid cutting into hard surfaces or objects, which can damage the line and the unit.
• To advance the cutting line, tap the bump head lightly on the ground while the engine is running at full throttle.

Image 4.1: Proper technique for operating the string trimmer.

4.3 Using as an Edger

The edger attachment provides clean, precise edges along sidewalks, driveways, and flower beds.

• Ensure the edger attachment is securely installed.
• Position the edger blade along the edge you wish to cut.
• Start the engine and allow it to reach full operating speed.
• Walk slowly and steadily, guiding the edger along the desired line.
• Do not force the edger; allow the blade to do the work.

Image 4.2: Demonstrating the use of the edger attachment for clean lines.

5. Maintenance

Regular maintenance ensures optimal performance and extends the life of your Black Max trimmer/edger. Always ensure the engine is off and cool before performing any maintenance.

5.1 Cleaning

• After each use, clean the exterior of the unit with a damp cloth.
• Remove any grass, dirt, or debris from the cutting head, guards, and engine cooling fins.
• Do not use harsh chemicals or abrasive cleaners.

5.2 String Head Maintenance

• Inspect the cutting line before each use. Replace worn or broken line with .095 inch diameter string trimmer line.
• Refer to the specific instructions for your bump feed head for line replacement procedures.

5.3 Air Filter

• Check the air filter every 10 hours of operation or more frequently in dusty conditions.
• Clean the air filter by washing it in warm, soapy water, rinsing thoroughly, and allowing it to air dry completely.
• Replace the air filter if it is damaged or excessively dirty and cannot be cleaned.

5.4 Spark Plug

• Inspect the spark plug annually or every 50 hours of operation.
• Clean any carbon deposits from the electrodes.
• Adjust the electrode gap to the specification in your engine manual.
• Replace the spark plug if it is fouled, damaged, or shows signs of wear.

6. Troubleshooting

7. Specifications

8. Warranty and Support

For warranty information, technical support, or to order replacement parts, please refer to the documentation included with your product at the time of purchase or visit the official Black Max website. Keep your purchase receipt as proof of purchase for warranty claims.
