Introduction
Thank you for choosing the Sunny Health & Fitness SF-RB4631 Recumbent Bike with Arm Exerciser. This manual provides important information on the safe assembly, operation, and maintenance of your fitness equipment. Please read this manual thoroughly before use and keep it for future reference.
The SF-RB4631 recumbent bike is designed to provide a comfortable and effective workout. It features a large seat and back cushion, adjustable height to accommodate various user sizes, and an 8-level adjustable magnetic resistance system for varied workout intensity. The integrated digital monitor tracks your time, count, total count, calories burned, and count per minute. It also includes dual-position handgrips and transport wheels for easy portability.
Safety Information
Before beginning any exercise program, consult with your physician. This is especially important for individuals over the age of 35 or those with pre-existing health conditions. Sunny Health & Fitness assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
- Always place the recumbent bike on a clear, level surface.
- Ensure all bolts and nuts are securely tightened before each use.
- Keep children and pets away from the equipment during operation.
- Wear appropriate exercise attire and footwear. Avoid loose clothing that could get caught in moving parts.
- Do not exceed the maximum user weight capacity of 158.9 kg (350 lbs).
- If you experience any pain, dizziness, or shortness of breath, stop exercising immediately.
- This product is for indoor use only.
Setup
Unpack all components and ensure you have all parts listed in the assembly guide (not included in this manual, refer to the separate assembly instructions provided with your product). Assemble the unit on a flat, stable surface.

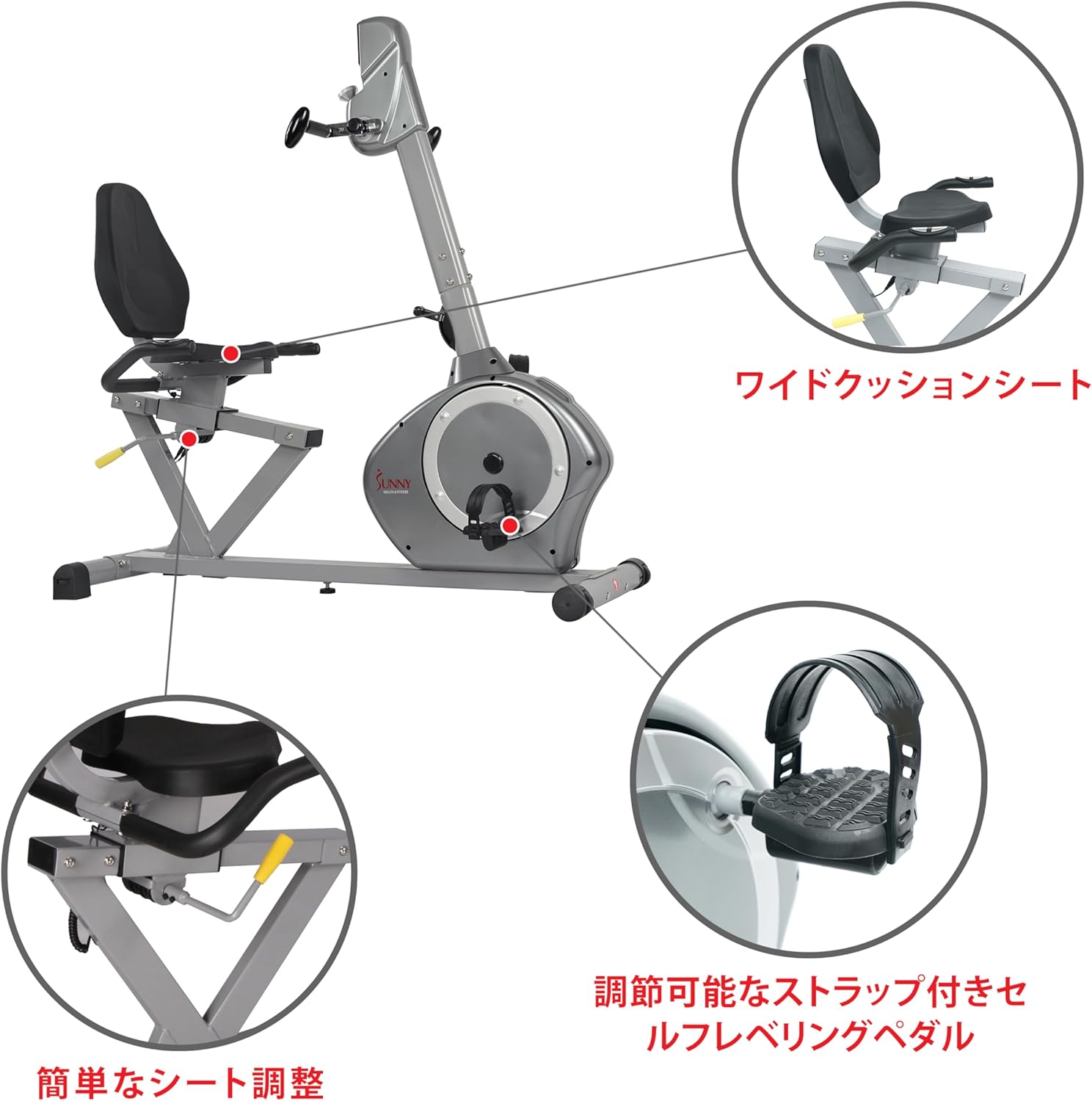

Component Overview
Adjusting the Seat
To adjust the seat position, locate the yellow adjustment lever beneath the seat. Pull the lever to release the locking mechanism, then slide the seat forward or backward to your desired position. Release the lever to lock the seat in place. Ensure the seat is securely locked before use.
Stabilizing the Unit
The recumbent bike is equipped with floor stabilizers at the base. If the bike wobbles on an uneven surface, rotate the end caps of the stabilizers until the unit is stable.
Operating Instructions
Getting Started
Sit comfortably on the seat with your back against the backrest. Place your feet securely in the pedals, using the adjustable straps to fasten them if desired. Grip the handlebars firmly.
Adjusting Resistance
The SF-RB4631 features an 8-level adjustable magnetic resistance system. To increase resistance, turn the resistance knob clockwise. To decrease resistance, turn it counter-clockwise. Start with a lower resistance level and gradually increase it as your fitness improves.
Using the Digital Monitor
The integrated digital monitor displays your workout data. It typically shows:
- TIME: Duration of your current workout.
- COUNT: Number of rotations (pedal strokes or arm rotations) during the current workout.
- TOTAL COUNT: Total accumulated rotations since the monitor was reset.
- CALORIES: Estimated calories burned during the current workout.
- COUNT PER MINUTE (CPM): Your current speed in rotations per minute.
Press the MODE button to cycle through the display functions. Press and hold the MODE button to reset the values.
Using the Arm Exerciser
The SF-RB4631 includes an arm exerciser for upper body workouts. Simply grasp the arm cranks and rotate them. The resistance for the arm exerciser is linked to the main resistance system.
Maintenance
Regular maintenance is crucial for the longevity and safe operation of your recumbent bike.
- Cleaning: Wipe down the bike with a damp cloth after each use to remove sweat and dust. Do not use abrasive cleaners or solvents.
- Inspection: Periodically check all bolts, nuts, and moving parts for tightness and wear. Tighten any loose fasteners.
- Lubrication: The internal magnetic resistance system requires no lubrication. If you notice any squeaking from moving parts, apply a small amount of silicone-based lubricant.
- Storage: Store the bike in a cool, dry place away from direct sunlight and extreme temperatures. Use the transport wheels to move the bike carefully.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bike is wobbly or unstable. | Uneven floor surface; loose stabilizers. | Adjust the floor stabilizers at the base of the bike until stable. |
| Resistance feels inconsistent or too loose/tight. | Resistance knob not properly adjusted; internal mechanism issue. | Ensure the resistance knob is turned fully to the desired level. If problem persists, contact customer support. |
| Digital monitor not displaying. | Batteries are dead or incorrectly installed. | Check and replace batteries (AA or AAA, refer to monitor compartment for type). Ensure correct polarity. |
| Squeaking or grinding noise. | Loose parts; lack of lubrication on non-magnetic components. | Inspect and tighten all bolts and nuts. Apply silicone lubricant to any pivot points or joints if necessary. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | SF-RB4631 |
| Color | Gray |
| Material | Steel |
| Type | Exercise & Fitness |
| Power Source | Battery |
| Recommended Use | Indoor |
| Maximum User Weight | 158.9 kg (350 lbs) |
| Product Dimensions (L x W x H) | 129.54 x 63.5 x 133.35 cm (51 x 25 x 52.5 inches) |
| Product Weight | 41.32 kg (91.1 lbs) |
| Resistance Levels | 8-level Magnetic Resistance |
| Monitor Functions | Time, Count, Total Count, Calories, Count Per Minute |
| Seat Dimensions | 36.8 cm (width) x 25.4 cm (depth) x 5 cm (thickness) |
| Inseam Length | 68.6 cm - 86.4 cm (27 - 34 inches) |
Warranty and Support
Sunny Health & Fitness products are manufactured with quality and care. For warranty information, please refer to the warranty card included with your product or visit the official Sunny Health & Fitness website. For customer support, parts, or technical assistance, please contact Sunny Health & Fitness directly through their official channels.
You can find more information and contact details on the Sunny Health & Fitness Brand Store.
