Introduction
This manual provides essential information for the installation, operation, and maintenance of the KING GATES Jet 230 F irreversible gear motor. The Jet 230 F is designed for the automation of swing gates, capable of handling gates up to 600 kg per leaf. It is equipped with a mechanical limit switch for precise control. The Jet 230 series is available in 'Fast' versions for standard gates and 'Slow' versions for very wide gates, ensuring optimal performance for various applications.

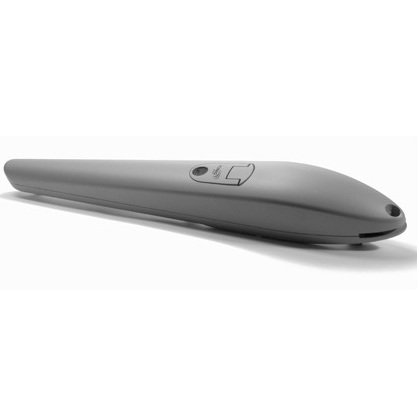

Image: The KING GATES Jet 230 F irreversible gear motor, a sleek grey unit designed for gate automation. It features a compact, elongated body with control elements visible on its surface, indicating its robust and functional design for reliable operation.
Specifications
| Specification | Value |
|---|---|
| Brand | KING GATES |
| Model | Jet 230 F |
| Voltage | 230 Volt |
| Speed | 230 Revised |
| Manufacturer | KING GATES |
| ASIN | B01NBYVKT7 |
| First Available Date | February 21, 2020 |
| Discontinued by Manufacturer | No |
Setup
Proper installation is crucial for the safe and efficient operation of your KING GATES Jet 230 F motor. It is highly recommended that installation be performed by qualified personnel or a professional installer to ensure compliance with local regulations and safety standards.
- Site Preparation: Ensure the gate structure is sound, properly aligned, and moves freely without obstruction. Verify that the gate hinges are in good condition and can support the motor's operation.
- Mounting the Motor: Securely mount the motor to the gate post or pillar according to the detailed instructions provided in the full installation guide (not included in this general manual). Use appropriate fasteners for the mounting surface.
- Electrical Connections: All electrical wiring must be performed by a licensed electrician. Connect the motor to a dedicated power supply, ensuring proper grounding and circuit protection. Refer to the wiring diagram in the complete installation manual for specific connections.
- Limit Switch Adjustment: The mechanical limit switch must be precisely adjusted to define the gate's open and closed positions. Incorrect adjustment can lead to improper operation or damage.
- Safety Devices: Install all necessary safety devices, such as photocells and safety edges, to prevent accidents. Test these devices thoroughly after installation.
Operating Instructions
Once installed and configured, the KING GATES Jet 230 F motor provides reliable automation for your swing gate. Operation is typically managed via a remote control or an access control system.
- Remote Control Operation: Pressing the designated button on your remote control will initiate the gate's movement (open or close). A second press during movement may stop the gate, and a third press will reverse its direction.
- Manual Release: In case of a power outage or malfunction, the motor can be manually disengaged. Locate the manual release mechanism (usually with a key or lever) on the motor unit. Follow the instructions in the full manual to safely disengage the motor and operate the gate manually.
- Safety Features: The integrated safety features, such as obstacle detection via photocells, will stop or reverse the gate's movement if an obstruction is detected. Do not bypass or disable these safety features.
- Limit Switch Function: The mechanical limit switch ensures the gate stops precisely at its fully open and fully closed positions, preventing over-travel and potential damage.
Maintenance
Regular maintenance is essential to ensure the longevity and optimal performance of your KING GATES Jet 230 F motor. Perform these checks periodically to prevent issues.
- Visual Inspection: Periodically inspect the motor unit, mounting brackets, and gate hinges for any signs of wear, corrosion, or damage. Ensure all fasteners are tight.
- Gate Movement Check: Manually operate the gate (after disengaging the motor) to ensure it moves smoothly and freely without excessive friction or binding. Lubricate hinges if necessary.
- Safety Device Test: Regularly test all safety devices (photocells, safety edges) to confirm they are functioning correctly. For photocells, pass an object between them to verify the gate stops or reverses.
- Cleaning: Keep the motor unit and surrounding area clean from dirt, debris, and insects. Do not use high-pressure water jets directly on the motor.
- Professional Servicing: It is recommended to have the system professionally serviced at least once a year by a qualified technician to check internal components and make any necessary adjustments.
Troubleshooting
If you encounter issues with your KING GATES Jet 230 F motor, consult the following common troubleshooting steps. For complex problems, contact professional support.
- Gate Not Responding:
- Check power supply: Ensure the motor is receiving power and the circuit breaker has not tripped.
- Remote control battery: Replace batteries in the remote control.
- Safety devices: Check if photocells are obstructed or misaligned. Clean them if dirty.
- Gate Stops Mid-Movement:
- Obstruction: Check for any physical obstructions in the gate's path.
- Overheating: The motor may have overheated due to continuous use. Allow it to cool down.
- Limit switch issue: The limit switch might be faulty or misadjusted. This requires professional attention.
- Unusual Noises:
- Mechanical friction: Inspect the gate hinges and moving parts for friction. Lubricate if needed.
- Motor issue: If the noise originates from the motor itself, it may indicate an internal mechanical problem requiring professional inspection.
Warranty Information
The KING GATES Jet 230 F motor is covered by the manufacturer's standard warranty, which typically covers defects in materials and workmanship under normal use. The specific terms and duration of the warranty may vary based on your region and point of purchase. Please retain your proof of purchase for warranty claims. For detailed warranty terms, refer to the documentation provided with your product or contact KING GATES customer service.
Support
For technical assistance, spare parts, or further inquiries regarding your KING GATES Jet 230 F motor, please contact your authorized KING GATES dealer or the seller from whom you purchased the product. You can also visit the official KING GATES website for support resources and contact information.
Manufacturer: KING GATES
