1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of the KING GATES Dynamos 24/600 Irreversible Motor Reducer for sliding gates. Please read this manual thoroughly before proceeding with any installation or operation procedures. Retain this document for future reference.
2. Safety Information
Improper installation or use can cause serious injury or property damage. Always adhere to local regulations and safety standards. Only qualified personnel should perform installation and maintenance.
- Disconnect power before any installation, maintenance, or repair work.
- Ensure all electrical connections comply with local electrical codes.
- Keep hands, clothing, and other objects clear of the gate and moving parts during operation.
- Do not allow children to play near the gate or operate the controls.
- Install safety devices such as photocells and safety edges to prevent entrapment.
- Ensure the gate operates smoothly and without obstruction before installing the motor.
3. Product Overview
The KING GATES Dynamos 24/600 is an irreversible motor reducer designed for automating sliding gates. Its robust construction ensures reliable performance for residential and light commercial applications. The irreversible mechanism provides inherent locking of the gate when the motor is not in operation, enhancing security.

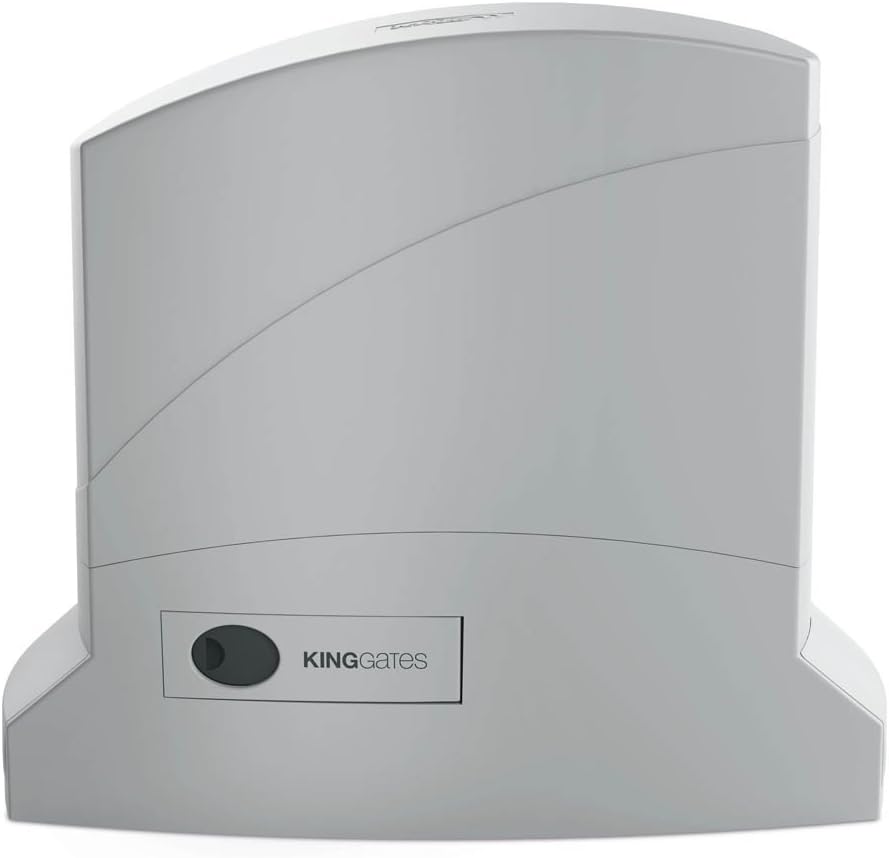

This image displays the KING GATES Dynamos 24/600 motor reducer unit, a compact grey housing with the 'KING GATES' logo visible on the front panel. This unit is designed for automating sliding gates.
4. Setup and Installation
Installation should only be performed by a qualified technician. Refer to the detailed installation diagrams provided with the product packaging for precise measurements and wiring instructions. The following are general steps:
- Mounting the Motor: Securely fasten the motor reducer to a stable concrete base next to the gate, ensuring proper alignment with the gate's rack.
- Installing the Rack: Attach the gate rack sections to the gate, ensuring they mesh correctly with the motor's pinion gear. Maintain a small clearance between the rack and the pinion.
- Electrical Connections: Connect the power supply, control unit, and safety accessories (photocells, flashing light) according to the wiring diagram. Ensure all connections are secure and insulated.
- Limit Switch Adjustment: Adjust the mechanical or magnetic limit switches to define the gate's fully open and fully closed positions.
- Testing: Perform initial tests of the gate movement, safety features, and remote controls.
5. Operating Instructions
The KING GATES Dynamos 24/600 is typically operated via remote control or a wall-mounted push button. Ensure the area around the gate is clear before activation.
- Opening/Closing: Press the designated button on your remote control or wall switch to initiate gate movement. A second press during movement will typically stop the gate.
- Manual Release: In case of power failure or malfunction, the gate can be operated manually. Locate the manual release mechanism (usually a key-operated lever or knob on the motor unit), unlock it, and disengage the motor. This allows the gate to be pushed by hand. Re-engage the motor after manual operation.
- Safety Features: The system is equipped with safety features like photocells. If an obstruction is detected during closing, the gate will stop or reverse.
6. Maintenance
Regular maintenance ensures the longevity and safe operation of your gate motor. Perform these checks periodically:
- Visual Inspection: Check the motor unit, rack, and gate for any signs of wear, damage, or corrosion.
- Cleanliness: Keep the motor unit and especially the pinion gear free from dirt, debris, and insects. Clean the photocell lenses regularly.
- Lubrication: Lubricate the gate's wheels, hinges, and any moving parts as recommended by the gate manufacturer. The motor's internal gears are typically self-lubricating.
- Safety Device Test: Periodically test the functionality of photocells and other safety devices by placing an obstruction in their path during gate operation.
- Fasteners: Ensure all mounting bolts and screws are tight.
7. Troubleshooting
If you encounter issues with your KING GATES Dynamos 24/600, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Gate does not move | No power supply; Remote control battery low; Safety devices activated; Motor in manual release mode. | Check power connection and circuit breaker; Replace remote battery; Clear obstruction from safety sensors; Re-engage motor from manual release. |
| Gate stops unexpectedly | Obstruction detected by safety sensors; Overheating; Limit switch issue. | Clear obstruction; Allow motor to cool down; Check and adjust limit switches. |
| Remote control not working | Battery dead; Remote not programmed; Interference. | Replace battery; Re-program remote control (refer to control unit manual); Check for sources of interference. |
If the problem persists after attempting these solutions, contact a qualified technician for assistance.
8. Specifications
| Specification | Detail |
|---|---|
| Manufacturer | KING GATES |
| Model | Dynamos 24/600 |
| ASIN | B01NBYU12H |
| Quantity of Items | 1 |
| Batteries Included | No |
| Batteries Required | No |
| Spare Parts Availability | Information unavailable |
9. Warranty and Support
For information regarding product warranty, technical support, or spare parts, please contact your authorized KING GATES dealer or the point of purchase. Specific warranty terms and conditions may vary by region and seller.
