1. Important Safety Instructions
To reduce the risk of fire, electric shock, or injury when using your appliance, follow these basic precautions:
- Read all instructions before using the appliance.
- Do not touch cold surfaces immediately after the unit has been plugged in.
- Ensure the appliance is properly grounded.
- Never unplug the appliance by pulling on the power cord. Always grasp the plug firmly and pull straight out from the outlet.
- Unplug your appliance before cleaning or making any repairs.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
- Do not damage the refrigerant circuit.
- Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
2. Package Contents
Verify that all items are present in the package:
- 1 x DELLA Compact Beverage Center
- 2 x Removable Wire Shelves
- 1 x Instruction Manual
3. Setup and Installation
3.1 Placement
Place the beverage center on a flat, solid surface strong enough to support the unit when fully loaded. Ensure there is adequate ventilation around the unit. Allow at least 5 inches of space between the back and sides of the appliance and any adjacent walls to ensure proper air circulation.

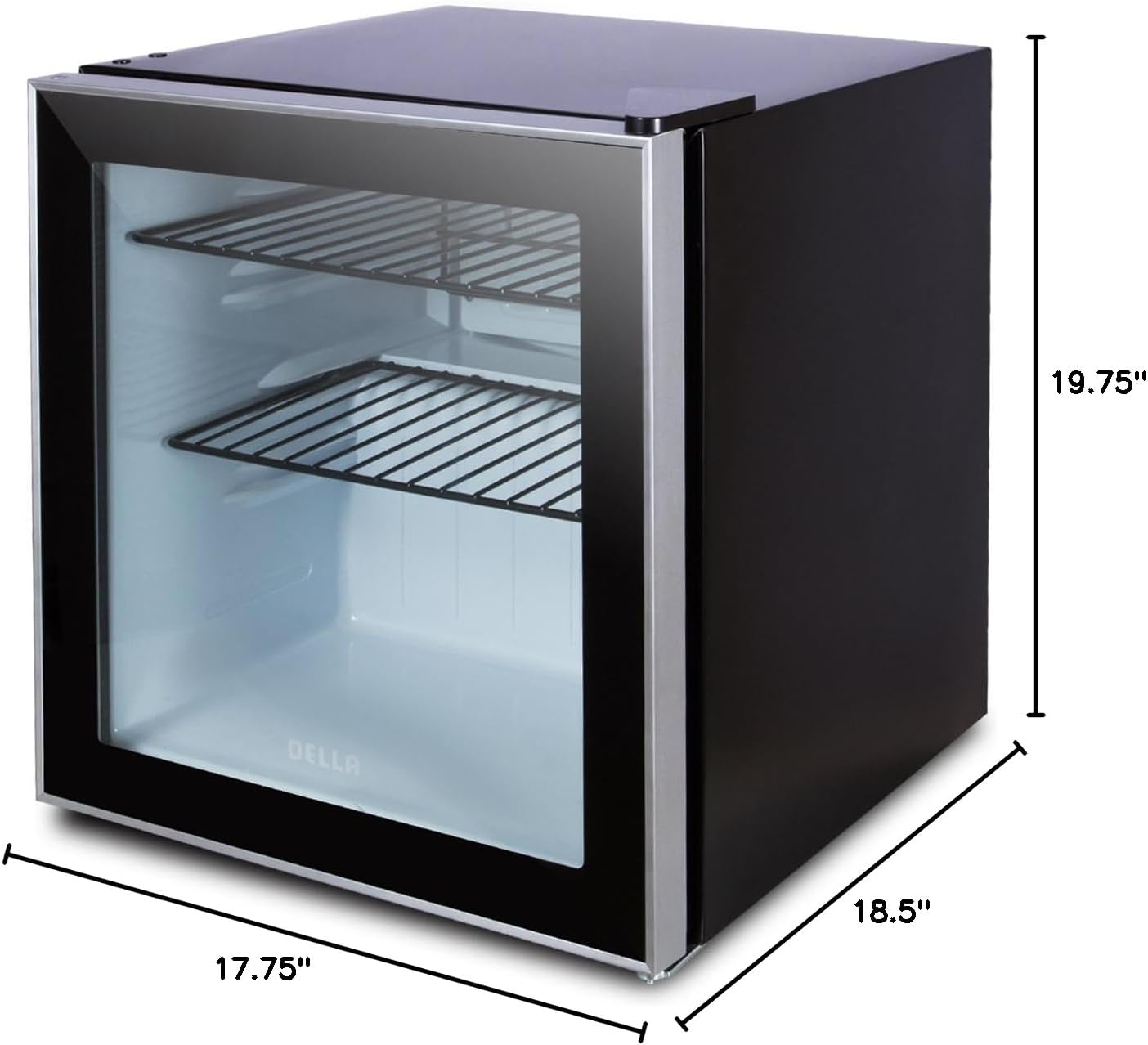

A visual representation of the beverage center's external dimensions, indicating a width of 17.75 inches, a depth of 18.5 inches, and a height of 19.75 inches. These measurements are crucial for proper placement and installation.
3.2 Leveling the Unit
It is important for the appliance to be level to function properly. You can adjust the leveling feet located at the bottom of the unit by turning them clockwise or counter-clockwise until the unit is stable and level.
3.3 Door Reversal
The door hinge is reversible, allowing the door to open from either the left or right side. To reverse the door swing, follow these steps:
- Carefully lift the back edge of the hinge cover located on the top of the unit and slide it towards the front to remove.
- Unscrew the bottom hinge from the door, then the top hinge, and carefully remove the door.
- Unscrew the hinges from the main body of the appliance.
- Remove the screw caps from the side opposite to where the hinges were originally installed and place them into the holes where the hinges were just removed.
- Attach the hinges to the body on the desired side for door opening.
- Reattach the door by screwing the top hinge to the door, then the bottom hinge.
- Slide the hinge cover back onto the top hinge, ensuring it clicks securely into place.
The beverage center is shown with its door open, providing a clear view of the white interior lining and the two removable wire shelves, which can be adjusted to accommodate various beverage sizes. This view is helpful when performing door reversal.
3.4 Initial Power-On
After placing the unit and reversing the door (if desired), wait at least 2-4 hours before plugging it into a power outlet. This allows the refrigerant to settle. Plug the appliance into a dedicated, properly grounded 115V/60Hz electrical outlet. Do not use an extension cord.
4. Operating Instructions
4.1 Temperature Control
The beverage center features a knob at the rear of the unit for temperature adjustment. Turn the knob to select your desired cooling level. The temperature range for this unit is approximately 39°F to 60°F (4°C to 16°C). Lower settings provide colder temperatures.
4.2 Loading Beverages
Arrange your beverages on the removable wire shelves. The shelves can be adjusted to accommodate different bottle and can sizes. This unit is designed for storing bottled or canned beverages only; it is not intended for perishable foods.
This image illustrates the DELLA beverage center with an assortment of bottled drinks stored on its shelves, demonstrating its capacity and how beverages can be organized.
5. Maintenance
5.1 Cleaning
Interior Cleaning: Unplug the unit before cleaning. Wash the interior with a mild detergent and warm water solution. Use a soft cloth or sponge. Rinse thoroughly and dry. Do not use abrasive cleaners or harsh chemicals.
Exterior Cleaning: Clean the exterior with a soft cloth dampened with water and a mild detergent. Dry thoroughly. Avoid getting water into electrical components.
Door Gasket: Clean the door gasket regularly to ensure a proper seal. A dirty gasket can prevent the door from closing correctly, leading to inefficient cooling.
5.2 Defrosting
This appliance operates with a manual defrost system. Frost will accumulate on the cooling plate inside the unit. When the frost layer becomes about 1/4 inch thick, it is time to defrost. To defrost:
- Unplug the beverage center from the power outlet.
- Remove all beverages and shelves.
- Leave the door open to allow the frost to melt naturally. Place a towel at the bottom of the unit to absorb water.
- Once defrosted, clean and dry the interior thoroughly before plugging the unit back in and returning beverages.
6. Troubleshooting
Review the following table for common issues and their solutions before contacting customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not operate. | Not plugged in; circuit breaker tripped; temperature control set to 'OFF'. | Ensure plug is secure; reset circuit breaker; adjust temperature control. |
| Temperature is not cold enough. | Door opened too frequently; door not closed completely; warm beverages added; poor ventilation; temperature control set too high. | Minimize door openings; ensure door seals properly; allow new beverages to cool; ensure adequate space around unit; adjust temperature control to a lower setting. |
| Appliance makes too much noise. | Unit not level; loose parts; normal compressor operation. | Adjust leveling feet; check for loose items inside; some compressor noise is normal. If noise is excessive or unusual, contact support. |
| Door does not close properly. | Unit not level; door gasket dirty or damaged; shelves out of place. | Adjust leveling feet; clean or replace door gasket; ensure shelves are correctly positioned. |
7. Specifications
Detailed specifications for the DELLA 048-GM-48314 Compact Beverage Center:
| Feature | Specification |
|---|---|
| Brand | Della |
| Model Number | 048-GM-48314 |
| Capacity | 1.6 Cubic Feet |
| Color | Black |
| Installation Type | Freestanding |
| Product Dimensions (W x D x H) | 17.75" x 18.5" x 19.75" |
| Item Weight | 42 Pounds |
| Voltage | 115V / 60Hz (120 Volts) |
| Electrical Rating | 0.8A |
| Temperature Range | 39°F - 60°F (4°C - 16°C) |
| Refrigerant | R600A, 0.63oz |
| Number of Shelves | 2 (Removable) |
| Reversible Door | Yes |
| Certification | UL Listed |
| Material Type | Plastic |
The U.S. Government Energy Guide label for the DELLA 048-GM-48314 Beverage Center, detailing an estimated yearly energy cost of $25 and an estimated yearly electricity use of 206 kWh. This information helps users understand the appliance's energy consumption.
8. Warranty and Support
This product comes with a manufacturer's warranty. For specific warranty details, claims, or technical support, please refer to the warranty card included with your purchase or contact Della customer service directly. Keep your proof of purchase for warranty validation.
