Oster Inspire Wine Kit FPSTBW8055-011 Instruction Manual

1. Product Overview

The Oster Inspire Wine Kit is a comprehensive set of accessories designed to enhance your wine experience from opening to preservation. This kit includes an electric corkscrew, a foil cutter, a wine pourer, a drip-stop ring, and a vacuum pump with a stopper, all housed in a synthetic leather case.

Image 1.1: The Oster Inspire Wine Kit, showcasing the electric corkscrew, foil cutter, wine pourer, drip-stop ring, and vacuum pump, neatly arranged within its open synthetic leather storage case.

2. Safety Instructions

• Keep all components out of reach of children.
• The electric corkscrew contains moving parts. Keep fingers and loose clothing away from the corkscrew mechanism during operation.
• Do not immerse the electric corkscrew in water or any other liquid. Clean with a damp cloth only.
• Use only the specified battery type (4 AA alkaline batteries) for the electric corkscrew. Do not mix old and new batteries or different types of batteries.
• Dispose of batteries according to local regulations.
• The foil cutter has sharp edges. Handle with care.
• Do not attempt to open bottles with damaged or synthetic corks that are not designed for corkscrew removal.

3. Package Contents

Verify that all items listed below are present in your Oster Inspire Wine Kit:

• 1 x Electric Corkscrew (Stainless Steel)
• 1 x Foil Cutter
• 1 x Wine Pourer (Aerator Spout)
• 1 x Drip-Stop Ring
• 1 x Vacuum Pump
• 1 x Vacuum Sealing Stopper
• 1 x Synthetic Leather Storage Case

4. Setup

4.1 Installing Batteries in the Electric Corkscrew

1. Locate the battery compartment at the top section of the electric corkscrew.
2. Twist and pull to remove the top cap of the corkscrew.
3. Insert 4 new AA alkaline batteries, ensuring correct polarity (+/-) as indicated inside the compartment.
4. Replace the top cap, twisting it securely until it clicks into place.

Image 4.1: The Oster electric corkscrew, foil cutter, wine pourer, and vacuum pump displayed outside the storage case, ready for use.

5. Operating Instructions

5.1 Using the Foil Cutter

1. Place the foil cutter on top of the wine bottle, gripping the neck firmly.
2. Squeeze the sides of the cutter and rotate it around the bottle neck to cleanly remove the foil seal.
3. Carefully remove the cut foil.

Image 5.1: The Oster foil cutter, designed for easy removal of wine bottle seals.

5.2 Using the Electric Corkscrew

1. After removing the foil, place the electric corkscrew vertically over the wine bottle, ensuring it is centered on the cork.
2. Hold the bottle firmly with one hand and the corkscrew with the other.
3. Press the lower button (down arrow) to activate the corkscrew. The spiral will rotate clockwise, penetrate the cork, and automatically pull it out of the bottle.
4. Once the cork is fully removed, lift the corkscrew from the bottle.
5. To release the cork from the corkscrew, press the upper button (up arrow). The spiral will rotate counter-clockwise, ejecting the cork.

5.3 Using the Wine Pourer (Aerator Spout)

1. Insert the wine pourer firmly into the neck of the opened wine bottle.
2. Pour wine slowly and steadily. The pourer is designed to provide a smooth, drip-free pour and may also aerate the wine as it flows.

Image 5.2: The Oster wine pourer (right) and a vacuum sealing stopper (left), essential for serving and preserving wine.

5.4 Using the Drip-Stop Ring

1. Slide the drip-stop ring onto the neck of the wine bottle, just below the lip.
2. The felt lining inside the ring will absorb any drips, preventing stains on your table or tablecloth.

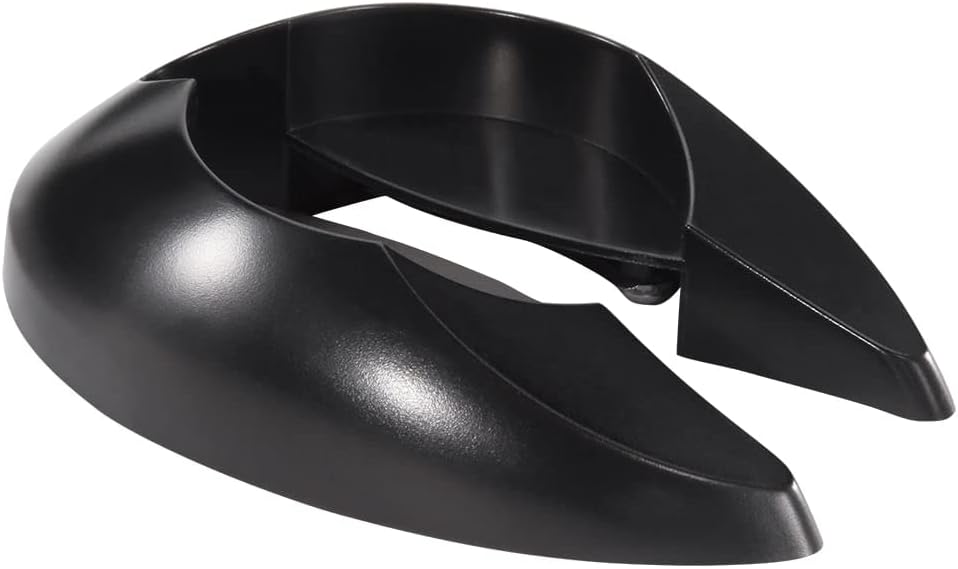

Image 5.3: The Oster drip-stop ring, designed to catch wine drips and protect surfaces.

5.5 Using the Vacuum Pump and Sealing Stopper

1. Place the vacuum sealing stopper firmly into the neck of the opened wine bottle.
2. Place the vacuum pump over the stopper.
3. Pump the handle up and down repeatedly until you feel significant resistance. This indicates that most of the air has been removed from the bottle, helping to preserve the wine's freshness.
4. To open the bottle again, gently pull the stopper to release the vacuum seal.

Image 5.4: The Oster vacuum pump, used to remove air from wine bottles for preservation.

6. Maintenance and Care

• Electric Corkscrew: Wipe the exterior with a soft, damp cloth. Do not submerge in water.
• Foil Cutter, Wine Pourer, Drip-Stop Ring, Vacuum Pump, and Stopper: Wash with warm, soapy water and rinse thoroughly. Allow to air dry completely before storing.
• Storage Case: Wipe with a dry or slightly damp cloth. Avoid harsh chemicals.
• Store all components in the synthetic leather case when not in use to protect them and keep them organized.

7. Troubleshooting

7.1 Electric Corkscrew Issues

• Corkscrew does not operate:
  • Check if batteries are correctly installed with proper polarity.
  • Replace old batteries with new AA alkaline batteries.
  • Ensure the top cap is securely twisted onto the corkscrew.
• Corkscrew struggles to remove cork:
  • Ensure the corkscrew is centered on the cork and held vertically.
  • Verify batteries are fresh and fully charged.
  • The cork may be synthetic or unusually dense. Some synthetic corks may be more challenging to remove.
• Cork does not release from corkscrew:
  • Ensure you are pressing the upper button (up arrow) to reverse the spiral.
  • If the cork is stuck, gently twist it while pressing the release button.

7.2 Vacuum Pump Issues

• Vacuum seal is not holding:
  • Ensure the vacuum sealing stopper is inserted firmly and correctly into the bottle neck.
  • Pump until significant resistance is felt, indicating sufficient air removal.
  • Check the stopper and pump for any visible damage or debris that might prevent a proper seal.

8. Specifications

9. Warranty Information

Oster products are manufactured to high-quality standards. For specific warranty details, including duration and coverage, please refer to the warranty card included with your product or visit the official Oster website. Keep your purchase receipt as proof of purchase for any warranty claims.

10. Customer Support

Should you have any questions, require assistance, or need to report an issue with your Oster Inspire Wine Kit, please contact Oster customer support through their official website or the contact information provided in your product packaging. When contacting support, please have your product model number (FPSTBW8055-011) and purchase details readily available.

For more information, visit the Oster Store on Amazon.
