1. Introduction
Thank you for choosing the Einhell TC-VC 1930 S Wet and Dry Vacuum Cleaner. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your appliance. Please read these instructions carefully before first use and keep them for future reference.
2. Safety Instructions
Always observe the following safety precautions to prevent electric shock, injury, or damage to the appliance:
- Read the entire instruction manual before operating the vacuum cleaner.
- Ensure the power supply voltage matches the rating plate on the appliance.
- Do not use the vacuum cleaner in explosive atmospheres or to pick up flammable or combustible liquids.
- Always unplug the appliance before cleaning, maintenance, or when not in use.
- Keep children and unauthorized persons away from the appliance during operation.
- Do not vacuum hot ashes, sharp objects, or toxic substances.
- Never operate the vacuum cleaner without the appropriate filter installed.
- Inspect the power cord and hose for damage before each use.
3. Product Overview
3.1 Components
The Einhell TC-VC 1930 S includes the following main components and accessories:
- Vacuum unit with 30-liter stainless steel tank
- Motor head with integrated handle and power switch
- Flexible plastic suction hose (2.50 m, 36 mm diameter)
- Two-piece extension tube
- Combination nozzle for floor and carpet
- Crevice nozzle
- Foam filter (for wet vacuuming)
- Pleated filter (for dry vacuuming)
- Four swivel wheels for mobility
- Accessory holder and cable holder
Image: The Einhell TC-VC 1930 S vacuum cleaner shown with its main unit, hose, extension tubes, and various nozzles and filters.

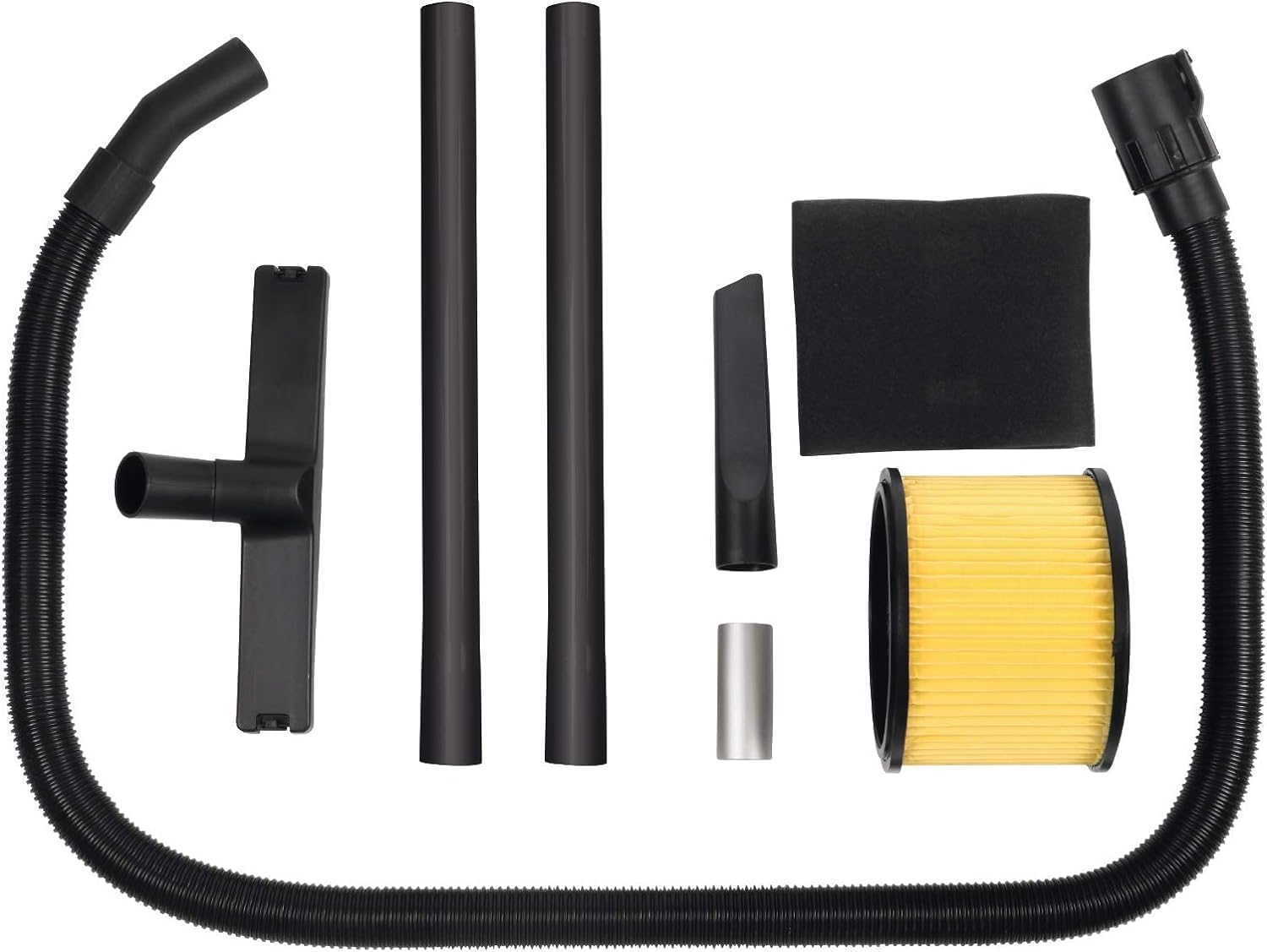

Image: A detailed view of all included accessories: hose, extension tubes, floor nozzle, crevice nozzle, foam filter, and pleated filter.
3.2 Key Features
- Powerful 1,500 W motor with 190 mbar maximum suction power.
- Durable 30-liter rust-proof stainless steel tank.
- Integrated water drain plug for convenient emptying of liquids.
- Blow connection for clearing hard-to-reach areas.
- Flexible hose system (36 mm diameter) for high air and dirt throughput.
- Four swivel wheels for enhanced mobility.
- Practical accessory and cable holders for organized storage.
4. Setup
4.1 Assembly
Follow these steps to assemble your vacuum cleaner:
- Attach the Wheels: Turn the tank upside down. Insert the four swivel wheels into the designated slots on the base until they click into place.
- Secure the Motor Head: Place the motor head onto the tank, ensuring it is correctly aligned. Fasten the clips on the sides of the tank to secure the motor head.
- Connect the Suction Hose: Insert the flexible suction hose into the suction inlet on the tank. Ensure a secure connection.
- Attach Extension Tubes and Nozzle: Connect the two-piece extension tube to the end of the suction hose. Then, attach the desired nozzle (combination or crevice nozzle) to the extension tube.
- Utilize Accessory Holders: Store unused accessories in the integrated holders on the vacuum cleaner's base for convenience.
Image: The base of the vacuum cleaner showing the four swivel wheels for easy movement.

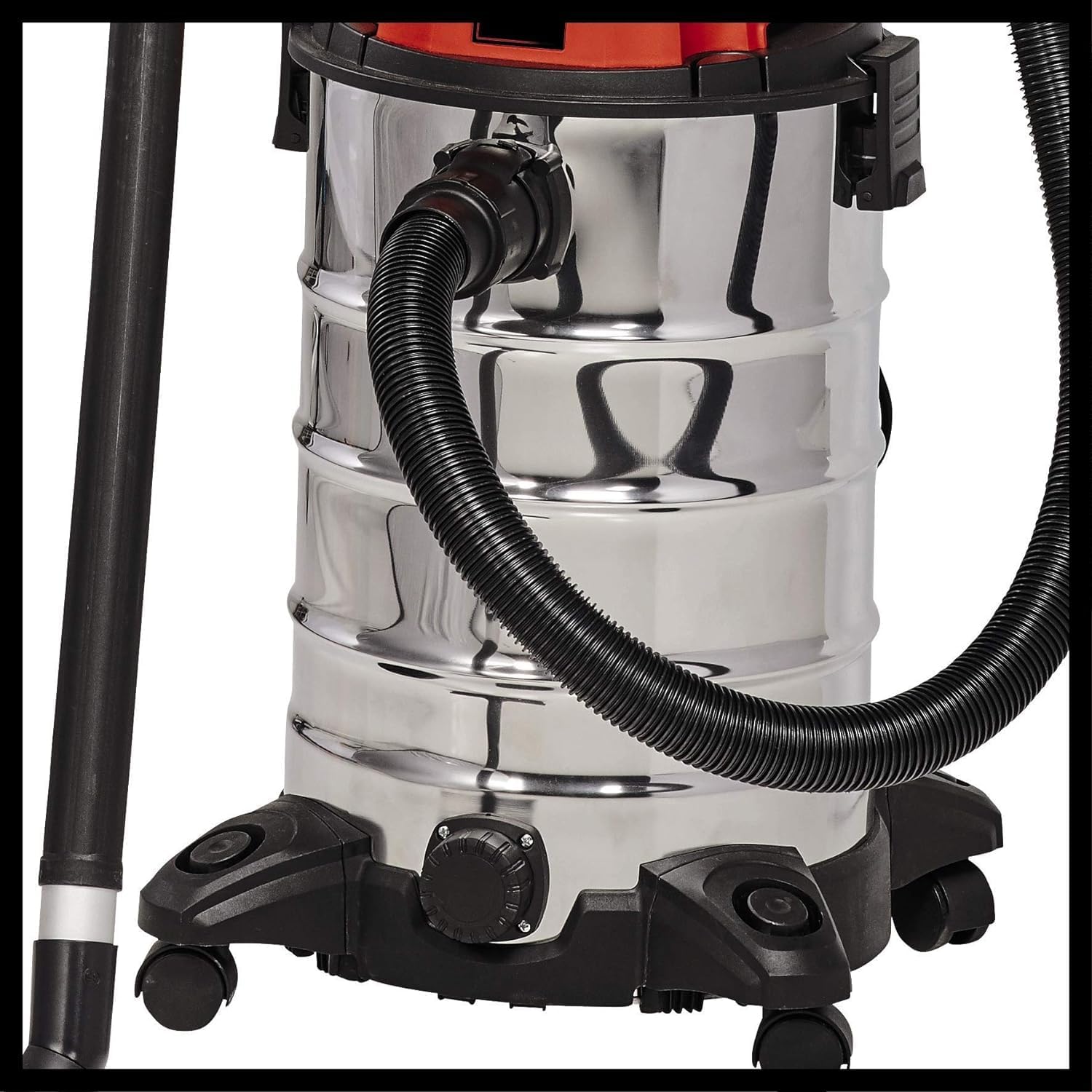

Image: A close-up view of the suction hose securely connected to the inlet on the stainless steel tank.
Image: The accessory holder on the vacuum cleaner's base, designed to keep nozzles and tools organized.
5. Operating Instructions
5.1 Dry Vacuuming
For dry vacuuming, ensure the pleated filter is correctly installed. This filter is designed to capture fine dust and debris.
Image: An icon illustrating the pleated filter, used for dry vacuuming.
- Install the pleated filter onto the motor head.
- Connect the suction hose, extension tubes, and desired nozzle.
- Plug the power cord into a suitable electrical outlet.
- Turn the vacuum cleaner on using the power switch on the motor head.
- Begin vacuuming dry surfaces.
- After use, turn off the appliance and unplug it. Empty the tank and clean the filter as described in the maintenance section.
5.2 Wet Vacuuming
For wet vacuuming, the foam filter must be installed. Remove the pleated filter before wet vacuuming.
Image: A user demonstrating the wet vacuuming capability of the Einhell TC-VC 1930 S on a tiled floor.
- Remove the pleated filter and install the foam filter onto the motor head.
- Connect the suction hose, extension tubes, and desired nozzle.
- Plug the power cord into a suitable electrical outlet.
- Turn the vacuum cleaner on using the power switch.
- Begin vacuuming liquids. The appliance will automatically shut off when the tank is full.
- After use, turn off the appliance and unplug it. Empty the tank using the water drain plug.
Image: A hand demonstrating how to open the water drain plug located at the base of the stainless steel tank for easy liquid disposal.
5.3 Blowing Function
The integrated blow connection allows you to clear debris from hard-to-reach areas.
Image: A diagram illustrating the airflow from the blow connection, indicating its function for clearing debris.
- Disconnect the suction hose from the suction inlet.
- Connect the suction hose to the blow connection port on the motor head.
- Plug the power cord into a suitable electrical outlet.
- Turn the vacuum cleaner on. Air will now be expelled from the hose, allowing you to blow away dust or debris.
- After use, turn off the appliance and unplug it.
6. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your vacuum cleaner.
6.1 Cleaning the Tank
After each use, especially after wet vacuuming, empty and clean the stainless steel tank.
- Unplug the vacuum cleaner.
- Unclip and remove the motor head.
- For liquids, open the water drain plug at the bottom of the tank to empty.
- Rinse the tank with water and wipe it dry.
6.2 Filter Maintenance
Filters should be cleaned regularly and replaced when damaged or excessively dirty.
- Pleated Filter (Dry Vacuuming): Tap out dust or use a soft brush to clean. Do not wash with water unless specified by manufacturer. Ensure it is completely dry before re-installation.
- Foam Filter (Wet Vacuuming): Rinse with clean water and allow it to air dry completely before storing or re-installing.
6.3 Storage
Store the vacuum cleaner in a dry, well-ventilated area, away from direct sunlight and extreme temperatures. Utilize the cable holder for neat storage of the power cord.
Image: The power cord neatly stored using the integrated cable holder on the side of the vacuum cleaner.
7. Troubleshooting
Refer to the table below for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Vacuum cleaner does not start | No power supply | Check power cord, outlet, and circuit breaker. |
| Reduced suction power | Clogged hose or nozzle | Clear any blockages in the hose or nozzle. |
| Reduced suction power | Dirty or incorrect filter | Clean or replace the filter. Ensure the correct filter is used for wet/dry operation. |
| Reduced suction power | Tank is full (wet vacuuming) | Empty the tank. |
| Water leaking from tank | Water drain plug not closed | Ensure the water drain plug is securely tightened. |
8. Specifications
Key technical specifications for the Einhell TC-VC 1930 S:
Image: An icon representing the 30-liter stainless steel tank capacity of the vacuum cleaner.
Image: An icon visually representing the hose dimensions: 250 cm in length and 36 mm in diameter.
Image: An icon displaying the maximum suction power of 190 mbar.
| Feature | Specification |
|---|---|
| Brand | Einhell |
| Model Name | TC-VC 1930 S |
| Power | 1500 Watts |
| Maximum Suction | 190 mbar |
| Tank Capacity | 30 Liters (Stainless Steel) |
| Hose Length | 2.50 Meters |
| Hose Diameter | 36 Millimeters |
| Cable Length | 2.5 Meters |
| Filter Type (Dry) | Pleated Filter |
| Filter Type (Wet) | Foam Filter |
| Special Feature | Wet/Dry Function, Blowing Function |
9. Warranty and Support
For warranty information, please refer to the warranty card included with your purchase or visit the official Einhell website. In case of technical issues or questions not covered in this manual, please contact Einhell customer support. Have your model number (TC-VC 1930 S) and purchase details ready when contacting support.
