1. Introduction
This manual provides essential information for the installation, operation, and maintenance of your BLANCO InFino Drain Remote Control Retrofit Set with Bowden Cable, model 232459. This retrofit set is designed to upgrade existing sink drain systems to the modern InFino standard, offering enhanced functionality and a sleek design.
The InFino system features an elegant, puristic design with an almost edge and seamless integration into your sink. It is compatible with all BLANCO sink materials and provides a flush-mounted surface for a quiet overall aesthetic.
2. Product Overview
The BLANCO InFino retrofit set allows for a smart manual operating concept, with the option for remote control functionality via a Bowden cable. The system ensures a pre-defined, always exactly centered position of the strainer basket.
The drain system operates by rotating the strainer basket to the right or left to open or close the drain. Unlike conventional up-and-down mechanisms, the sieve does not change its vertical position, which helps prevent coarse dirt particles from contaminating the goblet.
Compatibility Note: This retrofit set is suitable for sinks equipped with the BLANCO InFino drain system, including models such as ANDANO, AXIA III, ETAGON, CLARON, ZEROX, PLEON, and ZENAR XL 6 S Compact. A separate control element (e.g., pull button or rotary actuation) must be ordered to enable remote control functionality.
Important Warning: A standard strainer basket is not interchangeable with the InFino strainer basket. Only use InFino compatible components.
3. Setup and Installation
Installation of the BLANCO InFino retrofit set involves integrating the Bowden cable mechanism with your existing InFino drain system. The design facilitates quick and easy valve mounting for efficient service and construction.
Ensure all components are clean and free from debris before installation. Follow the specific instructions provided with your chosen control element (pull button or rotary actuation) for connecting it to the Bowden cable.
Figure 1: The BLANCO InFino Bowden cable mechanism, illustrating the components for remote drain control. This unit connects to the drain valve and the remote control element.

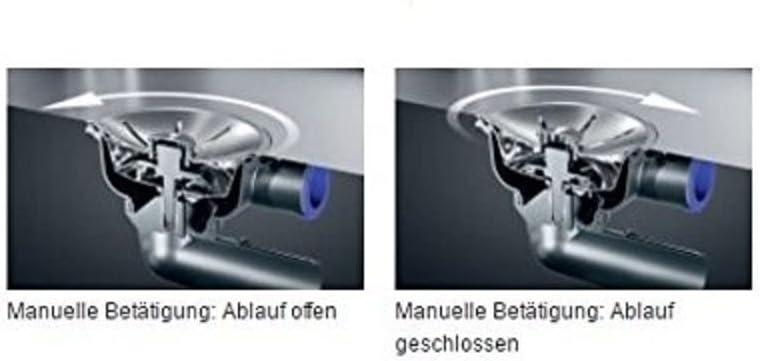

Figure 2: Diagram showing the internal mechanism of the BLANCO InFino drain in both open and closed positions. The rotation of the strainer basket controls the flow without vertical movement.
4. Operating Instructions
The BLANCO InFino drain system offers intuitive operation. Depending on your chosen control element (purchased separately), you will either use a pull button or a rotary knob to manage the drain's open and closed states.
- To Open the Drain: Actuate the control element (e.g., rotate the knob or pull the button) in the designated direction to open the drain. The strainer basket will rotate to allow water flow.
- To Close the Drain: Actuate the control element in the opposite direction to close the drain. The strainer basket will rotate to seal the drain opening.
The unique rotary mechanism ensures that the strainer basket remains in its centered position, preventing accidental displacement and maintaining a clean appearance.

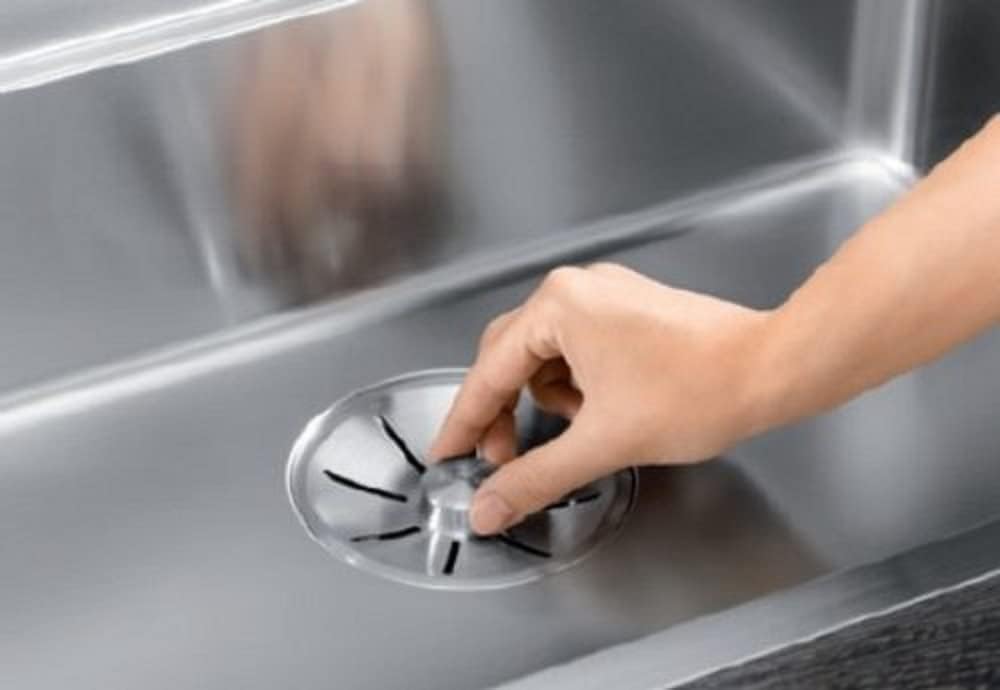

Figure 3: A hand demonstrating the operation of the BLANCO InFino strainer basket by rotating it to control the drain's open or closed state.
5. Maintenance
Regular cleaning and maintenance will ensure the longevity and optimal performance of your BLANCO InFino drain system.
- Cleaning the Strainer Basket: Periodically remove the InFino strainer basket and clean it with mild soap and water. Rinse thoroughly.
- Cleaning the Drain Area: Use a non-abrasive cleaner suitable for your sink material to clean around the drain opening. Avoid harsh chemicals or abrasive pads that could damage the finish.
- Bowden Cable Inspection: Occasionally check the Bowden cable for any signs of wear or damage. Ensure it moves freely and is not kinked.
The drain system is designed to be compatible with all three BLANCO sink materials, allowing for consistent cleaning practices across your sink and drain components.
6. Troubleshooting
If you encounter issues with your BLANCO InFino drain system, consider the following:
- Drain Not Opening/Closing Properly:
- Check for any obstructions in the drain opening or around the strainer basket.
- Inspect the Bowden cable for kinks, damage, or improper connection to the control element or drain valve.
- Ensure the control element itself is functioning correctly.
- Slow Drainage:
- Remove and clean the strainer basket thoroughly.
- Check for blockages further down the drain pipe. If necessary, use a drain cleaner suitable for your plumbing system or consult a plumber.
For persistent issues or complex repairs, it is recommended to contact a qualified plumber or BLANCO customer support.
7. Specifications
| Product Name | BLANCO Drain remote control retrofit set InFino with Bowden cable 232459 |
| Brand | BLANCO |
| Manufacturer | BLANCO |
| Item Model Number | 232459 |
| Product Dimensions | 15 x 15 x 10 cm |
| Item Weight | 133 g |
| ASIN | B01N6ADDHK |
| Date First Available | 6 August 2023 |
8. Warranty and Support
For information regarding product warranty, please refer to the documentation provided with your original purchase or visit the official BLANCO website. Warranty terms may vary by region and retailer.
For technical support, spare parts, or further assistance, please contact BLANCO customer service or your authorized BLANCO dealer. Ensure you have your product model number (232459) and proof of purchase available when seeking support.
