HECHT HEC-3635 Dirty Water Pump Instruction Manual

Introduction

This instruction manual provides essential information for the safe and efficient operation, setup, maintenance, and troubleshooting of your HECHT HEC-3635 dirty water pump. Please read this manual thoroughly before operating the pump to ensure proper use and to prevent damage or injury. Keep this manual for future reference.

Safety Instructions

Always adhere to the following safety guidelines to ensure safe operation and to prevent personal injury or damage to the pump.

• Read and understand all instructions before operating the pump.
• Wear appropriate personal protective equipment (PPE), such as safety glasses and gloves.
• Ensure adequate ventilation when operating the pump, especially in enclosed spaces, due to exhaust fumes.
• Handle fuel with extreme care. Store fuel in approved containers and in a well-ventilated area away from ignition sources.
• Never refuel a hot or running engine. Allow the engine to cool down before adding fuel.
• Keep children and bystanders away from the operating area.
• Do not operate the pump if it is damaged or not functioning correctly.
• Ensure all connections are secure and leak-free before starting the pump.
• Do not pump flammable liquids or corrosive chemicals. This pump is designed for dirty water.

Product Overview

The HECHT HEC-3635 is a robust dirty water pump designed for efficient water transfer in various applications. It features a powerful gasoline engine and durable construction.

The HECHT HEC-3635 dirty water pump, featuring a robust red engine and a black protective frame.

Overview of the HECHT HEC-3635 dirty water pump, highlighting its fuel-powered operation, 38,000 liters per hour flow rate, and 32-meter maximum head height.

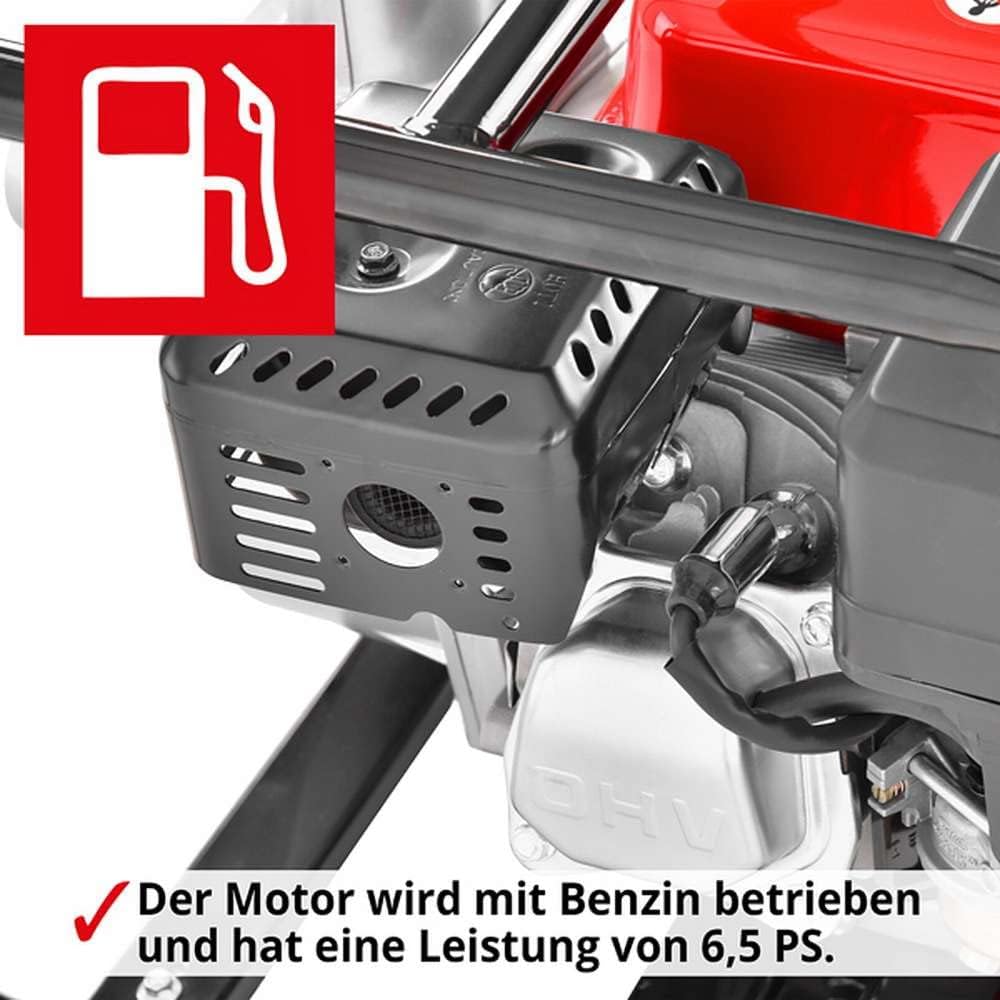

Detail of the pump's engine, indicating it is gasoline-powered and has a power output of 6.5 HP.

The engine of the pump is started via a reliable pull-cord mechanism.

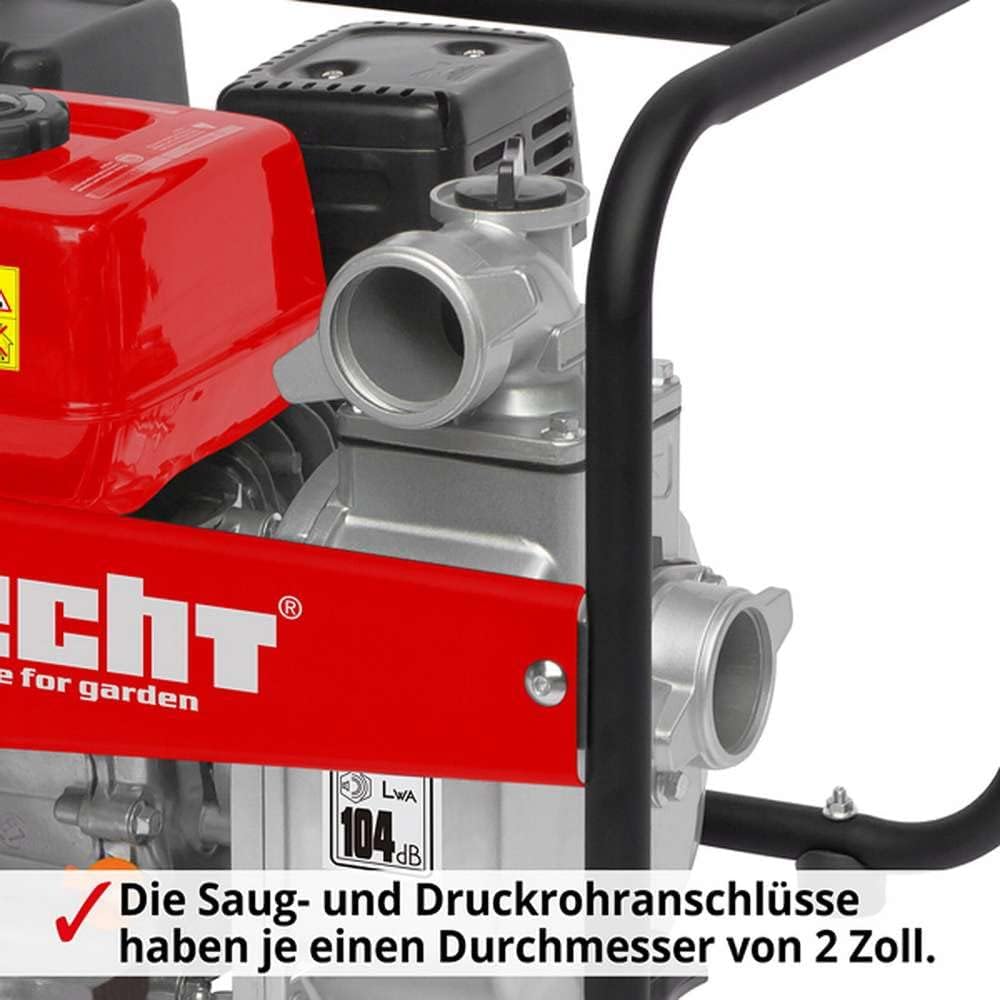

The pump features suction and pressure pipe connections, each with a diameter of 2 inches.

Setup

Follow these steps to prepare your HECHT HEC-3635 pump for operation:

1. Unpacking and Inspection: Carefully remove the pump from its packaging. Inspect for any signs of damage during transit. Ensure all components are present.
2. Positioning: Place the pump on a stable, level surface. Ensure there is sufficient space around the pump for ventilation and operation.
3. Connecting Hoses:
   • Attach the suction hose to the inlet port and the discharge hose to the outlet port. Secure all connections with appropriate clamps to prevent leaks.
   • Ensure the suction hose is equipped with the included suction basket to prevent debris from entering the pump.


   The included suction basket protects the pump from foreign objects, ensuring clean operation.

4. Adding Fuel and Engine Oil:
   • Fill the fuel tank with unleaded gasoline. Do not overfill.
   • Check the engine oil level and add recommended engine oil if necessary. Refer to the engine manual for specific oil type and capacity.

Operating

Once the pump is set up, follow these steps for operation:

1. Starting the Engine:
   • Ensure the fuel valve is open and the engine switch is in the 'ON' position.
   • If the engine is cold, apply choke as needed.
   • Pull the starter cord firmly until the engine starts. Once started, gradually release the choke.
2. Priming the Pump: Before starting the engine, ensure the pump casing is filled with water through the priming port. This is crucial for self-priming pumps to initiate flow.
3. Monitoring Operation: Observe the pump during operation. Ensure water is flowing smoothly and there are no unusual noises or vibrations. The pump can achieve a maximum lift height of 32 meters and a flow rate of up to 38,000 liters per hour.

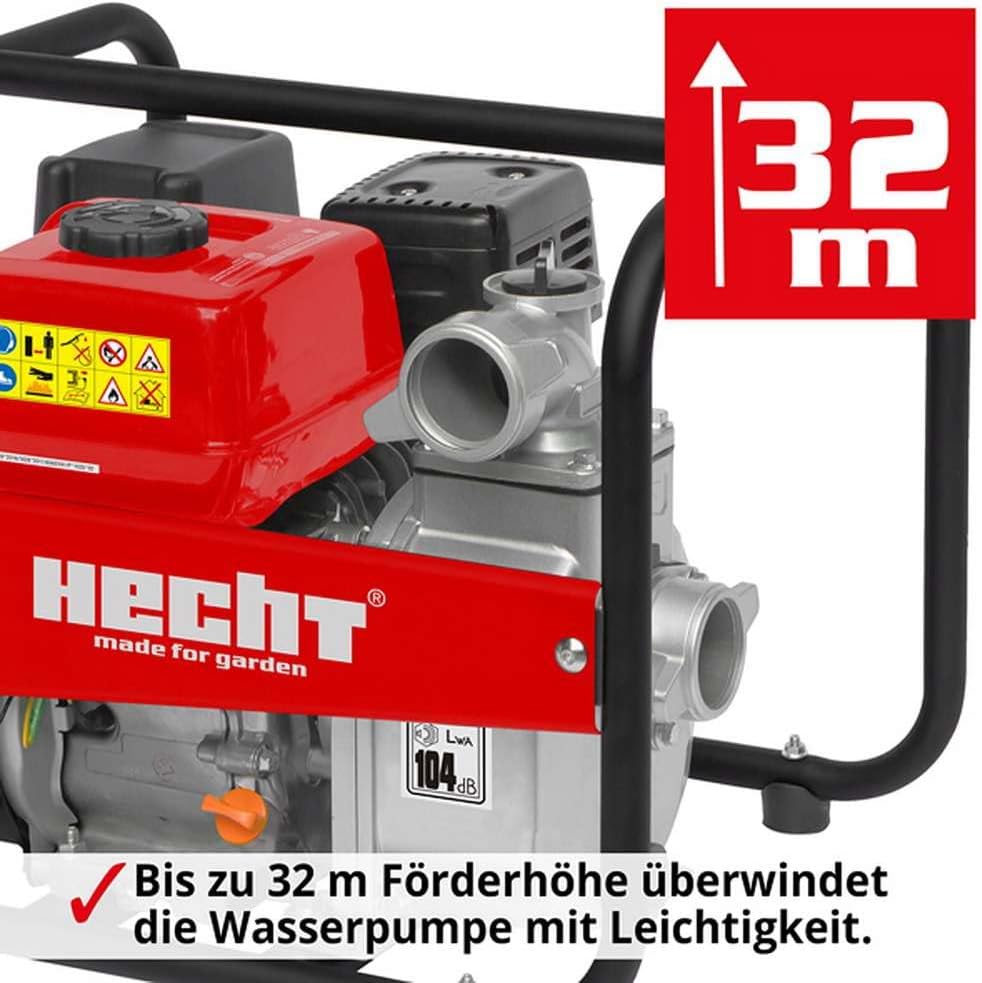

The water pump can easily overcome a delivery head of up to 32 meters.



With its powerful engine, the pump can transport up to 38,000 liters per hour.


The pump is capable of a maximum suction height of 7 meters and a maximum delivery head of 32 meters.
4. Shutting Down: To stop the pump, turn the engine switch to the 'OFF' position and close the fuel valve.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your pump:

• Cleaning: After each use, clean the pump exterior and clear any debris from the suction basket and impeller area.
• Engine Oil: Check the engine oil level before each use. Change the engine oil according to the schedule in the engine manual, typically after the first 20 hours and then every 50-100 hours of operation.
• Spark Plug: Inspect the spark plug periodically. Clean or replace it if it is fouled or worn.
• Air Filter: Clean the air filter regularly, especially when operating in dusty conditions. A clogged air filter can reduce engine performance.
• Hoses and Connections: Inspect hoses for cracks or wear and ensure all connections remain tight.
• Storage: For long-term storage, drain the fuel tank and carburetor. Store the pump in a clean, dry place.

Troubleshooting

Refer to the table below for common issues and their potential solutions:

Specifications

Technical specifications for the HECHT HEC-3635 dirty water pump:

Warranty and Support

For warranty information and technical support, please refer to the documentation provided with your purchase or contact Hecht customer service. Keep your proof of purchase for warranty claims.
