1. Introduction and Overview

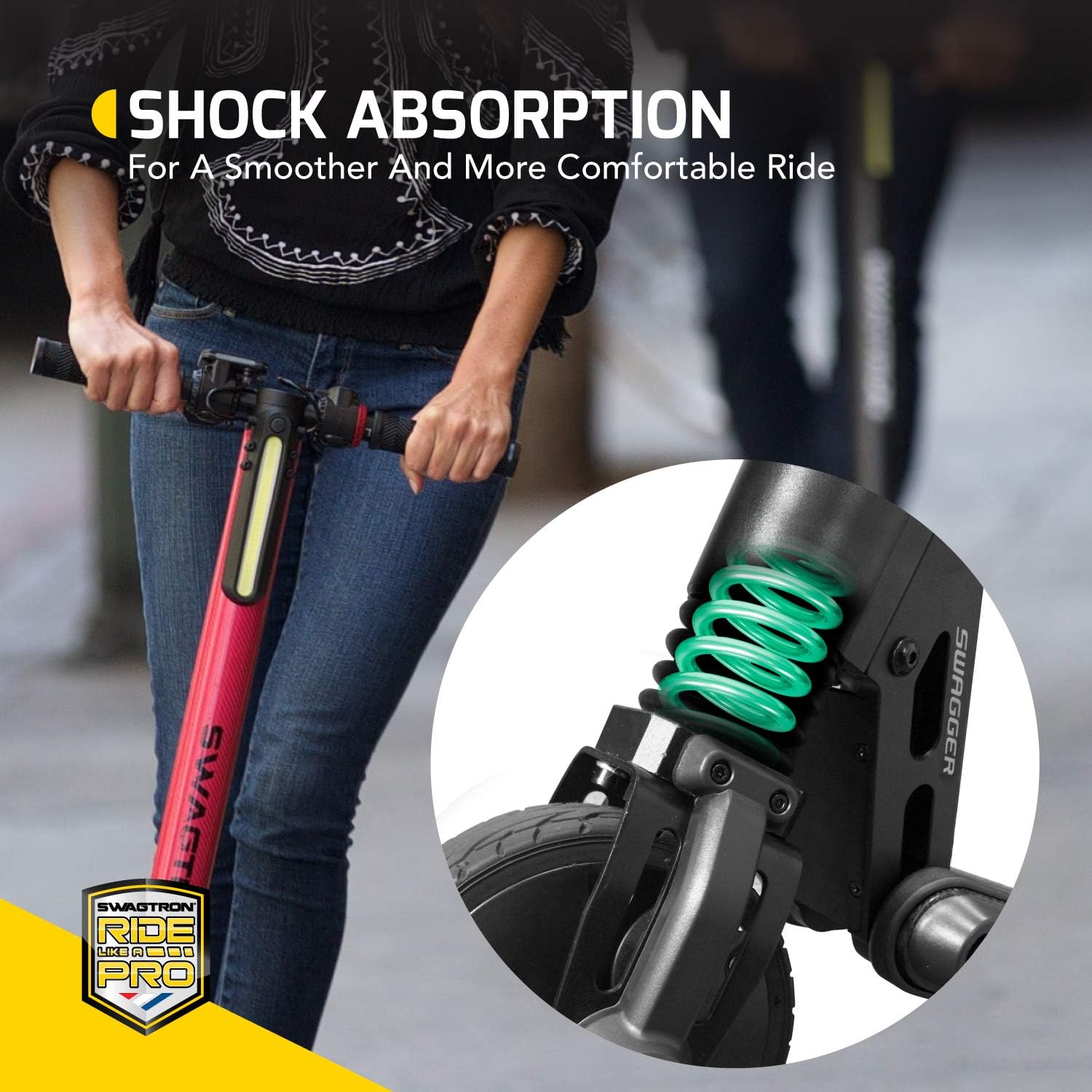

The Swagtron Swagger SG-1 electric scooter is designed for personal transportation. It features a 24V, 3800 mAh lithium-ion battery and a 250-watt motor, capable of reaching speeds up to 15 MPH and offering a range of up to 15 miles. The scooter is constructed with a lightweight carbon fiber frame, weighing approximately 15 lbs, and includes a collapsible design for portability and storage. Safety features include dual brakes. A digital display provides information on speed, distance, and battery life. The scooter also incorporates front wheel suspension for a smoother ride and an LED headlight for visibility.
2. What's in the Box
- Swagtron Swagger SG-1 Electric Scooter
- Charger
- User Manual (this document)
3. Setup
Before operating your Swagtron Swagger SG-1, ensure it is properly set up and charged.
3.1 Unfolding the Scooter
To unfold the scooter, lay it on a flat surface. Press the latch to release the steering column and raise it to a perpendicular position. Release the latch again to fully extend the steering column until it locks into place. Ensure all locking mechanisms are securely engaged before use.
Image: A person demonstrating the unfolding process of the scooter.
Image: A detailed view of the scooter's folding mechanism and latch.
3.2 Kickstand Deployment
To support the scooter when not in use, deploy the kickstand located on the side of the deck. Push it down firmly until it clicks into position.
Image: A close-up of the scooter's kickstand in the deployed position.
3.3 Initial Charge
Fully charge the scooter before its first use. Connect the charger to the charging port and plug it into a standard electrical outlet. The charging indicator will show the charging status. Refer to the specifications for estimated charging time.
Important: Do not leave the scooter plugged in for more than 90 minutes after it is fully charged to prevent potential battery damage.
3.4 Setup and Operation Video
Video: A step-by-step guide on how to set up and operate the Swagtron Swagger SG-1 electric scooter.
4. Operating Instructions
Familiarize yourself with the controls before riding.
4.1 Powering On/Off
To power on the scooter, press and hold the center button on the LED display for two seconds. Repeat this action to power off the scooter.
Image: The scooter's LED display showing battery level and speed, with the power button highlighted.
4.2 Throttle and Brake
The throttle is located on the right handlebar. Press the black lever to accelerate. The brake is a red lever on the left handlebar. Press it to engage the electronic brake. The scooter also has a rear foot brake for additional stopping power. Use both brakes for gradual and controlled stops.
Image: A close-up of the scooter's handlebars, highlighting the throttle and brake controls.
4.3 Gear Shifting
Use the up and down buttons on the LED display to shift between three available gears, adjusting the speed and power output of the scooter.
4.4 Riding the Scooter
Once powered on and a gear is selected, step onto the scooter with one foot, then push off with the other foot to gain initial momentum. Gently press the throttle to engage the motor. To stop, release the throttle and apply the hand brake, foot brake, or both. Step off the scooter one foot at a time when fully stopped.
Image: A person riding the Swagtron Swagger SG-1 electric scooter on a paved path.
Image: A person riding the Swagtron Swagger SG-1 electric scooter near a train station, demonstrating its use for commuting.
5. Maintenance
Regular maintenance ensures the longevity and safe operation of your scooter.
- Cleaning: Wipe down the scooter with a damp cloth. Avoid using harsh chemicals or excessive water, especially near electronic components.
- Battery Care: Charge the battery regularly, even if not in frequent use, to maintain its health. Avoid completely draining the battery. Store the scooter in a cool, dry place.
- Fasteners: Periodically check all bolts and fasteners to ensure they are tight. Vibrations from riding can loosen components over time.
- Tires: Inspect tires for wear and tear. While the SG-1 uses solid tires, ensure they are free from significant damage or debris.
- Brakes: Regularly test the functionality of both the electronic hand brake and the rear foot brake.
6. Troubleshooting
If you encounter issues with your Swagtron Swagger SG-1, consider the following common solutions:
- Scooter not turning on: Ensure the battery is charged. Press and hold the power button for the required duration (2 seconds).
- Loss of power/speed: Check the battery level on the display. If low, recharge the scooter. Ensure you are in an appropriate gear for the terrain.
- Unusual noises: Inspect the wheels, brakes, and folding mechanisms for any loose parts or obstructions. Tighten any loose bolts.
- Brakes not responding: Check the brake levers and cables for any damage or obstruction. Ensure the electronic brake is engaging.
For persistent issues or problems not listed here, please contact Swagtron customer support.
7. Specifications
| Model Name | Swagger |
| Model Number | SG-1 |
| Motor | 250-watt |
| Battery | 24V, 3800 mAh Lithium-ion |
| Max Speed | Up to 15 MPH |
| Range | Up to 15 miles (actual range may vary) |
| Frame Material | Carbon Fiber |
| Item Weight | 17.3 pounds |
| Item Dimensions (LxWxH) | 10 x 42 x 6 inches |
| Safety Certification | UL 2272 Certified |
| Included Components | Scooter, Charger, User Manual |
8. Warranty and Support
The Swagtron Swagger SG-1 electric scooter comes with a Manufacturer Limited Warranty. For specific warranty terms, conditions, and duration, please refer to the warranty card included with your product or visit the official Swagtron website.
For technical support, service, or inquiries regarding your product, please contact Swagtron customer service through their official channels.
