Fame Elias 5-Piece Acoustic Drum Kit Instruction Manual

Introduction

Thank you for choosing the Fame Elias 5-Piece Acoustic Drum Kit. This manual provides essential information for the proper setup, operation, and maintenance of your new drum set. Please read these instructions carefully before assembly and use to ensure optimal performance and longevity of your instrument.

The Fame Elias drum kit is designed to offer a high-quality musical experience with its durable wooden shells and comprehensive set of components, making it suitable for musicians who wish to practice and perform at home.

Figure 1: Full view of the Fame Elias 5-Piece Acoustic Drum Kit.

Setup

Careful assembly is crucial for the stability and sound of your drum kit. Follow these steps to set up your Fame Elias 5-Piece Drum Kit.

1. Unpacking and Component Identification

Carefully remove all components from the packaging. Verify that all parts are present:

• Bass Drum
• Snare Drum
• 2 Tom-Toms
• Floor Tom
• Hi-Hat Cymbal
• Crash/Ride Cymbal
• Bass Drum Pedal
• Hi-Hat Stand
• Cymbal Stand
• Snare Stand
• Drum Stool
• Drumsticks (pair)

2. Bass Drum Assembly

1. Attach the bass drum legs to the bass drum shell. Ensure they are securely tightened and angled for stability.
2. Attach the bass drum pedal to the bass drum hoop. Adjust the beater length and spring tension as desired.

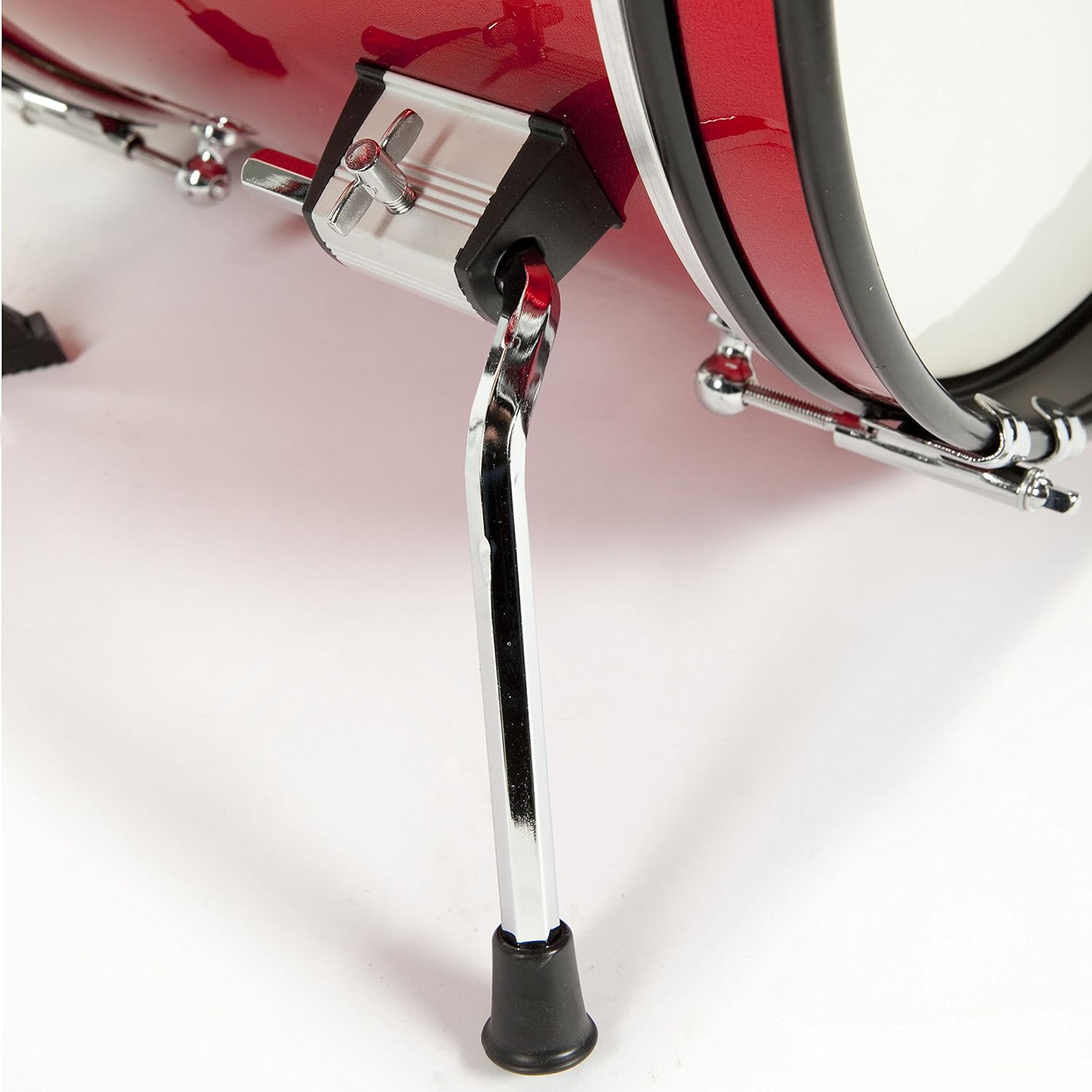

Figure 2: Securely attach the bass drum legs for stability.

Figure 3: Attach the bass drum pedal to the bass drum hoop.

3. Snare Drum Assembly

Place the snare drum on its dedicated snare stand. Adjust the height and angle of the snare drum for comfortable playing.

Figure 4: Snare drum securely mounted on its stand.

4. Tom-Tom Mounting and Floor Tom Placement

1. Mount the two tom-toms onto the bass drum using the included mounting hardware. Adjust their positions and angles for easy reach.
2. Position the floor tom on its three legs to the right of the bass drum (for right-handed drummers). Adjust the leg height for stability and comfort.

Figure 5: Tom-toms mounted on the bass drum with adjustable hardware.

5. Cymbal Stands and Cymbals

1. Assemble the hi-hat stand and place the hi-hat cymbals on it. Adjust the height and pedal action.
2. Assemble the cymbal stand for the crash/ride cymbal. Place the cymbal on the stand, ensuring all felts and wing nuts are correctly positioned to allow the cymbal to resonate freely.

Figure 6: Hi-hat cymbals on their stand.

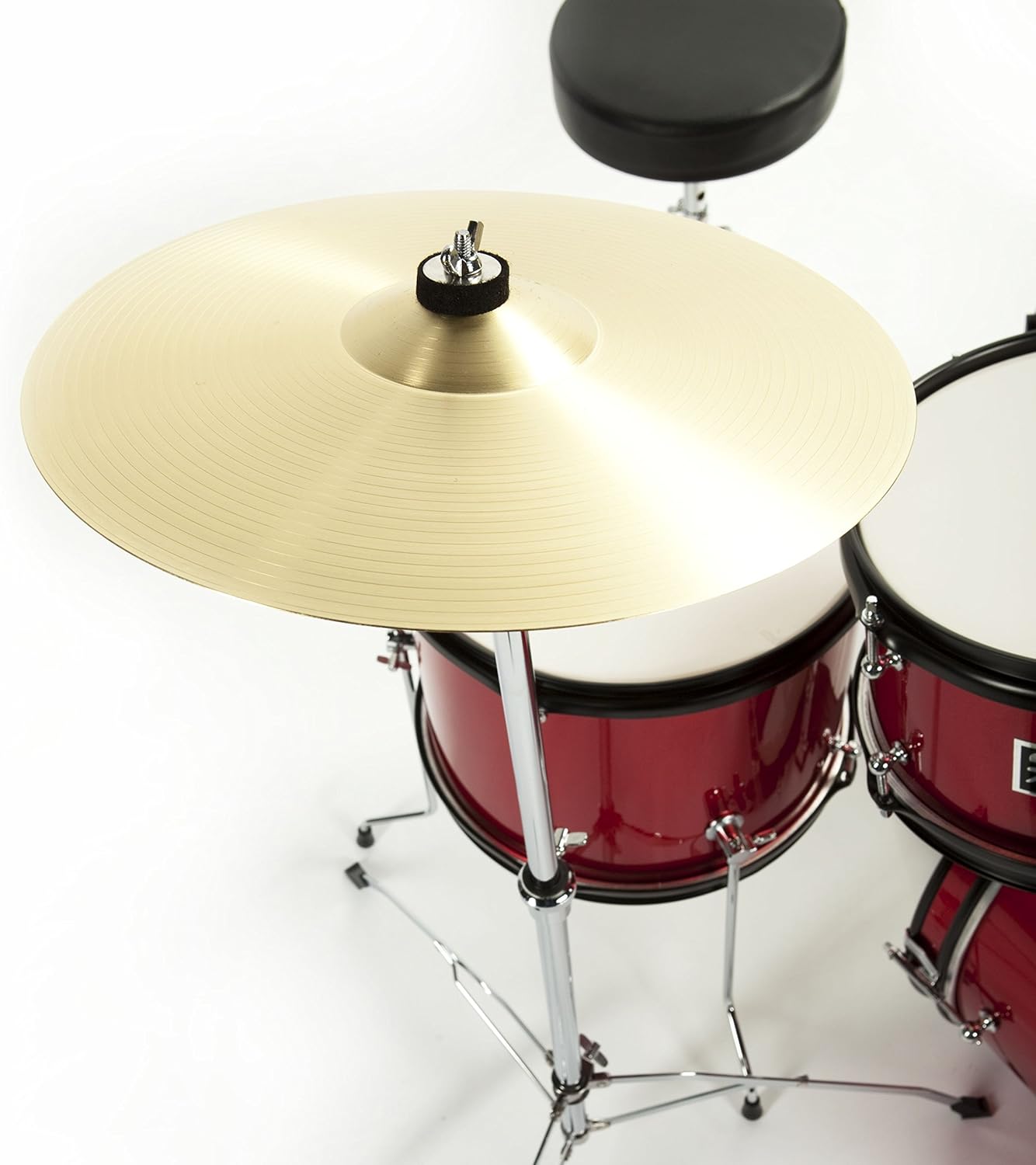

Figure 7: Crash/ride cymbal on its stand.

6. Drum Stool

Assemble the drum stool and adjust its height to a comfortable position that allows you to reach all drums and pedals easily.

Figure 8: The adjustable drum stool for comfortable playing.

7. Initial Tuning

While the drums come with pre-installed heads, a basic tuning will enhance their sound. Use the drum key to adjust the tension rods on each drumhead. Start with a medium tension and adjust to your preferred sound. Ensure even tension across all rods for a clear tone.

Operating Your Drum Kit

Once assembled, your Fame Elias drum kit is ready for playing. Here are some basic operational guidelines:

1. Playing Position

Sit comfortably on the drum stool with your feet flat on the bass drum and hi-hat pedals. Ensure your arms can reach all drums and cymbals without strain. Adjust the height and angle of each component as needed.

2. Stick Grip and Striking

Hold the drumsticks with a relaxed grip. Experiment with striking different areas of the drumheads and cymbals to produce various sounds. The wooden shells are designed to provide a great sound, and the cymbals offer authentic sound and concise response time.

3. Pedal Usage

Practice using the bass drum pedal for consistent beats and the hi-hat pedal for open, closed, and foot-splash sounds. Coordination between hands and feet is key to drumming.

Maintenance

Regular maintenance will keep your Fame Elias drum kit in excellent condition and prolong its lifespan.

1. Cleaning

• Drum Shells: Wipe down the wooden shells with a soft, dry cloth after each use to remove dust and fingerprints. For deeper cleaning, use a slightly damp cloth and dry immediately. Avoid harsh chemicals.
• Hardware: Clean chrome and metal parts with a soft cloth. If necessary, use a mild metal polish sparingly.
• Cymbals: Cymbals can be cleaned with specialized cymbal cleaner, following the product instructions. Avoid excessive cleaning, as it can alter the cymbal's sound over time.

2. Hardware Inspection

Periodically check all nuts, bolts, and clamps on stands and mounts. Tighten any loose components to prevent wobbling and ensure stability. Lubricate moving parts of pedals and stands with appropriate lubricants if they become stiff.

3. Drumhead Care and Replacement

Drumheads will wear out over time. Replace them when they show signs of excessive wear, dents, or loss of tone. When replacing, ensure the new heads are properly seated and tuned evenly.

Troubleshooting

Here are solutions to common issues you might encounter with your drum kit:

1. Poor Drum Sound

• Dull or Ringing Sound: Check drumhead tension. Ensure all tension rods are evenly tightened. Uneven tension can cause undesirable overtones.
• Lack of Resonance: Verify that cymbals are mounted correctly with felts and sleeves, allowing them to vibrate freely. Check if any part of the drum is touching another component, dampening its sound.

2. Wobbly Stands or Components

• Ensure all wing nuts, clamps, and leg braces on stands are fully tightened.
• Check that the drum stool is stable and all its legs are evenly extended.

3. Sticking or Squeaky Pedals

• Apply a small amount of lubricant to the moving parts of the bass drum and hi-hat pedals.
• Check for any obstructions or misaligned parts that might be causing friction.

Specifications

Warranty Information

The Fame Elias 5-Piece Acoustic Drum Kit is covered by a manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included with your product for specific terms, conditions, and duration of coverage. Keep your proof of purchase for any warranty claims.

Customer Support

Should you have any questions, require technical assistance, or need to report an issue with your Fame Elias 5-Piece Acoustic Drum Kit, please contact Fame customer support. Contact details can typically be found on the manufacturer's official website or on the product packaging.
