ORICO 2.5 inch Hard Drive Enclosure Instruction Manual

Introduction

This manual provides detailed instructions for the ORICO 2.5 inch Hard Drive Enclosure (Model 2139C3-CR). This enclosure is designed to convert a 2.5-inch SATA HDD or SSD into an external USB 3.1 Type-C portable storage device. It supports UASP protocol for enhanced data transfer speeds and offers tool-free installation for convenience.

Product Features

• USB 3.1 6Gbps High-Speed Transmission: Equipped with a high-performance master chip, this enclosure supports data transfer rates up to 6Gbps, significantly faster than traditional USB 3.0. It also supports the UASP protocol for optimized performance.
• Transparent Design: The clear PC board construction allows for easy monitoring of the hard drive's working status and identification of stored data without needing to open the enclosure.
• Intelligent Auto-Sleep: Features a 10-minute auto-sleep mode when inactive, reducing power consumption, extending the lifespan of the hard drive, and protecting data.
• Tool-Free Installation: Designed for quick and easy setup without the need for any tools or screws. Simply slide the cover, insert your drive, and close.
• Wide Compatibility: Supports 2.5-inch SATA HDDs and SSDs with heights of 7-9.5mm, up to 6TB capacity. Compatible with various devices including PCs, laptops, gaming consoles (PS4, Xbox), and operating systems like Windows, Mac, and Linux.
• Durable Construction: Made from high-quality ABS+PC material for anti-shock and drop protection. Includes a sponge pad for secure drive placement.

Package Contents

The ORICO 2.5 inch Hard Drive Enclosure package typically includes:

• 1 x ORICO 2.5 inch Hard Drive Enclosure
• 1 x USB Type-C to USB-A Cable
• 1 x User Manual
• Sponge pads for drive stability

Image: The ORICO 2.5 inch Hard Drive Enclosure, showcasing its transparent chassis with a 2TB SSD installed, connected via a USB-C cable. The image highlights the product's visible internal components and sleek design.

Setup Guide

Follow these simple steps to install your 2.5-inch SATA HDD/SSD into the ORICO enclosure:

1. Open the Enclosure: Gently push the top cover of the enclosure off to reveal the internal SATA connector.
2. Insert the Hard Drive: Align your 2.5-inch SATA HDD or SSD with the SATA connector inside the enclosure and firmly slide it in until it is securely connected. Ensure the drive is properly seated.
3. Secure the Drive (Optional): If provided, place the included sponge pads on top of the drive to ensure a snug fit and prevent movement within the enclosure.
4. Close the Enclosure: Slide the top cover back onto the enclosure until it clicks into place, securing your hard drive.
5. Connect to Device: Use the provided USB Type-C to USB-A cable to connect the enclosure to your computer or other compatible device. For Mac devices with only USB-C ports, a USB-C to USB-C cable (not included) may be required.

Image: A visual guide demonstrating the tool-free installation process for the ORICO hard drive enclosure. It shows pushing off the cover, inserting a hard drive, closing the cover, and finally connecting the assembled enclosure to a laptop.

Operating Instructions

Once your hard drive is installed and connected, it will typically be recognized automatically by your operating system. You can then use it as an external storage device for various tasks:

• Data Transfer: Drag and drop files to and from the external drive. The USB 3.1 interface with UASP support ensures fast read and write speeds for efficient data management.
• Backup Storage: Use the enclosure to create backups of important documents, photos, videos, and other files.
• Expand Storage: Connect to devices like PCs, laptops, gaming consoles (PS4, Xbox), or smart TVs to expand their storage capacity.
• LED Indicator: The built-in LED indicator will illuminate to show power status and blink during data transfer activity.

Image: The ORICO 2.5 inch Hard Drive Enclosure connected to a laptop, highlighting its 6Gbps ultra-fast data transfer capability via USB 3.1 and UASP protocol, which is 18 times faster than USB 2.0.

Maintenance

• Auto-Sleep Function: The enclosure automatically enters sleep mode after 10 minutes of inactivity. This feature helps conserve energy and prolong the life of your hard drive.
• Physical Protection: The durable ABS+PC material shell provides protection against minor impacts and drops. The internal sponge pad helps to keep the drive stable and absorb shocks.
• Cleaning: Use a soft, dry cloth to clean the transparent casing. Avoid abrasive cleaners or solvents.

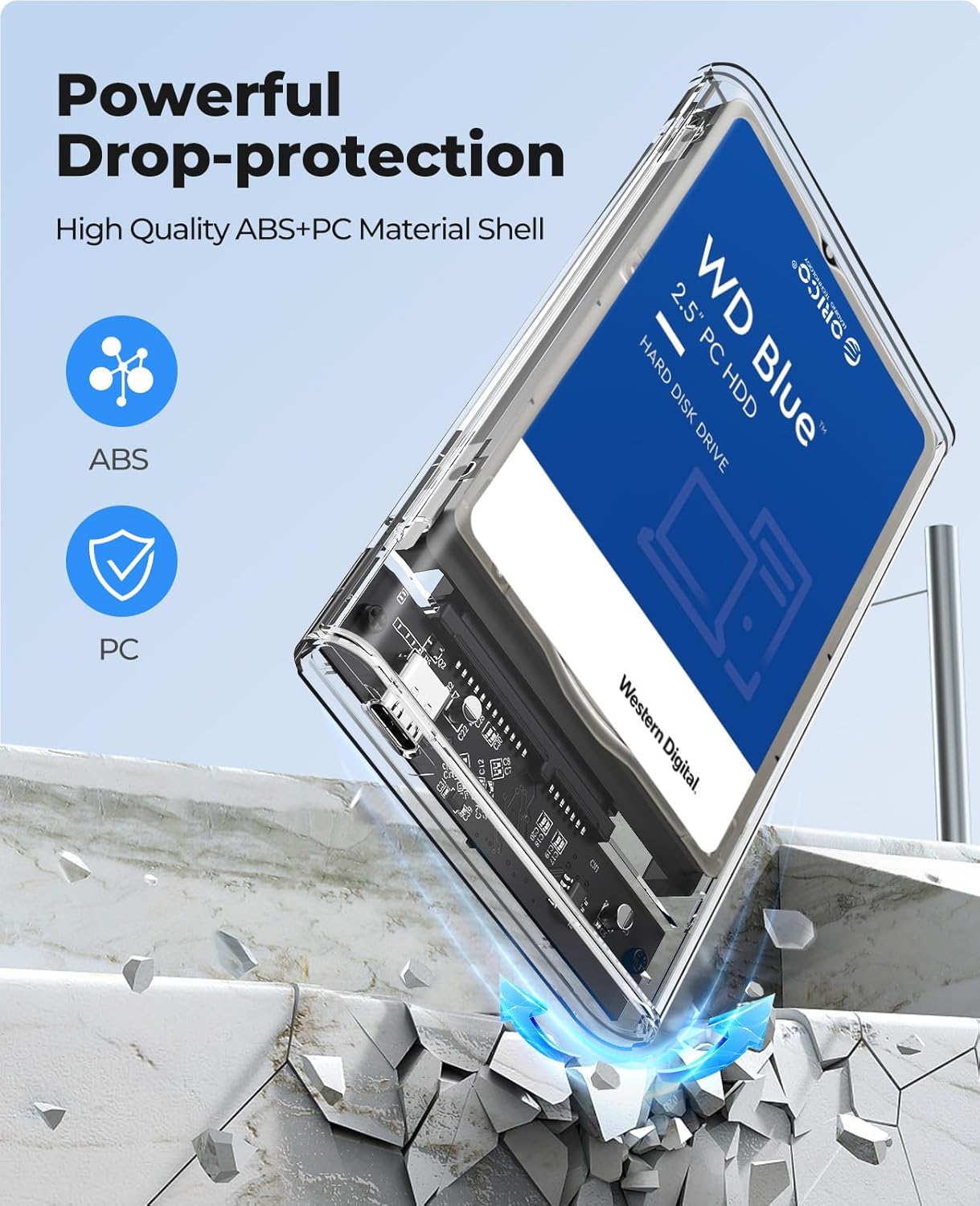

Image: The ORICO 2.5 inch Hard Drive Enclosure demonstrating its powerful drop-protection capabilities, emphasizing the use of high-quality ABS+PC material for its shell.

Troubleshooting

• Drive Not Detected:
  • Ensure the hard drive is correctly seated and fully connected to the SATA interface inside the enclosure.
  • Try connecting the enclosure to a different USB port on your computer.
  • Test with a different USB cable if available.
  • For new drives, ensure they are initialized and formatted in Disk Management (Windows) or Disk Utility (Mac) before use.
• Slow Transfer Speeds:
  • Ensure you are connected to a USB 3.0 or USB 3.1 port on your computer. USB 2.0 ports will result in slower speeds.
  • Verify that your operating system and device drivers support UASP.
  • The performance of the hard drive itself can affect transfer speeds.
• Mac Compatibility:
  • This enclosure comes with a USB Type-C to USB-A cable. If your Mac only has USB-C ports, you will need a separate USB-C to USB-C cable (not included) for connection.

Specifications

Image: The ORICO 2.5 inch Hard Drive Enclosure highlighting its universal compatibility with a range of devices such as laptops, TVs, routers, and PS5, and operating systems including Windows, Mac OS, and Linux.

Warranty and Support

ORICO products are designed for reliability and performance. For any technical assistance, warranty claims, or product inquiries, please contact ORICO customer support through their official website or the retailer where the product was purchased. Please refer to your product packaging for specific warranty details.
