1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Vatti VRH-B1076AT 30-inch under cabinet range hood. Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.
2. Safety Information
WARNING: To reduce the risk of fire, electric shock, or injury, observe the following:
- Install this range hood in accordance with all specified instructions.
- Ensure proper ventilation. This unit is for general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
- Always disconnect power to the unit before servicing or cleaning.
- Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.
- Do not modify the internal wiring. All wiring must be performed by a qualified electrician.
- Clean grease filters frequently. Grease should not be allowed to accumulate on fan or filter.
- Never leave surface units unattended at high settings. Boil-overs cause smoking and greasy spill-overs that may ignite.
3. Specifications
| Feature | Detail |
|---|---|
| Brand | Vatti |
| Model | VRH-B1076AT |
| Mounting Type | Under Cabinet Mount |
| Air Flow Capacity | 860 Cubic Feet Per Minute (CFM) |
| Material | Stainless Steel |
| Controls Type | Touch Controls |
| Number of Speeds | 6 |
| Light Source Type | Halogen |
| Filter Type | Baffle |
| Product Dimensions | 22"D x 30"W x 7"H |
| Finish Type | Brushed |
| Special Features | Stainless Steel, Touch Controls, Time Display |
| UPC | 740120109589 |
4. Setup and Installation
The Vatti VRH-B1076AT range hood is designed for under cabinet mounting. Proper planning and adherence to local building codes are essential for a safe and effective installation.
4.1 Pre-Installation Considerations
- Ductwork: Ensure adequate ducting is available for exhaust. The hood requires a duct system to vent air outside.
- Electrical: A dedicated electrical circuit is recommended. Consult a qualified electrician for wiring.
- Cabinet Space: Verify sufficient space under your cabinet for the 30-inch width and 7-inch height of the unit.
4.2 Dimensions Overview
Refer to the diagram below for detailed product dimensions to assist with installation planning.

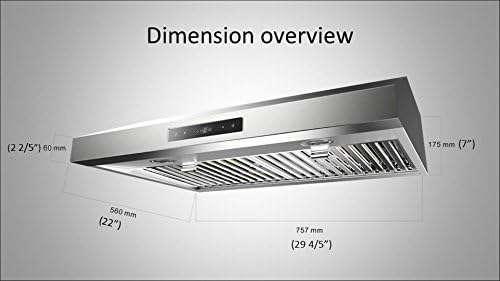

Figure 1: Dimension overview of the Vatti VRH-B1076AT range hood. The diagram illustrates the depth as 22 inches (560 mm), width as 29 4/5 inches (757 mm), and height as 7 inches (175 mm).
4.3 Mounting the Unit
The range hood is designed for under cabinet installation. Secure the unit firmly to the underside of the cabinet using appropriate fasteners (not included, consult local hardware store for suitable options based on cabinet material). Ensure the unit is level before final tightening.

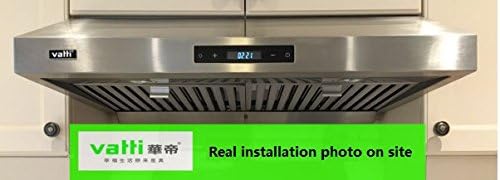

Figure 2: Example of an installed Vatti VRH-B1076AT range hood. This image demonstrates the appearance of the unit when properly mounted under a kitchen cabinet.
5. Operating Instructions
The Vatti VRH-B1076AT features intuitive touch controls for fan speed, lighting, and time display.
5.1 Power On/Off
- Press the Power button to turn the unit on or off.
5.2 Fan Speed Control
The unit offers 6 fan speeds to accommodate various cooking needs.
- Use the Speed Up (+) and Speed Down (-) buttons to adjust the fan speed from 1 (lowest) to 6 (highest).
- Select a lower speed for light cooking and higher speeds for heavy smoke or odors.
5.3 Lighting Control
The range hood is equipped with Halogen lights to illuminate your cooking surface.
- Press the Light button to turn the lights on or off.
5.4 Time Display
The integrated time display provides convenience in your kitchen.
- Refer to the specific instructions in the full manual for setting the time, as this may vary.
6. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your range hood.
6.1 Cleaning Baffle Filters
The Vatti VRH-B1076AT uses baffle filters, which are highly effective at trapping grease. These filters should be cleaned regularly, typically every 3-6 weeks depending on cooking frequency.
- Power Off: Always turn off and unplug the range hood before cleaning.
- Remove Filters: Carefully unlatch and remove the baffle filters.
- Clean Filters: Wash filters in hot, soapy water or in a dishwasher. For stubborn grease, a degreasing agent may be used.
- Dry and Reinstall: Ensure filters are completely dry before reinstalling them.
6.2 Cleaning Stainless Steel Surfaces
To maintain the brushed stainless steel finish, clean regularly with a soft cloth and a non-abrasive stainless steel cleaner. Always wipe in the direction of the grain.
- Do not use abrasive pads or cleaners, as these can scratch the surface.
- Avoid harsh chemicals or bleach.
6.3 Replacing Halogen Lights
If a halogen light bulb burns out, replace it with a bulb of the same type and wattage. Ensure the power is disconnected before attempting replacement.
7. Troubleshooting
Before contacting customer support, review the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Range hood does not turn on. | No power supply; circuit breaker tripped. | Check power connection; reset circuit breaker. |
| Poor suction. | Clogged filters; improper ducting; fan motor issue. | Clean or replace filters; check ductwork for obstructions or leaks; contact support if motor issue suspected. |
| Excessive noise. | Loose parts; fan obstruction; motor issue. | Check for loose screws or components; remove any obstructions; contact support if motor issue suspected. |
| Lights not working. | Bulb burned out; loose connection. | Replace bulb; check light fixture connections. |
8. Warranty and Customer Support
For warranty information or technical assistance, please contact Vatti customer support. Keep your purchase receipt as proof of purchase for any warranty claims.
Contact information can typically be found on the Vatti official website or on your product packaging.
