1. Introduction
This manual provides essential information for the safe and effective installation, operation, and maintenance of the ABB S281-K0.3 Miniature Circuit Breaker (MCB). Please read this manual thoroughly before attempting any installation or operation.
The ABB S281-K0.3 is a single-pole (1P) miniature circuit breaker with a K-type tripping characteristic, rated for 0.3 Amperes (0.3A) and suitable for 277VAC applications. It is designed to protect electrical circuits from overcurrents, which can result from overload or short circuit.
2. Safety Information
WARNING: Electrical shock hazard. Installation and maintenance should only be performed by qualified personnel.
- Always disconnect power at the main supply before working on electrical circuits or installing the MCB.
- Ensure proper grounding and wiring according to local electrical codes and regulations.
- Do not operate the MCB if it appears damaged or has been subjected to excessive force.
- Verify that the MCB's ratings (current, voltage, tripping characteristic) match the requirements of the circuit it is protecting.
- Use appropriate personal protective equipment (PPE) when working with electrical systems.
3. Product Overview
The ABB S281-K0.3 MCB is a compact device designed for reliable circuit protection. Key features include:
- Single Pole (1P): Protects one phase of an electrical circuit.
- K-Type Tripping Characteristic: Designed for circuits with high inrush currents, such as those with motors or transformers, tripping between 8 and 12 times the rated current.
- Rated Current: 0.3 Amperes.
- Rated Voltage: 277VAC.
- DIN Rail Mountable: Facilitates easy installation in standard electrical enclosures.

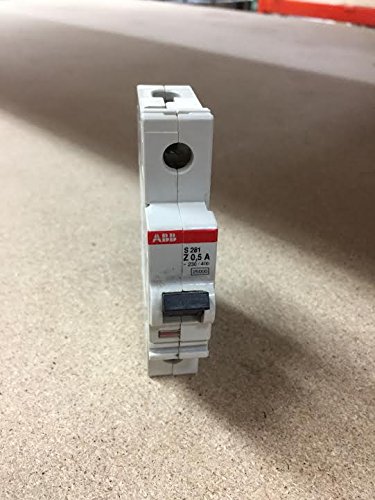

Figure 1: Front view of an ABB S281 series Miniature Circuit Breaker. This image displays an S 281 Z 0,5 A model, which is similar in appearance to the S281-K0.3. It shows the ABB logo, model designation, current rating, and voltage rating on the front label, along with the toggle switch for operation.
4. Installation
- Power Disconnection: Ensure all power to the circuit is disconnected at the main distribution panel. Use a voltage tester to confirm the absence of voltage.
- Mounting: Snap the MCB onto a standard 35mm DIN rail within an appropriate electrical enclosure. Ensure it is securely seated.
- Wiring:
- Connect the incoming phase conductor to the top terminal of the MCB.
- Connect the outgoing load conductor to the bottom terminal of the MCB.
- Ensure all connections are tight and secure to prevent loose contacts and overheating. Refer to the MCB's markings for correct terminal identification.
- Verification: Double-check all wiring for correctness and security. Ensure no bare wires are exposed.
- Enclosure Closure: Close the electrical enclosure securely.
- Power Restoration: Restore power to the main distribution panel.
5. Operation
The ABB S281-K0.3 MCB operates as a protective device for electrical circuits.
- ON Position: To energize the circuit, push the toggle switch to the "ON" (upward) position.
- OFF Position: To de-energize the circuit manually, push the toggle switch to the "OFF" (downward) position.
- Tripped Position: If an overcurrent (overload or short circuit) occurs, the MCB will automatically trip, moving the toggle switch to an intermediate or "TRIPPED" position (often indicated by a central position or a visual indicator). This action disconnects the circuit to prevent damage.
- Resetting: After the MCB has tripped, identify and rectify the cause of the overcurrent. To reset the MCB, first push the toggle switch fully to the "OFF" position, then push it to the "ON" position. If the MCB trips immediately again, do not force it; investigate further for persistent faults.
6. Maintenance
ABB S281-K0.3 MCBs are generally maintenance-free under normal operating conditions. However, periodic checks are recommended:
- Visual Inspection: Periodically inspect the MCB for any signs of physical damage, discoloration, or loose connections.
- Terminal Tightness: Ensure all terminal connections remain tight. Loose connections can lead to overheating and potential hazards.
- Environmental Conditions: Ensure the operating environment remains within the specified temperature and humidity ranges to prevent premature failure.
- Cleaning: If necessary, gently clean the exterior of the MCB with a dry, lint-free cloth. Do not use solvents or abrasive cleaners.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| MCB trips frequently. | Overload in the circuit, short circuit, faulty appliance, incorrect MCB rating. | Reduce load, check for short circuits, inspect appliances, verify MCB rating is appropriate for the circuit. |
| MCB does not reset. | Persistent fault (short circuit or severe overload), internal MCB damage. | Ensure the fault is cleared before attempting to reset. If it still doesn't reset, the MCB may be damaged and require replacement. |
| MCB feels hot to the touch. | Overload, loose connections, incorrect wiring, internal fault. | Immediately disconnect power. Check for overload, tighten connections, verify wiring. If problem persists, replace MCB. |
If troubleshooting steps do not resolve the issue, contact a qualified electrician or ABB technical support.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | ABB |
| Model | S281-K0.3 |
| Current Rating | 0.3 Amps |
| Voltage Rating | 277VAC |
| Number of Poles | 1 |
| Circuit Breaker Type | Standard, Magnetic (K-Type) |
| ASIN | B01N1UZ3WN |
| Manufacturer | ABB |
9. Warranty and Support
For warranty information, technical support, or service inquiries, please refer to the official ABB website or contact your local ABB representative. Keep your purchase receipt for warranty claims.
ABB Official Website: www.abb.com
