Timetec 16GB DDR4 2133MHz PC4-17000 RAM Module User Manual

1. Introduction

This user manual provides detailed instructions for the installation, operation, and maintenance of your Timetec 16GB DDR4 2133MHz PC4-17000 Non-ECC Unbuffered UDIMM Desktop PC Computer Memory RAM Module. Please read this manual thoroughly before installation to ensure proper functionality and to prevent damage to your system or the memory module.

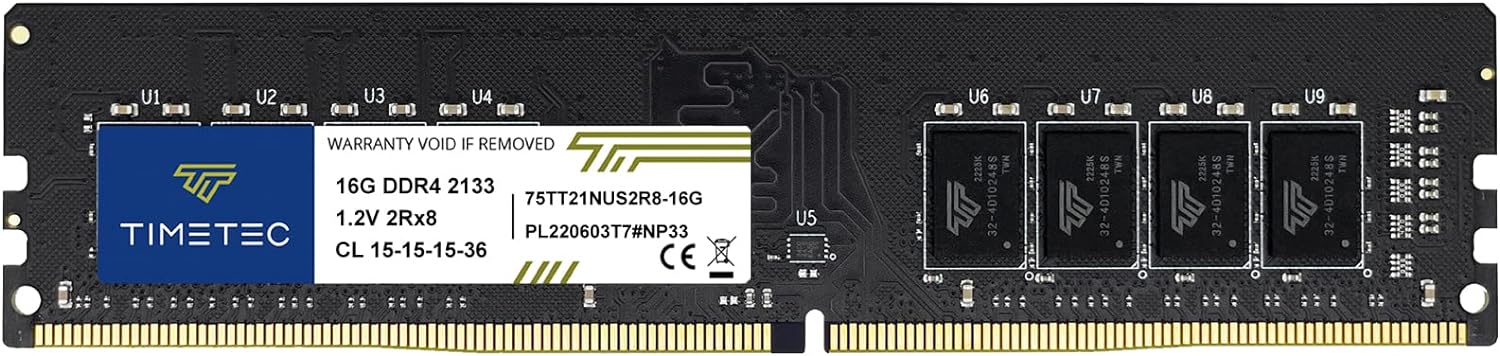

Figure 1.1: Timetec 16GB DDR4 2133MHz RAM Module

This image shows the Timetec 16GB DDR4 RAM module, highlighting its compact design and the product label with specifications.

2. Safety Information

Always observe the following safety precautions when handling computer components:

• Electrostatic Discharge (ESD) Prevention: Always ground yourself before touching any internal computer components. Use an anti-static wrist strap or touch a grounded metal object (like the computer case) to discharge static electricity.
• Power Off: Ensure your computer is completely powered off and unplugged from the wall outlet before opening the case or installing any components.
• Handle with Care: Hold the RAM module by its edges, avoiding contact with the gold connectors or the integrated circuits (chips).
• Ventilation: Ensure adequate ventilation around your computer to prevent overheating.

3. Setup and Installation

Follow these steps carefully to install your new Timetec DDR4 RAM module:

3.1. Pre-Installation Checklist

• Verify your motherboard supports DDR4 UDIMM memory.
• Check your motherboard's manual for recommended RAM slot configuration (e.g., dual-channel setup).
• Ensure your computer is powered off and unplugged.
• Gather necessary tools: Phillips head screwdriver (if needed to open case).

3.2. Physical Installation Steps

1. Open the Computer Case: Remove the side panel of your computer case to access the motherboard.
2. Locate RAM Slots: Identify the DDR4 memory slots on your motherboard. These are typically long slots near the CPU.
3. Prepare Slots: Gently push down the small clips at both ends of the RAM slot to open them.
4. Insert RAM Module: Align the notch on the Timetec RAM module with the key in the DDR4 memory slot. Hold the module by its edges and firmly press it down into the slot with even pressure on both ends until the clips snap into place. You should hear a click.

Figure 3.1: Inserting the RAM module into a motherboard slot.
This image illustrates the correct way to insert the Timetec RAM module into an open DIMM slot on a motherboard, ensuring proper alignment.
5. Secure Module: Ensure both clips on the slot are fully closed and the module is seated firmly and evenly.


Figure 3.2: Two Timetec RAM modules correctly installed.

This image displays two Timetec RAM modules securely installed in the memory slots of a desktop motherboard, ready for operation.

6. Close Case: Replace the computer's side panel.

3.3. Post-Installation Checks

• Power On: Plug in your computer and power it on.
• BIOS/UEFI Check: Enter your system's BIOS/UEFI setup (usually by pressing DEL, F2, or F10 during startup) to confirm the new RAM is recognized and the correct capacity is displayed.
• Operating System Check: Once the operating system loads, verify the installed memory. In Windows, you can check under "System Information" or "Task Manager". In macOS, check "About This Mac". In Linux, use commands like free -h or lshw -short.

4. Operation

Once installed, the Timetec DDR4 RAM module operates automatically with your computer's motherboard and operating system. It provides the necessary memory for your system to run applications, process data, and perform multitasking efficiently.

The module operates at 2133MHz (PC4-17000) with a voltage of 1.2V and a CAS Latency of CL15, ensuring stable and reliable performance for compatible desktop systems.

5. Maintenance

Timetec RAM modules are designed for long-term reliability and require minimal maintenance. Follow these guidelines to ensure optimal performance and longevity:

• Keep Clean: Periodically clean the interior of your computer case to prevent dust buildup, which can impede airflow and lead to overheating of components, including RAM. Use compressed air for this purpose.
• Environmental Conditions: Operate your computer in a cool, dry environment, away from direct sunlight and extreme temperatures or humidity.
• Avoid Physical Stress: Do not bend or apply excessive force to the RAM module. Handle it only by its edges.
• Software Updates: Keep your operating system and motherboard BIOS/UEFI updated. Sometimes, updates include memory compatibility improvements.

6. Troubleshooting

If you encounter issues after installing your Timetec RAM module, refer to the following troubleshooting tips:

7. Specifications

Detailed technical specifications for the Timetec 16GB DDR4 2133MHz PC4-17000 RAM Module:

• Memory Type: DDR4 UDIMM
• Capacity: 16GB (1x16GB)
• Speed: 2133MHz (PC4-17000)
• Pin Count: 288 Pin
• Error Correction: Non-ECC
• Buffering: Unbuffered
• Voltage: 1.2V
• CAS Latency: CL15
• Rank: Dual Rank 2Rx8
• Compatible Devices: Desktop PC
• Model Number: 75
• Dimensions: 13.46 x 0.51 x 3.05 cm
• Weight: 23 g

8. Warranty and Support

Timetec provides a lifetime warranty for this memory module from the purchase date. This warranty covers defects in materials and workmanship under normal use.

For technical support, warranty claims, or further assistance, please visit the official Timetec website or contact their customer service. You can find more information and contact details on the Timetec Store Page.

Please retain your proof of purchase for warranty purposes.
