Scosche ICCR3BN Single DIN Radio Installation Kit User Manual

1. Introduction

The Scosche ICCR3BN is a complete basic radio installation kit designed for select 2002-07 Chrysler, Dodge, and Jeep vehicles. This kit facilitates the installation of a new aftermarket single DIN car stereo, ensuring a seamless fit and maintaining the vehicle's interior aesthetics. It includes all necessary hardware for a straightforward installation process.

2. Package Contents

Verify that all components are present in your package:

• Dash Kit (CR1277B)
• Wire Harness (CR02B)
• Antenna Adapter (CRAB)
• Radio Install Hardware Kit (BOBAZT)

Image: Overview of the Scosche ICCR3BN complete car stereo installation kit, showing the dash kit, wire harness, antenna adapter, and radio install hardware.

3. Vehicle Compatibility

This kit is designed for specific vehicle models and years. Please refer to the fit guide below to confirm compatibility with your vehicle.

Image: Detailed fit guide table for the ICCR3BN kit, listing compatible Chrysler, Dodge, and Jeep models with their respective year ranges (2002-2007).

Note: All Scosche Dash Kits are vehicle-specific. Use the Fit Guide image to verify your vehicle's Make, Model, and Year are supported. Some radios labeled as Single DIN may be oversized and require minor trimming of the kit for a proper fit. Always check the dimensions of your stereo prior to purchasing.

Image: Diagram showing the standard dimensions of a Scosche Single DIN dash kit opening (1-3/32 inch / 50mm height, 7-3/32 inch / 180mm width).

4. Product Features

• Perfect Fit: Designed specifically for select 2002-07 Chrysler, Dodge & Jeep vehicles, ensuring a seamless fit for your aftermarket car stereo.
• Enhanced In-Car Aesthetics: Features a sleek design and factory-matched texture to blend perfectly with your vehicle's interior, providing a factory-installed look. Not Double DIN Compatible.
• Easy Installation: Comes with all necessary hardware and detailed step-by-step instructions, simplifying the installation process without requiring special tools.
• High Compatibility: Fits True Single DIN stereos with a maximum faceplate opening of 96.8mm x 173mm. Minor trimming may be needed for oversized Single DIN radios.
• Durable Construction: Crafted from factory-quality wires, connectors, and radio brackets to securely hold your aftermarket stereo and withstand daily use.

Image: The Scosche ICCR3BN dash kit highlighting its automotive-grade ABS plastic construction, factory-matched texture, and precision design for easy installation and factory quality.

5. Setup and Installation

5.1. General Safety Precautions

• Before beginning any installation, ensure the vehicle's negative battery terminal is disconnected to prevent electrical shorts or damage.
• Always refer to your vehicle's service manual for specific instructions on removing factory components.

5.2. Dash Kit Assembly

1. Review the instructions provided with your dash kit.
2. Break off and remove any tabs from the dash kit that are not required for your specific stereo application.
3. Install the new aftermarket stereo into the dash kit using the screws provided with the stereo unit.

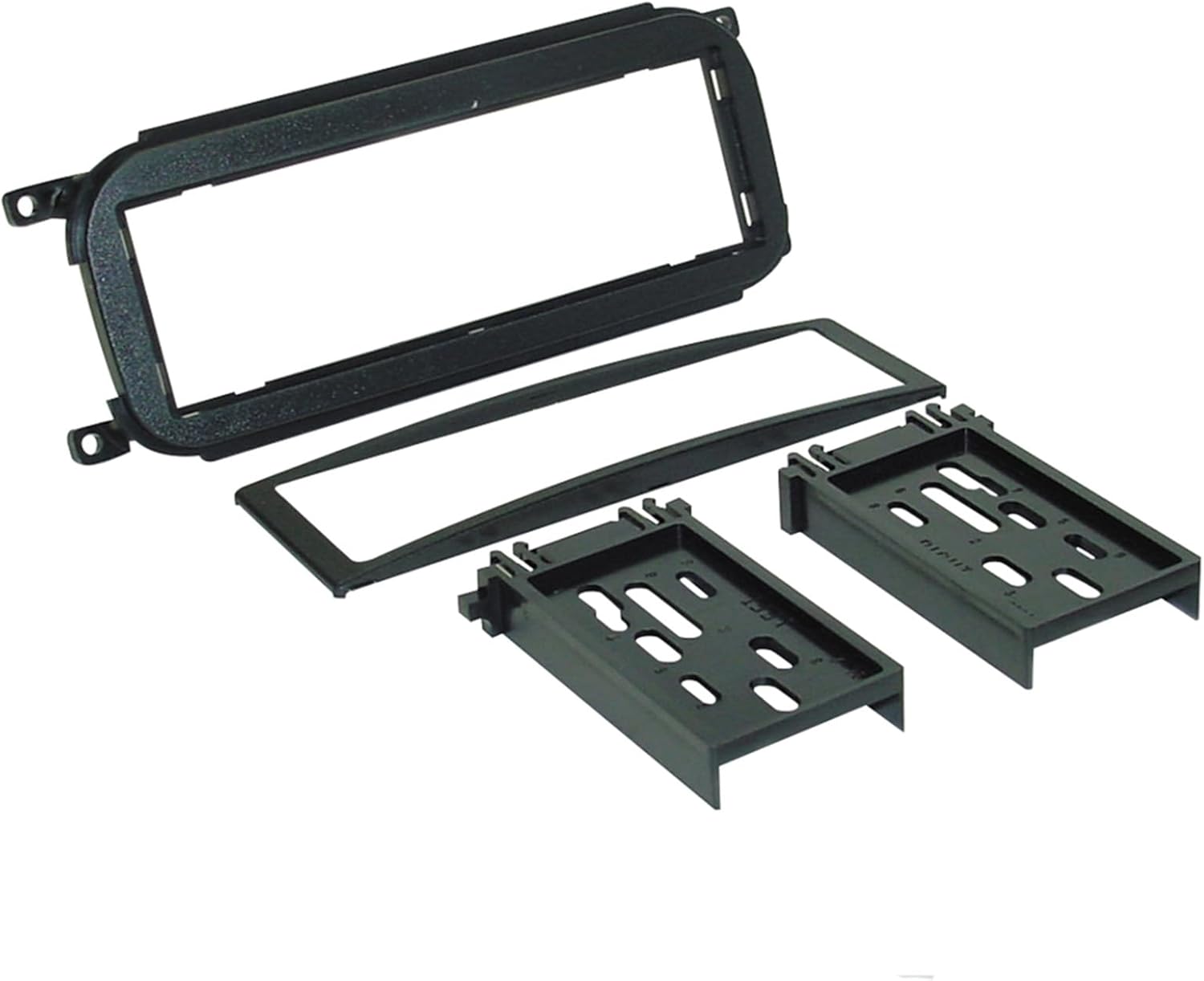

Image: The Scosche ICCR3BN dash kit components, including the main frame and mounting brackets.

5.3. Vehicle Disassembly

1. Using a panel removal tool, carefully remove any trim panels surrounding the factory stereo.
2. Unscrew and remove the factory stereo from the dashboard.
3. Unplug all harnesses from the back of the factory stereo.

5.4. Wiring Connections

1. Connect the vehicle harness to the vehicle's wiring.
2. Connect the radio harness to the new aftermarket radio.
3. Using splice connectors, match up the colors of the wires from the vehicle harness and the radio harness and secure the connections.
4. Some wires, such as amplifier turn-on, parking sense, and steering wheel control connections, may not connect directly to the vehicle harness and may require separate connections or adapters.

Image: Detailed diagram of the Scosche ICCR3BN car stereo connector harness, showing color codes for various connections like 12V battery, ground, antenna power, and speaker wires, conforming to E.I.A. standards.

5.5. Final Installation

1. Carefully slide the assembled stereo and dash kit into the vehicle's dashboard opening.
2. Secure the new stereo and dash kit using the appropriate screws.
3. Reinstall any removed trim panels, ensuring they snap securely into place.
4. Reconnect the negative battery terminal.
5. Turn on the new stereo and test all functions to ensure proper operation.

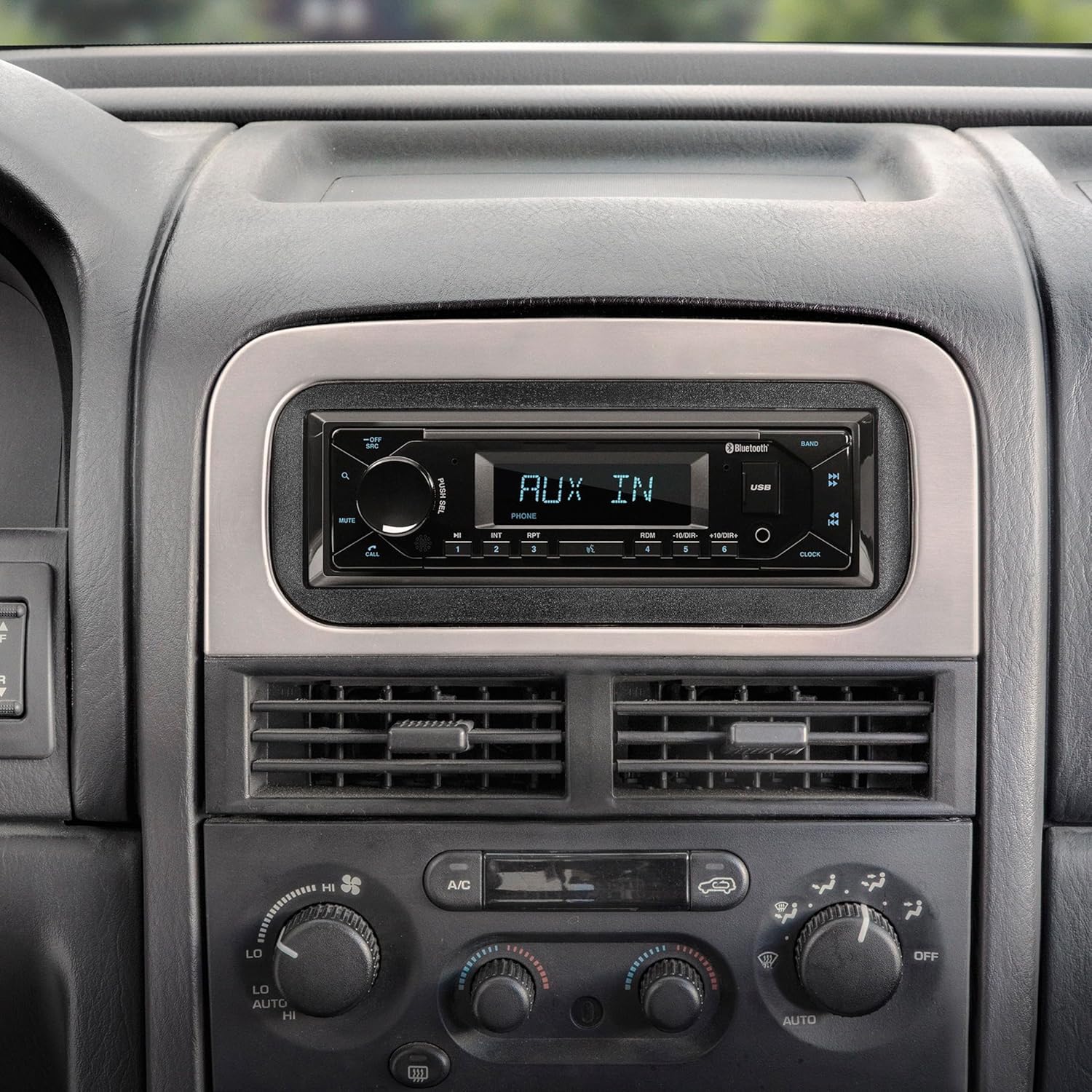

Image: An example of a single DIN aftermarket radio successfully installed in a vehicle dashboard using the Scosche dash kit, showing a clean and integrated appearance.

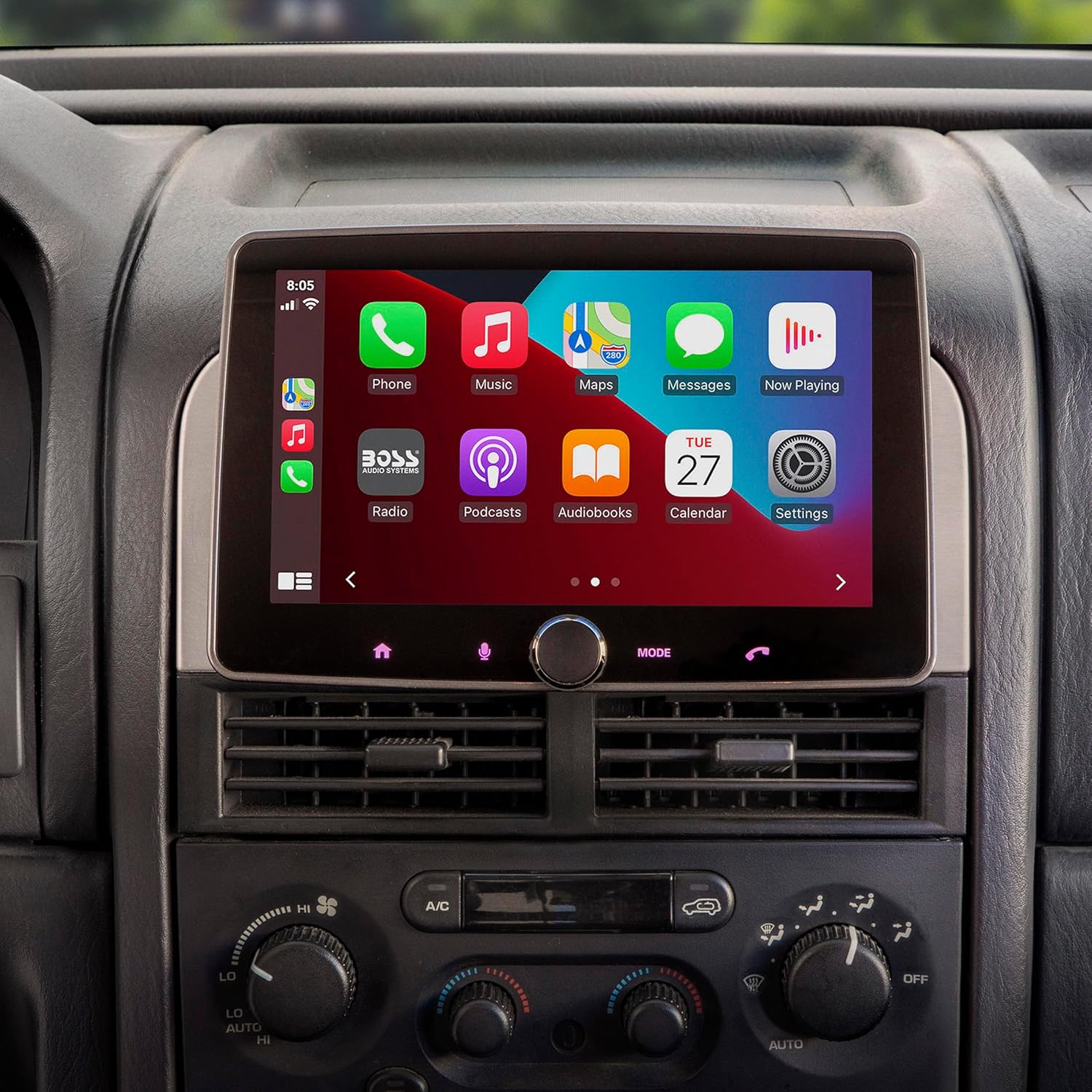

Image: An example of a floating screen aftermarket radio installed in a vehicle dashboard using the Scosche dash kit, demonstrating how the kit accommodates modern stereo designs.

6. Specifications

7. Troubleshooting

If you encounter issues during or after installation, consider the following:

• No Power to Stereo: Check battery connections, ensure the ignition wire (red) and constant power wire (yellow) are correctly connected and receiving power. Verify fuses.
• No Sound: Confirm all speaker wires are correctly connected and not shorted. Check the amplifier turn-on wire if an external amplifier is used.
• Radio Not Fitting: Re-check the dimensions of your stereo against the dash kit opening. Minor trimming may be required for some oversized single DIN units as noted in the compatibility section.
• Intermittent Issues: Ensure all wire connections are secure and properly insulated. Loose connections can cause intermittent power or sound.

8. Warranty and Support

The Scosche ICCR3BN comes with a Limited Lifetime Warranty and Lifetime Tech Support. For assistance, please contact Scosche customer service or visit their official website.

For further information or support, please visit the official Scosche Store.
