1. Introduction
Thank you for choosing the Sauermann SI-30 Condensate Pump. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your pump. The SI-30 is designed to remove condensate from air conditioning units, refrigeration systems, and condensing boilers, with a flow rate of 20 liters per hour.
Please read this manual thoroughly before installation and keep it for future reference. Proper installation and maintenance are crucial for optimal performance and longevity of the product.
2. Safety Information
Always observe the following safety precautions to prevent injury and damage to the pump or property:
- Electrical Safety: Ensure the power supply is disconnected before performing any installation, maintenance, or troubleshooting. All electrical connections must comply with local regulations and be performed by a qualified electrician.
- Installation: Install the pump in a location that is easily accessible for maintenance and inspection. Ensure the pump is level and securely mounted.
- Water Damage: Position the pump and tubing to prevent water damage in case of a leak or overflow.
- Operating Conditions: Do not operate the pump with flammable liquids or in explosive atmospheres. The pump is designed for condensate removal only.
- Children and Pets: Keep the pump out of reach of children and pets.
3. Product Overview

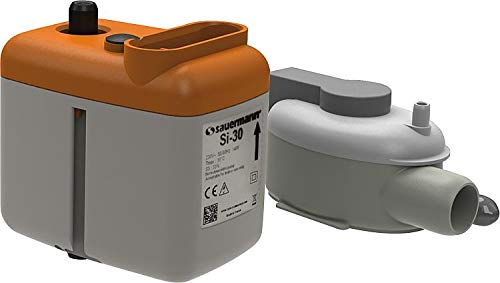

The Sauermann SI-30 is a compact and reliable condensate removal pump. It features a piston pump technology designed for quiet operation and high performance. The pump automatically activates when condensate levels rise in its reservoir and deactivates once the condensate is removed.
Key components typically include:
- Pump unit
- Detection unit (float switch)
- Inlet and outlet tubing connections
- Power cable
4. Setup
4.1 Unpacking
Carefully remove the pump and all accessories from the packaging. Inspect for any signs of damage. If any components are damaged or missing, contact your supplier immediately.
4.2 Mounting
The SI-30 pump can be mounted in various orientations, typically near the condensate source. Ensure the pump is installed on a stable, level surface or securely mounted to a wall using appropriate fasteners. Avoid locations subject to excessive vibration or extreme temperatures.
4.3 Tubing Connections
- Inlet: Connect the condensate drain line from the appliance to the pump's inlet port. Ensure a tight, leak-free connection.
- Outlet: Connect the discharge tubing to the pump's outlet port. Route the tubing upwards to the desired discharge height, then horizontally or downwards to a suitable drain. Avoid kinks or sharp bends in the tubing that could restrict flow.
- Ventilation: Ensure the pump's vent tube (if applicable) is clear and unobstructed.
4.4 Electrical Connection
Connect the pump to a dedicated electrical supply circuit as specified on the product label. Ensure the voltage and frequency match the pump's requirements. Use a properly grounded outlet. If an alarm contact is present, connect it to a suitable alarm system or safety cut-out for the appliance.
4.5 Initial Test
After installation, manually pour a small amount of water into the pump's reservoir to simulate condensate flow. The pump should activate, discharge the water, and then shut off. Check all connections for leaks.
5. Operating Instructions
The Sauermann SI-30 operates automatically. Once properly installed and powered, it will activate when the condensate level in its detection unit reaches a predetermined height and will stop once the level drops. No manual intervention is required during normal operation.
Regularly check the pump's operation by observing if it activates and discharges condensate when the associated appliance is running. Listen for unusual noises or continuous running, which may indicate an issue.
6. Maintenance
Regular maintenance ensures the efficient and reliable operation of your SI-30 pump. Always disconnect power before performing any maintenance.
- Monthly Inspection: Check the pump, reservoir, and tubing for any signs of leaks, blockages, or damage. Ensure the inlet and outlet tubes are clear.
- Quarterly Cleaning: Disconnect the pump from the power supply. Remove the reservoir and clean it thoroughly with warm, soapy water to remove any sludge, algae, or debris. Clean the float switch mechanism to ensure free movement. Rinse thoroughly and reassemble.
- Tubing Check: Inspect the discharge tubing for any signs of blockages or kinks. Clear any obstructions.
- Electrical Connections: Periodically check electrical connections for tightness and corrosion.
7. Troubleshooting
Before contacting technical support, review the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not run |
|
|
| Pump runs continuously |
|
|
| Water leakage |
|
|
| Excessive noise |
|
|
8. Specifications
- Brand: Sauermann
- Model Number: SI30CE01UN23
- ASIN: B01MYEOPGN
- Flow Rate: 20 liters/hour
- Manufacturer: SAUERMANN
- Availability of spare parts: Information unavailable
- Software updates guaranteed until: Information not available
9. Warranty and Support
For warranty information, please refer to the documentation provided with your purchase or contact your retailer. Sauermann products are designed for reliability, but in the event of a malfunction, please contact your authorized dealer or Sauermann customer service for assistance.
Do not attempt to repair the pump yourself, as this may void the warranty and could lead to further damage or injury. Always ensure that any service or repair is carried out by qualified personnel using genuine Sauermann spare parts.
