1. Introduction
This manual provides essential instructions for the safe installation, operation, and maintenance of your ALEKO TOULE NTSA45 Sauna Spa Heater Stove. This ETL certified wet and dry electric sauna heater is designed for reliability and efficiency in small to medium-sized sauna rooms. Please read this manual thoroughly before installation and use to ensure proper function and safety.
2. Safety Information
Your safety is paramount. Adhere to all warnings and instructions to prevent electric shock, fire, or injury.
- Electrical Installation: All electrical connections must be performed by a qualified, licensed electrician in accordance with national and local electrical codes. Incorrect wiring can lead to severe injury or fire.
- Water and Heat: This heater is designed for both wet and dry sauna use. However, avoid pouring excessive water directly onto the heating elements. Only use water on the sauna stones.
- Hot Surfaces: The heater and sauna stones become extremely hot during operation. Avoid direct contact to prevent burns. Install a protective wooden guard if necessary.
- Ventilation: Ensure adequate ventilation in the sauna room as specified by sauna construction guidelines.
- Flammable Materials: Keep all flammable materials away from the heater. Do not dry clothes or other items on the heater.
- Children and Pets: Keep children and pets away from the sauna heater during operation.
3. Package Contents
Upon unpacking, verify that all components are present and undamaged:
- ALEKO TOULE NTSA45 Sauna Heater Unit
- NTS-100 Digital Wall-Mounted Controller
- Temperature Sensor
- Mounting Hardware (screws, brackets)
- User Manual (this document)
Note: Sauna stones are typically sold separately and are not included with the heater unit.
4. Specifications
| Feature | Specification |
|---|---|
| Model Number | NTSA45 |
| Power Output | 4.5 kW |
| Voltage | 220-240 Volts |
| Phase Wiring | 2 Phase |
| Frequency | 60Hz |
| Product Dimensions | 29 x 19 x 13 inches (L x W x H) |
| Item Weight | 27 pounds |
| Certifications | ETL, CE |
| Controller Type | NTS-100 Digital Wall Controller |
5. Setup and Installation
Proper installation is crucial for safety and performance. It is highly recommended that a qualified electrician handles the electrical wiring.
5.1 Choosing a Location
Install the heater on a non-combustible wall surface within the sauna room. Ensure sufficient clearance from walls and benches as per local building codes and the heater's specific requirements. The heater should be positioned to allow for even heat distribution.
5.2 Mounting the Heater
- Secure the mounting bracket to the sauna wall using appropriate fasteners.
- Carefully lift the heater unit and hang it onto the mounted bracket, ensuring it is stable and level.
5.3 Electrical Connection
WARNING: This step must be performed by a licensed electrician.
- Connect the heater to a dedicated 220-240V, 2-phase, 60Hz electrical circuit with appropriate amperage and circuit breaker protection.
- Follow the wiring diagram provided with the heater and controller for correct connections.
- Ensure all connections are tight and insulated.
5.4 Placing Sauna Stones

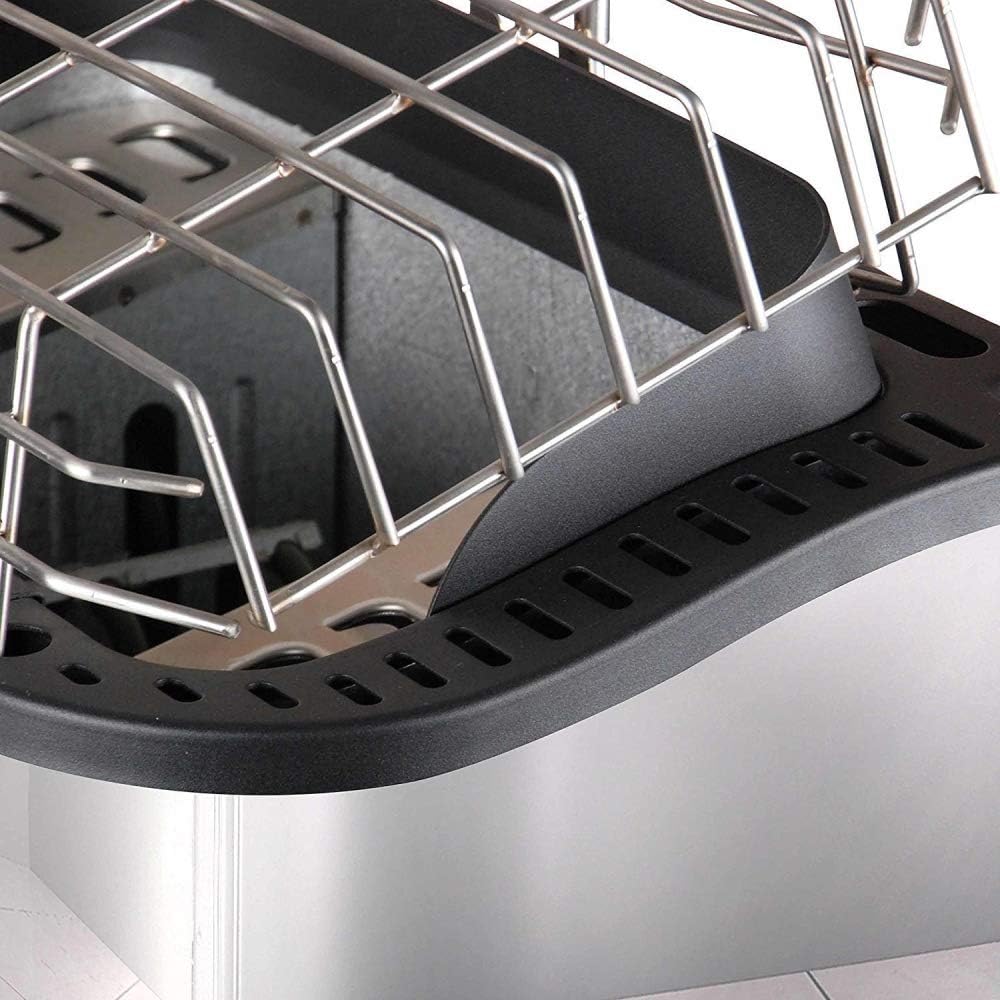

Arrange sauna stones (not included) in the stone compartment of the heater. Ensure good air circulation between the stones. Do not pack them too tightly. Use only genuine sauna stones designed for electric heaters.
5.5 Installing the Digital Controller (NTS-100)
Mount the NTS-100 digital controller on an exterior wall outside the sauna room, at a convenient height. Connect the controller to the heater and temperature sensor according to the wiring diagram. The controller allows for easy temperature and time adjustments.
6. Operating Instructions
The NTS-100 digital controller provides intuitive control over your sauna heater.
6.1 Initial Start-Up
- After installation, turn on the main power supply to the sauna heater.
- The digital controller display will illuminate.
- For the first use, operate the heater for 30-60 minutes without water to burn off any manufacturing residues. Ensure good ventilation during this period.
6.2 Using the NTS-100 Digital Controller
- Power On/Off: Press the power button to activate or deactivate the heater.
- Temperature Setting: Use the up/down arrows to adjust the desired sauna temperature. The display will show the set temperature and the current sauna temperature.
- Timer Setting: Press the timer button to set the operating duration. The heater will automatically shut off after the set time.
- Pre-set Time: Some controllers allow for a delayed start. Consult the controller's specific instructions for this feature.
6.3 Wet vs. Dry Sauna Use
- Dry Sauna: Operate the heater without pouring water on the stones. This provides a dry heat experience.
- Wet Sauna: For a wet sauna experience, carefully ladle small amounts of water onto the hot sauna stones. This creates steam and increases humidity. Do not pour large quantities of water at once.
7. Maintenance
Regular maintenance ensures the longevity and safe operation of your sauna heater.
7.1 Cleaning the Heater
- Ensure the heater is completely cool and disconnected from power before cleaning.
- Wipe the exterior stainless steel surfaces with a damp cloth. Do not use abrasive cleaners or solvents.
- Remove any debris from the stone compartment.
7.2 Sauna Stone Inspection and Replacement
- Periodically inspect the sauna stones for signs of crumbling or deterioration. Over time, stones can break down due to repeated heating and cooling cycles.
- Replace any broken or worn-out stones to maintain optimal heat transfer and prevent damage to the heating elements.
- Rearrange stones annually to ensure good air circulation.
8. Troubleshooting
If you encounter issues with your sauna heater, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Heater does not turn on. | No power supply; circuit breaker tripped; faulty wiring; controller issue. | Check main power supply and circuit breaker. Verify controller connections. If issues persist, contact a licensed electrician. |
| Heater turns on but does not heat. | Faulty heating element; incorrect temperature setting; sensor issue. | Ensure desired temperature is set higher than current room temperature. Check sensor connection. If elements are faulty, professional repair is needed. |
| Sauna not reaching desired temperature. | Insufficient heating time; poor insulation; incorrect stone placement; undersized heater for room. | Allow more time for heating. Check sauna room insulation. Rearrange stones for better airflow. Ensure heater power matches sauna volume. |
| Controller display is blank or erratic. | Power issue to controller; loose connection; controller malfunction. | Check power to the controller. Verify cable connections. If malfunction persists, contact support. |
For complex electrical issues or internal component failures, always consult a qualified technician or the manufacturer's support.
9. Warranty and Support
Your ALEKO TOULE NTSA45 Sauna Heater is backed by a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions. For technical assistance, troubleshooting beyond this manual, or to inquire about replacement parts, please contact ALEKO customer support. Keep your purchase receipt as proof of purchase for warranty claims.
Contact Information: Refer to the ALEKO official website or your purchase documentation for the most current customer support contact details.
