VAXCEL Toledo P0210 Mini Pendant Ceiling Light Instruction Manual

Introduction

This manual provides detailed instructions for the safe installation, operation, and maintenance of your VAXCEL Toledo P0210 Mini Pendant Ceiling Light. Please read all instructions carefully before beginning installation and retain this manual for future reference. This fixture features a satin nickel finish, quality steel construction, and a clear glass shade, designed for an industrial aesthetic.

Safety Information

To ensure safe installation and operation, please observe the following safety precautions:

• Always turn off the main power supply at the circuit breaker before installation, maintenance, or bulb replacement.
• Consult a qualified electrician if you are unsure about the installation process or have any electrical concerns.
• Ensure all electrical connections are made according to local electrical codes and ordinances.
• Do not exceed the maximum recommended wattage of 60 watts for the light bulb.
• This fixture is rated for interior damp locations. It is suitable for kitchens, bathrooms, and bar areas, but avoid direct water contact.
• Keep children and pets away from the work area during installation.
• The product is UL and C UL listed, indicating it meets product safety standards.

Legal Disclaimer: Please check your local laws and regulations before purchasing and installing this product.

This image highlights the fixture's 'Indoor Damp Rated' feature, indicating its suitability for environments with steam and condensation, such as bathrooms, while advising against direct water contact.

What's in the Box

Carefully unpack your new light fixture and lay out all parts on a clean, flat surface. Ensure all components are present before discarding packaging materials.

• Fixture Body (Satin Nickel)
• Clear Glass Shade
• Mounting Hardware
• Down Rods (3 x 12-inch, 1 x 6-inch, 1 x 3-inch for adjustable height)
• Instruction Manual

Setup and Installation

This section guides you through the installation of your VAXCEL Toledo Mini Pendant. It is recommended to have a second person assist during installation.

Step 1: Prepare for Installation

• Turn off power at the main circuit breaker.
• Ensure the mounting surface is clean, dry, and structurally sound.
• Gather necessary tools (not included): screwdriver, wire strippers, electrical tape, safety glasses.

Step 2: Assemble the Fixture

The pendant light features adjustable height. You can use any combination of the included down rods (3 x 12-inch, 1 x 6-inch, 1 x 3-inch) to achieve a desired hanging height between 10.25 inches and 55.25 inches. Thread the chosen down rods together and attach them to the fixture body.

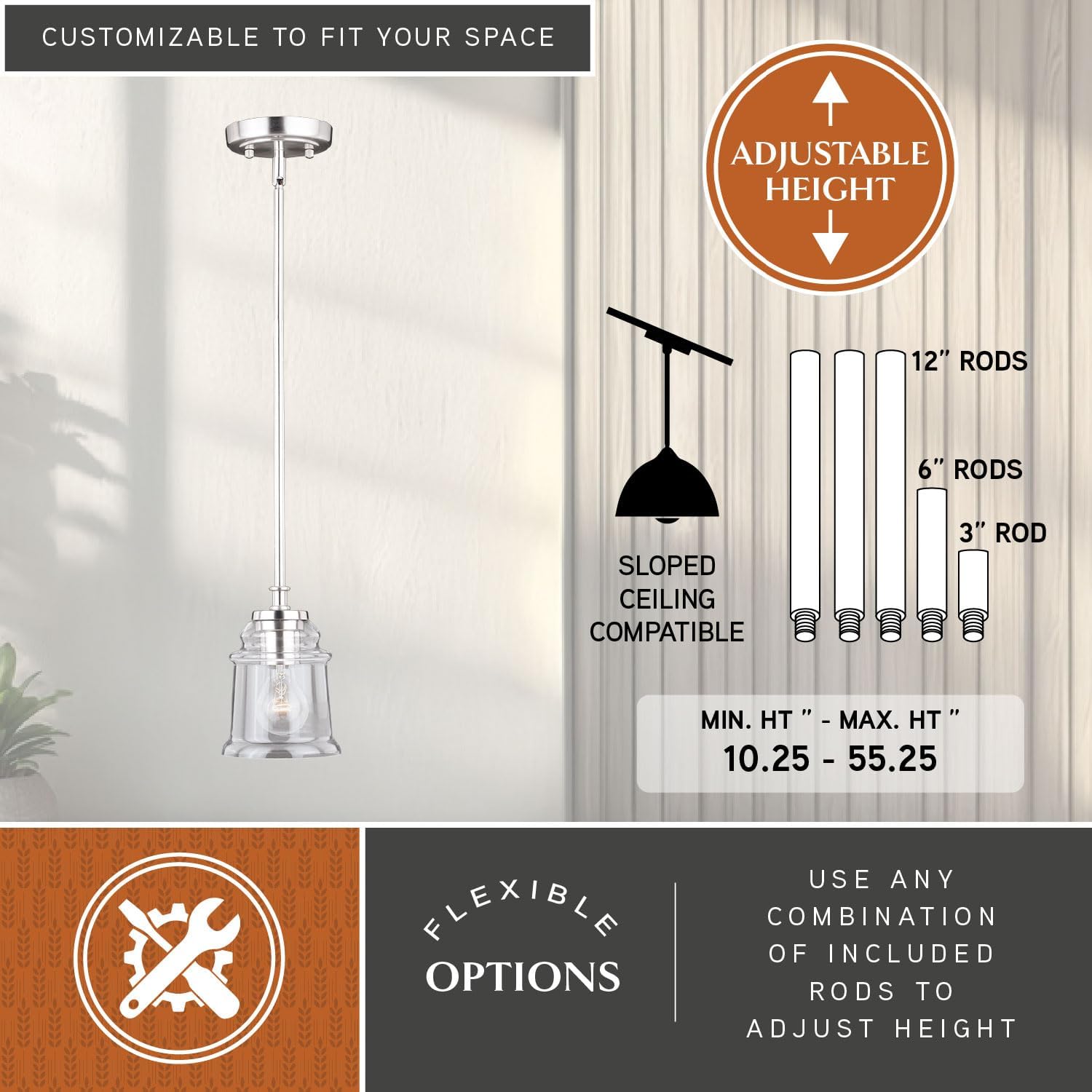

This image illustrates the adjustable height feature of the pendant light, showing various rod lengths (12", 6", 3") that can be combined to achieve a minimum height of 10.25" and a maximum height of 55.25". It also indicates that the fixture is compatible with sloped ceilings.

Step 3: Mount the Fixture

Use the provided mounting hardware to securely attach the fixture's canopy to the ceiling junction box. This fixture is designed for ceiling-mounted installation and is compatible with sloped ceilings.

A close-up view of the satin nickel ceiling canopy and the top connection point of the downrod, demonstrating the fixture's mounting mechanism.

Step 4: Electrical Connections

• Connect the fixture's wires to the corresponding house wires (black to black, white to white, ground to ground) using appropriate wire nuts.
• Ensure all connections are tight and secure.

Step 5: Install the Glass Shade and Bulb

Secure the clear glass shade to the fixture body. Install one E26 medium base bulb (not included) with a maximum wattage of 60 watts.

This image provides a detailed view of the clear glass jar shade attached to the satin nickel fixture base, highlighting the bulb socket within the glass enclosure.

Step 6: Restore Power

• Once installation is complete, restore power at the circuit breaker.
• Test the light fixture to ensure proper operation.

Operating Instructions

Your VAXCEL Toledo Mini Pendant is designed for straightforward operation.

Bulb Requirements

This fixture requires one E26 medium base bulb, with a maximum wattage of 60 watts. It is compatible with LED bulbs.

Dimmable Functionality

The fixture is dimmable when used with dimmable bulbs and a compatible wall dimmer switch. Ensure your chosen bulb is explicitly listed as dimmable for proper functionality and to avoid damage.

This image displays the types of bulbs compatible with the fixture, including Halogen, Incandescent, Vintage Filament, LED, and LED Vintage Filament. A note clarifies that dimmability requires a compatible dimmer switch and a dimmable LED bulb.

Maintenance

To maintain the appearance and functionality of your light fixture, follow these simple guidelines:

• Cleaning: Turn off power and allow the fixture to cool completely before cleaning. Wipe the satin nickel finish with a soft, dry cloth. Clean the clear glass shade with a mild glass cleaner and a soft, lint-free cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish.
• Bulb Replacement: Ensure power is off at the circuit breaker and the bulb has cooled. Carefully unscrew the old bulb and replace it with a new E26 medium base bulb, not exceeding 60 watts.

Troubleshooting

If your light fixture is not functioning correctly, refer to the following common issues and solutions:

• Light does not turn on:
  • Check the circuit breaker to ensure power is on.
  • Verify the bulb is securely screwed in and not burnt out.
  • Confirm all electrical connections are correct and secure.
• Light flickers:
  • Ensure the bulb is fully tightened.
  • If using a dimmable bulb, check for compatibility with your dimmer switch.
  • Inspect wiring connections for looseness.
• Glass shade is loose:
  • Gently tighten the retaining ring or screws that secure the glass shade. Do not overtighten.

If problems persist after attempting these solutions, please contact VAXCEL customer support or a qualified electrician.

Specifications

This line drawing illustrates the key dimensions of the pendant light, including the fixture width (A: 5-1/4") and maximum height (B: 55-1/4"), along with the canopy dimensions.

Warranty and Support

This VAXCEL product is backed by a limited warranty. For specific warranty details, please refer to the documentation included with your purchase or visit the VAXCEL website.

For technical assistance, missing parts, or warranty claims, please contact VAXCEL customer support directly.
