AKKON Headlights Instruction Manual

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your new AKKON Headlights. These headlights are designed as a direct replacement for specific Nissan Titan and Armada models. They feature a midnight black housing with a crystal clear lens, ensuring a refreshed look and optimal light output.

Compatibility:

• 2004-2015 Nissan Titan (All Models)
• 2005-2007 Nissan Armada (All Models)
• 2004 Nissan Pathfinder Armada (Models)

These headlights are 100% brand new and have never been installed before.

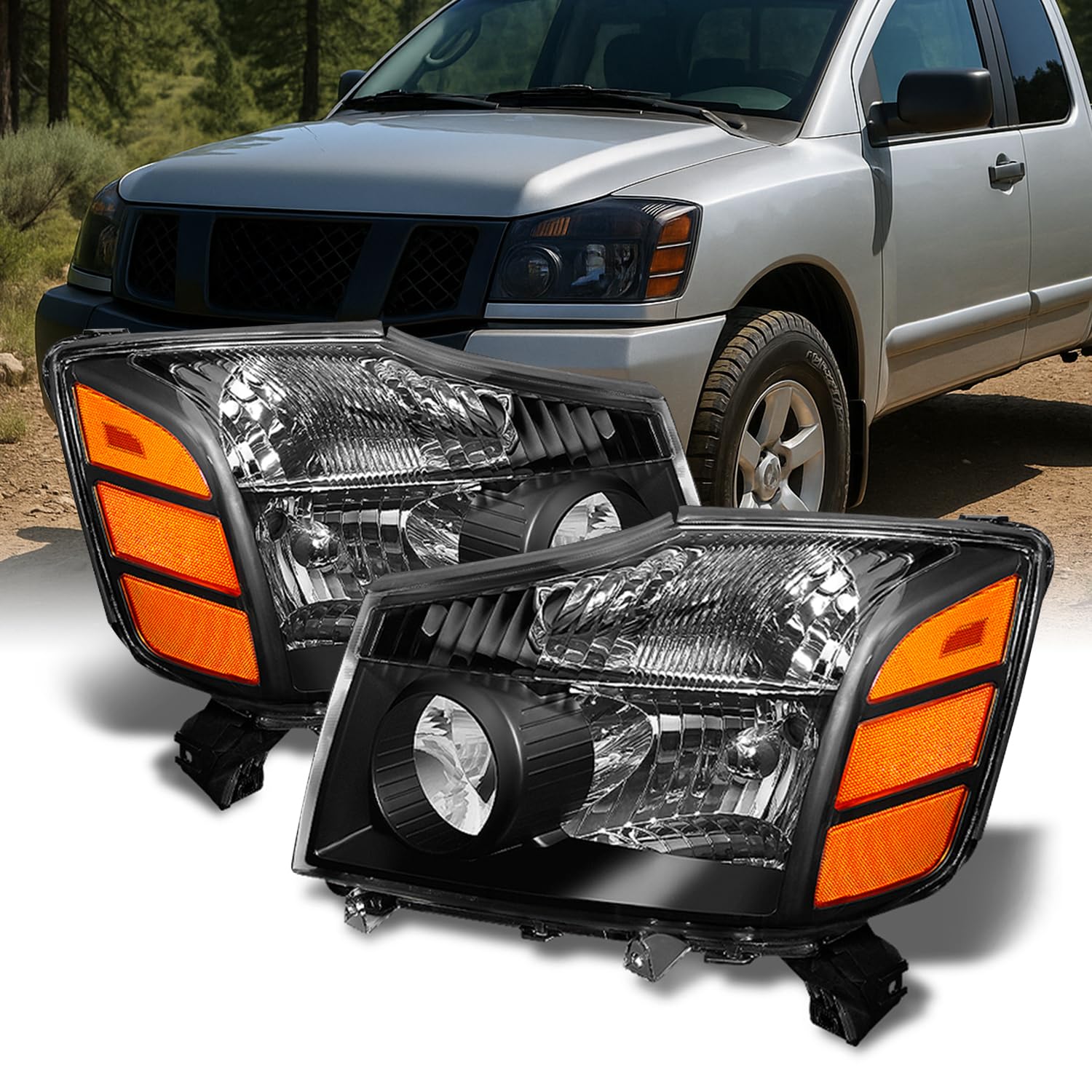

Image: Overview of the AKKON Black Headlights, showcasing their design and clear lens.

Setup and Installation

Professional installation is highly recommended for these headlights. While they are designed as a direct bolt-on replacement, some modifications might be necessary depending on your specific vehicle configuration. No light bulbs are included; please transfer and apply the original bulbs from your vehicle.

General Installation Steps:

1. Safety First: Disconnect the vehicle's battery to prevent electrical shorts. Ensure the vehicle is parked on a level surface with the parking brake engaged.
2. Access Old Headlights: Depending on your vehicle model, you may need to remove the front grille, bumper trim, or partially pull back the wheel well lining to access the headlight mounting bolts and wiring harness.
3. Remove Old Headlights: Unbolt the existing headlights and carefully disconnect the electrical connectors. Remove the old headlight assemblies.
4. Transfer Bulbs: Transfer the original low beam (9006) and high beam (9005) bulbs, along with any turn signal or parking light bulbs, from your old headlight assemblies to the new AKKON headlights. Ensure they are securely seated.
5. Install New Headlights: Position the new AKKON headlight assemblies into the vehicle's mounting points. Secure them with the appropriate bolts.
6. Connect Wiring: Reconnect all electrical harnesses to the new headlight assemblies. Ensure connections are firm and secure.
7. Test Functionality: Reconnect the vehicle's battery. Turn on the headlights (low and high beams), turn signals, and parking lights to ensure all functions are working correctly before fully reassembling the vehicle.
8. Reassemble Vehicle: Reinstall any removed grille, trim, or wheel well lining.
9. Aim Headlights: After installation, it is crucial to properly aim your headlights to ensure optimal visibility and to avoid blinding oncoming traffic. Consult your vehicle's service manual or a professional for correct aiming procedures.

Image: Rear view of the headlight assembly, illustrating the bulb sockets for installation.

Operating Instructions

Once installed, your AKKON Headlights operate in conjunction with your vehicle's existing lighting system controls. Ensure your vehicle's original bulbs are correctly installed in the new assemblies for proper function.

• Low Beam: Uses 9006 bulb type. Activated via your vehicle's standard headlight switch.
• High Beam: Uses 9005 bulb type. Activated via your vehicle's standard high beam switch.
• Turn Signals/Parking Lights: Utilize your vehicle's original bulbs and controls.

Always ensure your headlights are properly aimed after installation to provide adequate road illumination without affecting other drivers.

Image: Front view of the AKKON headlight, highlighting the clear lens and integrated turn signal area.

Maintenance

Proper maintenance will help prolong the life and performance of your AKKON Headlights.

• Cleaning: Regularly clean the exterior lens with a soft cloth and a mild automotive-specific cleaner. Avoid using abrasive materials or harsh chemicals, as these can scratch or damage the lens coating.
• Inspection: Periodically inspect the headlight housing for any signs of moisture, cracks, or damage. Ensure all seals and gaskets are intact and properly seated.
• Condensation: Minor condensation inside the headlight housing can occur due to temperature fluctuations and typically dissipates on its own. If persistent or excessive moisture is observed, refer to the Troubleshooting section.
• Bulb Replacement: When replacing bulbs, use only the specified bulb types (Low Beam: 9006, High Beam: 9005) and handle them carefully to avoid touching the glass with bare hands.

Troubleshooting

This section addresses common issues you might encounter with your AKKON Headlights.

• Issue: Moisture or Condensation Inside Housing

  Solution: Minor condensation can be normal. If it persists or is excessive, check for proper sealing around the headlight unit and bulb access points. Ensure any vent caps (if present) are clear and unobstructed. If seals are compromised, resealing or replacement may be necessary. Verify that all bulbs are correctly seated and their seals are intact.

• Issue: Headlights Not Fitting Perfectly

  Solution: While designed for direct replacement, minor adjustments or modifications to the vehicle's mounting points or surrounding trim may be required for optimal fitment. Professional installation can help address these nuances.

• Issue: Bulbs Not Functioning

  Solution: Ensure that the original bulbs were correctly transferred and securely installed into the new headlight assemblies. Verify that all electrical connections are firmly attached. Check your vehicle's fuse box for any blown fuses related to the lighting system.

• Issue: Dim or Improper Light Output

  Solution: Confirm that the correct bulb types (9006 for low beam, 9005 for high beam) are used and are functioning properly. Ensure the headlight aiming is correct; improper aiming can lead to poor road illumination. Clean the exterior lens to remove any dirt or film that might obstruct light.

Specifications

Warranty Information

This item comes with a limited warranty of up to 90 days from the date the item is shown as delivered. This warranty covers manufacturing defects. Please retain your proof of purchase for any warranty claims. No exceptions will be made beyond this period.

Customer Support

For technical assistance, installation guidance, or any product-related inquiries, please contact the retailer from whom you purchased this product. Refer to your purchase documentation or the retailer's website for specific contact information and support channels.

When contacting support, please have your model number (5-HD-JH-NTI04-AM-BK) and proof of purchase readily available.
