American Bass DX-124 12-inch Car Subwoofer Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your American Bass DX-124 12-inch Car Subwoofer. Please read this manual thoroughly before attempting installation or use to ensure optimal performance and safety. Retain this manual for future reference.

2. Safety Information

• Professional Installation Recommended: Car audio system installation can be complex. If you are unsure about any aspect of the installation, consult a qualified professional installer.
• Power Handling: Ensure your amplifier's power output matches the subwoofer's RMS power handling (300W) to prevent damage. Overpowering or underpowering can lead to speaker failure.
• Wiring: Always use appropriate gauge wiring for power, ground, and speaker connections. Incorrect wiring can cause electrical shorts, overheating, and fire hazards.
• Mounting: Securely mount the subwoofer in a suitable enclosure to prevent movement during vehicle operation. Loose components can cause injury or damage.
• Volume Levels: Prolonged exposure to high volume levels can cause permanent hearing damage. Adjust volume to a comfortable level.

3. Package Contents

Verify that all items are present in the package:

• American Bass DX-124 12-inch Car Subwoofer
• American Bass Decal
• Owner's Manual (this document)

4. Product Overview

The American Bass DX-124 is a 12-inch single voice coil, 4 Ohm car subwoofer designed for robust bass reproduction. It features a 90 oz magnet and a 2-inch voice coil, capable of handling 300 Watts RMS power and 600 Watts peak power.

Figure 1: Rear-side view of the American Bass DX-124 12-inch Car Subwoofer, highlighting the speaker terminals and the robust magnet structure.

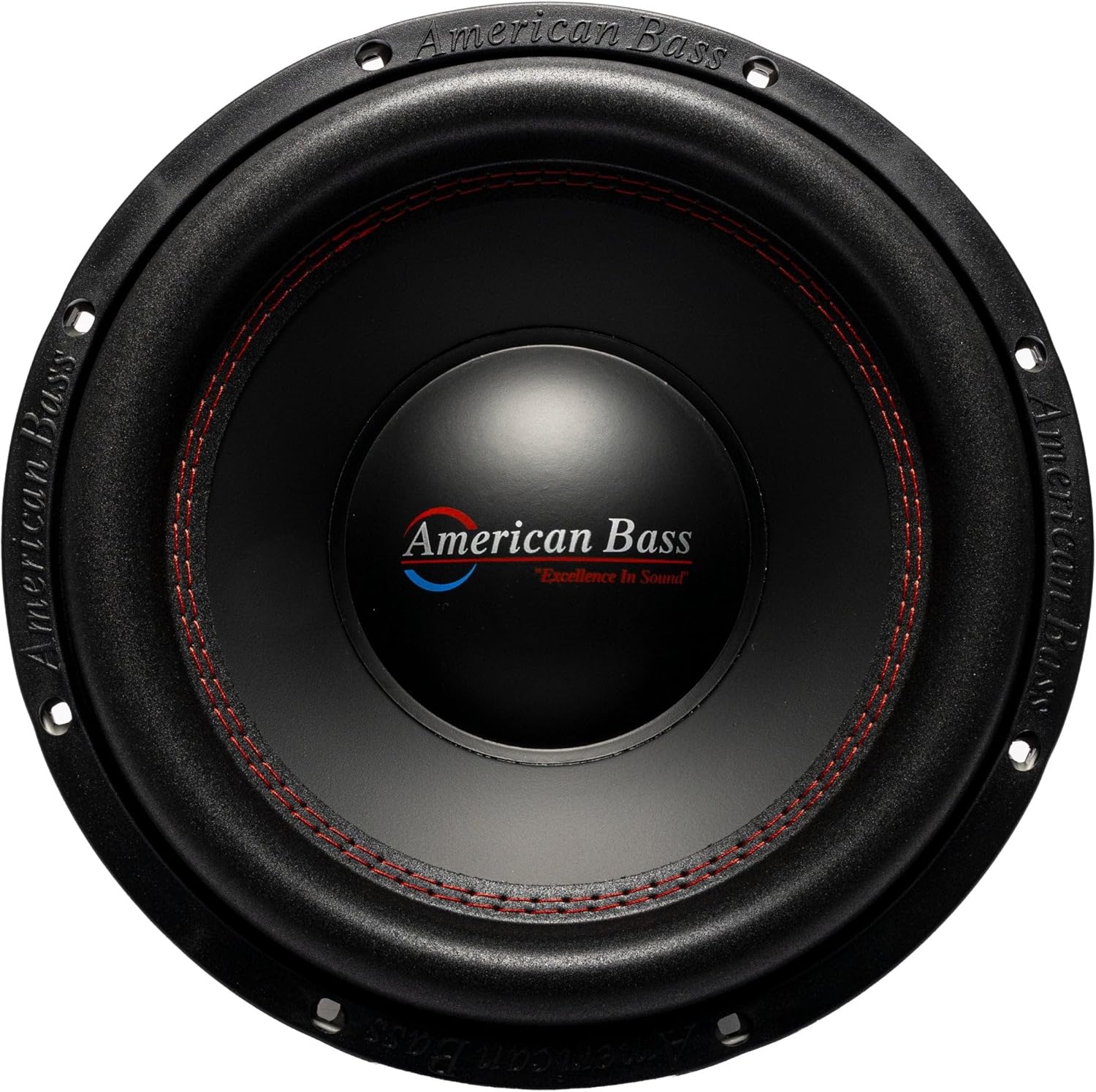

Figure 2: Front view of the American Bass DX-124 12-inch Car Subwoofer, displaying the cone and the central American Bass logo.

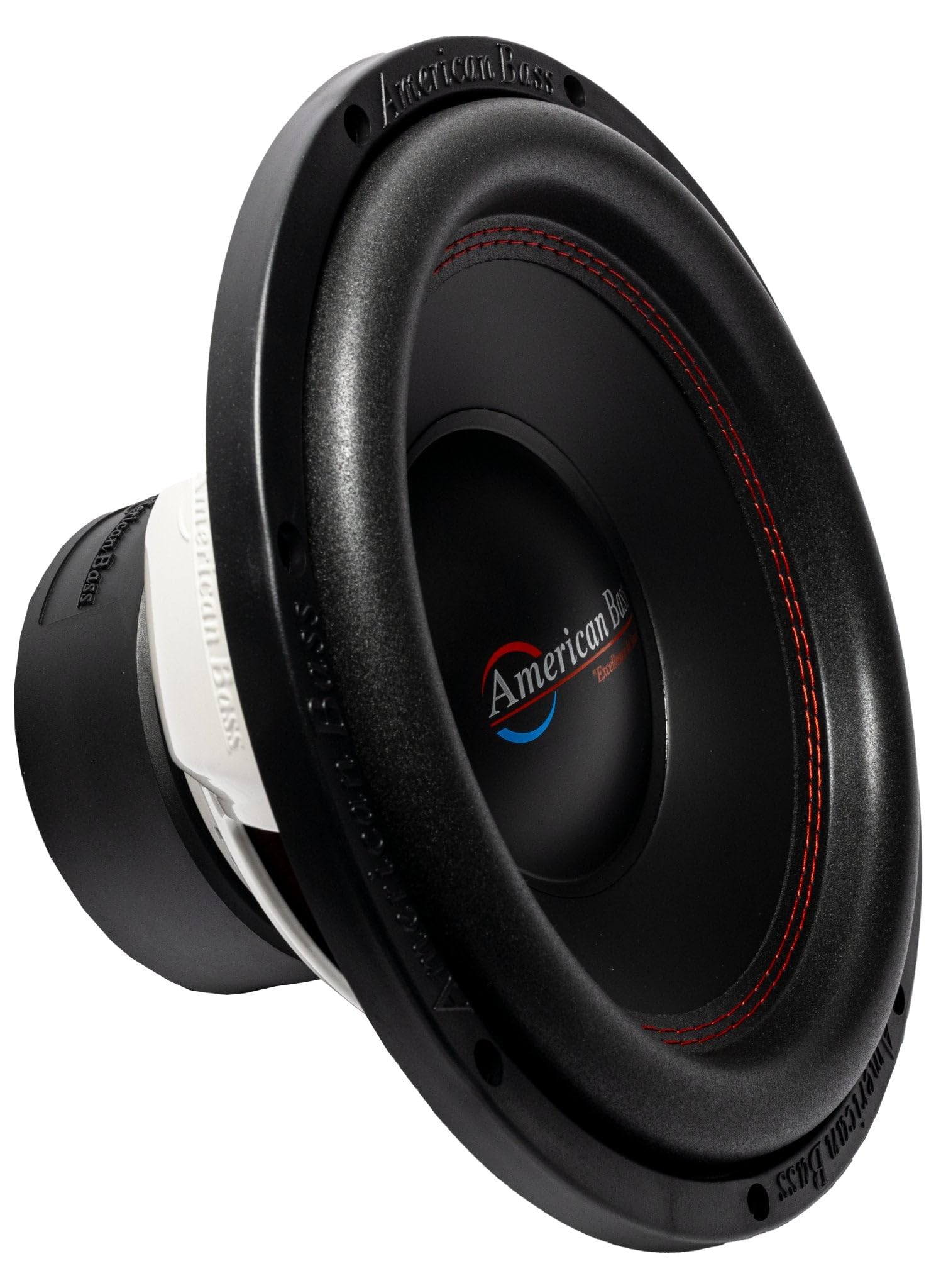

Figure 3: Side view of the American Bass DX-124 12-inch Car Subwoofer, illustrating the magnet assembly and the speaker basket design.

5. Installation Guidelines

Proper installation is crucial for the performance and longevity of your subwoofer. It is highly recommended that installation be performed by a certified car audio technician.

5.1 Enclosure Selection

The DX-124 subwoofer is designed for use in a sealed or ported enclosure. Consult a car audio specialist or American Bass resources for recommended enclosure volumes and port tuning frequencies to match your specific audio preferences and vehicle acoustics.

5.2 Mounting

1. Ensure the mounting surface in the enclosure is flat and free of obstructions.
2. Carefully place the subwoofer into the mounting hole. Ensure the gasket is properly seated to create an airtight seal.
3. Secure the subwoofer using appropriate screws, tightening them evenly in a cross pattern to prevent warping the frame. Do not overtighten.

5.3 Wiring

The DX-124 features a single 4 Ohm voice coil. Connect the subwoofer to a compatible amplifier output. Ensure correct polarity (+ to + and - to -) to avoid phase issues that can degrade sound quality.

• Speaker Wire: Use high-quality speaker wire of sufficient gauge for the power levels and cable length.
• Amplifier Matching: Connect the 4 Ohm subwoofer to an amplifier channel that is stable at 4 Ohms and provides adequate power (300W RMS recommended).

6. Operating Instructions

Once installed, follow these guidelines for optimal operation:

• Break-in Period: Allow a break-in period of approximately 10-20 hours of moderate listening before operating the subwoofer at high volumes. This allows the suspension components to loosen and perform optimally.
• Gain Setting: Properly set the gain on your amplifier to match the output voltage of your head unit. Incorrect gain settings can lead to distortion and potential damage to the subwoofer.
• Crossover Settings: Utilize the low-pass filter (LPF) on your amplifier or head unit to send only low-frequency signals to the subwoofer. A typical LPF setting for a 12-inch subwoofer is between 60Hz and 100Hz.
• Subsonic Filter: If your amplifier has a subsonic filter, set it slightly below your enclosure's tuning frequency (for ported enclosures) or around 20-25Hz (for sealed enclosures) to protect the subwoofer from playing frequencies below its operational range.

7. Maintenance

The American Bass DX-124 subwoofer requires minimal maintenance:

• Cleaning: Use a soft, dry cloth to wipe the cone and surround. Avoid using harsh chemicals or excessive moisture.
• Inspection: Periodically inspect the subwoofer for any signs of damage to the cone, surround, or dust cap. Check wiring connections for tightness.
• Environmental Factors: Protect the subwoofer from extreme temperatures, direct sunlight, and moisture.

8. Troubleshooting

If you experience issues with your subwoofer, refer to the following common problems and solutions:

9. Specifications

Technical specifications for the American Bass DX-124 12-inch Car Subwoofer:

10. Warranty Information

American Bass provides a limited warranty for the DX-124 subwoofer. Specific terms and conditions of the warranty, including duration and coverage details, are typically provided with the product at the time of purchase or can be obtained by contacting American Bass customer support. Please retain your proof of purchase for warranty claims.

11. Customer Support

For technical assistance, warranty inquiries, or further information regarding your American Bass DX-124 subwoofer, please contact American Bass directly.

• Brand: American Bass
• Online Store: Visit the American Bass Store on Amazon
• Refer to the official American Bass website for direct contact information.
