MARANTEC Digital 572 Mini Handheld Transmitter User Manual

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your MARANTEC Digital 572 Mini Handheld Transmitter. Please read this manual thoroughly before using the device to ensure safe and efficient operation. The Digital 572 is a 2-channel radio transmitter designed for controlling garage doors and other compatible Bi Linked receivers operating at 868.3 MHz.

Safety Instructions

• Keep the device out of reach of children.
• Do not expose the transmitter to moisture, extreme temperatures (-20 °C to +60 °C), or direct sunlight.
• Only use the specified battery type (CR2032, 3V). Incorrect battery types may cause damage or malfunction.
• Ensure the transmitter is compatible with your receiver system. This device is designed for MARANTEC Bi Linked motors and receivers manufactured from 2015 onwards.
• Do not attempt to open or repair the device yourself. Refer to qualified personnel for service.

Product Overview

The MARANTEC Digital 572 is a compact, two-button handheld transmitter. It features a robust design and an integrated red LED for signal indication.

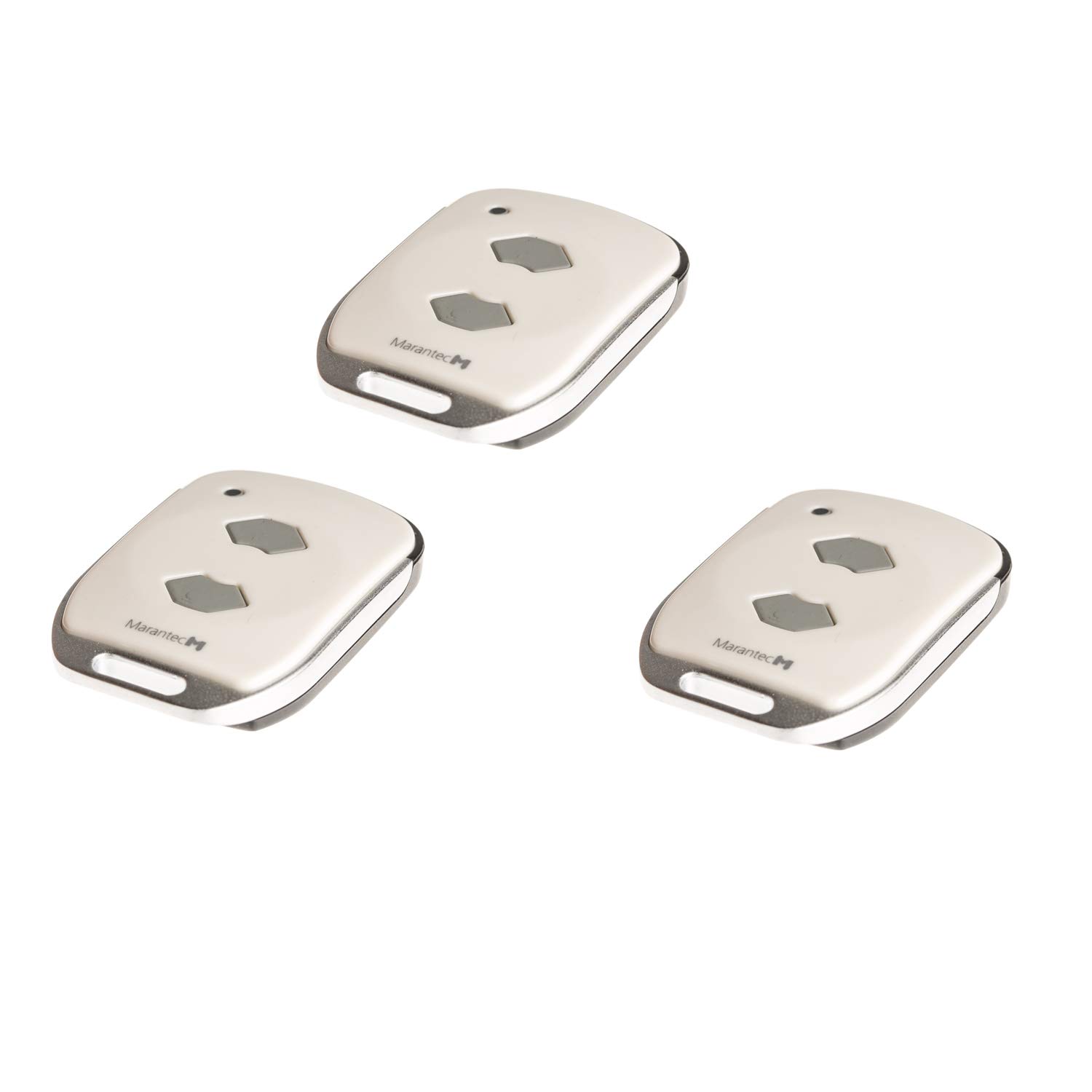

Image showing the compact design of the MARANTEC Digital 572 Mini Handheld Transmitter, featuring two control buttons and a red LED indicator.

Key Features:

• Two Function Keys: For controlling up to two different garage door operators or receivers.
• Red LED: Indicates signal transmission and battery status.
• Bi Linked Technology: Secure and reliable radio transmission at 868.3 MHz.
• Programmable Key Lock: Prevents accidental operation.
• Compact Design: Dimensions of 39 x 60 x 12 mm for easy portability.

Setup

1. Battery Installation

1. Locate the battery compartment cover on the back of the transmitter.
2. Carefully open the cover using a small screwdriver or coin.
3. Insert one CR2032, 3V battery, ensuring the correct polarity (+/-).
4. Close the battery compartment cover securely.

2. Programming the Transmitter (Pairing)

The MARANTEC Digital 572 transmitter must be programmed to your MARANTEC Bi Linked receiver. Refer to your garage door operator's manual for specific programming instructions, as procedures may vary slightly. Generally, the process involves:

• Activating the programming mode on your MARANTEC Bi Linked receiver (usually by pressing a programming button on the receiver unit).
• While the receiver is in programming mode, press and hold the desired button on your Digital 572 transmitter.
• The receiver's indicator light will confirm successful pairing.
• Release the button on the transmitter and exit programming mode on the receiver.

Important: This transmitter is only compatible with MARANTEC Bi Linked motors and receivers manufactured from 2015 onwards. Ensure your existing system meets this requirement.

Operating

Basic Operation

Once programmed, operating the Digital 572 is straightforward:

• To Open/Close: Press the programmed button once. The red LED will illuminate during transmission.
• To Stop: If your receiver supports it, pressing the button again during operation may stop the door. Consult your receiver's manual.

Programmable Key Lock

The Digital 572 features a programmable key lock function to prevent accidental activation. Refer to your receiver's manual or MARANTEC's official documentation for instructions on how to activate and deactivate this feature, as it is typically configured through the receiver.

Maintenance

Battery Replacement

When the red LED indicator on your transmitter becomes dim or fails to light up during operation, it's time to replace the battery.

1. Open the battery compartment cover as described in the "Battery Installation" section.
2. Remove the old CR2032, 3V battery.
3. Insert a new CR2032, 3V battery, observing correct polarity.
4. Close the battery compartment cover securely.
5. Dispose of old batteries responsibly according to local regulations.

Cleaning

Clean the transmitter with a soft, dry cloth. Do not use abrasive cleaners or solvents, as these can damage the casing or electronic components.

Troubleshooting

Specifications

• Model: Digital 572
• Brand: MARANTEC
• Frequency: 868.3 MHz Bi Linked
• Channels/Buttons: 2
• Battery Type: CR2032, 3V
• Dimensions (L x W x H): 60 x 39 x 12 mm
• Operating Temperature: -20 °C to +60 °C
• Weight: Approximately 0.03 kg
• Compatibility: MARANTEC Bi Linked motors and receivers from 2015 onwards
• Country of Origin: Germany

Warranty and Support

For warranty information or technical support, please refer to the documentation provided with your original purchase or visit the official MARANTEC website. Keep your proof of purchase for warranty claims.

For further assistance, you may contact MARANTEC customer service through their official channels.
