1. Product Overview
The Kato N Short Track Assortment B (Model 20-092) provides essential track pieces for expanding or adjusting your N-gauge model railroad layouts.
This set includes 29 mm and 45.5 mm track sections designed for precise layout adjustments and compatibility with UniTrak compact systems. Kato is a renowned Japanese manufacturer of high-quality railroad models, known for realistic designs, robust construction, and excellent performance. These tracks are designed for ease of use and durability, making them suitable for both beginners and experienced hobbyists.
Figure 1.1: Overview of the Kato N Short Track Assortment B.
2. Package Contents
The Kato N Short Track Assortment B (Model 20-092) typically includes the following components:
- S33 Line Track (33 mm): Designed for adjusting the same length as the double track distance of the Uni-track, ideal for multi-line adjustments.
- S38 Straight Track (38 mm): Compatible with UniTrak compact, suitable for creating various layouts, including figure-8 configurations when combined with a 90-degree crossing line.
Figure 2.1: Product packaging illustrating the included track pieces.
3. Setup and Assembly
Kato UniTrack system is designed for easy and secure assembly. Follow these steps to connect your track pieces:
- Prepare the Tracks: Ensure both track pieces are clean and free of debris.
Figure 3.1: A single track piece, ready for connection.
- Align the Unijoiners: Each Kato track piece features a robust "Unijoiner" connection system. Align the metal rails and the plastic base connectors of the two track pieces you wish to join.
Figure 3.2: Detail of the Unijoiner connection system.
- Connect the Tracks: Gently push the two track pieces together until the Unijoiners are fully engaged. You should feel a secure click. The connection is designed to absorb minor height differences and warps, ensuring a smooth track surface.

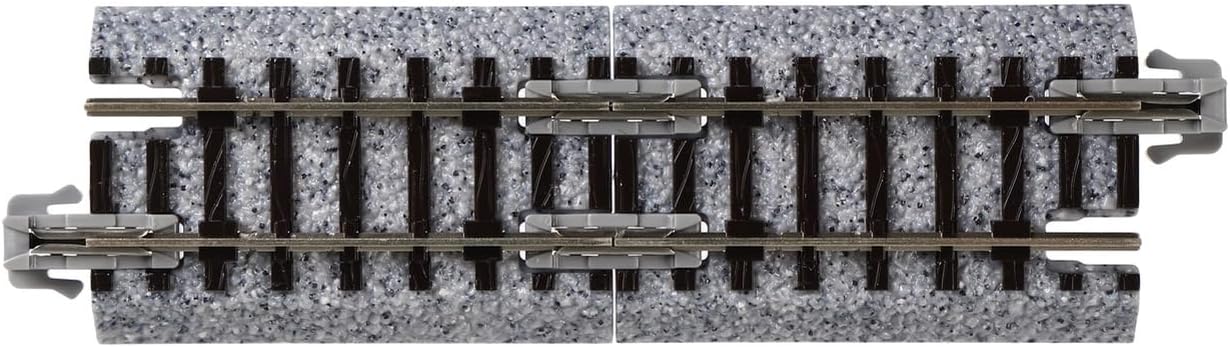

Figure 3.3: Two track pieces securely connected.
- Verify Connection: Once connected, ensure there are no gaps between the track pieces and that the rails are perfectly aligned for optimal train operation.
4. Operating Instructions
These short track sections are primarily used for fine-tuning and expanding your N-gauge layouts.
- Adjusting Double Track Spacing: The 33mm (S33) track is specifically designed to match the standard double track distance of the Uni-track system, allowing for seamless transitions and parallel track configurations.
Figure 4.1: Diagram illustrating double track spacing adjustment.
- Creating Complex Layouts: The 38mm (S38) straight track is highly compatible with UniTrak compact components, enabling the creation of intricate layouts, including figure-8 designs when combined with a 90-degree crossing track (sold separately).
- Layout Flexibility: The robust design of Kato UniTrack allows for stable layouts on various surfaces, including flooring and tatami mats, providing flexibility in your modeling environment.
Figure 4.2: Example of a stable track layout on a flat surface.
- Expanding Your System: These short tracks are integral for connecting various track sets and individual pieces, allowing for the realization of extensive and detailed railway models.
Figure 4.3: An example of an expanded track plan using various Kato UniTrack components.
5. Maintenance
Proper maintenance ensures the longevity and optimal performance of your Kato N tracks.
- Cleaning: Regularly wipe the track rails with a clean, lint-free cloth to remove dust and debris. For stubborn grime, use a specialized track cleaner.
- Storage: When not in use, store track pieces in a dry, cool place away from direct sunlight and extreme temperatures to prevent warping or damage.
- Handling: Always handle track pieces by their base to avoid bending or damaging the rails or connectors.
6. Troubleshooting
If you encounter issues with your Kato N tracks, consider the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Train derails on track joint | Improperly connected tracks, misaligned rails. | Ensure track pieces are fully engaged and rails are perfectly aligned. Reconnect if necessary. |
| Poor electrical contact | Dirty rails or connectors, loose connection. | Clean rails and Unijoiners. Ensure connections are firm. |
| Track pieces do not fit together | Debris in Unijoiner, damaged connector. | Inspect Unijoiners for obstructions. If damaged, replace the track piece. |
7. Specifications
- Model Number: 20-092
- Track Lengths Included: 29 mm, 45.5 mm (specifically S33 and S38)
- Gauge: N-Gauge
- Product Dimensions: 6.38 x 3.23 x 0.75 inches
- Item Weight: 1.12 ounces
- Manufacturer: Kato
- Recommended Age: 14 years and older (as per packaging)
- Maximum DC Voltage: 12V (36W) (as per packaging)
Figure 7.1: Example of track dimensions (S248 shown for reference).
8. Warranty and Support
Kato products are manufactured with high standards of quality. For specific warranty information or technical support, please refer to the official Kato website or contact their customer service.
Kato is committed to providing excellent after-sales service and customization options, making their products accessible and manageable for all users.
Figure 8.1: The Kato factory, where all UniTrack products are produced in Japan.
