BILSTEIN 34-000250 B6 Sport Shock Absorber Instruction Manual

1. Product Overview

The Bilstein B6 Sport Shock Absorber (model 34-000250) is a high-performance gas-pressure shock absorber designed for enhanced driving dynamics and improved vehicle handling. It is engineered to provide a more direct feel and improved safety without lowering the vehicle. This shock absorber features a strut mounting design with a top pin attachment.

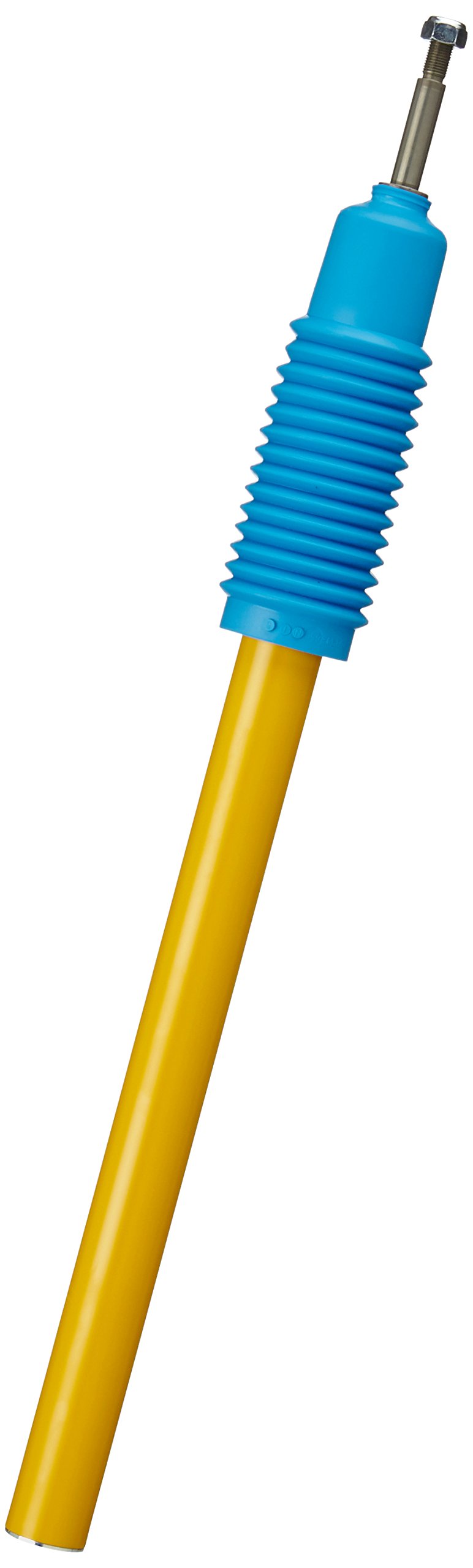

Image: Bilstein 34-000250 B6 Sport Shock Absorber. This image displays the complete shock absorber unit, highlighting its robust construction and design.

2. Safety Information

Installation of automotive suspension components requires specialized tools and knowledge. Improper installation can lead to serious injury or vehicle damage. Always adhere to the following safety guidelines:

• Professional installation by a qualified technician is highly recommended.
• Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
• Ensure the vehicle is securely supported on a lift or jack stands before beginning any work.
• Never work under a vehicle supported only by a jack.
• Consult your vehicle's service manual for specific torque specifications and procedures.
• Keep hands and clothing clear of moving parts and pinch points.

3. Vehicle Compatibility

This Bilstein B6 Sport Shock Absorber (34-000250) is compatible with various BMW 02 Series models. It is crucial to verify compatibility with your specific vehicle before installation. Please consult your vehicle's documentation or a parts specialist to confirm fitment.

Compatible BMW 02 Series Models:

• BMW 02 Series Sedan 2002 (1966 - 1977) 74kW
• BMW 02 Series Touring 2002 Tii (1971 - 1975) 96kW
• BMW 02 Series Sedan 2002 Tii (1966 - 1977) 96kW
• BMW 02 Series Touring 1600 (1971 - 1975) 63kW
• BMW 02 Series Touring 1802 (1971 - 1975) 66kW
• BMW 02 Series Sedan 2002 Turbo (1966 - 1977) 125kW
• BMW 02 Series Touring 2002 (1971 - 1975) 74kW
• BMW 02 Series Sedan 1502 (1966 - 1977) 55kW
• BMW 02 Series Sedan 1602 (1966 - 1977) 63kW
• BMW 02 Series Sedan 1802 (1966 - 1977) 66kW

This list is a sample. Always cross-reference with your vehicle's specific model year and specifications.

4. Installation Guide

The installation of the Bilstein B6 Sport Shock Absorber should be performed by a qualified automotive technician. The following is a general overview and not a substitute for a professional service manual.

General Installation Steps:

1. Prepare the Vehicle: Safely lift and support the vehicle. Remove the wheels.
2. Remove Old Shock Absorber: Disconnect any brake lines, ABS sensors, or sway bar links attached to the strut assembly. Carefully unbolt the top mounting points and the lower mounting points, then remove the old shock absorber assembly.
3. Transfer Components: If applicable, transfer the spring, bump stop, dust boot, and upper mount from the old shock absorber to the new Bilstein unit. Use a spring compressor for safety when handling coil springs.
4. Install New Shock Absorber: Position the new Bilstein shock absorber assembly into the vehicle. Secure the top mounting points first, then the lower mounting points.
5. Reconnect Components: Reattach any brake lines, ABS sensors, and sway bar links that were disconnected.
6. Torque to Specification: Tighten all bolts and nuts to the vehicle manufacturer's specified torque values.
7. Final Checks: Reinstall the wheels, lower the vehicle, and perform a final inspection to ensure all components are correctly installed and secured. It is recommended to perform a wheel alignment after suspension component replacement.

5. Operating Characteristics

The Bilstein B6 Sport Shock Absorber is designed for drivers who demand enhanced performance from their vehicle's suspension. Key operating characteristics include:

• Gas Pressure Technology: Utilizes Bilstein's renowned gas-pressure technology for consistent damping performance under varying conditions, preventing cavitation and fade.
• Sporty Handling: Engineered for a more direct and responsive feel, providing improved road holding and stability during spirited driving.
• No Ride Height Change: Designed to work with standard or aftermarket springs without altering the vehicle's ride height.
• Strut Mounting: This model features a strut mounting design, integrating the shock absorber into the vehicle's strut assembly.
• Top Pin Attachment: The upper mounting point utilizes a stud (goujon) for secure attachment to the vehicle chassis.

6. Maintenance

Bilstein B6 Sport Shock Absorbers are designed for durability and long service life with minimal maintenance. However, regular inspection is recommended as part of your vehicle's routine maintenance schedule.

• Visual Inspection: Periodically inspect the shock absorbers for signs of leaks, physical damage, or corrosion.
• Mounting Points: Check all mounting bolts and nuts for tightness. Loose fasteners can lead to noise or premature wear.
• Dust Boots/Bump Stops: Ensure dust boots are intact to protect the shock rod from contaminants. Check bump stops for deterioration.
• Performance Check: If you notice a decrease in ride comfort, excessive bouncing, or reduced handling, have your suspension system inspected by a professional.

7. Troubleshooting

While Bilstein shock absorbers are highly reliable, certain symptoms may indicate an issue with the suspension system. This section provides general guidance.

Common Symptoms and Potential Causes:

• Excessive Bouncing or Poor Ride Quality: May indicate worn shock absorbers, damaged springs, or incorrect tire pressure.
• Fluid Leaks from Shock Absorber: A visible leak of hydraulic fluid from the shock body indicates a failed seal and requires replacement.
• Unusual Noises (Clunking, Squeaking): Could be caused by loose mounting hardware, worn bushings, or contact between suspension components.
• Uneven Tire Wear: Can be a symptom of worn suspension components, including shock absorbers, or improper wheel alignment.
• Reduced Handling or Stability: Worn shocks can significantly impair vehicle control, especially during cornering or braking.

If you experience any of these symptoms, it is recommended to have your vehicle inspected by a qualified technician to diagnose and resolve the issue.

8. Technical Specifications

9. Warranty and Support

Bilstein products are manufactured to high-quality standards and typically come with a manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary by region and product.

For detailed warranty information, claims, or technical support, please contact Bilstein directly through their official website or an authorized distributor. Keep your proof of purchase for any warranty claims.

Contact Information: Please refer to the official Bilstein website for the most current contact details and support resources.
