Forster Products 308 Winchester Headspace Gauge Set Instruction Manual

1. Introduction and Product Overview

The Forster Products 308 Winchester Headspace Gauge Set provides essential tools for accurately measuring the chamber length of rifles. Proper headspace is critical for both safety and accuracy in firearms. This set includes a 'GO' gauge and a 'NO-GO' gauge, designed to help gunsmiths and firearm enthusiasts verify that a rifle chamber meets industry specifications.

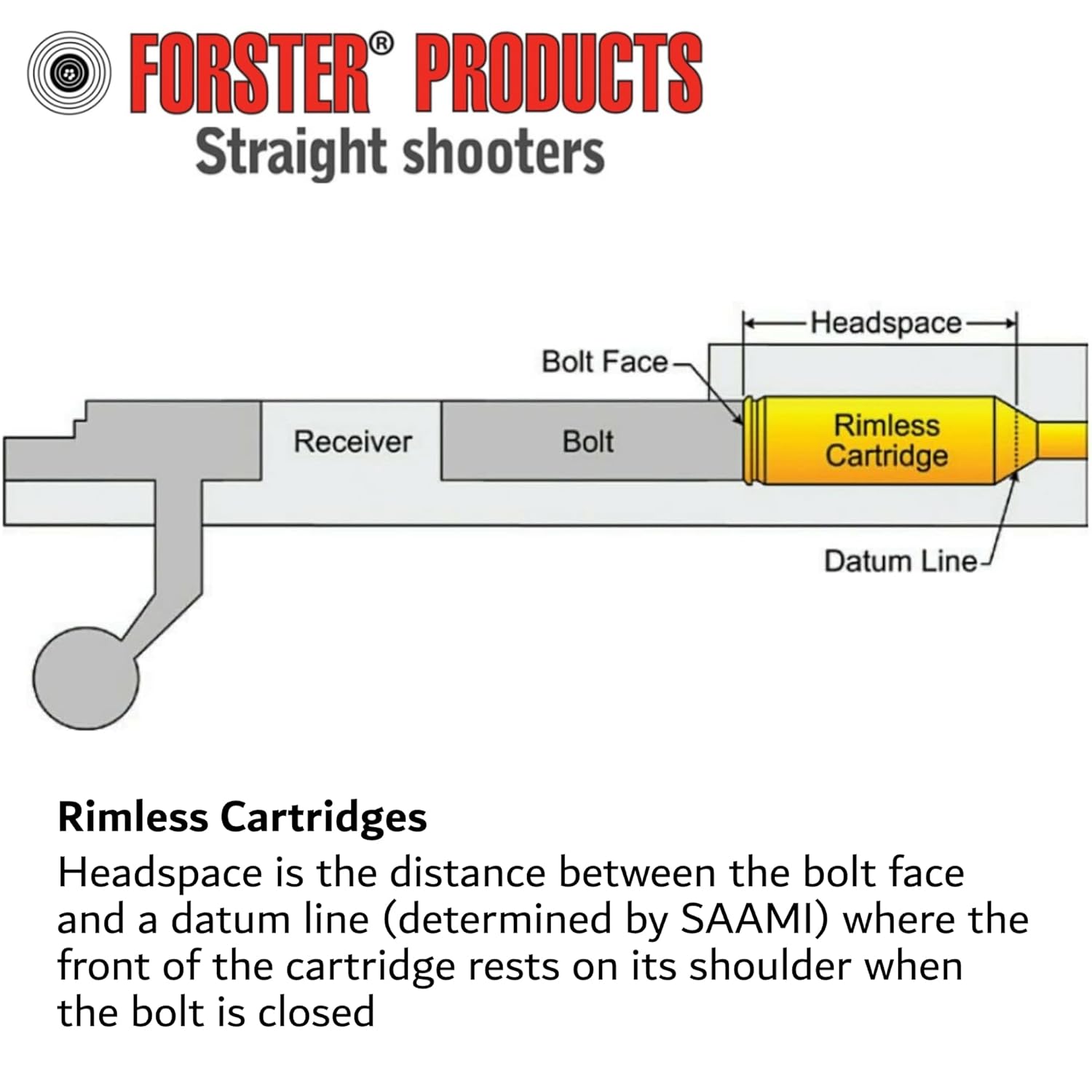

Headspace refers to the distance between the face of the breech and the base of the cartridge when the action is closed. For rimless cartridges, this distance is measured from the bolt face to a datum line on the cartridge shoulder. Excessive headspace can lead to dangerous conditions, such as cartridge case rupture and gas escaping rearward, while insufficient headspace can prevent proper chambering of ammunition.

2. Setup and Preparation

Before using the headspace gauges, ensure the rifle is unloaded and safe. Always follow proper firearm safety procedures.

1. Clean the Chamber: Thoroughly clean the rifle chamber and bore to remove any carbon, fouling, or debris that could interfere with accurate measurement.
2. Remove Extractor and Ejector: For bolt-action rifles, it is generally recommended to remove the extractor and ejector from the bolt face. This ensures that the bolt closes solely on the gauge, without any interference from these components. Consult your rifle's manual for specific instructions on removing these parts.
3. Inspect Gauges: Visually inspect the 'GO' and 'NO-GO' gauges for any signs of damage, wear, or foreign material. Ensure they are clean and free of lubricants.

3. Operating Instructions

The headspace gauges are used to determine if a rifle's chamber length falls within safe and acceptable manufacturing tolerances.

3.1 Using the 'GO' Gauge

• Insert the 'GO' gauge into the rifle chamber.
• Attempt to close the bolt gently.
• Result: If the bolt closes completely and locks without resistance, the chamber meets the minimum specified dimensions. This indicates that the chamber will accept ammunition manufactured to SAAMI (Sporting Arms and Ammunition Manufacturers' Institute) maximum specifications. A rifle should always close on a 'GO' gauge.

3.2 Using the 'NO-GO' Gauge

• Insert the 'NO-GO' gauge into the rifle chamber.
• Attempt to close the bolt gently.
• Result: If the bolt does not close completely and lock, the chamber's headspace is within acceptable limits (between 'GO' and 'NO-GO'). This is the desired outcome for a safe and accurate chamber.
• Important: If the bolt closes completely and locks on the 'NO-GO' gauge, it indicates that the chamber may have excessive headspace. While it might still be within SAAMI specifications, it suggests the chamber is approaching or exceeding the maximum recommended length. Further investigation with a 'FIELD' gauge (not included in this set) would be necessary to determine if the chamber is dangerously oversized.

4. Maintenance

Proper care and maintenance will ensure the longevity and accuracy of your Forster Products headspace gauges.

• Cleaning: After each use, wipe the gauges clean with a soft, lint-free cloth to remove any residue or fingerprints.
• Lubrication: Apply a very light coat of rust-preventative oil to the gauges before storage, especially in humid environments.
• Storage: Store the gauges in their original protective packaging or a dedicated case to prevent damage from impacts or abrasion. Keep them in a dry, temperature-stable environment.
• Avoid Dropping: These are precision instruments. Dropping them can alter their dimensions and compromise their accuracy.

5. Troubleshooting

Understanding potential issues and their implications is crucial for safe firearm operation.

• Bolt Does Not Close on 'GO' Gauge:
  This indicates that the rifle chamber is too tight or short. Do not force the bolt. This condition can lead to ammunition not fully chambering or excessive pressure if forced. Consult a qualified gunsmith for inspection and correction.
• Bolt Closes on 'NO-GO' Gauge:
  This suggests that the rifle chamber has excessive headspace. While it might still be within SAAMI maximum specifications, it is a warning sign. This condition can lead to unsafe operation, including case head separation and gas leakage. It is strongly recommended to have the rifle inspected by a qualified gunsmith. A 'FIELD' gauge (not included in this set) would be used to determine if the headspace is dangerously beyond SAAMI maximums.

6. Specifications

7. Warranty and Support

For specific warranty information regarding your Forster Products 308 Winchester Headspace Gauge Set, please refer to the documentation included with your purchase or visit the official Forster Products website. For technical support, product inquiries, or assistance with any issues, please contact Forster Products directly through their official channels.
