EBL NQ005 Smart USB Charger Instruction Manual

1. Introduction

Thank you for choosing the EBL NQ005 Smart USB Charger. This manual provides detailed instructions for the safe and efficient use of your charger. Please read this manual thoroughly before operation and retain it for future reference.

Package Contents:

• EBL NQ005 Battery Charger x1
• Micro USB Cable x1
• User Manual x1

2. Important Safety Instructions

To ensure safe operation and prevent damage, please observe the following precautions:

• This charger is designed exclusively for Ni-MH and Ni-CD AA/AAA rechargeable batteries. Do not attempt to charge other battery types, such as alkaline, carbon-zinc, or lithium batteries, as this may lead to explosion, rupture, or leakage.
• Do not disassemble, modify, or repair the charger.
• Keep the charger away from water, moisture, and high temperatures.
• Avoid short-circuiting the battery terminals.
• Do not expose the charger to direct sunlight or extreme heat.
• Ensure proper polarity (+/-) when inserting batteries into the charger.
• Keep out of reach of children and pets. The charger features a protective cover to help prevent accidental contact.
• Unplug the charger from the power source when not in use.
• Do not mix different types, brands, or capacities of batteries in the charger simultaneously.

3. Product Overview

The EBL NQ005 is a compact and intelligent USB charger designed for Ni-MH and Ni-CD AA/AAA rechargeable batteries. It features a 5V/1A USB input, allowing for flexible charging from various USB power sources.

Image 1: The EBL NQ005 Smart USB Charger, a compact device for charging AA and AAA rechargeable batteries.

Key Features:

• iQuick Technology: Enables fast charging for AA/AAA batteries.
• Unique USB Design: 5V/1A USB input for compatibility with various USB power sources (e.g., power banks, adapters, solar chargers).
• Advanced MCU Control System: Features intelligent △V and -△V cut-off charging mode, automatic trickle charging, and protection against overvoltage, overcurrent, and overheating.
• LED Indicators: Clearly shows charging status (Red for charging, Green for fully charged).
• Multi-Protection: Built-in safeguards against over-charge, over-current, over-voltage, over-heat, and short-circuit.

Image 2: Diagram illustrating the multi-protection features of the EBL NQ005 charger, including over-charge, over-current, over-voltage, over-heat, and short-circuit protection.

Image 3: The EBL NQ005 charger demonstrating its mini-size and portability, easily fitting into a bag for travel.

4. Setup

To begin using your EBL NQ005 charger, follow these steps:

1. Connect the Micro USB end of the provided cable to the input port on the charger.
2. Connect the standard USB-A end of the cable to a 5V/1A USB power source, such as a USB wall adapter, power bank, computer USB port, or car charger.
3. The charger is now ready for battery insertion.

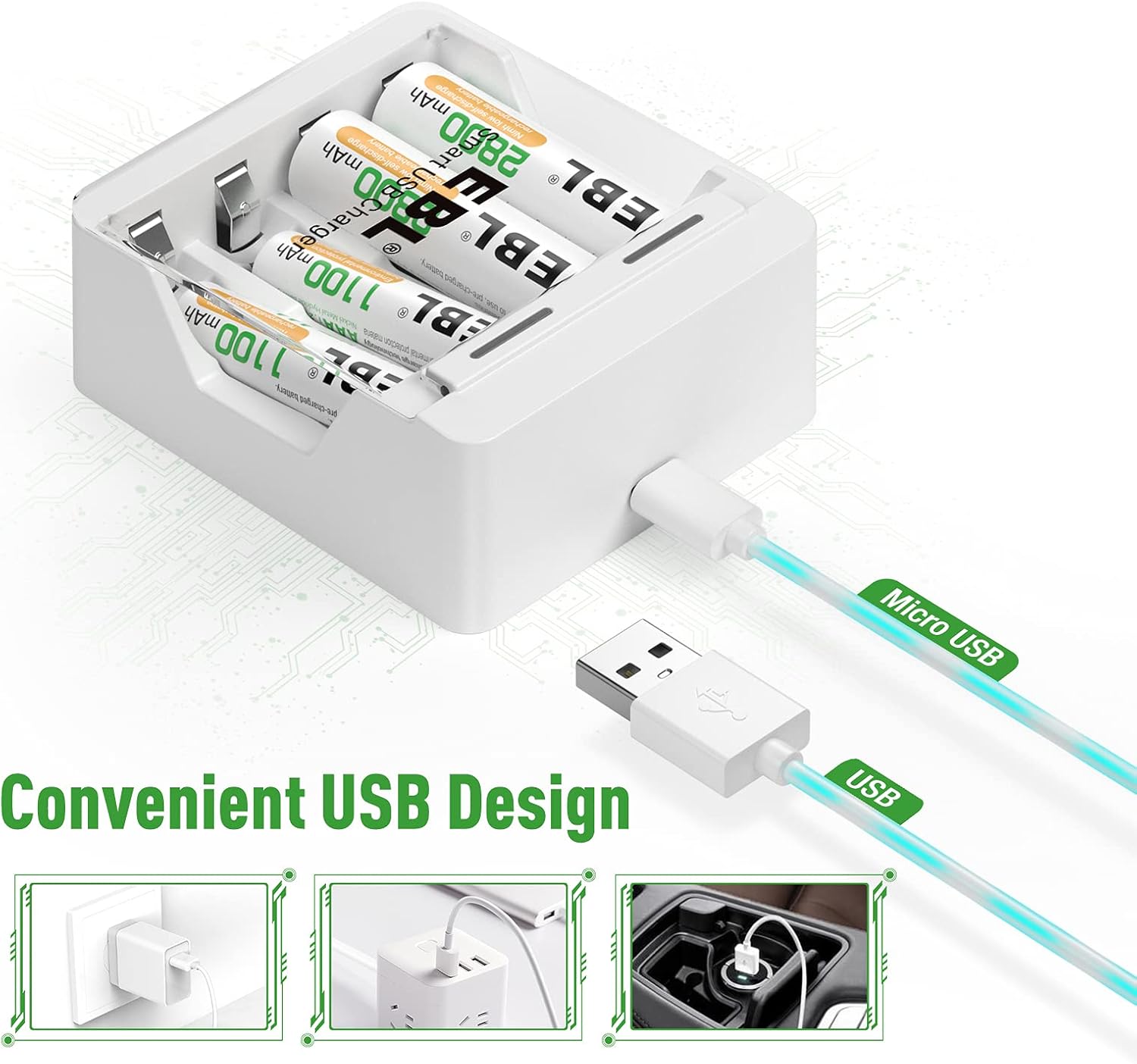

Image 4: The EBL NQ005 charger connected via its Micro USB input, illustrating its compatibility with various USB power sources like wall adapters, power banks, and car chargers.

5. Operating Instructions

Inserting Batteries:

1. Open the protective cover of the charger.
2. Insert 2 or 4 AA or AAA Ni-MH/Ni-CD rechargeable batteries into the charging slots. Ensure correct polarity (+ and -) as indicated on the charger.
3. The charger can charge 2 or 4 batteries simultaneously.

Image 5: The EBL NQ005 charger with AA and AAA batteries inserted, demonstrating its capability to charge 2 or 4 Ni-MH/Ni-CD batteries.

Charging Process:

• Once batteries are correctly inserted and the charger is connected to a power source, the LED indicator above each pair of slots will illuminate RED, indicating that charging is in progress.
• When the batteries are fully charged, the LED indicator will turn GREEN.
• The charger employs an intelligent control system that automatically stops charging when batteries are full, preventing overcharging.

Image 6: The EBL NQ005 charger showing its LED indicators: Red light signifies charging, and Green light indicates fully charged batteries.

Approximate Charging Times:

• Approximately 2.3-2.5 hours to fully charge 4 AAA 1100mAh batteries.
• Approximately 2.5-2.8 hours to fully charge 4 AA 2300mAh batteries.

Image 7: Graphic illustrating the fast charging capability of the EBL NQ005 charger, showing a 3-hour charging time for AA and AAA batteries with specified output currents.

6. Maintenance

• Cleaning: Disconnect the charger from the power source before cleaning. Use a soft, dry cloth to wipe the surface of the charger. Do not use liquid cleaners or solvents.
• Storage: Store the charger in a cool, dry place away from direct sunlight and extreme temperatures when not in use.
• Battery Care: For optimal battery life, avoid completely draining batteries before recharging.

7. Troubleshooting

Problem: The LED indicator does not light up when batteries are inserted.

• Ensure the Micro USB cable is securely connected to both the charger and the power source.
• Verify that the USB power source is active and providing 5V/1A output.
• Check if the batteries are inserted with correct polarity (+/-).
• Confirm that the batteries are Ni-MH or Ni-CD rechargeable types. Non-rechargeable batteries will not charge.
• The batteries might be completely discharged or damaged. Try charging different batteries.

Problem: Batteries are charging slowly.

• Ensure your USB power source can provide at least 1A output. Lower current USB ports (e.g., some computer USB 2.0 ports) may result in slower charging.
• Charging time varies based on battery capacity. Higher capacity batteries will take longer to charge.

Problem: LED indicator remains red after extended charging time.

• The battery might be faulty or at the end of its lifespan. Try charging a different battery.
• Ensure the battery capacity matches the expected charging time.

8. Specifications

9. Warranty and Support

EBL products are manufactured to high-quality standards. For warranty information or technical support, please refer to the warranty card included with your purchase or visit the official EBL website for customer service contact details. Please have your model number (EBL-NQ005) and purchase information ready when contacting support.
