vidaXL Washing Machine Pedestal with Drawer

1. Introduction

This manual provides essential information for the safe and correct assembly, operation, and maintenance of your vidaXL Washing Machine Pedestal with Drawer. This pedestal is designed to elevate your washing machine, providing a more ergonomic working height and additional storage space. Please read these instructions carefully before assembly and use, and retain them for future reference.

Image 1: Washing machine on the vidaXL pedestal with drawer.

2. Safety Information

• Maximum Load Capacity: Do not exceed the maximum load capacity of 100 kg. Overloading can lead to instability and damage.
• Stable Surface: Always place the pedestal on a flat, level, and stable surface. Uneven surfaces can cause the washing machine to vibrate excessively and become unstable.
• Secure Placement: Ensure the washing machine is centered and securely placed on the pedestal. The anti-slip pads are designed to help maintain stability.
• Assembly: Assembly should be performed by adults. Keep children and pets away from the assembly area.
• Tools: Use appropriate tools for assembly. Ensure all screws and fasteners are tightened securely.
• Regular Checks: Periodically check all connections and the overall stability of the pedestal, especially after moving the washing machine or pedestal.
• Drawer Use: Do not overload the drawer. Ensure the drawer is closed before operating the washing machine to prevent accidental opening during vibration.

3. Package Contents

Before beginning assembly, verify that all parts are present and undamaged. If any parts are missing or damaged, contact vidaXL customer support.

Image 2: Exploded view of pedestal components.

• Main Frame Components (legs, crossbars)
• Drawer Components (front, back, sides, bottom)
• Drawer Slides
• Handle for Drawer
• Anti-slip Pads / Rubber Feet
• Assembly Hardware (screws, bolts, nuts, washers)
• Assembly Tools (e.g., Allen key, wrench - may not be included)

4. Setup and Assembly Instructions

Follow these steps carefully to assemble your washing machine pedestal. It is recommended to assemble the unit on a soft, clean surface to prevent scratches.

1. Prepare Components: Unpack all parts and lay them out. Refer to Image 2 to identify each component.
2. Assemble the Main Frame: Connect the leg sections to the crossbars using the provided screws and bolts. Ensure all connections are firm but do not fully tighten until the frame is complete.
3. Install Drawer Slides: Attach the drawer slides to the inner sides of the main frame according to the pre-drilled holes. Ensure they are level and aligned for smooth drawer operation.
4. Assemble the Drawer: Connect the front, back, and side panels of the drawer. Secure the bottom panel. Attach the remaining parts of the drawer slides to the sides of the assembled drawer. Install the handle on the drawer front.
5. Insert the Drawer: Carefully slide the assembled drawer into the main frame, aligning the drawer slides. Test the drawer's movement to ensure it slides smoothly.
6. Attach Anti-slip Pads/Rubber Feet: Secure the anti-slip pads or rubber feet to the bottom of the pedestal legs. These prevent scratching your floor and enhance stability.
7. Final Tightening: Once the entire structure is assembled, go back and securely tighten all screws and bolts.
8. Placement: Position the assembled pedestal in its desired location. Ensure the floor is clean, dry, and level.
9. Place Washing Machine: Carefully lift and place your washing machine onto the top surface of the pedestal. Ensure it is centered and stable on the anti-slip pads.

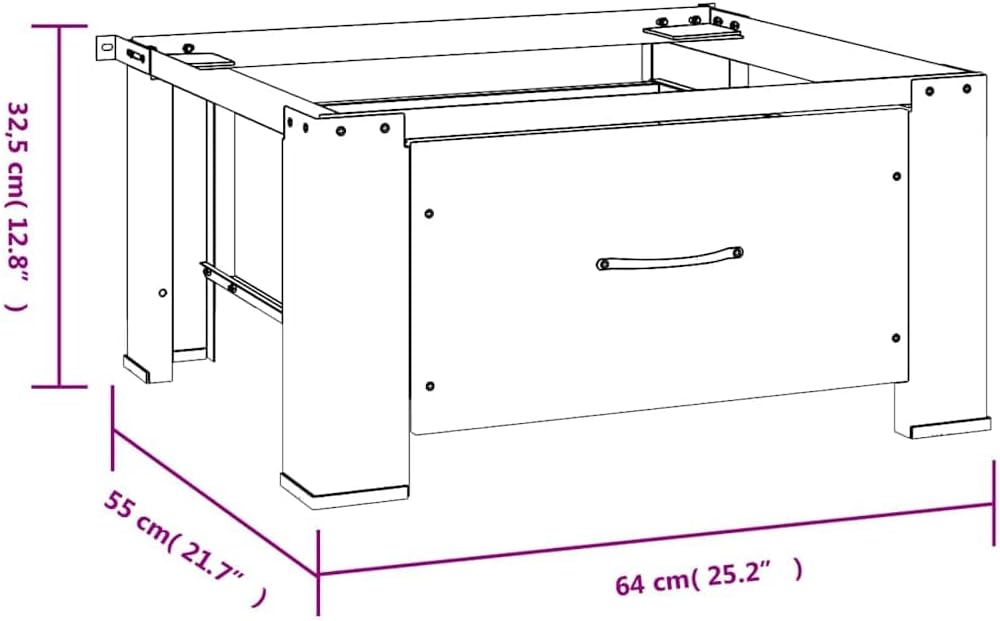

Image 3: Pedestal dimensions.

Image 4: Front view of the assembled pedestal with drawer closed.

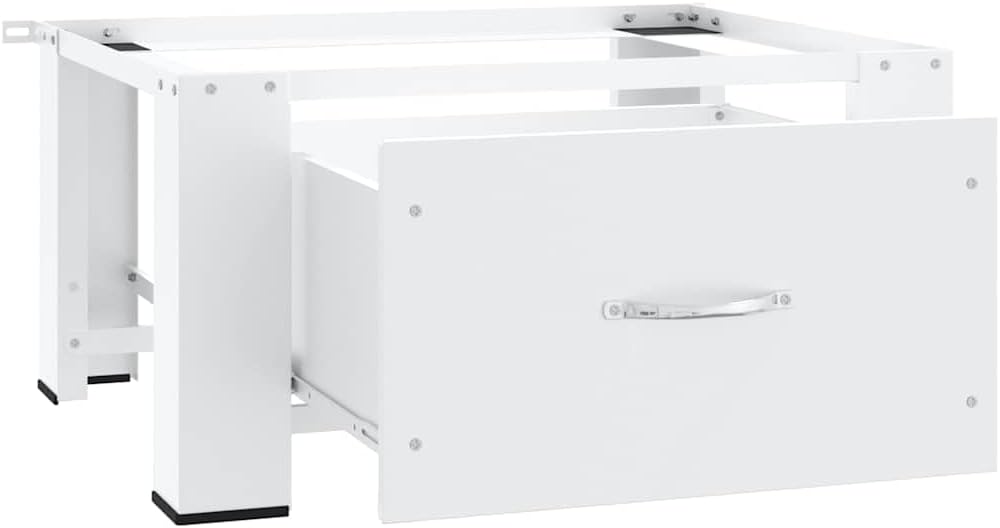

Image 5: Angled view of the assembled pedestal with drawer open.

5. Operating Instructions

• Washing Machine Placement: Ensure your washing machine is correctly positioned on the pedestal, with its feet resting firmly on the anti-slip pads.
• Drawer Usage: The integrated drawer provides convenient storage for laundry detergents, fabric softeners, or other small items. Pull the handle to open and push to close.
• Weight Distribution: When loading the washing machine, distribute the laundry evenly to minimize vibrations, which can affect the stability of the pedestal.
• Stability Check: Before each use, especially if the washing machine has been moved, gently push on the washing machine to confirm it is stable on the pedestal.

6. Maintenance

• Cleaning: Clean the pedestal regularly with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Fastener Check: Periodically inspect all screws and bolts to ensure they remain tight. Re-tighten if necessary to maintain structural integrity.
• Anti-slip Pads: Check the condition of the anti-slip pads and rubber feet. Replace them if they show signs of wear or damage to ensure continued stability and floor protection.
• Drawer Slides: If the drawer becomes stiff, clean the slides and apply a small amount of silicone lubricant if needed.

7. Troubleshooting

• Pedestal is unstable or wobbles:
  • Ensure the pedestal is on a perfectly level surface. Adjust the washing machine's feet if it has adjustable leveling feet.
  • Verify that all assembly screws and bolts are securely tightened.
  • Confirm the washing machine is centered on the pedestal and its weight is evenly distributed.
• Drawer does not slide smoothly:
  • Check for any obstructions in the drawer slides.
  • Ensure the drawer slides were installed correctly and are aligned.
  • Clean the drawer slides and apply a small amount of silicone-based lubricant if necessary.
• Scratches on the floor:
  • Verify that the rubber feet or anti-slip pads are correctly installed and are not damaged.
  • Avoid dragging the pedestal; always lift it when moving.

8. Specifications

9. Warranty and Support

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support, missing parts, or any other inquiries, please contact vidaXL customer service through their official website or the contact details provided with your product.
